Buy BMW X5 Tail Light Assembly

Quick Summary

The BMW X5 tail light-also called a rear lamp, brake-light assembly, or tail-lamp cluster-is an LED-based safety part that shows drivers behind you when you are stopping, turning, or backing up. Over four X5 generations (E53, E70, F15, G05) the housing changed shape, switched from bulbs to LEDs, and added modern X-shaped light bars for 2024-up models; but every version must meet Federal Motor Vehicle Safety Standard 108 for brightness, color, and placement. (NHTSA)

Generations

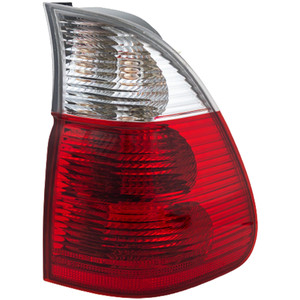

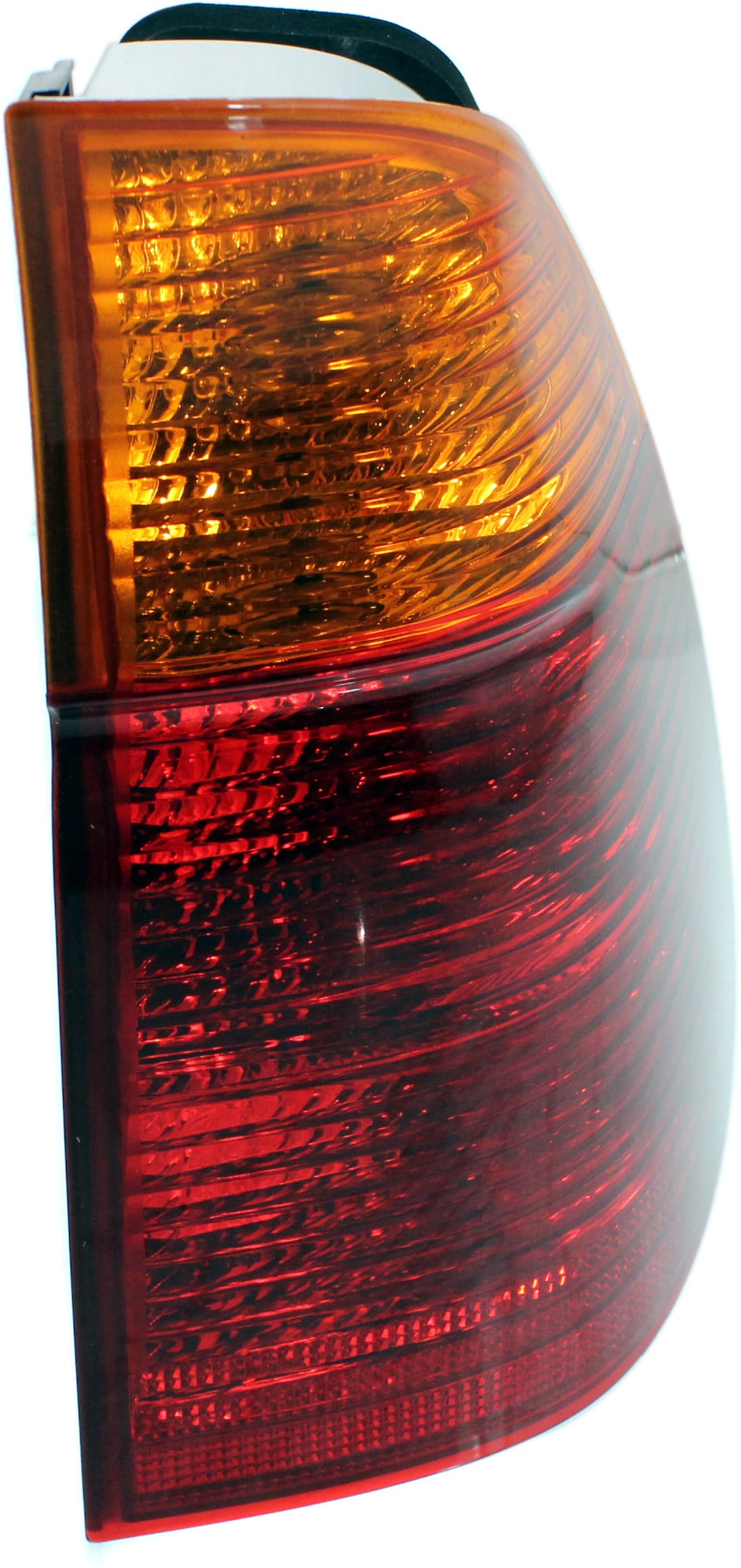

• E53 (1999-2006) - used traditional 21-watt bulbs (P21W/PY21W) in a split two-piece housing. (ManualsLib)

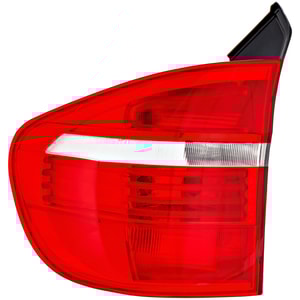

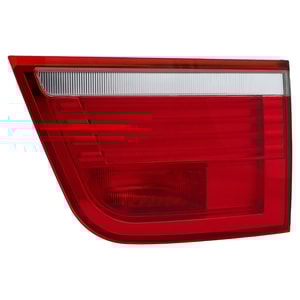

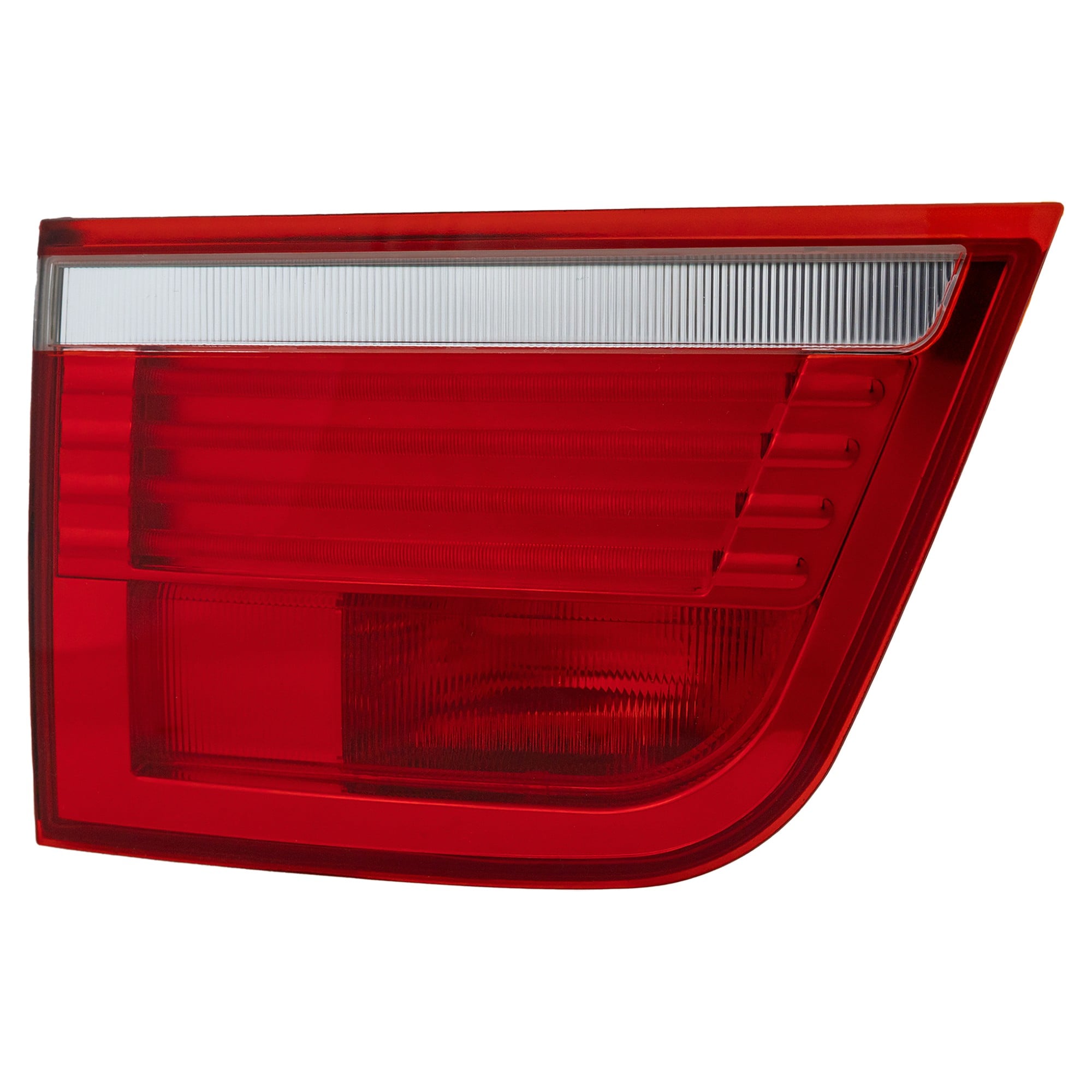

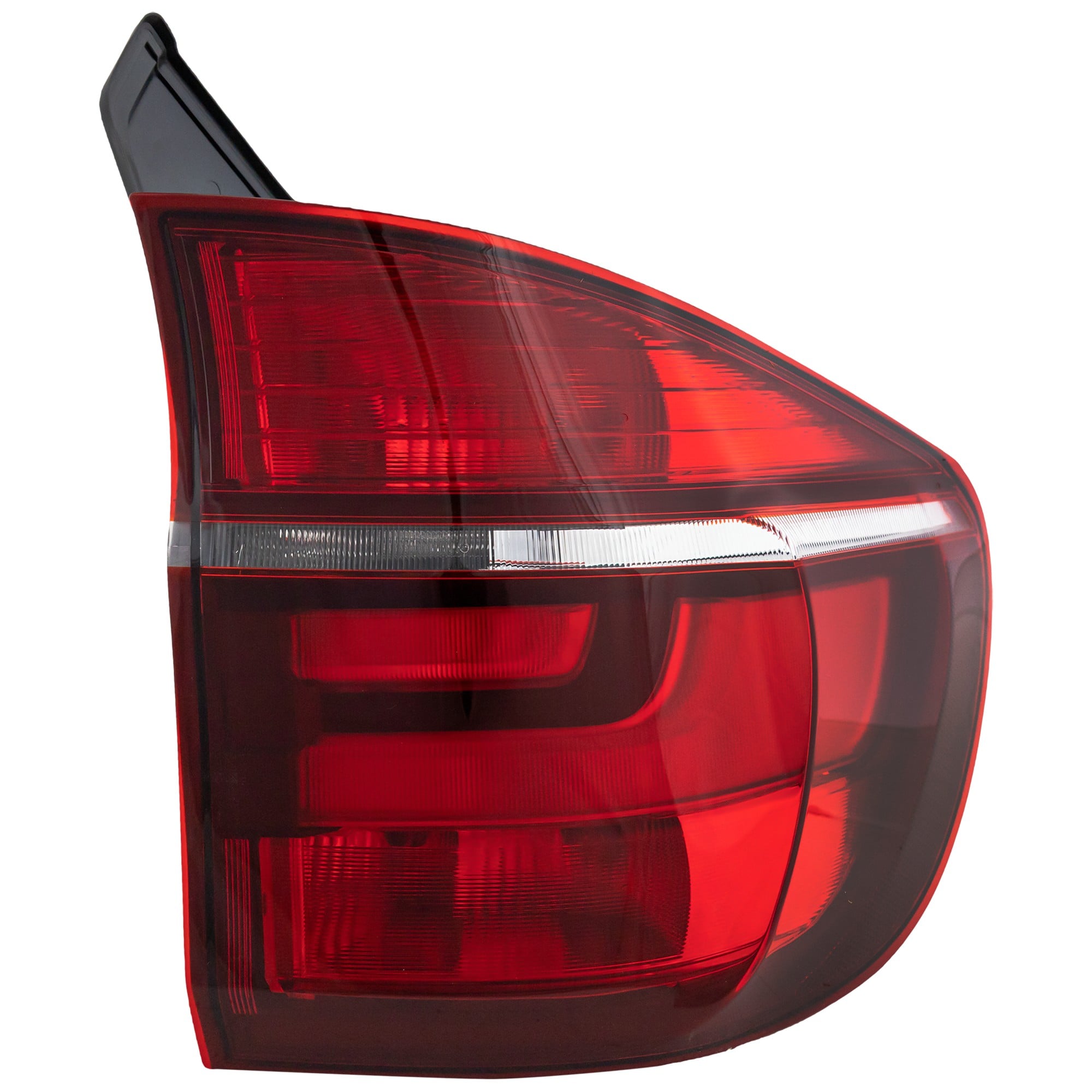

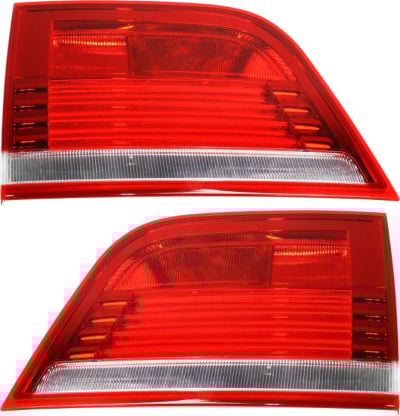

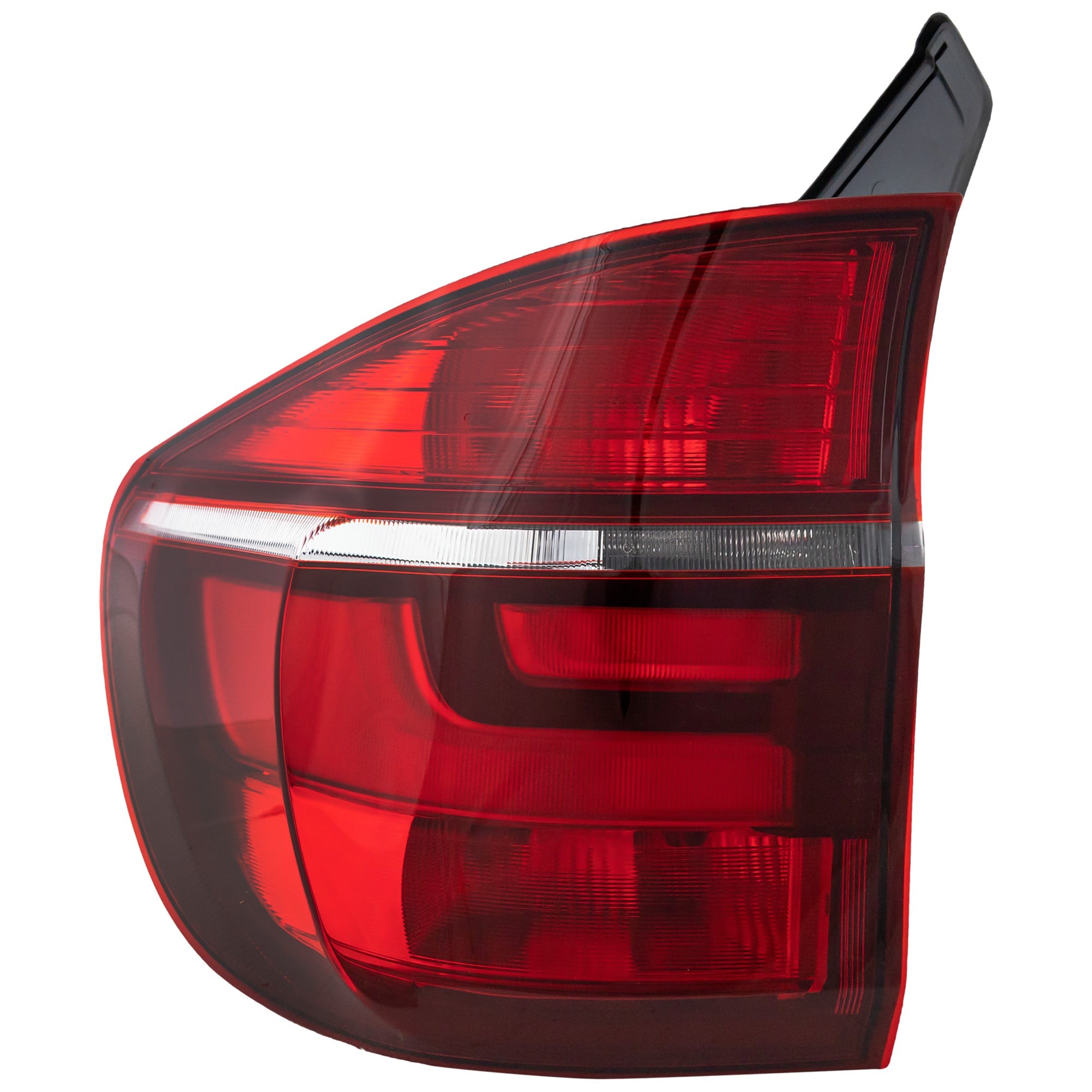

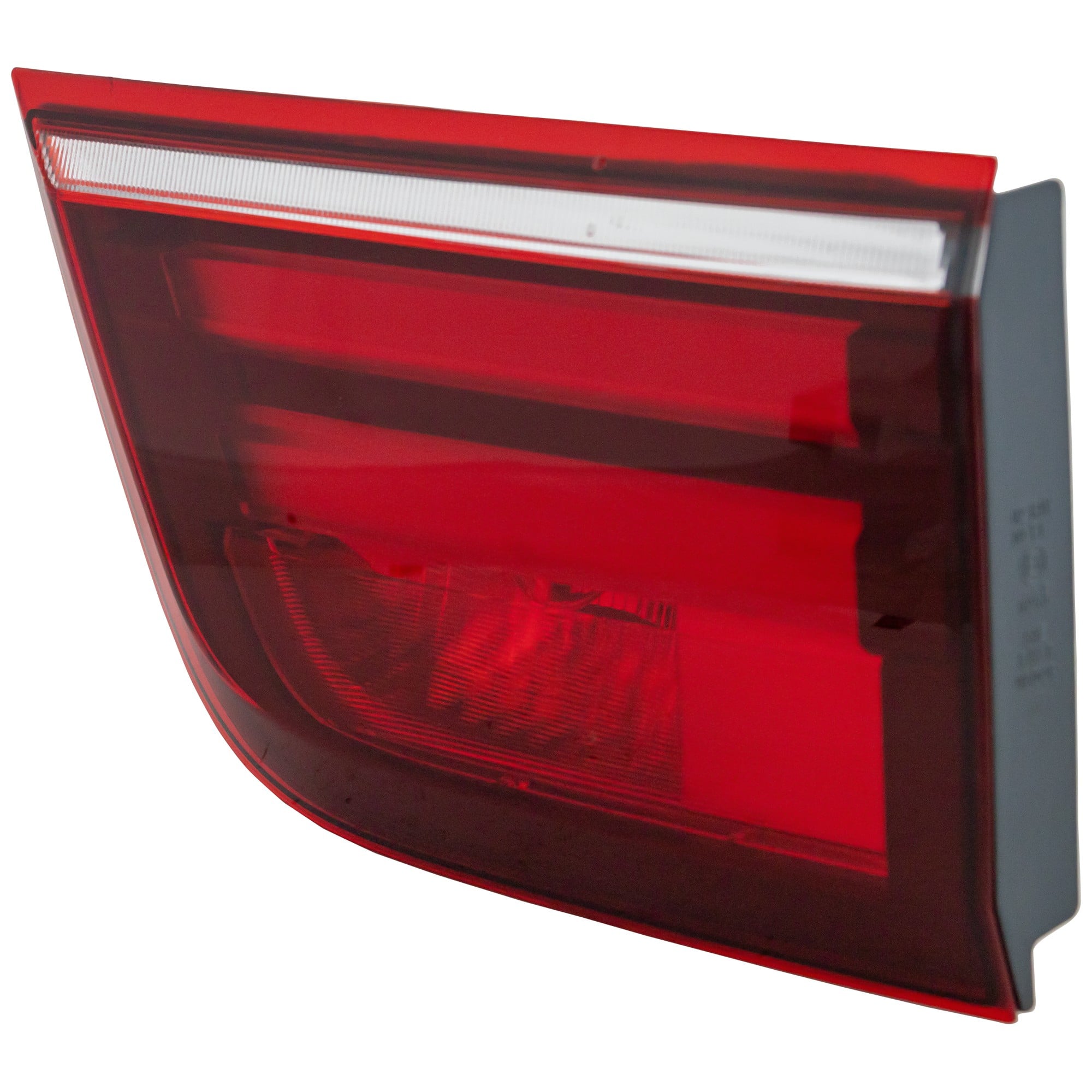

• E70 (2007-2013) - first X5 with optional LED light-bar "LCI" upgrade; many owners retrofit these for a fresher look. (Bayoptiks)

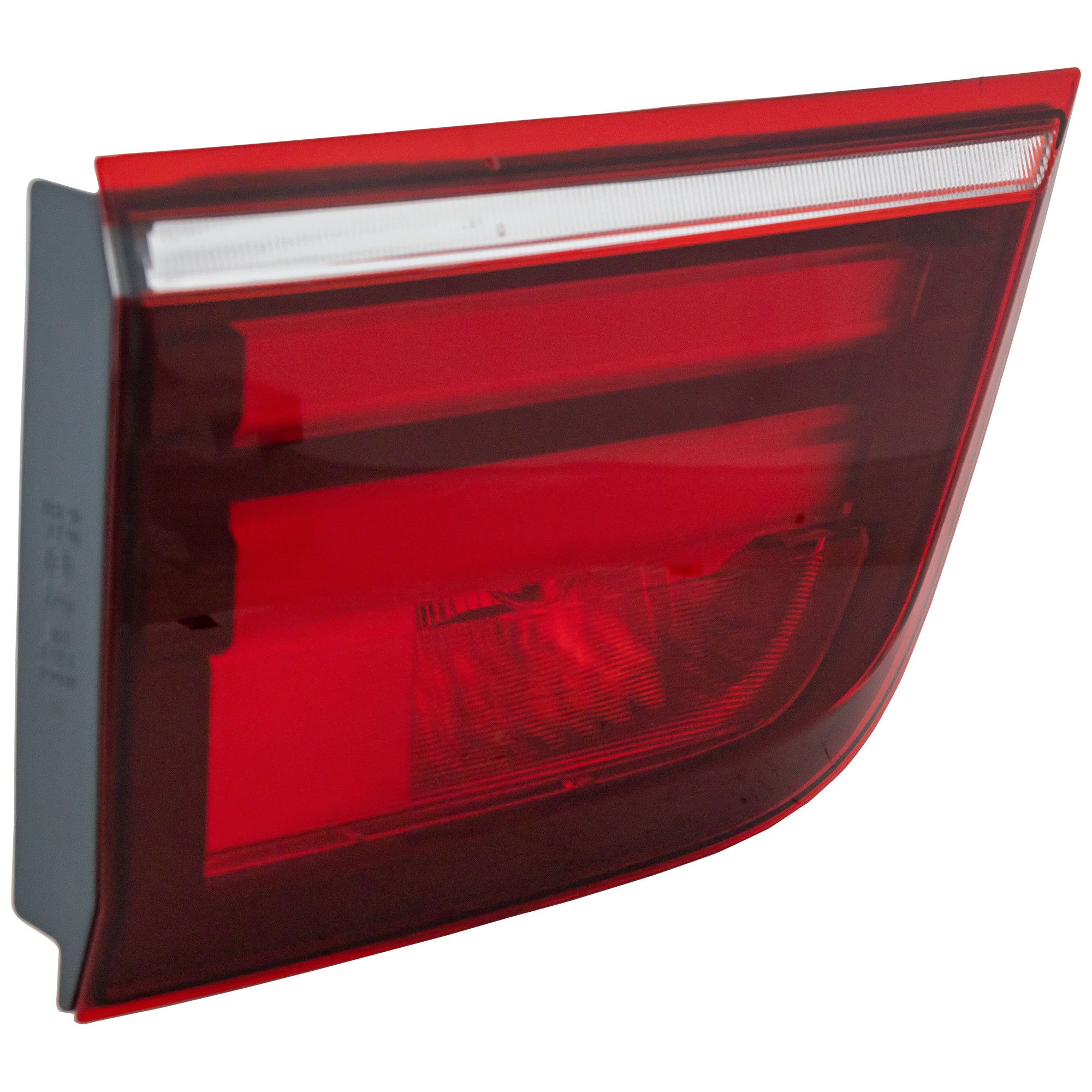

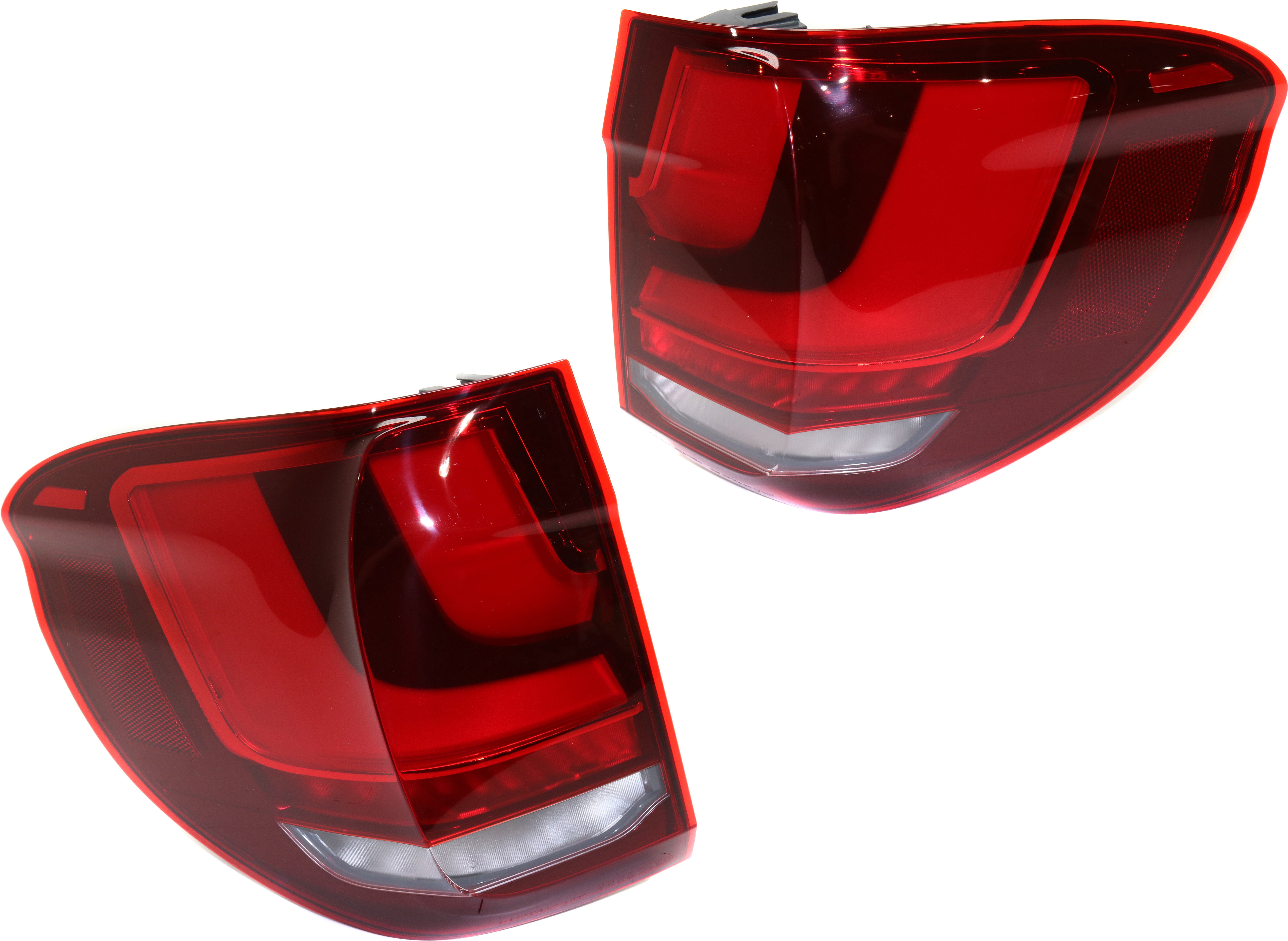

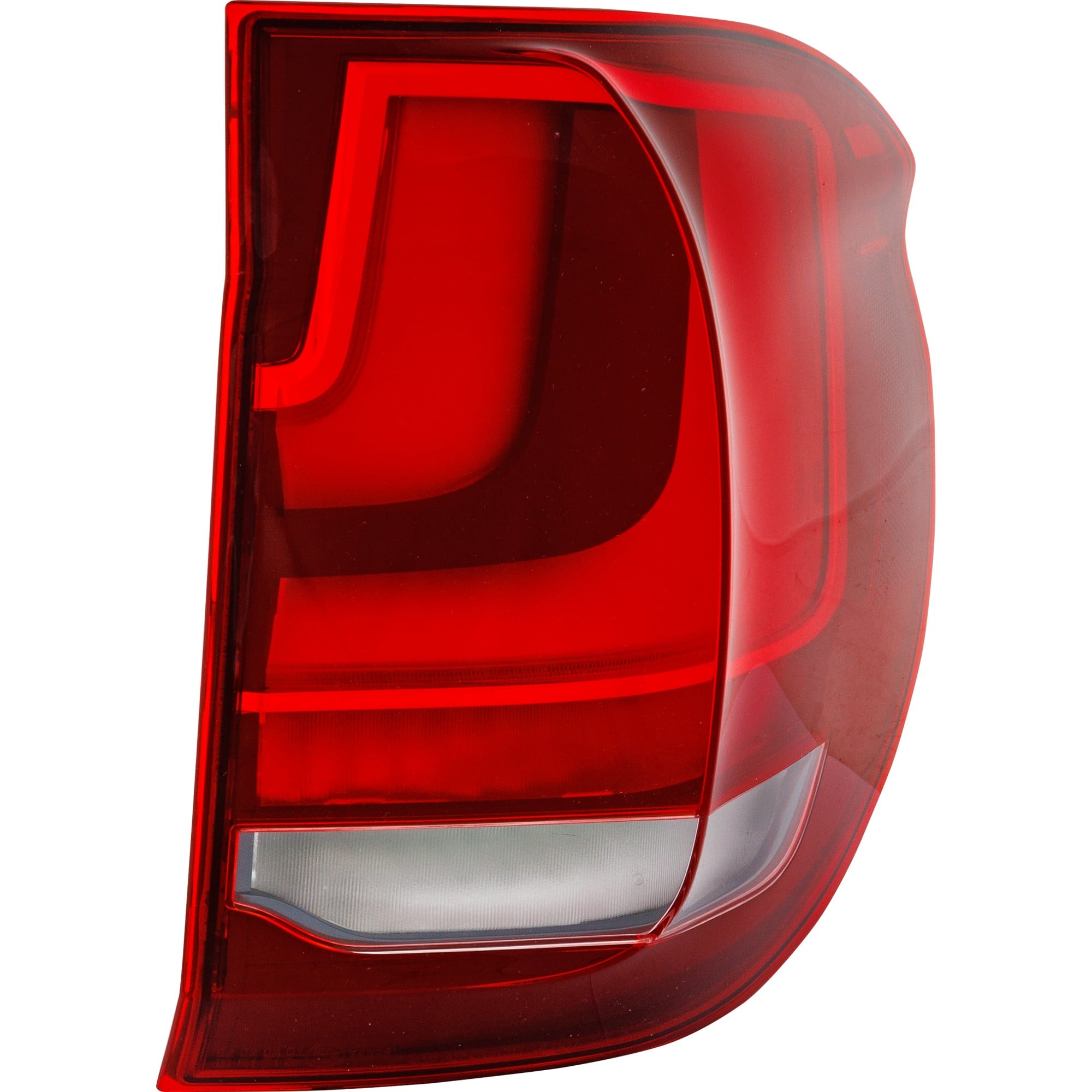

• F15 (2014-2018) - all-LED factory lamps with clearer lenses and sleeker inner segments. (BMW USA)

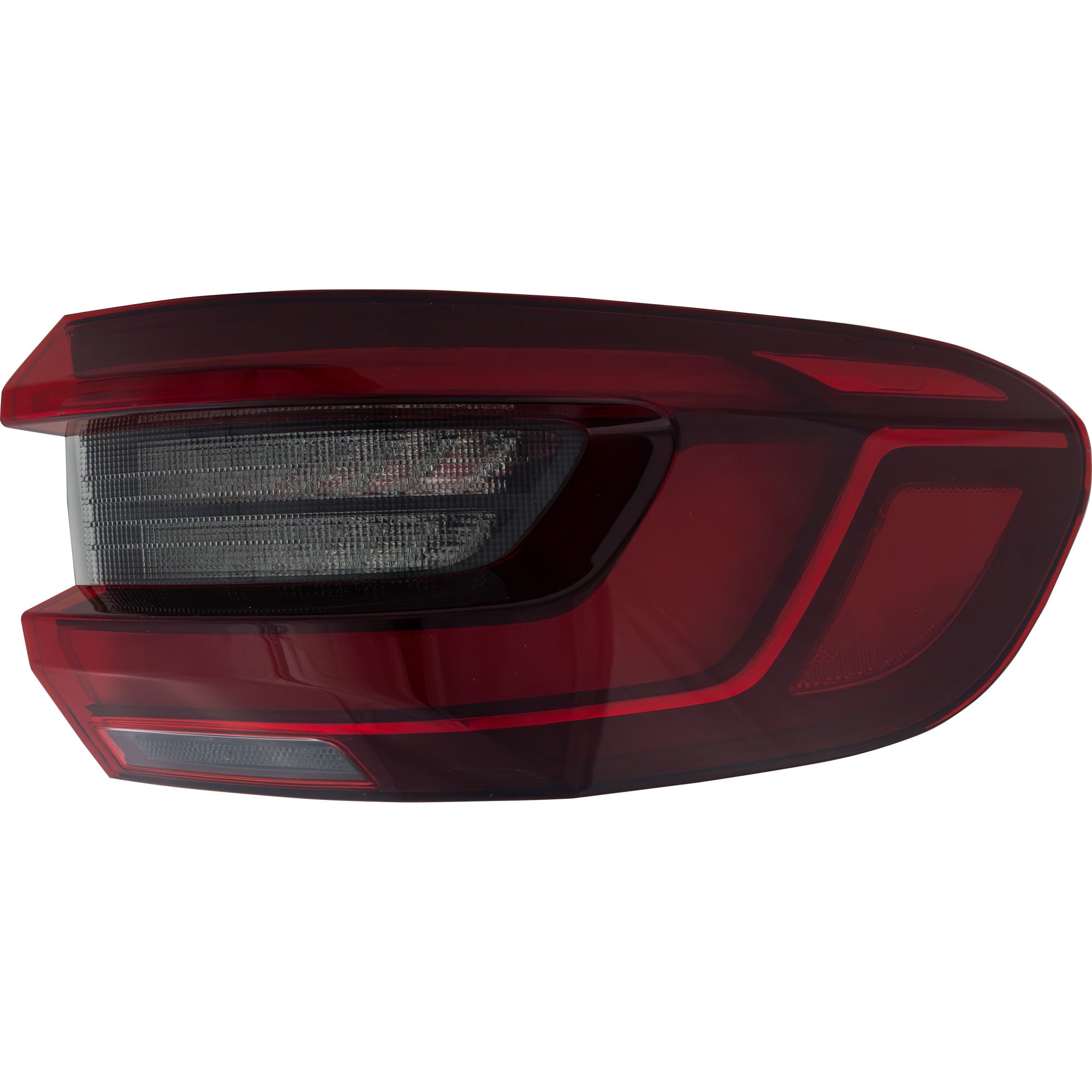

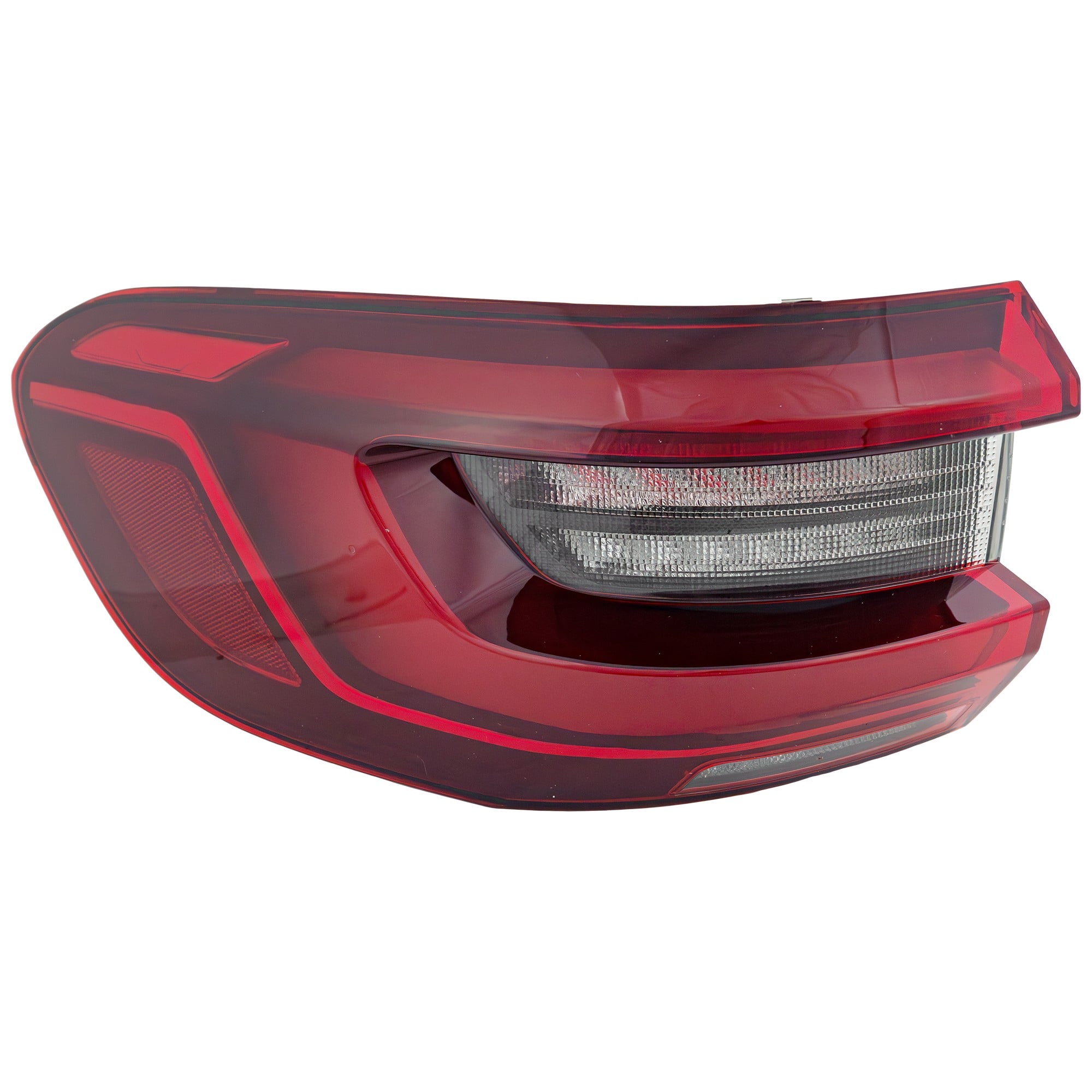

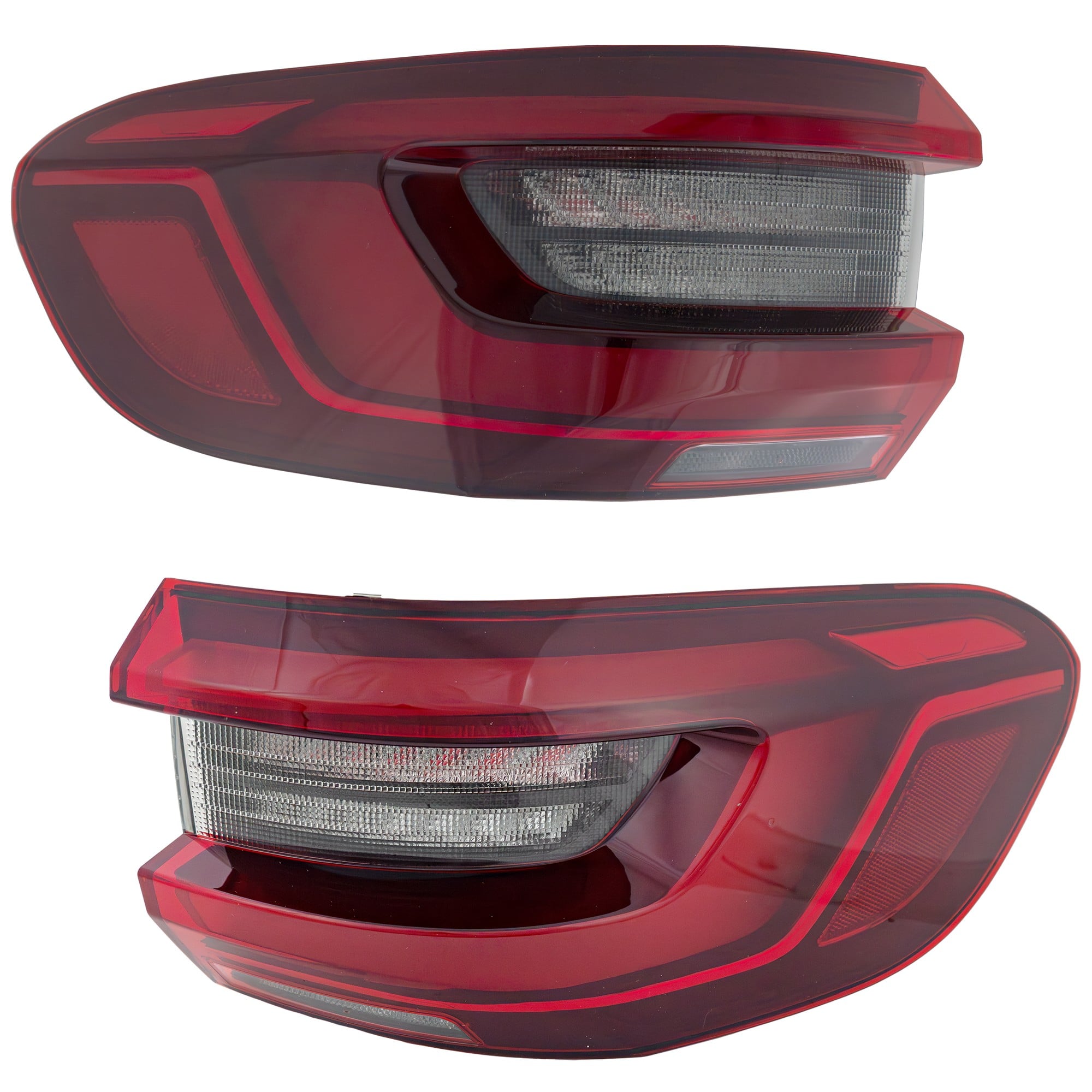

• G05 (2019-present) - standard LED rear combination lamps; the 2024 LCI added a bold X-shaped signature across the lens. (BMW BLOG)

Light Functions

A "tail light assembly" actually combines five jobs: running lamp, stop lamp, turn signal, reverse lamp, and side-marker reflector. LED diodes switch 200 ms faster than older bulbs, giving following drivers roughly 15-30 ft more stopping room at highway speed. (NHTSA, NHTSA)

Materials

Modern X5 housings use UV-stable polycarbonate lenses bonded to ABS or PP carriers and sealed with butyl rubber gaskets. Improper seals let moisture enter, leading to condensation, corrosion on circuit boards, and flickering LEDs. (motorsportconnections.com, Bimmerfest)

Common Problems

• Water ingress-visible fogging inside the lens. Dry the lamp, reseal the gasket, and add a vent patch. (Bimmerfest, Bimmerfest)
• Loose lamp warning-BMW issued recall No. 19V-074 for certain SAVs where mounting brackets could loosen. (NHTSA)
• Connector corrosion-earlier 5-Series recall shows similar rear-light pin oxidation; inspect X5 harnesses the same way. (BMW BLOG)

Bulb & LED Specs

Older E70 pre-LCI lamps use PY21W turn bulbs and W16W parking bulbs. (ManualsLib) Newer generations are sealed LED boards; brightness equals roughly a 25-watt incandescent while drawing under 5 watts. (BMW USA)

Safety Rules

FMVSS 108 in the U.S. and ECE R48 in Europe define intensity, color (red for stop, amber for turn), and minimum separation between functions. Non-compliant tinted overlays that dim output below spec can attract citations. (NHTSA)

Maintenance Tips

1. Wash lenses with mild soap; avoid ammonia cleaners that cloud plastic.
2. Check seals twice a year; replace torn gaskets early. (motorsportconnections.com)
3. Apply dielectric grease to connectors when reinstalling.
4. Keep trunk drains clear so water does not pool near wiring. (Bimmerfest)

DIY Installation

Replacing a tail-lamp on most X5 models is a 20-minute job:

1. Open the lift-gate and remove the trim cap over the lamp's Torx screws.
2. Unplug the multi-pin connector.
3. Slide the housing straight back-do not twist.
4. Seat the new lamp; torque screws snug, not tight.
5. Run a quick lamp-check in iDrive or with the brake pedal. (YouTube)

Styling Upgrades

Owners often retrofit LED "LCI" or smoked lenses for a modern look; aftermarket covers exist in clear, tint, or blackout films specifically cut for the 2024+ X5 40i/50e. (Lamin-x)

Environment

LEDs last 10-15 years and cut current draw by 70 %, helping overall fuel-economy and battery health. Less heat also means lenses stay clearer over time. (MotorTrend)

Frequently Asked Questions

Q: What does a tail light do?
A: It shows other drivers where your BMW X5 is and what you plan to do-brake, turn, or reverse-especially at night. (NHTSA)

Q: Are all X5 tail lights LED?
A: Every F15 (2014-18) and G05 (2019-up) X5 uses factory LEDs; earlier E53/E70 models use bulbs unless upgraded. (BMW BLOG, ManualsLib)

Q: Why is there fog in my lamp?
A: Moisture enters through cracked seals; drying the unit and replacing the gasket fixes it. (motorsportconnections.com)

Q: Will driving with a cracked lens fail inspection?
A: Yes-U.S. states and many countries require lenses be intact and red; cracks can also let water short the circuit. (BMW USA)

Q: Do LED tail lights really light faster?
A: Studies show LEDs illuminate about 0.2-0.3 seconds sooner, giving following drivers up to 30 ft more stopping distance at 60 mph. (NHTSA, NHTSA)

Q: Can I tint my tail lights?
A: Light smoke films are legal if brightness still meets FMVSS 108; dark tints that reduce visibility can be illegal. (NHTSA)

Q: What bulb fits a 2013 X5 brake lamp?
A: Use a P21W (1156) 21-watt bulb; confirm wattage in your owner's manual. (ManualsLib)

Q: My dash shows "rear lamp malfunction." What now?
A: Check for water in the housing and inspect the harness connector; corrosion or a loose pin is common. (Bimmerfest)

Q: Are there recalls on X5 tail lights?
A: BMW lists open recalls-enter your VIN at their recall portal. Some X1-X5 lamps built in 2018-19 were recalled for loose mounting points. (NHTSA)

Q: How long do LEDs last?
A: Factory LEDs are rated for 30,000 hours, often lasting the life of the vehicle under normal use. (MotorTrend)
