Key Points

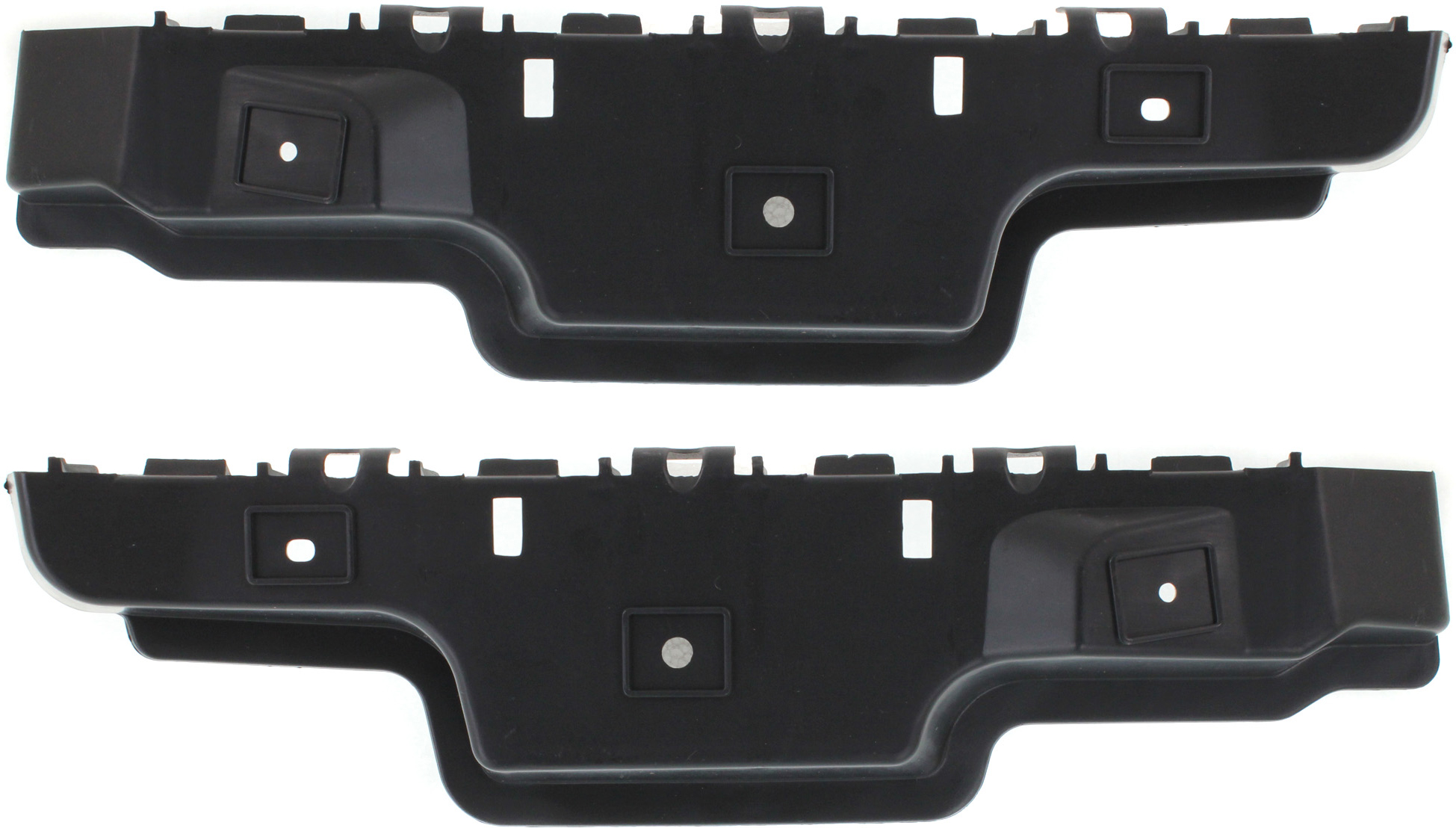

Cadillac SRX bumper brackets are small plastic or steel braces that lock the front or rear bumper cover (also called the fascia) to the body of the SUV. They stop the cover from sagging, rattling, or popping loose in a low-speed bump. Strong brackets also help the bumper beam line up with federal damage-control tests, so even a minor clip in a parking lot does not turn into an expensive repair. Models built from 2004-2009 (first generation) use different brackets than the 2010-2016 generation, so always match the model year before ordering. (Wikipedia, Folsom Chevy Parts)

Vehicle Fit

• First-gen SRX SUVs ran from model year 2004 through 2009. Second-gen ran 2010-2016. Always choose brackets built for the right generation because bolt patterns and clip shapes changed. (Wikipedia)
• Outer fascia brackets are usually sold in "left-hand" (driver) and "right-hand" (passenger) versions. Center reinforcement brackets sit below the grille. (Folsom Chevy Parts)

What It Does

• A bumper bracket (also called a bumper support, retainer, or mounting brace) holds the flexible bumper skin in place, keeping panel gaps even and stopping wind noise. (Wikipedia)
• It also lines up the bumper beam so the whole system meets U.S. bumper-damage tests at 1.5-2.5 mph. (eCFR, NHTSA)

Why Replace

• Plastic clips can crack from sun, vibration, or a parking-lot tap, letting the bumper hang or rub the tire. (YourMechanic)
• A bent or missing bracket may keep the bumper from absorbing energy the way engineers planned, raising repair costs after even tiny hits. (ScienceDirect)

Damage Signs

• Corner of the bumper sticks out or wiggles when pushed.
• Visible gap between bumper and fender.
• Buzzing or rattling over bumps.
• Splash-shield screws no longer line up. (YourMechanic, YouTube)

Materials

• Most SRX brackets are injection-molded ABS plastic-lightweight, rust-free, and able to flex a few millimeters without cracking. (ScienceDirect)
• Some center supports use stamped steel for higher strength. Engineers balance weight and impact performance when choosing the mix. (ScienceDirect)

DIY Steps

1. Disconnect battery (good practice whenever working near airbags).
2. Remove plastic push-pins and 7 mm & 10 mm screws from wheel-liner edge.
3. Unclip the bracket tabs by gently prying toward the wheel well.
4. Swap in the new bracket; finger-start all screws, then tighten in sequence.
5. Re-install bumper cover, lining up guide pins before snapping it home. (YouTube, 1A Auto)

Torque Tips

• GM collision manuals call for light fastener torque-about 7-10 N·m (60-90 in-lb) on the small M6 bolts that hold most SRX bumper brackets. Always follow the exact spec in the factory service information. (I-CAR)

Safety Role

• Keeping the bumper aligned helps the SUV meet IIHS moderate-overlap tests, protecting the front structure and lowering injury risk. (IIHS Crash Testing)
• Federal rules limit bumper-top height to 20 inches on passenger cars; the bracket ensures the SRX stays within that range as designed. (NHTSA)

Maintenance Tips

• Check bracket screws whenever you remove the splash shield or replace head-lights.
• After a small hit, gently tug each corner-movement means the bracket may be cracked.
• Keep road salt washed off to prevent corrosion on any steel center brace. (HowStuffWorks)

Costs & Time

• A single outer bracket typically lists from $25-$45, and many owners finish the swap in under one hour with basic hand tools. Labor at a repair shop usually adds 0.5-1.0 hours. (Folsom Chevy Parts)

Related Terms

Bumper bracket, bumper retainer, fascia support, impact brace, mounting clip, bumper reinforcement bracket, bumper stay, bumper holder.

Frequently Asked Questions

Q: Does a loose bracket affect airbag timing?
A: Not directly, but it can let the bumper sit out of position, changing how crash sensors feel a hit. Keeping brackets tight helps sensors work as designed. (I-CAR)

Q: Can I drive if one side is unclipped?
A: You can, but wind may rip the bumper cover off at highway speed. Fix it as soon as you can. (YourMechanic)

Q: Is glue a safe repair?
A: No. Plastic weld or epoxy seldom holds against road vibration. Replace the bracket for a lasting fix.

Q: What tools do I need?
A: Trim-clip tool, 7 mm and 10 mm sockets, small ratchet, Phillips screwdriver, and safety glasses. (1A Auto)

Q: Do brackets come painted?
A: No. They sit behind the painted cover, so they ship in bare black plastic or primer. (Folsom Chevy Parts)

Q: Are first-gen and second-gen SRX brackets interchangeable?
A: No. Hole patterns, tab shape, and bumper-beam geometry differ. Always match your model year. (Wikipedia)

Q: How tight should I bolt it?
A: About 7-10 N·m unless the factory guide lists a different value for your trim. (I-CAR)

Q: Will aftermarket skid plates hide the bracket?
A: Many skid plates share the same mounting holes; check fit first so both parts seat flat. (HowStuffWorks)

Q: What plastic is the bracket made from?
A: Most are ABS (acrylonitrile-butadiene-styrene), chosen for strength and flexibility in cold weather. (ScienceDirect)

Q: Do brackets help meet bumper rules?
A: Yes. Proper brackets keep the bumper inside the test zone for 49 CFR 581 low-speed impact standards. (eCFR)

Q: Can I tow from a bumper bracket?
A: No. Tow hooks bolt to the frame, not to light-duty fascia brackets. (HowStuffWorks)

Q: How often should I inspect them?
A: Check every oil change or after any curb strike to catch cracks early. (YourMechanic)

Q: What else should I replace with the bracket?
A: Replace any missing push-pins or rusted screws so the new bracket can hold tight. (YouTube)

Q: Does temperature matter when installing a plastic bracket?
A: Yes. Install above 60 °F (16 °C) so the plastic flexes without snapping. (ScienceDirect)

Q: Is there a recall on SRX bumper brackets?
A: No open recalls exist for the bracket, but always check the NHTSA database before repairs. (NHTSA)

Q: Will a stronger bracket change crash ratings?
A: Only if it alters bumper alignment. Stick with brackets built to match factory specs. (IIHS Crash Testing)
