Chevrolet's Aveo sub-compact, sold in North America from 2004-2011, uses simple plastic-and-metal pull handles that mount to the outer skin of each door and connect by a rod to the latch inside the door shell (Wikipedia). A 2009 safety recall warned that color-matched Aveo handles could stick, leaving a door unlatched and risking occupant ejection (NHTSA). Replacing a broken handle is usually inexpensive-around $180 total, with only about $40 for the part and the rest for labor (YourMechanic). Owner forums report the most common failures are cracked plastic hinges or disconnected linkage rods, both fixable with basic tools (Aveo Forum). Most aftermarket handles are molded in ABS or zinc, then coated in paint or chrome for looks and corrosion resistance (yalisdesign.com), (Yale Home).

Overview

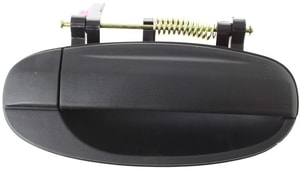

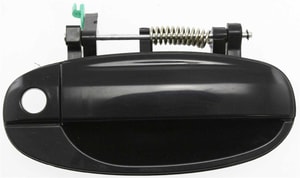

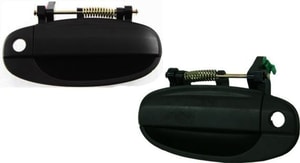

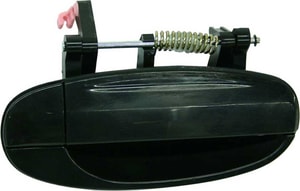

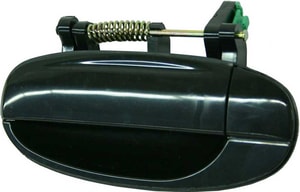

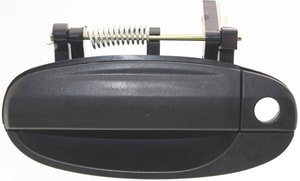

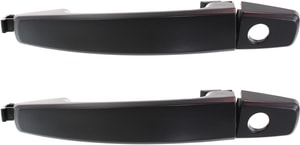

The outer door handle (also called the door pull, grab bar, or latch lever) lets you unlatch and swing open each Aveo door from outside the car. Pulling the grip pivots a plastic hinge, tugging a steel rod that releases the latch inside the door frame (Chevrolet Parts Catalog). Interior handles work the same way but mount on the trim panel.

How It Works

1. Handle shell: ABS plastic or zinc casting that you grab.
2. Pivot pin & spring: Returns the handle to flush when released.
3. Linkage rod: Slotted steel rod snaps into the handle's hook-shaped tab.
4. Latch: The rod lifts the latch pawl so the striker pin lets go and the door opens .
5. Weather seal: Thin foam gasket keeps rain from entering the door cavity.

Common Problems

• Cracked hinge ear - Plastic fatigues and snaps; handle pulls out loosely.
• Frozen or binding action - Dirt or old grease stiffens the hinge, echoing the 09066 recall that replaced sticking body-color handles with slick chrome units (NHTSA).
• Rod clip lost - The yellow nylon clip that locks the rod to the handle can pop off, leaving the handle floppy (Aveo Forum).
• Cold-weather freeze-up - Moisture in the latch freezes; handle won't return (Great Valley Lockshop).

Diagnosis

• Test each handle with the door open; if it "flops" without spring tension, the hinge is broken.
• If the handle feels normal but the door stays shut, pop the inner trim panel and inspect the rod and clip.
• Spray silicone into the hinge slot; if movement frees up, dryness or rust was the culprit.
• Check recall status by VIN for campaign 09066 on the NHTSA site if handles are body-color and feel sticky (NHTSA).

Removal Steps

These steps are condensed from Aveo owner forum walk-throughs and a detailed Instructables guide (Instructables).

1. Lower the window glass and disconnect the battery (prevents accidental lock actuation).
2. Remove two Phillips screws hidden behind the interior pull and one Torx screw at the door edge.
3. Pry off the trim panel with a plastic tool; unplug the mirror switch.
4. Peel back the water shield.
5. Slide the yellow rod clip off the handle tab.
6. From outside, remove two 10 mm nuts; the handle lifts out and away.

Installation Tips

• Swap the key-lock cylinder from the old handle if your Aveo uses a keyed driver door.
• Dab grease on the pivot before refitting; dry graphite on the lock avoids "sticky key" problems (Reddit).
• Torque the handle nuts snugly-about 5 N·m is enough; over-tightening can warp the new plastic (Aveo Forum).
• Before reinstalling the panel, test inside and outside handles plus power locks twice.

Painting & Style

Raw black handles can be scuffed with a gray pad, sprayed with adhesion promoter, then finished in color-match basecoat and 2K clear for a near-factory look (Eastwood). Holding the lever open with a small wedge lets paint reach every edge.

Materials & Upgrades

• ABS plastic: Light, easy to color-match but can crack if pulled hard in cold.
• Zinc alloy: Heavier, resists door-ding impacts, readily chrome-plated (yalisdesign.com).
• Stainless or billet aluminum overlays: Dress-up parts that bolt over the factory pull.
• Keyless passive-entry handle kits: Use proximity sensors; require extra wiring but eliminate key-slot wear.

Safety Notes

A loose handle may leave a door unlatched. GM's bulletin warns that a bouncing door can eject an unbelted rider, so fix a sticky pull right away (NHTSA). Always wear gloves when working inside the door-sharp stampings can cut skin.

Maintenance

• Wash road salt off in winter; salt accelerates hinge rust.
• Annual lube: Dry graphite in keyway, silicone-PTFE on hinge and latch (Great Valley Lockshop).
• In freezing climates, keep seals clean so ice can't glue the handle shut (Halfords Blog).

Environmental Impact

Door pulls are small but high-volume parts. Automakers are exploring end-of-life plastics recycling; shredded vehicle residue now heads to landfills, but industry groups and national labs are working on circular solutions (America's Plastic Makers).

Owner's Manual Facts

GM's 2008 Aveo manual reminds drivers the central unlock switch works only with the driver door closed and outlines child-safety locks on the rear doors (Dealer eProcess).

Frequently Asked Questions

Q: What years of Aveo share the same exterior handle?
A: All 2004-2011 U.S. Aveo and Aveo5 models use the same basic outer pull, though color and lock-cylinder provision vary (Wikipedia).

Q: Why did my painted handle crack in winter?
A: Plastic gets brittle below freezing; yanking on an iced-up pull can snap the hinge ear (Great Valley Lockshop).

Q: Can I drive if the handle is broken off?
A: Yes, but you'll need to open the door from inside, which is unsafe in an emergency and may violate local regulations-repair it soon (NHTSA).

Q: Is graphite or oil better for the lock cylinder?
A: Use dry graphite; mixing oil and graphite can gum up the pins (Reddit).

Q: How much does a shop charge?
A: About $179 on average, including labor, according to national mobile-mechanic data (YourMechanic).

Q: Do I need special tools?
A: Only a trim tool, small socket set, and a Torx bit-common household items (Instructables).

Q: What size are the handle nuts?
A: Two 10 mm flanged nuts secure the pull inside the door skin (Chevrolet Parts Catalog).

Q: Can I reuse the old rod clip?
A: If it isn't cracked; replacements cost pennies and prevent future disconnects (Aveo Forum).

Q: Will a chrome handle fit a base-model car?
A: Yes-chrome, matte black, and primer-ready versions interchange as long as they come from an Aveo of the same year range (yalisdesign.com).

Q: How do I keep locks from freezing?
A: Clean seals, use silicone or dry graphite, and avoid pouring hot water, which can crack paint (Halfords Blog).
