Buy Chevrolet (Chevy) Equinox Fender

Summary:

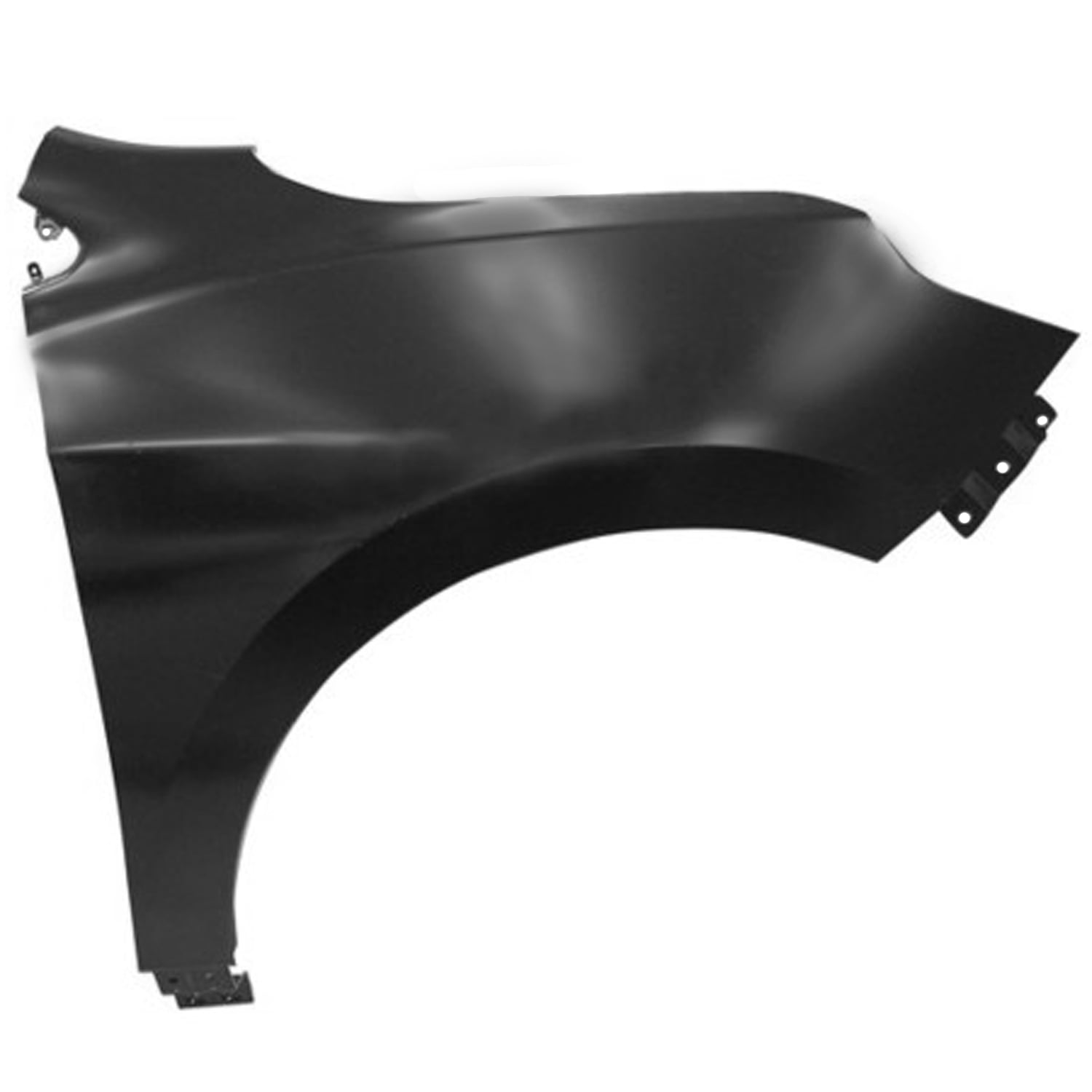

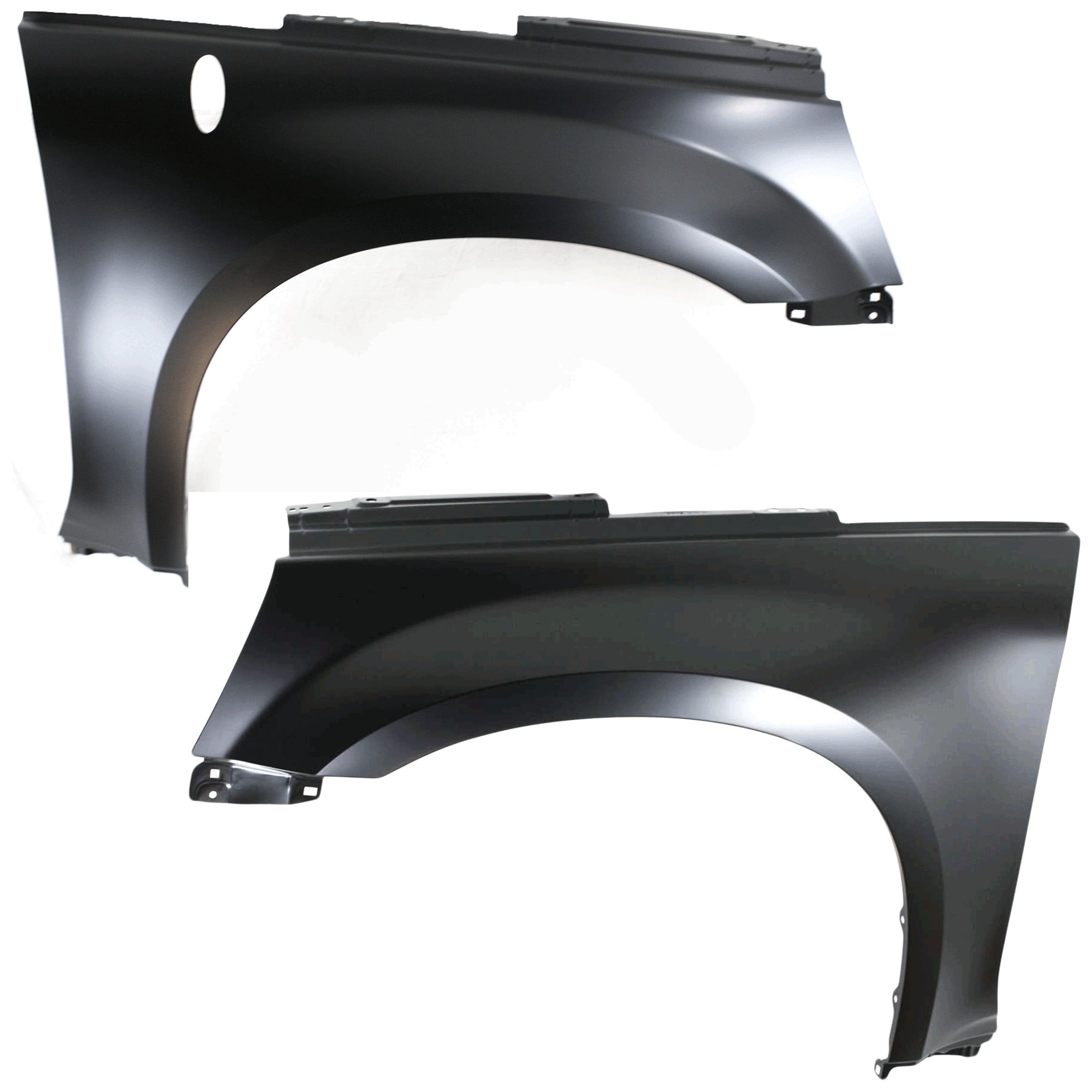

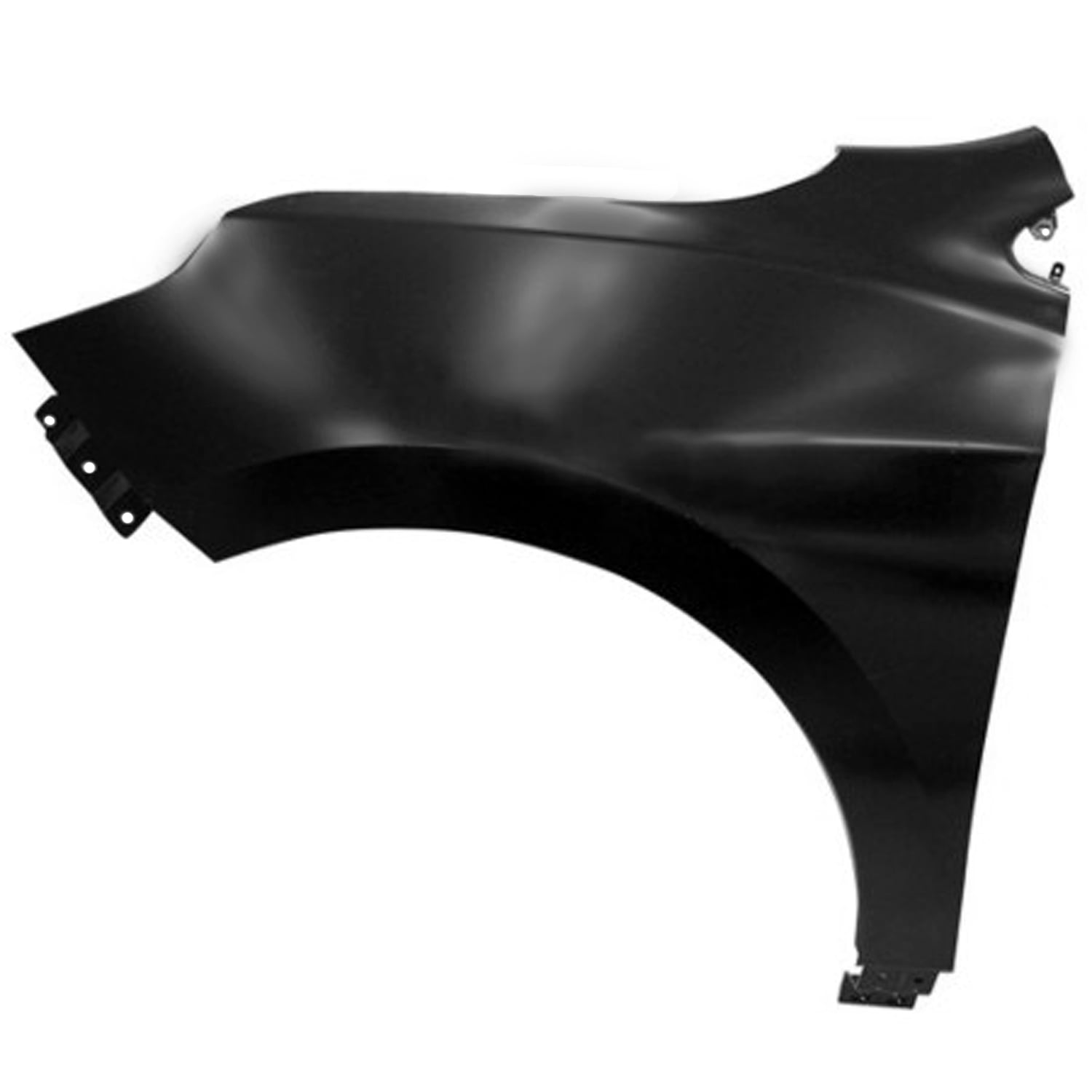

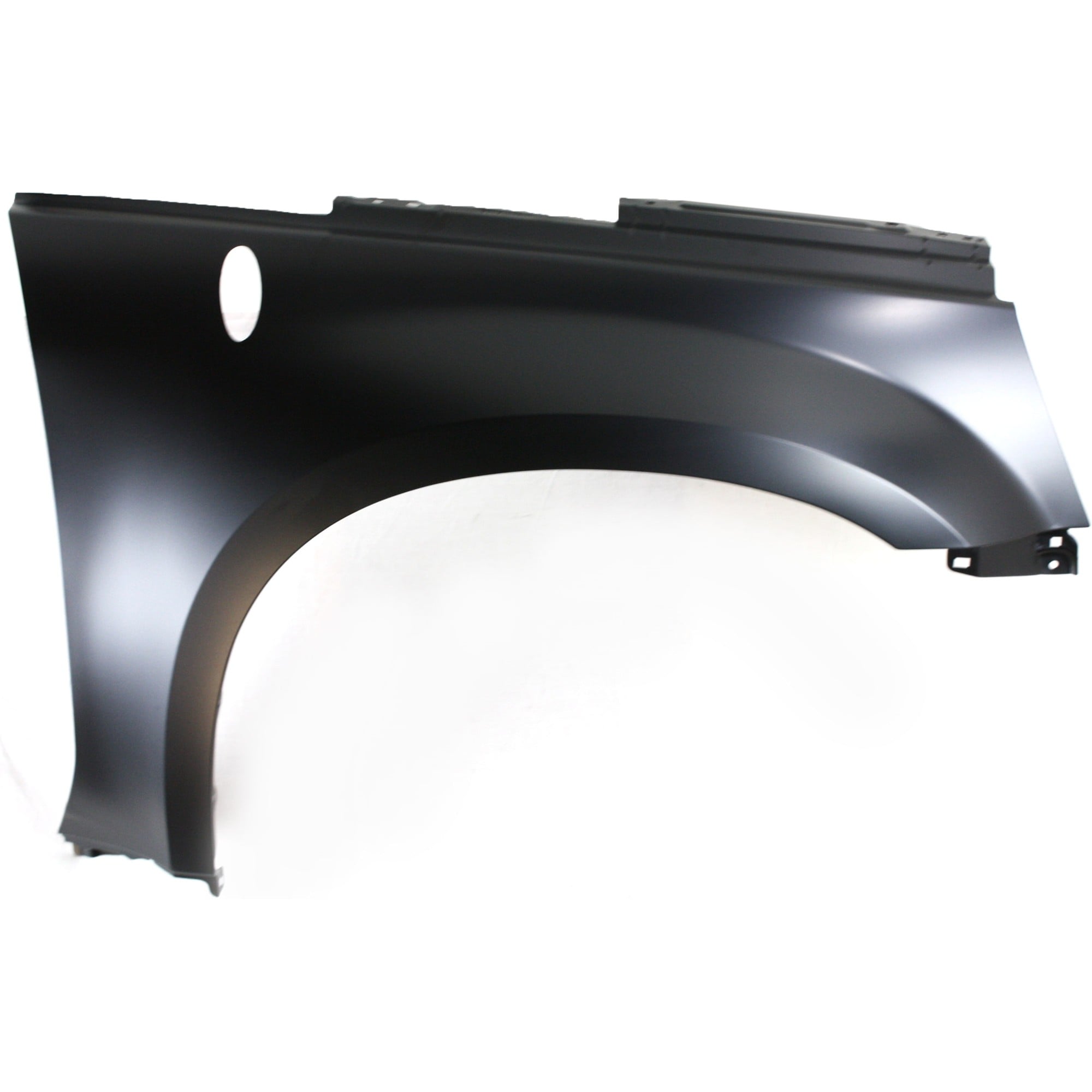

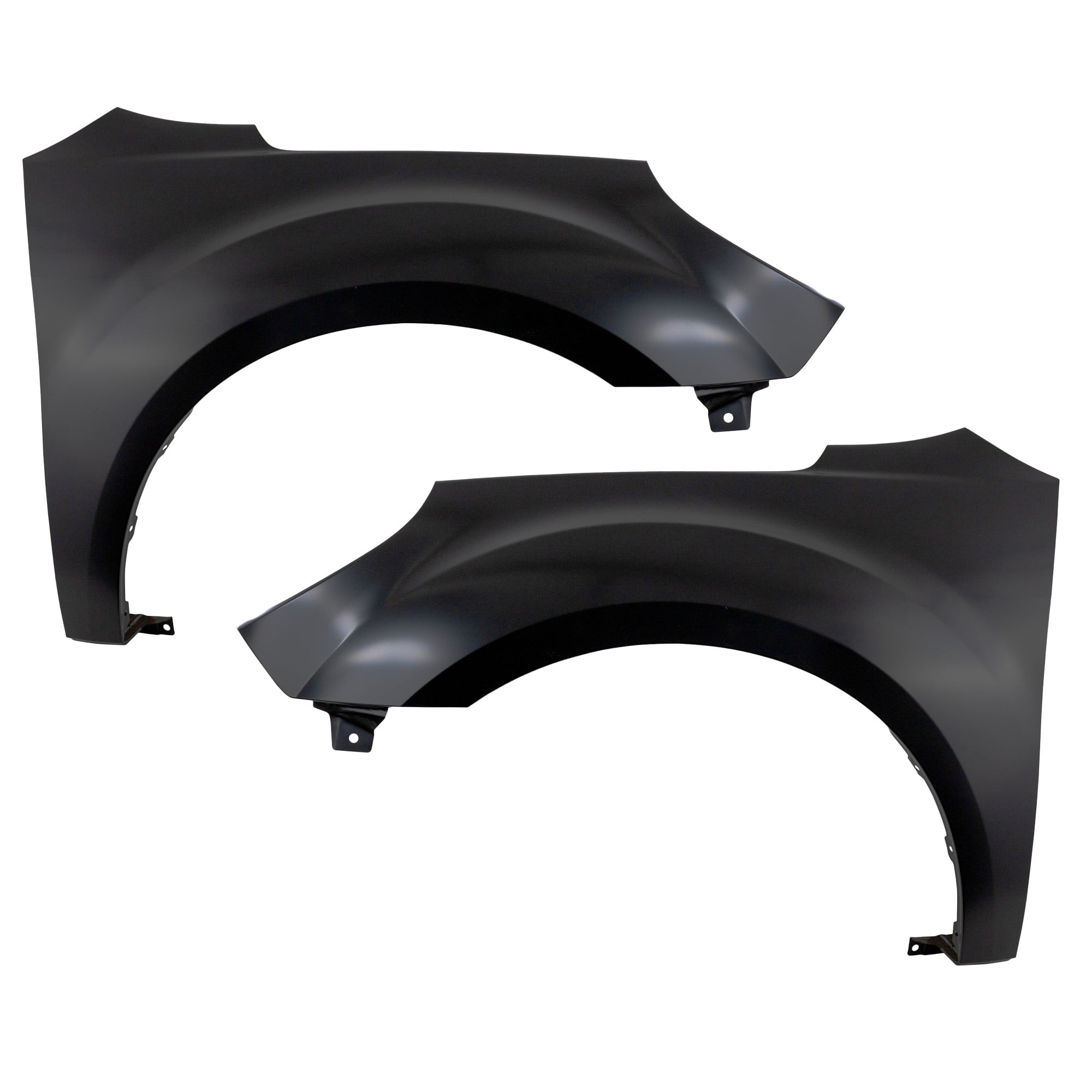

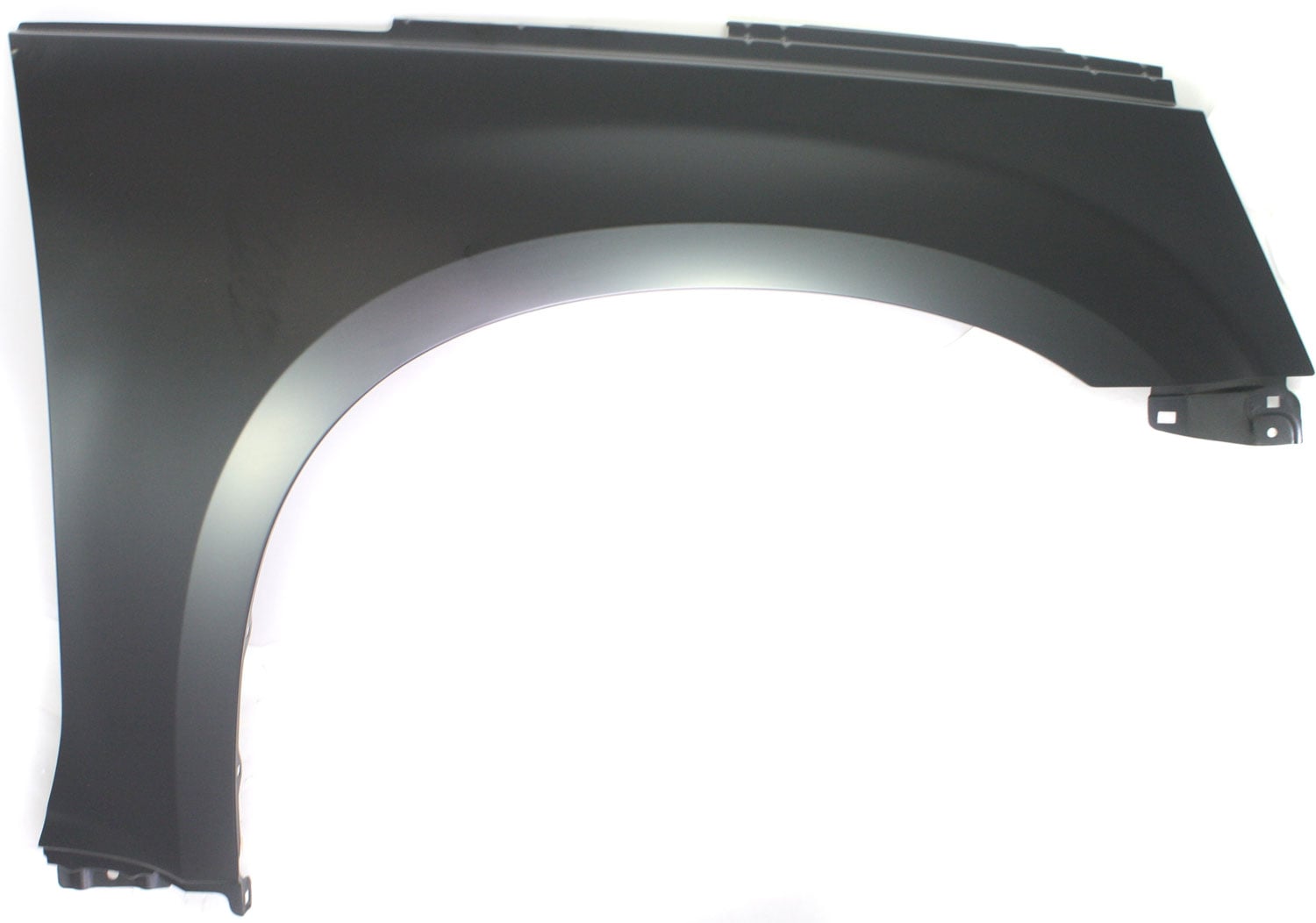

A Chevrolet Equinox fender-also called a front wing, wheel-arch panel, or mud-guard-is the stamped sheet-metal piece that frames each front wheel well, blocking road spray and debris while providing mounting points for lights, splash shields, and trim. Its shape, bolt pattern, and corrosion-resistant coatings vary by Equinox generation (2005-2009, 2010-2017, 2018-2024, and the redesigned 2025 model), yet every version serves the same basic job of protecting the body structure and passengers.

Overview

Overview

Modern Equinox fenders are made of galvanized high-strength steel that ties into the crossover's crash-energy paths, trimming weight without losing strength. GM's 2018 redesign alone shed about 400 lb by upgrading many panels-including the fenders-to stronger but thinner metal (Repairer Driven News). On the upcoming 2025 Equinox, the squared wheel openings give the fenders a chunkier look while widening the body by 2.3 inches for a more planted stance (media.gm.com).

Fender Function

Fender Function

• A fender's curved profile keeps mud, gravel, and water from being flung onto doors, mirrors, and windshields, improving visibility and paint life (Wikipedia).
• It forms the outer wall of the wheel well and supports liners, splash shields, and decorative flare extensions.
• Reinforcement tabs near the A-pillar tie the panel to the unibody, helping manage crash loads (Wikipedia).

Generations & Fitment

Generations & Fitment

← scroll table horizontally →

Tip: Always confirm the eight primary bolt holes along the apron and door jamb match your VIN year before ordering.

Materials

Materials & Coatings

• Galvanized high-strength steel (3rd gen) resists dents yet accepts factory-match primer (Repairer Driven News).
• Mild steel (1st & 2nd gen) is easier to reshape but more rust-prone if coatings are breached .
• Every Equinox fender includes an e-coat primer bath plus baked color coat at the plant; replacement panels should receive equivalent primer-sealer layers before paint.

Rust Hot-Spots

Rust Hot-Spots

Owners often notice blistering at the lower dog-leg-the rearward curve just ahead of the front doors-because moisture-holding insulation can droop and trap salt (Terrain Forum). Earlier 2010-2014 models saw a GM Customer-Satisfaction Program for premature corrosion along lower door hems, caused by road grit abrading the coating (gminsidenews.com). Regularly flushing this area with water during washes and using cavity wax inside the panel slows the problem.

Damage Signs

Damage Signs

• Tire rub marks on the wheel-arch lip.
• Door or hood mis-alignment after a minor crash.
• Split seam sealer or flaking paint on the inner edge.
  If any of these appear, especially after a curb impact, replacement is usually quicker than repair because of the thin high-strength steel (Repairer Driven News).

Installation Basics

Installation Basics

DIY removal is straightforward on most trim levels:

1. Disconnect the battery (avoids accidental horn/lighting shorts).
2. Remove 5 Torx screws holding the plastic splash shield to the fender lip (T15/T30 on 3rd gen).
3. Take out 7 mm and 10 mm bolts along the top rail and door jamb; expect ~8 bolts total plus one head-lamp bolt (Chevy Equinox Forum).
4. Gently peel back weather-strip near the windshield to reach a hidden Torx screw.
5. Lift the panel upward and away; have a helper support it to prevent scratching the door.

Visual walk-through videos for 2010-2017 and 2018-2024 models are freely available on public repair channels (YouTube, YouTube).

Paint & Finish

Paint & Finish

• Record the WA-code from the glove-box sticker for an exact color match.
• Use flexible seam sealer along the upper drip rail to match factory appearance.
• Bake clear-coat per paint-maker spec (usually 140 °F/60 °C for 30 min) to match gloss.

Quality Standards

Quality Standards

Independent testing by CAPA verifies replacement fenders for dimensional accuracy, corrosion resistance, and material strength equal to original parts (capacertified.org). Insurers often recommend CAPA-certified panels because they come with a traceable yellow seal and fit with minimal shimming (Reddit).

Environmental Note

Environmental Note

Steel fenders are 100 % recyclable and typically enter the scrap stream where coating burn-off furnaces prepare them for re-melt (Wikipedia). Ask your body shop to recycle the damaged panel rather than send it to landfill.

Frequently Asked Questions

Q: What exactly is a fender on a Chevy Equinox?
A: It's the metal "wheel-arch" or "wing" panel that frames each front tire, keeping road spray off the SUV's body and shielding important wiring inside the engine bay .

Q: Are Equinox front fenders interchangeable between left and right?
A: No. The driver-side and passenger-side panels are mirror images with different mounting brackets and antenna cut-outs on some trims (Chevy Equinox Forum).

Q: Will a 2015 fender fit my 2020 Equinox?
A: No. The 2018 redesign changed body lines and bolt spacing, so 2010-2017 (2nd gen) fenders do not interchange with 2018-2024 (3rd gen) bodies (Repairer Driven News, Wikipedia).

Q: What tools do I need for removal?
A: Torx T15 & T30 bits, 7 mm and 10 mm sockets, needle-nose pliers, and a ratcheting 10 mm wrench help reach tight spots (Chevy Equinox Forum).

Q: How much does professional replacement cost?
A: Typical labor runs US $80-100 per hour; a shop usually bills 2-3 hours plus paint materials, so budget US $500-800 total (JustAnswer).

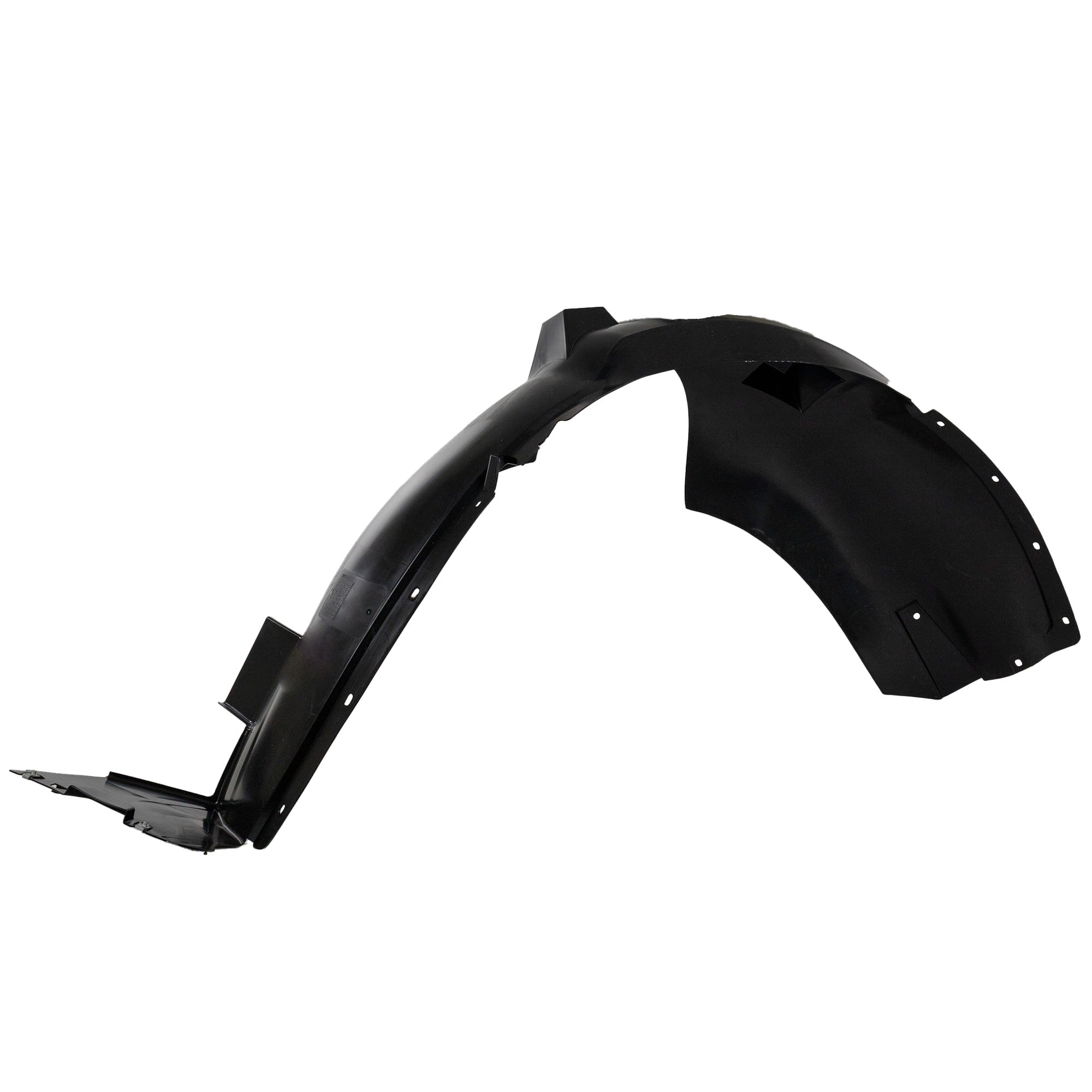

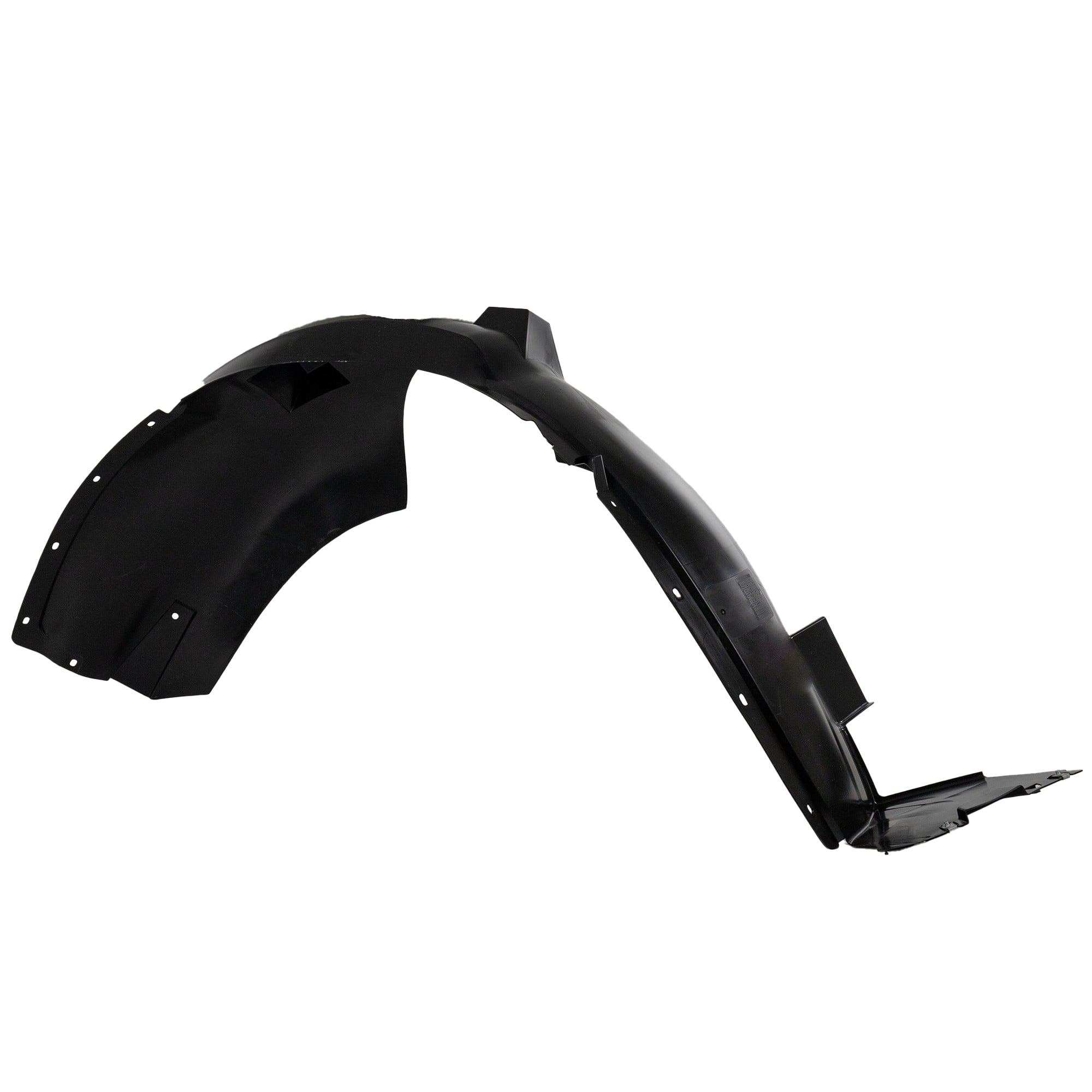

Q: What is a fender liner and do I need to replace it too?
A: The liner (also called an inner splash shield) is a molded plastic guard that snaps to the fender edge to protect wiring and the firewall. Replace it if torn or missing because it prevents corrosion and sensor damage (YouTube).

Q: Are aftermarket panels safe?
A: Look for CAPA certification; those panels are tested for fit, material thickness, and corrosion performance comparable to factory parts (capacertified.org).

Q: Why do the lower dog-legs rust first?
A: Felt insulation behind the door hinge can sag and hold salty water against the metal, accelerating rust from the inside out (Terrain Forum). Cleaning this area each spring helps.

Q: Is aluminum used on Equinox fenders?
A: GM uses aluminum for hoods on some trims, but Equinox fenders remain steel across all current generations (Repairer Driven News).

Q: Will my air-bag sensors be affected if I change the fender?
A: No. Frontal crash sensors bolt to the radiator support, not the fender. Just be careful not to pinch their wiring harness when installing the liner (Wikipedia).

Q: What rust warranty covers my fender?
A: Equinox vehicles sold in North America carry a 3-year/36 000-mile corrosion warranty and a 6-year/100 000-mile perforation warranty; check your owner's manual for exact terms.

Helpful outbound references:

• Chevrolet's 2025 Equinox design update
• CAPA Certified replacement-part standards
• High-strength-steel overview for the 2018 Equinox
• Basic definition of an automotive fender

This information should equip readers-and search engines-with detailed, accurate knowledge about Chevrolet Equinox fenders, their function, maintenance, and replacement.
