Quick Take

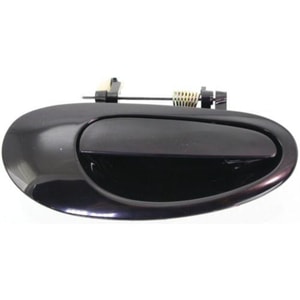

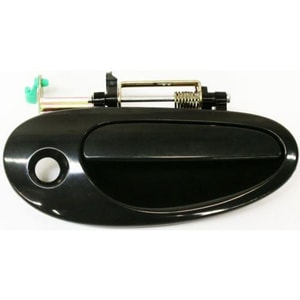

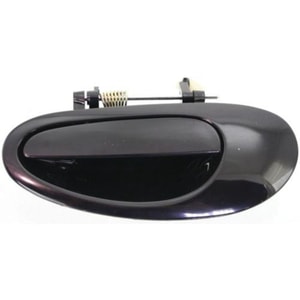

The Chrysler 300M door handle-sometimes called a door grip, latch lever, or pull handle-fits 1999-2004 300M models and swaps onto most LH-platform siblings (Concorde, LHS, Intrepid) because they share the same door architecture. Standard handles are molded from impact-resistant ABS plastic, often flash-plated with thin nickel-chrome for shine and corrosion defense. Chrome versions became stock on the 2004 Platinum Series cars. When handles fatigue or snap (a common age-related issue), owners can replace the assembly in under an hour with basic tools like an 8 mm socket and trim pry bar. Upgrading to reinforced or color-matched pulls, refreshing the finish, and lubricating linkage rods all add life and curb appeal while keeping the 300M's luxury vibe intact.

Vehicle Fit

• Fits 1999-2004 Chrysler 300M, all trims-including the Special and Platinum editions.
• Interchanges with Dodge Intrepid, Chrysler Concorde & LHS handles because of shared LH platform door shells.
• Front and rear exterior handles are mirror-image parts; interior pulls are side-specific but swap left-to-right if bezel colors match.
• 300M body panels were styled for a 5-meter overall length, so door geometry never changed during the run, keeping handle specs identical across years.

Handle Types

← scroll table horizontally →

Chrome layers are measured in microns; decorative plating sits over a nickel base and adds hardness plus 200+ hour salt-spray protection when intact.

Materials & Finish

• ABS plastic delivers ~43 MPa tensile strength and shrugs off -20 °C to 80 °C swings before brittling, ideal for daily door tugging.
• Plated handles receive an electro-nickel layer, then chrome; the mirror sheen hides molding seams and resists UV fade longer than raw plastic.
• DIYers can repaint textured pulls with flexible-plastic primer plus base-coat/clear for custom looks; enthusiasts recommend light sanding and three light coats to avoid orange-peel.
• Weight-saving research shows honeycomb-cored ABS levers cut mass by ≈16 % yet keep deformation under 10 mm in bending tests-giving designers ideas for modern replacements.

Common Problems

1. Snap at hinge boss - plastic fatigues after thousands of pulls, especially in cold climates. Owners often find the lever hanging loose.
2. Sticking return spring - dirt or dried grease slows lever rebound; feels "gritty."
3. Flaking chrome - micro-cracks let moisture under the plating, causing bubbles and sharp edges.
4. Loose linkage clip - door won't open even though handle moves; the yellow lock-rod clip can pop off if mis-aligned.
5. Paint mismatch after respray - later Platinum-series handles came in bright chrome, contrasting with earlier satin pieces.

DIY Replacement

Time: 45-60 minutes per door
Skill: Basic wrenching
Tools: Trim-panel tool, Phillips driver, 8 mm socket, flashlight, dielectric grease.

Steps

1. Pop window switch bezel; remove screws and plastic clips.
2. Lift door panel upward to clear lock pin.
3. Peel water shield enough to reach handle cavity.
4. Unclip latch & lock rods (green for latch, yellow for lock) and power-lock harness if equipped.
5. Remove two 8 mm bolts securing handle, slide assembly forward, and withdraw.
6. Swap lock cylinder to new pull if needed; lightly grease pivot.
7. Reverse steps, ensuring rods snap home and panel clips line up.

Tip: Place tape over painted edges to prevent scratches during removal.

Care & Maintenance

• Wash handles with pH-neutral soap; harsh degreasers dull chrome finish.
• Quarterly silicone-spray on pivot and latch rods keeps motion light.
• In winter, spray a graphite-based de-icer around seals; prying a frozen handle can crack ABS.
• Wipe chrome with microfiber plus non-abrasive polish to slow pitting.

Security Notes

While the 300M never faced an official door-handle safety recall, mis-adjusted linkage can stop doors opening from the outside after a minor collision. Always verify the latch striker gap (target 4-6 mm) after any door-skin repair to maintain egress safety.

Custom Upgrades

• Color-match wraps: Vinyl films stand up to sun better than rattle-can paint and peel off clean.
• Smart-entry sensors: After-market kits add proximity unlock by gluing a capacitive strip under the pull; connect to OEM keyless receiver wiring.
• Metal-core levers: Some 3-D printed aluminum/ABS hybrids increase hinge strength 2-3 × without extra weight.

Environment Impact

ABS is fully recyclable but not curb-side in most cities. Many automotive plastics recyclers accept it if handles are free of chrome film, which must be chemically stripped because hex-chrome waste is hazardous. Choose trivalent-chrome or paint-to-match replacements for greener refurb jobs.

Frequently Asked Questions

Q: What years of the Chrysler 300M use the same door handle?
A: All 1999-2004 cars share identical exterior and interior handle castings.

Q: Do the handles interchange with the Dodge Intrepid?
A: Yes. Any LH-platform sedan (Intrepid, Concorde, LHS, 300M) can swap door pulls left-for-left, right-for-right without drilling.

Q: Why does my chrome peel and look cloudy?
A: Moisture sneaks through micro-cracks in the plating over time; the nickel layer underneath corrodes and lifts the chrome film.

Q: Can I paint a textured black handle body-color?
A: Yes-scuff with 600-grit, apply plastic-adhesion promoter, then base/clear. Use light coats to keep texture from printing through.

Q: My handle moves but the door stays shut-what broke?
A: Most likely the yellow clip on the lock rod popped off; re-seat it or replace for pennies before buying a whole new lever.

Q: Is there a torque spec for the handle bolts?
A: Chrysler lists 80 in-lb (≈9 N·m) for the 8 mm screws securing the handle pod in the service manual.

Q: How long should an ABS handle last?
A: Factory units usually survive 15-20 years or ~100 k cycles of use, but cold temps and rough pulls can shorten life.

Q: Are metal handles stronger?
A: Cast-aluminum replacements resist snapping but weigh more; modern ABS honeycomb designs achieve similar strength with lower mass.

Q: What size socket removes the lock cylinder?
A: An 8 mm nut holds the cylinder bracket-same as the main handle bolts.

Q: Does polishing chrome remove scratches?
A: Light hairline marks buff out with non-abrasive metal polish, but deep pits require re-plating or a new handle.

More Learning

• Full 300M shop manual pages with step-by-step photos (search "300M Service Manual Exterior Handle Removal")
• Design history of the 300M cab-forward LH cars on Hemmings
• Owner how-to videos covering interior pull swap and door-panel tricks on YouTube

Use this guide to research, repair, or upgrade your Chrysler 300M door handle and keep every grab as smooth as the day it rolled off the line.
