Quick Summary

Key Take-aways

The Dodge Durango fog light-also called a fog lamp, driving light, or auxiliary light-sits low in the front bumper and throws a wide, flat beam that cuts under fog, heavy rain, or snow. Every Durango generation (1998-2025) accepts an H-series halogen bulb from the factory, but many owners upgrade to LEDs for brighter light and lower power draw. U.S. rules let you add or replace these lamps as long as they meet Federal Motor Vehicle Safety Standard 108 and SAE J583, are aimed below the low-beam cutoff, and stay white or "selective yellow." Expect to spend about one hour and US $85-$112 to swap a burned-out bulb yourself; a full assembly costs more. Common issues include cracked lenses, water inside the housing, and mis-aimed beams. Regular cleaning, gasket checks, and correct aiming keep the beam sharp and legal.

Part Basics

What It Does

Fog lights live just above the lowest grille openings. Their short, wide beam stays close to the road so glare bounces under the fog instead of back into your eyes (eCFR). Because they supplement headlights, federal rules call them "auxiliary lamps" (eCFR).

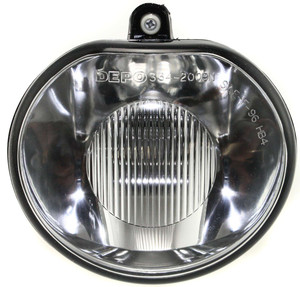

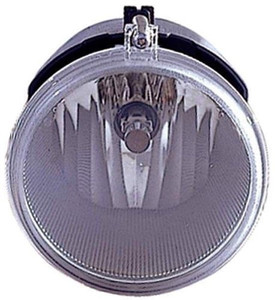

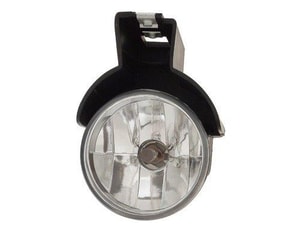

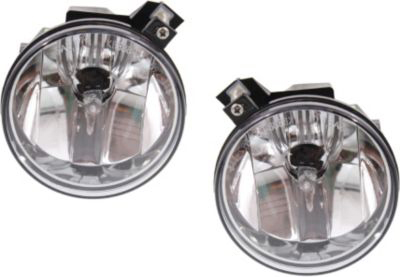

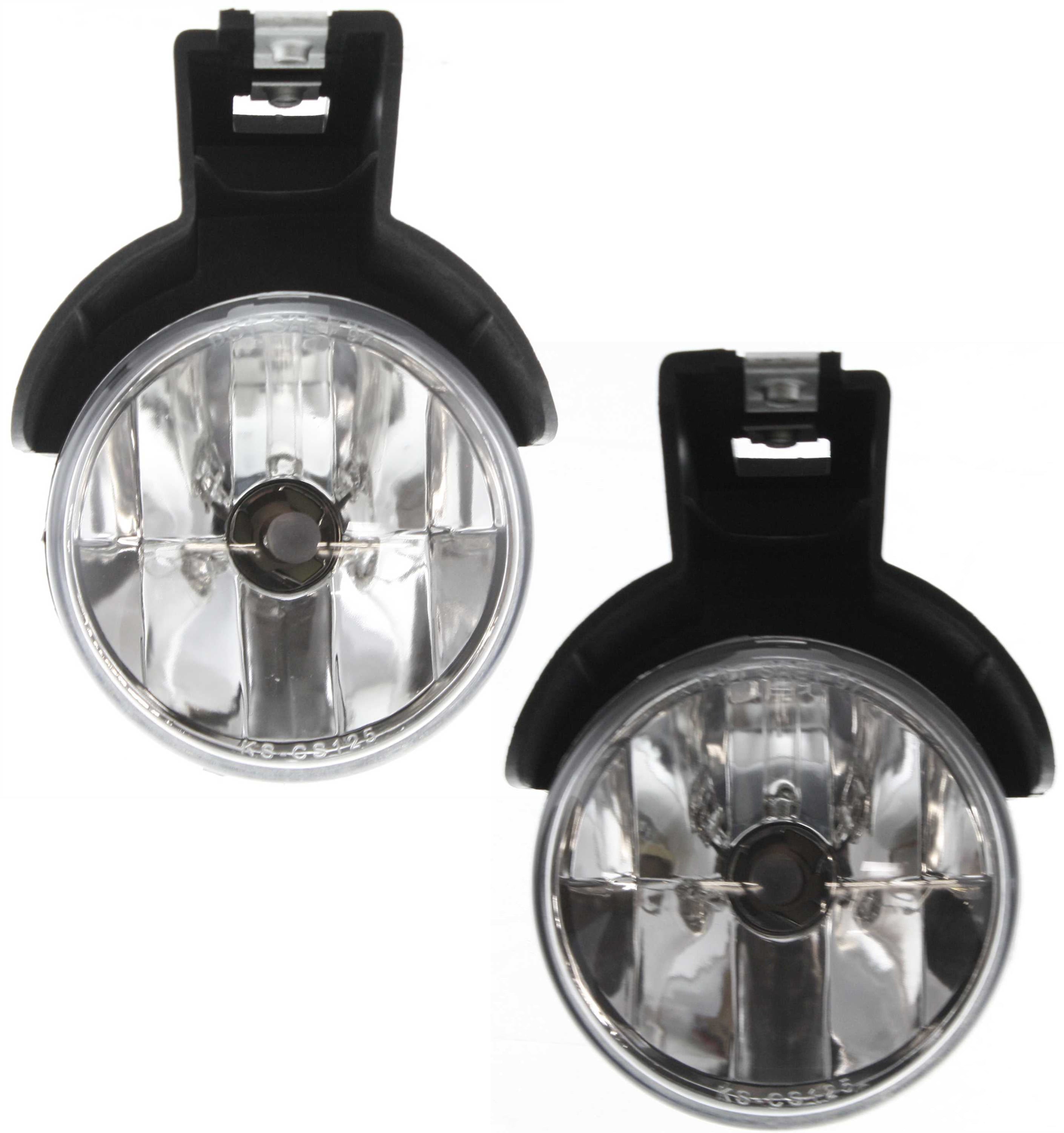

Main Components

• Housing - plastic or aluminum shell that bolts to the bumper.
• Lens - clear or fluted polycarbonate that shapes the beam.
• Reflector or projector bowl - directs light.
• Bulb/LED module - H11, 2504, or proprietary LED.
• Wiring pigtail - plugs into the vehicle harness.

Model Fit

Dodge Durango Generations & Bulb Chart

← scroll table horizontally →

Tip: Owners of 2011-2020 models often upgrade to plug-and-play H11 LED bulbs (Dodge Durango).

Bulb Choices

Halogen vs LED

• Halogen - cheap, warm color, 400-1 300 lumens, lasts ~500 hours.
• LED - 2-3× brighter, draws half the power, lasts 30 000 hours, runs cooler (Carifex).
  DOE tests show LEDs waste far less energy as heat than older lamps (The Department of Energy's Energy.gov).

Color Temperature

• Selective yellow (2 700-3 000 K) pierces fog best by cutting blue glare (Wikipedia).
• Pure white (5 000-6 000 K) matches modern LED headlights but can reflect off snow.

Safety & Rules

Legal Standards

• FMVSS 108 sets brightness, lens marking, and durability rules for all U.S. vehicles (eCFR).
• Commercial vehicles follow §393.24, which echoes FMVSS and requires aimable mounts (eCFR).
• SAE J583 gives beam width and cutoff limits so light stays low and wide (SAE International).

Aiming Basics

Aim screws (Torx) sit on the bottom of each Durango lamp; turn clockwise to drop the beam (Dodge Durango). The top of the beam should land no higher than 4 inches below headlight low-beam cutoff at 25 feet.

Common Issues

← scroll table horizontally →

Installation Steps

1. Unplug battery to avoid shorts.
2. Remove wheel-well splash shield screws.
3. Reach behind bumper, twist bulb counter-clockwise, pull out (YouTube).
4. Insert new bulb without touching glass.
5. Refit shield and test lights.
   Full housing swap adds bumper-skin clips-plan 60 minutes per side (Dodge Durango).

Maintenance Tips

• Wash lenses with mild soap; dirt scatters light.
• Check fuse F30 (20 A) if both lamps go dark.
• Re-aim after any suspension or tire change.
• Apply paint-protection film to stop rock chips.

Related Upgrades

• LED conversion kits with built-in cooling fans.
• Selective-yellow film for snowy climates.
• Wiring harness with relay for steadier voltage.
• Protective grille inserts on off-road models.

Costs & Warranty

RepairPal lists a typical fog-light bulb job at US $85-$112, with parts around $32 and labor $54-$79 (RepairPal.com). Complete housings range from $150-$400 plus paint. Most aftermarket lamps carry a one-year defect warranty; many LED bulbs list two-year protection.

DIY vs Pro

DIY wins if you own a trim tool kit and can work beneath the bumper. Hire a pro when paint matching, wiring a relay harness, or dealing with collision damage. Shops bill about 1.0 labor hour per lamp.

Environment

LED fog lamps can cut energy use by up to 80 % versus halogens (Rensselaer Library) and last 30× longer, reducing landfill waste (Rensselaer Library). Recycle old halogen bulbs at local hazardous-waste centers.

Frequently Asked Questions

Quick Answers

Q: What bulb size fits my 2015 Durango?
A: H11 halogen; plug-and-play H11 LEDs also fit (Dodge Durango).

Q: Are fog lights required by law?
A: No. They're optional but must meet FMVSS 108 if installed (eCFR).

Q: Can I run fog lights alone at night?
A: Regulations say they must work with low-beams, not by themselves (eCFR).

Q: Yellow or white-what's better?
A: Selective yellow reduces back-glare in fog; pure white matches LED headlights (Wikipedia).

Q: Do LEDs overheat the housing?
A: No; they give off far less heat than halogens (The Department of Energy's Energy.gov).

Q: How do I aim them?
A: Turn the Torx screw on the bottom until the top cutoff sits 4 inches below headlight beam at 25 feet (Dodge Durango).

Q: My lens keeps fogging-why?
A: A torn rear gasket lets moisture in. Dry the housing and reseal (Dodge Durango).

Q: Will warranty cover cracked fog lights?
A: Usually only if the crack stems from a manufacturing flaw, not road damage.

Q: Can I add factory LED lamps to a 2023 Durango GT?
A: Yes; you'll need OEM lamps, bezels, harness, and a headlight switch module (Dodge Durango).

Q: What tools do I need for bulb swap?
A: 8 mm socket, flat trim tool, and gloves to keep oil off the bulb glass (YouTube).

Q: Do fog lights improve daytime safety?
A: Studies show little benefit in clear daylight; they shine in low-visibility cases (NHTSA).

Q: How often should I replace bulbs?
A: Halogen every 2-3 years; quality LEDs can last the life of the vehicle.

Q: Can I wire fog lights to come on with high beams?
A: Not legally; fogs must shut off with high beams under FMVSS 108 (eCFR).

Q: What is "SAE F" on the lens?
A: It's a marking that the lamp meets SAE J583 standards (SAE International).

Q: Will brighter bulbs void my warranty?
A: Only if they overload wiring or melt the housing; use same-wattage LEDs to stay safe.

Q: Can condensation be prevented?
A: Add a silica gel pack inside the rear cap after sealing (Dodge Durango).
