Buy Dodge Ram 2500 Radiator Support

Quick Summary

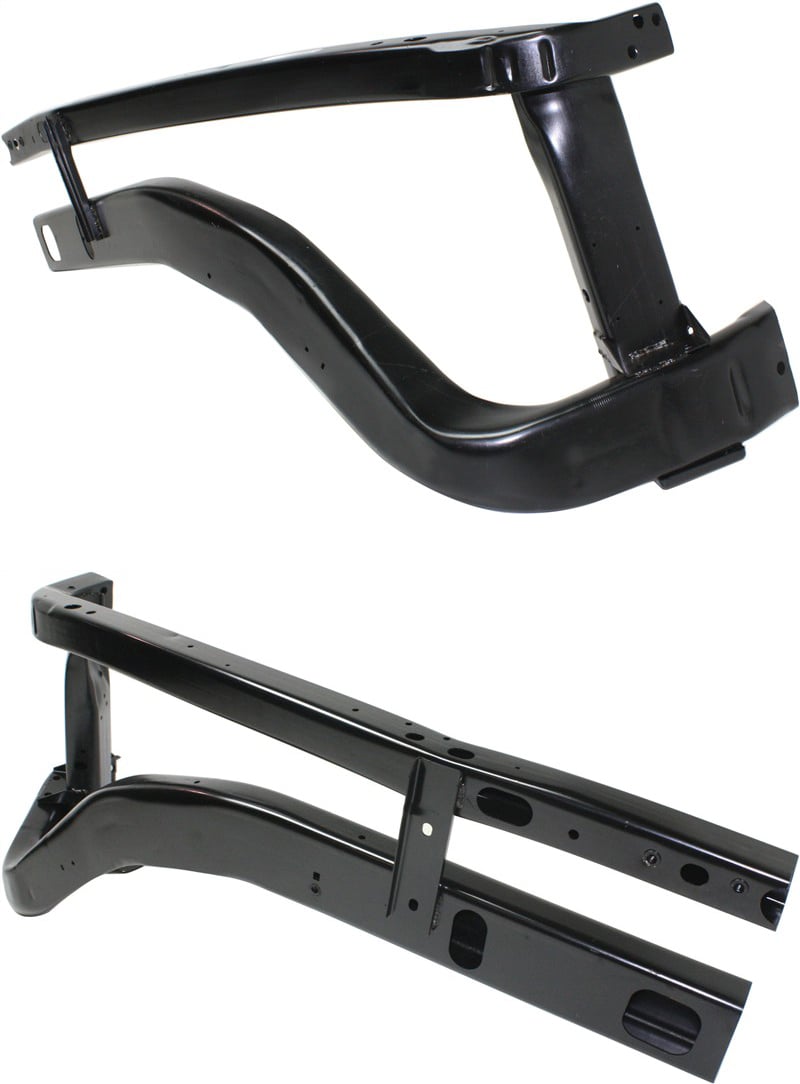

A radiator support-also called a core support, front-end support, radiator frame, or cradle-is the metal or composite beam that ties the very front of your Dodge Ram 2500 together. It anchors the radiator, intercooler, A/C condenser, hood latch, and even head-lamp brackets, while also guiding crash energy away from the cab. When this piece bends, rusts out, or cracks, cooling performance drops, body panels go out of line, and safety can suffer.

What It Does

The radiator support is part of the truck's ladder-frame front structure; its job is to keep the cooling stack rigid and square while the frame flexes on rough roads. (Wikipedia) It also serves as a mounting shelf for the hood latch and the upper fenders, so bumper or grille gaps usually trace back to this beam. (Mopar Middle East) In a collision it crushes first, absorbing energy before it reaches the main rails. (NHTSA)

Fitment Guide

• 1994-2002 (2nd gen): Uses a welded steel core support that doubles as a headlight bucket.
• 2003-2009 (3rd gen): Slightly wider intercooler openings; not interchangeable with 2nd gen.
• 2010-2018 (4th gen): One-piece "closure panel" stamped steel, Mopar part #68066740AD. (Mopar eStore)
• 2019-2024 (5th gen): Hybrid steel/aluminum front-end module to save weight. (Mopar Middle East)

Always match by model year, 2- or 4-wheel-drive, and engine (gas vs. diesel) because oil-cooler brackets vary.

Materials & Build

Most Ram 2500 supports are galvanized steel for strength, but some aftermarket units use coated aluminum that weighs about one-third as much. (Unified Alloys) Aluminum will never "rust," yet stainless steel fights road-salt corrosion longer than plain carbon steel. The auto industry is also moving toward glass-fiber-reinforced nylon front-end modules for even bigger weight savings, as seen on other SUVs. (Wikipedia)

Signs of Trouble

• Uneven hood gap or grille that sags after a minor fender-bender usually means the core support bent. (Fleetgo)
• Radiator leak at the side tanks can come from stress when the support twists.
• Rapid coolant temps even with a good thermostat-air can't pass through a crooked cooling stack.
• Visible rust flakes on the lower corners signal the metal has thinned and lost strength. (Cummins Forum)

Replacement Tips

The factory workshop bulletin lists the core-support change at about 5 labor hours with basic hand tools plus a jack-stand to hold the radiator. (Workshop Manuals) A how-to video shows removal of the bumper skin, headlights, and condenser before unbolting eight M8 bolts. (YouTube) Torque new bolts to 28 ft-lb, then re-bleed the cooling system. Reusing old isolator bushings can cause vibration, so budget for new rubber mounts.

DIY Steps

1. Disconnect the battery and drain coolant.
2. Remove grille, bumper fascia, and head-lamps.
3. Support the radiator with zip-ties or a wood brace.
4. Unbolt A/C condenser and swing it forward-no need to discharge refrigerant.
5. Unbolt the core support from frame horns and fenders (eight bolts).
6. Swap hood-latch and sensor brackets to the new frame.
7. Slide the new cradle in, torque bolts, reinstall parts, top off coolant, and check panel gaps.

Safety & Legal

Because the radiator support is a crush-zone device, weld repairs that change stiffness can affect crash performance. (NHTSA) FCA warns in its owner's manual that non-approved structural parts can void certain safety standards. (Mopar Middle East)

Care & Maintenance

Spray the lower seam with wax-based rust inhibitor every oil change, especially if you live in a "salt belt" state. Wipe road debris off the condenser fins so trapped mud doesn't rot the beam. A yearly coolant flush keeps stray acid from attacking the metal. (Fleetgo)

Related Parts

When the support is off, inspect the radiator, charge-air cooler, hood latch, bumper brackets, and fender liners. Damaged mounts here can stress a new radiator frame and shorten its life. (Workshop Manuals)

Frequently Asked Questions

Q: What does a radiator support do?
A: It bolts the radiator, condenser, and grill area together and ties them to the truck's frame so they stay put over bumps and during crashes. (Wikipedia)

Q: Why is it sometimes called a "core support"?
A: Because it supports the cooling core-the radiator assembly-at the front of the vehicle.

Q: How can I tell if my Ram 2500 radiator frame is bent?
A: Look for mis-aligned headlights, an off-center hood latch, or coolant leaks at only one side of the radiator. (Fleetgo)

Q: Is surface rust dangerous?
A: Light rust is cosmetic, but deep pitting near bolt holes weakens the beam and should be fixed or replaced. (Cummins Forum)

Q: Does the material matter?
A: Yes. Aluminum versions cut weight but dent easier; steel is tougher but can rust; stainless resists salt best. (Unified Alloys)

Q: Which Ram years share the same support?
A: 2010-2012 trucks share Mopar #68066740AD, while earlier generations use different designs. (Mopar eStore)

Q: Can I keep driving with a cracked core support?
A: Not safely. A loose radiator can overheat the engine, and the hood latch may fail in a crash. (Mopar Middle East)

Q: How long does DIY replacement take?
A: Plan about half a day if you have hand tools and a friend to help align the new cradle. (Workshop Manuals)

Q: Do I need special tools?
A: No specialty tools, just metric sockets, a torque wrench, and trim-clip pliers for the bumper cover.

Q: Will I have to weld anything?
A: Factory supports are bolt-on. Welding is only needed if the frame horns are damaged.

Q: Does the cradle affect engine cooling?
A: Yes. A bent frame blocks airflow and pinches hoses, making the engine run hot. (Fleetgo)

Q: Will a steel aftermarket support add much weight?
A: About 8-12 lb versus aluminum, a change too small to notice in daily driving. (Unified Alloys)

Q: How can I keep my new support from rusting?
A: Coat the seams with wax-oil spray yearly and rinse winter salt off as soon as possible. (Fleetgo)

Q: Can I swap a 2500 support into a 3500?
A: Only for the same generation; diesel intercooler brackets often differ, so check part numbers first. (Mopar eStore)

Q: Should I replace other parts while it's apart?
A: Yes-radiator isolators, hood-latch bolts, and condenser bushings are cheap and easy to change now. (Workshop Manuals)

Helpful Links

• Ram 2500 Owner's Manual - factory safety notes
• Unified Alloys Steel vs. Aluminum Guide - corrosion comparison
• Fleetgo Heavy-Duty Radiator Care Article - cleaning tips

Use these references to deepen your article or link out for extra reader value.
