Background Info

The Ford Bronco's turn signal light-also called the blinker, indicator lamp, or direction light-keeps you safe by flashing amber up front and amber or red in back, warning other drivers when you plan to turn or change lanes. Modern Broncos (2021-up) use fast-acting LEDs, while classic trucks (1966-1996) rely on replaceable incandescent bulbs. Federal rules limit color and brightness, and studies show amber rear signals cut crash risk compared with red ones. When a Bronco's signal flashes extra-fast, won't light, or fills with water, owners can usually fix it at home with a new bulb, fuse, or load-resistor upgrade.

How It Works

A turn signal circuit sends power through a flasher module that makes the lamp blink on and off. New Broncos drive each LED with the Body Control Module (BCM); older models use a thermal flasher can that depends on bulb resistance to keep rhythm. If you replace an old 1157 or 3157 bulb with a low-draw LED, the BCM or flasher may think the bulb is burned out, causing "hyper-flash" on the dash. (Ford Service Content, Bronco6G)

Bulb & Housing Types

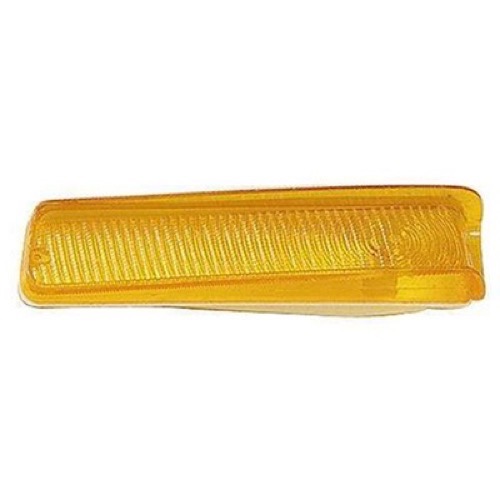

• 1966-1977 Early Bronco: Front 1157 dual-filament; rear 1157 or 1156 single-filament in chrome bezels.

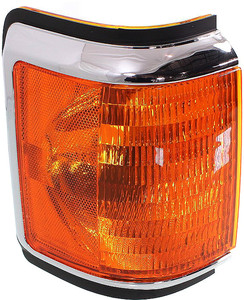

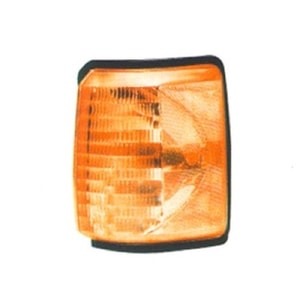

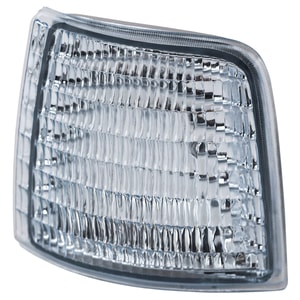

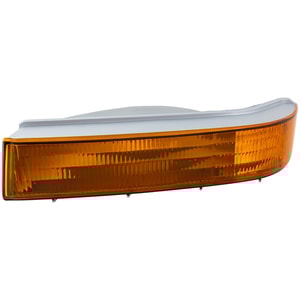

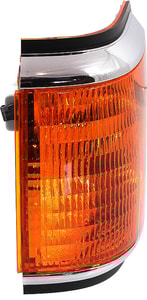

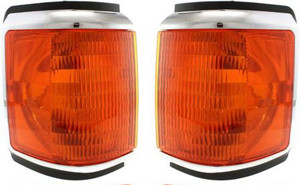

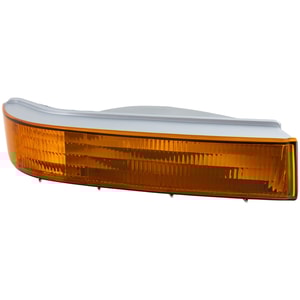

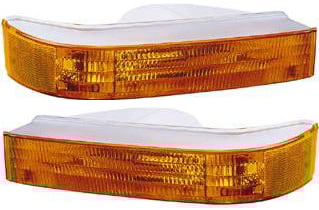

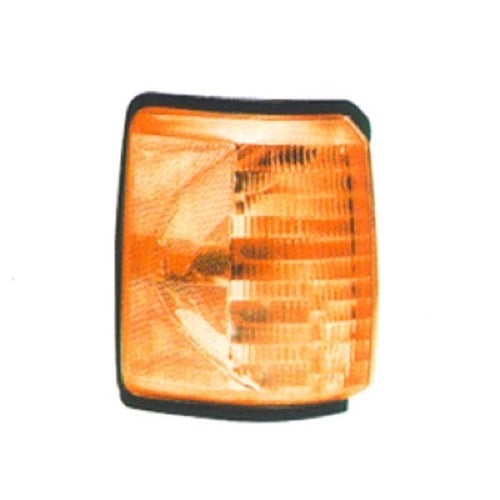

• 1978-1996 Full-Size: Front 3157/3156 wedge bulbs in grille corners; rear 1157 in tail-light buckets. (MotorTrend)
• 2021-Present: Sealed LED boards in signature "C-clamp" headlamp, mirror repeaters, and LED tail lamps; no regular bulb to swap-replace the whole module if an LED fails. (Bronco6G)

Compatibility

All sixth-generation Broncos share the same front lamp assemblies, but Bronco Sport uses different rear sockets (WY21W/7440). Check the VIN-specific Ford owner manual "Using the Turn Signal Lamps" section to confirm fit. (Ford Service Content)

Safety & Laws

Federal Motor Vehicle Safety Standard 108 says front signal lights must be amber; rear signals may be amber or red, but they must never be blue or white. (NHTSA) A large NHTSA crash study found vehicles with amber rear blinkers were 3 - 28 % less likely to be hit during turns or lane changes. (NHTSA)

Common Problems

← scroll table horizontally →

DIY Replacement

1. Open access panel inside tailgate or fender liner. (CarCareKiosk)
2. Twist socket ¼ turn and pull out.
3. Gloves on! Finger oil shortens bulb life.
4. Match bulb number (1156, 1157, 3157, 7440, etc.).
5. Test before re-assembling. A fast flash means wrong bulb or bad contact.

LED Upgrades

LED signal lamps light up about 250 ms quicker than incandescent bulbs, giving drivers behind you extra stopping time. (Wikipedia) They also draw 75 % less power and last 25 × longer, cutting trash in landfills. However, you must add resistors or change BCM coding to cure hyper-flash, and some cheap LEDs scatter light poorly. Enthusiast forums suggest quality sealed units from lighting brands plus a waterproof plug-and-play harness. (MotorTrend, Bronco6G)

Custom & Off-Road Ideas

Peripheral "mirror pod" lights and flush-mount tail lamps sharpen style and improve side visibility on trails. Magazine tests of Bronco builds show these accessories bolt on with minimal drilling and reuse factory wiring. (MotorTrend, MotorTrend) Remember: colored "show lights" are for off-road only; using blue or purple on the street is illegal under FMVSS 108. (NHTSA)

Maintenance Tips

• Monthly walk-around: Flip hazards on and make sure every blinker flashes.
• Clean lenses: Dirt dulls light; wash gently with mild soap.
• Seal cracks early: Clear RTV keeps water out.
• Carry spares: A spare 1157 or 3157 and a mini fuse weigh almost nothing.

Environmental Impact

Switching four incandescent blinkers to LEDs can save roughly 12 watts per flash cycle-tiny per car, huge across millions of vehicles. Longer life also means fewer glass bulbs go to the trash. (Wikipedia)

Frequently Asked Questions

Q: What bulb number fits a 1995 Bronco front blinker?
A: The stock bulb is 3157 (dual-filament). (MotorTrend)

Q: Why does my dash indicator blink super-fast after installing LED tails?
A: The truck thinks a bulb is burnt out. Add a 6-ohm resistor or tweak the BCM with a scan tool like FORScan. (Bronco6G, Bronco6G)

Q: Can I swap my 2023 Bronco halogen tails for OEM LEDs?
A: Yes. Owners report plug-and-play success, but you may still need to disable hyper-flash or add resistors. (Bronco6G)

Q: Are red rear turn signals legal on a Bronco?
A: Yes in the United States, but amber is proven safer and required in many other countries. (NHTSA, NHTSA)

Q: How do I know the flasher relay is bad?
A: If both sides stay solid or silent and the fuse is good, swap the flasher with a known-good one; it costs only a few dollars and lives under the dash. (Classic Broncos)

Q: Do cornering lamps affect the signal circuit?
A: No. On Broncos with cornering lights, the extra lamp only turns on below 25 mph when the blinker is active; the regular indicator still flashes as usual. (Ford Service Content)

Q: What color wires power the front indicator on a 2022 Bronco?
A: Brown (left) and gray-brown (right) are the positive leads; black is ground. Always confirm with a meter before tapping. (MotorTrend)

Q: Will adding LED mirror repeaters void my warranty?
A: Federal law says aftermarket lighting must meet FMVSS 108 standards; using DOT-rated parts and not cutting the harness keeps warranty claims safe. (NHTSA)

Q: Can I use sequential turn signal modules?
A: Yes if they keep amber / red color, meet brightness limits, and flash 60-120 times per minute. Otherwise police may ticket you.

Q: How fast should a Bronco blinker flash?
A: About 90 flashes per minute is normal; over 120 is considered hyper-flash. (Ford Service Content)

By understanding the Bronco's turn signal lights-bulbs, LEDs, wiring, laws, and fixes-you can keep your blinker bright, legal, and ready for every adventure on-road or off.
