Buy Ford C-Max Headlight Assembly

Modern Ford C-Max headlights are more than simple bulbs-they are sealed lamp assemblies that use H11 low-beam and 9005 high-beam halogen bulbs on every North-American C-Max built for model years 2013-2018. They are regulated by U.S. safety rule FMVSS 108, which sets minimum brightness and glare limits, and newer adaptive-beam rules from 2022 are beginning to influence upgrade parts.

Overview

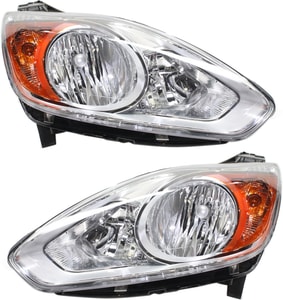

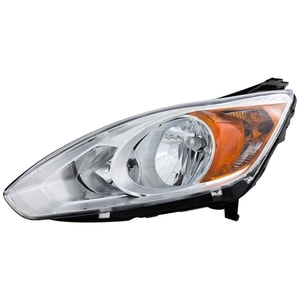

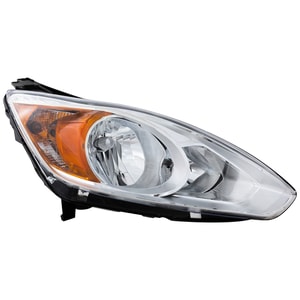

Ford C-Max headlamps (also called head-lights, head-lamps, or front light assemblies) sit just ahead of the hood latch and use clear plastic lenses over reflector bowls. Each assembly contains: low beam, high beam, front sidemarker, and parking bulbs. Projector-style units were never factory-fitted to U.S. C-Max models, so most cars still carry halogen reflectors.

Fitment Guide

• Fits all U.S. C-Max Hybrid and C-Max Energi cars built 2013-2018.
• Fits Grand C-Max sold in other regions for the same years (check local regulations for right-hand drive beam patterns).
• Hybrid battery location does not interfere with headlamp service.

Bulb Types

← scroll table horizontally →

Tech talk: LEDs are up to 70 % more energy-efficient and last far longer than halogens, yet proper beam focus is critical to avoid glare.

Signs of Trouble

• Dim or yellow output-filament aging or lens haze. Average halogen life is 500-1 000 hours.
• Both low beams out-likely fuse or body-control-module fault, not two bad bulbs.
• Moisture beads inside lens-check rear gasket; light must be dry to prevent reflector corrosion.
• High-beam indicator on but no light-look for a damaged stalk switch.

Maintenance Tips

• Wash lenses with mild car-wash soap only; harsh cleaners scratch UV coating.
• Once a month, run high beams briefly to evaporate any light haze.
• Replace bulbs in pairs; new and old filaments vary in color.
• Never touch a halogen glass capsule with bare fingers-oil forms a hot spot that shortens life.

Replacement Steps

1. Turn steering wheel away from the side you're working on.
2. Remove plastic wheel-arch access cover.
3. Twist out bulb holder counter-clockwise.
4. Swap in new bulb, seating O-ring firmly.
   A short video shows the full removal:

Alignment & Aim

Ford specifies a flat cutoff that must sit exactly at headlamp-center height when the car is 25 ft (7.6 m) from a wall. Adjust with the vertical screw on top of the housing. Aiming prevents glare that IIHS says can reduce nighttime crash risk by nearly 20 %.

Safety Standards

• FMVSS 108 governs photometry and "DOT" marks.
• Adaptive Driving Beam (ADB) became legal in 2022; aftermarket C-Max retrofit kits are beginning to appear.
• IIHS headlamp tests grade visibility distance and glare; better lights mean fewer crashes. (IIHS Crash Testing)
• Complaints about overly bright LED retrofits continue to rise.

Technology Upgrades

• Plug-and-play LED bulb kits rated at 6 000 K provide a whiter beam and draw only 25 W.
• HID conversions need external ballasts and can trip the bulb-out monitor.
• Adaptive LED projectors (aftermarket) can add curve lighting once ADB firmware is flashed.

Eco & Disposal

• Old halogen bulbs contain tungsten but no hazardous mercury. Recycle metal and glass at community e-waste centers.
• Cloudy polycarbonate lenses can be wet-sanded and UV-sealed instead of replaced, cutting plastic waste.
• LED retrofits draw less current, easing load on the C-Max's hybrid electrical system and extending accessory-battery life.

Troubleshooting

← scroll table horizontally →

Frequently Asked Questions

Q: What size bulb does my 2015 C-Max use for low beams?
A: H11 long-life halogen.

Q: Can I install LEDs without aiming adjustments?
A: No. Even LED retrofits must be aimed to the stock cutoff line to avoid glare.

Q: Why did both low beams fail at once?
A: The C-Max controls headlights through the body-control-module; a blown fuse or BCM fault can kill both sides instantly.

Q: How long do original halogen bulbs last?
A: About 500-1 000 hours of use-roughly 3-5 years for the average driver.

Q: Are adaptive driving-beam headlights legal on my C-Max?
A: Yes, U.S. rules changed in 2022, but you'll need a compliant aftermarket kit.

Q: Is it safe to drive with a hazy lens?
A: Light output can drop over 30 %; restore or replace the lens for safety.

Q: Do I need to disconnect the 12-V battery to change a bulb?
A: No, but turning off the lights and keys off prevents shorts.

Q: Where can I learn to aim my lights?
A: The NHTSA's simple aiming guide explains the tape-on-the-wall method. (See link below.)
