2020-2024 Cadillac XT6 A/C Compressor: Failure Symptoms & Replacement Guide
Learn to diagnose common failure symptoms, avoid a critical compatibility mistake, and understand your replacement options for the 3.6L V6 engine.
- This compressor fits ONLY the 2020-2024 Cadillac XT6 with the 3.6L V6 engine; it will not fit the 2.0L Turbo model.
- If the compressor pulley seizes, it can break the serpentine belt, causing a loss of power steering and alternator function, making the vehicle unsafe to drive.
- When replacing the compressor, you MUST also replace the receiver/drier and expansion valve, and flush the system to prevent immediate failure of the new part.
- A high-quality used OEM compressor is often a more reliable and cost-effective choice than a new, cheap aftermarket unit.
Critical Compatibility Warning: 3.6L V6 Engine ONLY
Warning: This A/C compressor assembly is specifically for 2020-2024 Cadillac XT6 models equipped with the 3.6L V6 engine. It will NOT fit models that have the 2.0L 4-cylinder turbocharged engine. Always verify the engine size of the vehicle before purchasing a replacement compressor. The OEM part numbers for the 3.6L V6 application include 23422345, 84309304, 84802769, 86792417, 23422341, 84308406, and 84760195.
Symptoms of a Failing A/C Compressor
A failing A/C compressor on your XT6 will usually provide several warning signs. Ignoring them can lead to more extensive and expensive damage to the entire A/C system.
- No Cold Air or Warm Air from Vents: This is the most obvious symptom. If the compressor can't pressurize the refrigerant, the cooling cycle cannot begin.
- Strange Noises When A/C is On: Grinding, rattling, or squealing noises that start when you turn on the A/C point to internal mechanical failure or a bad clutch bearing.
- Compressor Clutch Not Engaging: The outer part of the compressor pulley should spin with the engine belt at all times. When you turn on the A/C, the clutch plate at the very front should click and start spinning with the pulley. If it doesn't engage, it could be a bad clutch, a blown fuse, or a system that has lost all its refrigerant.
- Visible Refrigerant Leaks: The compressor contains oil to lubricate its internal parts. If you see a greasy, grimy buildup on the body of the compressor, it's likely that refrigerant and oil are leaking out from a bad seal or a crack in the housing.
Known Issues, TSBs, and Recalls
As of early 2026, there are no active recalls specifically for the A/C compressor on the 2020-2024 Cadillac XT6. However, owners should be aware of a few related items. Some owner complaints mention intermittent A/C operation tied to other electrical issues, but these are not widespread. There are no official Technical Service Bulletins (TSBs) from GM that point to a common defect or widespread failure pattern with the compressor itself. Most failures are due to normal wear, leaks, or internal component breakdown on a case-by-case basis.
Pro Tip: Before condemning the compressor for intermittent cooling, ask a technician to check for other potential causes like low refrigerant levels or faulty pressure sensors. GM has issued bulletins for similar vehicles regarding intermittent A/C operation that were not caused by compressor failure.
🎬 See common reasons why GM A/C systems stop blowing coldBuying a Used A/C Compressor: What to Check
A high-quality, low-mileage used OEM compressor can be an excellent value compared to expensive new OEM parts or lower-quality aftermarket alternatives. Here’s what to inspect before you buy.
- Verify Part Numbers: Cross-reference the part number from the donor vehicle with the list of known compatible numbers (e.g., 86792417, 84802769). Ensure it came from a 2020-2024 XT6 with the 3.6L V6 engine.
- Inspect the Pulley and Clutch: The pulley should spin smoothly by hand with minimal noise or wobble. Check the clutch plate on the front for any signs of extreme heat, scoring, or damage.
- Check for Leaks: Look for any oily residue or grime caked onto the compressor body, especially around the seams and the shaft seal behind the pulley. A clean, dry compressor is a good sign.
- Examine the Ports: The inlet and outlet ports should have been capped immediately after removal from the donor vehicle. Open ports allow moisture and debris to enter, which is damaging to the compressor and the entire A/C system.
- Ask About Mileage and Warranty: Reputable sellers will provide the mileage of the donor vehicle and offer a warranty on the part. A compressor from a low-mileage vehicle that sustained a rear-end collision is an ideal candidate.
Replacement Overview and Cost
Replacing the A/C compressor is an advanced job, primarily because it requires specialized equipment to handle the refrigerant in the system. The process involves having the old refrigerant professionally recovered, replacing the compressor and related components, then evacuating the system with a vacuum pump before recharging with the precise amount of new refrigerant and oil.
🎬 Watch: Full 3.6L compressor replacement and system recharge walkthroughCost Comparison
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Dealer) | $620 - $900 |
| New Aftermarket | $250 - $450 |
| Used OEM | $150 - $350 |
| Shop Labor (including system evac/recharge) | $400 - $750 |
Critical Step: When replacing a failed compressor, you MUST also replace the A/C receiver/drier (or accumulator) and the expansion valve/orifice tube. The entire system must also be thoroughly flushed to remove any metal debris from the old compressor. Failure to do this will cause the new compressor to fail very quickly, a condition known as "Black Death."
Frequently Asked Questions (FAQ)
Can I replace the A/C compressor myself?
For the average DIY mechanic, this is not recommended. Legally and environmentally, the refrigerant must be recovered by a certified technician with an expensive recovery machine. The system also requires a deep vacuum to be pulled before recharging to remove all moisture. Without these steps, the A/C system will not work correctly and new components can be damaged.
Do I have to replace any other parts with the compressor?
Yes. At a minimum, you must replace the receiver/drier (also called an accumulator) and the expansion device. These parts act as filters and are likely contaminated by the old compressor's failure. Not replacing them will void the warranty on most new and remanufactured compressors and lead to repeat failure.
What is A/C "Black Death"?
"Black Death" is a term for the catastrophic failure of an A/C compressor where its internal components shred, sending a mixture of metal shavings and dark, sludgy oil throughout the entire system. This contamination is extremely difficult to clean and will destroy a new compressor almost instantly if not completely flushed out. 🎬 Learn more about preventing A/C 'Black Death' contamination This is why flushing the system and replacing related components is not optional.
Can I just replace the A/C clutch?
While sometimes possible, it's often not practical. The labor to replace just the clutch can be almost as much as replacing the whole compressor. Furthermore, if the clutch failed due to an internal issue with the compressor (like it beginning to seize), a new clutch would quickly fail as well. In most cases, a complete compressor replacement is the more reliable and cost-effective long-term repair.
Helpful Videos
Technical Specifications

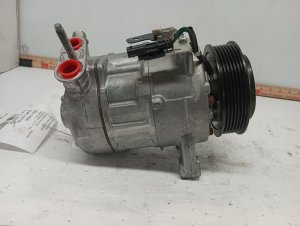

OEM Part Numbers: 23422345 84309304 84802769 86792417 23422341 84308406 84760195
Fits 2020-2024 Cadillac XT6 with 3.6L V6 LSY engine. Uses R-1234yf refrigerant (verify on underhood sticker).
