2022-2024 Kia EV6 A/C Compressor Guide: RWD, High-Voltage, and No Heat Pump
This guide covers the specific high-voltage A/C compressor for Rear-Wheel Drive (RWD) Kia EV6 models without a heat pump, including failure symptoms, known issues, and replacement costs.
- This compressor (part #977E1-CV200) is ONLY for Rear-Wheel Drive (RWD) Kia EV6 models that DO NOT have the optional heat pump.
- Replacement is NOT a DIY job. It is a high-voltage component that requires a certified technician to safely depower the vehicle and handle refrigerant.
- A failing compressor can impact more than cabin comfort; it is critical for cooling the high-voltage battery and can cause reduced fast-charging speeds.
- Before replacing the compressor, check for related TSBs, especially SA538 for incorrect refrigerant levels and any ICCU-related recalls, as these can cause similar symptoms.
Symptoms of A/C Compressor Failure
A failing A/C compressor in a Kia EV6 can present several symptoms. Since this component is crucial for both cabin comfort and battery health, any sign of trouble should be addressed promptly.
- No Cold Air or Warm Air from Vents: This is the most obvious sign. If the compressor fails, it cannot circulate refrigerant, and the system will only blow ambient or warm air.
- Unusual Noises: While electric compressors are generally quiet, a failing unit might produce a noticeable humming, chattering, or grinding sound. These noises can indicate internal mechanical failure or struggling electrical components.
- "Check Electric Vehicle System" Warning Light: A fault in the high-voltage A/C compressor can trigger a general EV system warning on the dashboard. This is because the A/C system is integrated with the battery's thermal management.
- Reduced Performance During Fast Charging: If the A/C compressor cannot adequately cool the battery, the vehicle may automatically slow down DC fast charging speeds to prevent overheating. This might be one of the first signs of a problem, even if cabin A/C seems to work intermittently.
- A/C System Inoperative After ICCU-Related Recalls: Some owners have reported A/C issues following software updates or repairs related to the Integrated Charging Control Unit (ICCU). While not a direct compressor failure, a related system fault can disable the A/C.
Known Issues, TSBs, and Recalls
While there are no direct recalls for the A/C compressor itself, several service campaigns and technical service bulletins (TSBs) are relevant to the A/C system and its related components.
- Service Action SA538: For some 2023 EV6 models, Kia issued a service action because vehicles may have been assembled with an incorrect amount of R-1234yf refrigerant. This can cause poor or no A/C performance and can be mistaken for a compressor failure. The fix involves evacuating and recharging the system to the correct specification.
- ICCU Recalls (SC271, SC302, SC327): 🎬 Watch: Learn more about the ICCU recall and its symptoms. A major issue for 2022-2024 EV6s involves the Integrated Charging Control Unit (ICCU), which manages both the 12-volt battery charging and the high-voltage system. A failing ICCU can cause a loss of power and various electrical issues. While not directly part of the A/C system, the A/C compressor is a high-voltage component controlled by the vehicle's electronics, and some owners report A/C problems in conjunction with ICCU failures. The remedy involves a software update and, if necessary, replacement of the ICCU and its fuse.
- TSB ELE283: This TSB addresses issues with the Vehicle Charging Management System (VCMS) that can cause overheating during charging. Since the A/C compressor is involved in battery cooling during charging, any charging system faults can be related.
Compatibility Warning: This A/C compressor, part number 977E1-CV200, is ONLY for 2022-2024 Kia EV6 models with Rear-Wheel Drive (RWD) and without the optional heat pump system. It will not fit All-Wheel Drive (AWD) models or any model equipped with a heat pump, as those use a different system architecture. Always verify your vehicle's specifications before purchasing.
Buying a Used A/C Compressor
Purchasing a used OEM A/C compressor can be a cost-effective solution, but careful inspection is key. Given the high-voltage nature of this part, it's crucial to buy from a reputable source.
- Verify the Part Number: Absolutely confirm the part number is 977E1-CV200 (or a compatible superseded number). Do not rely on visual identification alone.
- Inspect the High-Voltage Connector: The orange high-voltage connector and its wiring are the most critical inspection points. Look for any signs of cracking, melting, corrosion, or damage to the locking tabs. Do not purchase a unit with any connector damage.
- Check for Physical Damage: Inspect the compressor body for cracks, deep gouges, or signs of being dropped. Check the refrigerant ports to ensure the threads are clean and undamaged.
- Ask for Vehicle History: If possible, get the VIN of the vehicle the compressor came from. This allows you to check for prior accidents and verify the vehicle's original configuration (RWD, no heat pump). A part from a low-mileage, collision-free vehicle is always preferable.
- Why Used OEM is a Good Choice: For a specialized, high-voltage component like this, there are few, if any, new aftermarket options. A recycled OEM compressor that has been properly tested is often a more reliable and affordable choice than sourcing a brand-new one from a dealer.
Replacement Information
Replacing the A/C compressor on a Kia EV6 is a job for certified professionals only.
Warning: This is a high-voltage component. Improper handling can result in severe injury or death. The high-voltage system must be properly depowered before any work is done. The refrigerant system also requires specialized equipment for safe evacuation and recharging. This is not a DIY-friendly repair.
- Difficulty Rating: 5/5 (Professional Technician Only)
- DIY Feasible: No
- Estimated Shop Labor: Labor costs for this job are estimated to be between $323 and $474, though this can vary based on location and the shop's hourly rate for EV service.
Cost Comparison
Prices can vary significantly between new OEM, used OEM, and the labor required for installation.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $685 - $1,274 |
| Used OEM | $250 - $500 (Varies by supplier and condition) |
| Shop Labor | $323 - $474 |
| Total (New Part) | $1,008 - $1,748 + refrigerant & fees |
| Total (Used Part) | $573 - $974 + refrigerant & fees |
Frequently Asked Questions
Can I drive my EV6 with a bad A/C compressor?
It is not recommended. While you may be able to drive the car, a non-functional A/C compressor cannot cool the high-voltage battery. This can lead to significantly reduced DC fast charging speeds and, in extreme cases of heat, could cause the vehicle to enter a reduced power mode or shut down to protect the battery.
What is a heat pump and how do I know if I have one?
A heat pump is a more efficient system for heating and cooling the cabin, which helps preserve driving range in cold weather. In the US market for the 2022-2024 EV6, the heat pump was typically included on All-Wheel Drive (AWD) models. If you have a Rear-Wheel Drive (RWD) model, you almost certainly have the standard system that uses this A/C compressor.
Why is the replacement so expensive?
The cost is high for several reasons: the compressor itself is a specialized, high-voltage electric motor, not a simple mechanical pump. The labor requires technicians with specific training and certification to work on EV high-voltage systems, and the process involves safely handling both high-voltage electricity and R-1234yf refrigerant.
Could my A/C problem just be low refrigerant?
Yes. Service Action SA538 was issued for some 2023 models that left the factory with an insufficient refrigerant charge, causing poor cooling. Before assuming the compressor is bad, it's worthwhile to have a certified shop check the refrigerant level and look for leaks.
Helpful Videos
Technical Specifications

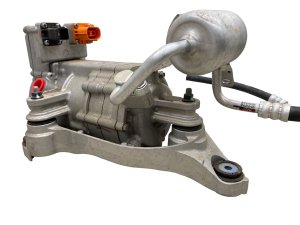

OEM Part Numbers: 977E1-CV200 97729-CV200
High-voltage electric compressor for R-1234yf refrigerant systems. Fits Rear-Wheel Drive (RWD) models without a heat pump.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
