2016-2025 Toyota Tacoma A/C Compressor: Failure Symptoms, TSBs, and Replacement Costs

A/C System Overview: 3rd Gen vs. 4th Gen Tacoma

The 2016-2025 Toyota Tacoma spans two distinct generations with different A/C systems. It's crucial to identify your truck's generation to correctly diagnose issues and find the right parts.

• 3rd Generation (2016-2023): These trucks use a 2.7L 4-cylinder or 3.5L V6 engine. The A/C system is a conventional belt-driven design using a compressor with a magnetic clutch. These models originally used R1234yf refrigerant.
• 4th Generation (2024-2025): These newer trucks feature a 2.4L turbocharged 4-cylinder engine or the i-FORCE MAX hybrid powertrain. The non-hybrid models use a belt-driven A/C compressor, while the hybrid models may use an electric compressor that is not belt-driven. This guide focuses primarily on the more common belt-driven compressors.

Common Symptoms of a Failing A/C Compressor

A bad A/C compressor can manifest in several ways. Here are the most common signs to watch for:

• No Cold Air: The most obvious symptom is the A/C system blowing warm or hot air. If the compressor fails, it cannot pressurize and circulate the refrigerant needed for cooling.
• Loud Noises When A/C is On: A grinding, squealing, or rattling sound that starts when you turn on the A/C and stops when you turn it off points to a problem with the compressor. This could be a failing internal bearing or a problem with the clutch.
• Compressor Clutch Not Engaging: The clutch is the front part of the compressor pulley that engages when you turn on the A/C. You should hear a 'click' and see the outer plate of the pulley start spinning. If it doesn't move, it could be a bad clutch, a blown fuse, or a system that has lost its refrigerant charge.
• Visible Leaks: The compressor has seals that can fail over time, leading to leaks. You might see a greenish, oily residue on the body of the compressor or on components below it. This is refrigerant oil, and its presence indicates a leak.

Known Issues, TSBs, and Recalls (2016-2023)

While the A/C compressor itself is generally reliable, the 3rd Generation Tacoma has several documented A/C system issues that can be misdiagnosed as a compressor failure.

TSB T-SB-0004-22: HVAC Whistle Noise

Some 2016-2023 Tacomas may exhibit a brief, 1-3 second whistle from the vents when the A/C compressor cycles, especially at higher RPMs in hot weather. This is not a sign of compressor failure. The noise is caused by the design of the evaporator core inside the dashboard. Toyota's official fix is to replace the evaporator sub-assembly with an updated part (88501-04070). 🎬 Watch: See the official TSB repair for this HVAC whistle. This is a major repair that involves removing the dashboard and can cost over $2,000 if not covered by warranty.

TSB T-SB-0093-20: A/C Stops Cooling at Idle

Owners of 2016-2021 Tacomas may experience the A/C system shutting down and blowing warm air during extended idling in ambient temperatures above 100°F. This is due to the cooling fan not moving enough air across the condenser at low engine speeds. The fix may involve a software update or replacing the fan relay to improve cooling fan performance at idle. This is a comfort issue, not a safety recall.

TSB T-SB-0052-22: Poor Cooling / Refrigerant Leak

For some 2021-2022 Tacomas, a faulty pressure relief valve on the compressor can open prematurely, venting refrigerant. This results in poor cooling performance and may be accompanied by visible vapor from under the truck. The fix involves replacing the valve (part number 88379-04020) and recharging the system.

Damaged Clutch Drive Plate

The rubber damper on the compressor clutch's drive plate can fail and break apart. This will cause the compressor to stop spinning, leading to a loss of cooling. In this case, the compressor itself may still be good, but Toyota does not sell the clutch components separately from the entire compressor assembly. Aftermarket clutch kits are available online.

Known Issues (2024-2025)

The 4th Generation Tacoma is still new, but some early issues are being reported on owner forums.

• Chirping Noise: Some owners of non-hybrid 2024 models report a persistent 'chirp' at startup and while driving, which seems related to the A/C clutch assembly.
• Poor Cooling at Low Speeds: There are reports of the A/C system not cooling effectively at low speeds or when stopped, which can cause the engine to overheat during extended idling like in a parade.

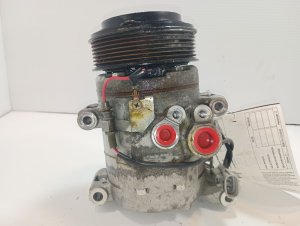

Buying a Used A/C Compressor

A used OEM compressor can be a smart, cost-effective alternative to expensive new parts, especially when compared to cheap, unreliable aftermarket units. Here’s what to check before you buy:

• Inspect the Pulley and Clutch: Spin the pulley by hand. It should rotate smoothly with minimal resistance. A rough, noisy, or seized bearing is a major red flag. Check that the clutch plate on the front is present and not damaged.
• Check for Leaks: Look for oily, grimy residue around the compressor body, especially near the seals and line connections. This indicates a past or present refrigerant leak. The unit should be clean and dry.
• Verify Part Number: The most reliable compressor for the 2016-2023 Tacoma is part number 88320-04070. Always match the part number from your old compressor to the used one to ensure compatibility.
• Ensure Ports are Capped: A reputable seller will cap or plug the inlet and outlet ports to prevent moisture and debris from entering the compressor during shipping and storage. Moisture is the enemy of an A/C system.
• Mileage and Warranty: Ask for the mileage of the donor vehicle. Lower mileage is always better. Purchase from a seller that offers a warranty, which provides protection in case the part is defective.

Cost Comparison

Replacing an A/C compressor involves significant labor, including evacuating the old refrigerant, replacing the part, and then vacuuming and recharging the system.
