2020-2025 Corvette C8 A/C Condenser: Why Road Debris is Your Enemy

A/C Condenser on the 2020-2025 Chevrolet Corvette: A Comprehensive Guide

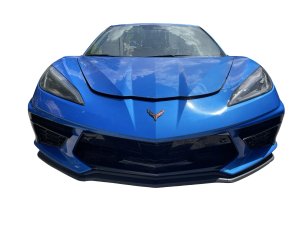

The C8 Corvette, covering model years 2020, 2021, 2022, 2023, 2024, and 2025, utilizes a high-performance, dual A/C condenser system. Unlike most vehicles that have a single condenser mounted in front of the radiator, the C8 has two smaller condensers, one on each side of the front bumper, positioned directly behind the large, aggressive air intakes. While this provides excellent airflow for maximum A/C efficiency, it leaves the condensers exposed and vulnerable to damage.

Known Issues: Road Debris Damage and TSB 24-NA-259

The single most common problem for the A/C condenser on the 2020-2025 Chevrolet Corvette is physical damage from rocks and other road debris. The large, open vents on the front fascia allow stones to fly directly into the condenser fins. While minor bending of the soft aluminum fins is often just cosmetic, a sharp impact can puncture the refrigerant tubes, causing a leak and complete loss of A/C function. This issue is so prevalent that many owners have reported damage with very few miles on the car.

In response to leaks, GM has issued Technical Service Bulletin (TSB) 24-NA-259. This bulletin addresses A/C systems that are not working due to a refrigerant leak at the seal washers between the condenser lines and the condenser itself. The fix involves replacing the seal washers and re-torquing the connection, which may be attempted before replacing the entire condenser if a leak is detected at this specific point.

Symptoms of a Failing A/C Condenser

A failing A/C condenser on your Corvette will present several noticeable symptoms:

• Warm Air from Vents: This is the most common sign. If the condenser is leaking refrigerant or its fins are so clogged or damaged that air can't pass through, it cannot cool the refrigerant, resulting in warm air blowing from your vents.
• Visible Refrigerant Leak: The A/C system contains refrigerant oil along with the refrigerant. A leak will often appear as a greasy or oily residue on the condenser fins, or dripping from the front corner of the car. This oily patch will quickly attract dirt and grime, making it easier to spot.
• A/C System Inoperative: If a significant leak occurs, the system's pressure will drop to a point where the A/C compressor's safety switch will prevent it from turning on to avoid damage.
• Engine Overheating at Idle: While less common, a condenser that is severely clogged with debris can restrict airflow to the main engine radiators located behind it, potentially causing the engine to run hot when the vehicle is stationary.

Buying a Used 2020-2025 Corvette A/C Condenser

Because the primary cause of failure is physical damage, a used OEM condenser from a reputable recycler can be an excellent value. Unlike electronic parts, a condenser's condition is easy to assess visually. Here’s what to check:

• Inspect the Fins: Look for a condenser with straight, clean fins. A few bent fins are acceptable and can be carefully straightened with a fin comb, but avoid units with widespread damage or large, flattened areas that would block airflow.
• Check for Leaks: Meticulously inspect the entire surface, especially around the inlet/outlet ports and where the tubes are welded. Look for any dark, oily residue, which is a tell-tale sign of a past or present leak. A clean, dry condenser is what you want.

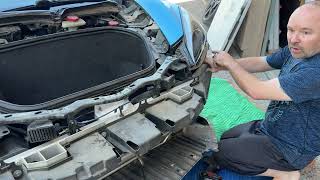

🎬 Watch this walkthrough on changing the C8 A/C condenser
• Examine the Fittings: Ensure the threaded inlet and outlet ports are clean, undamaged, and not cross-threaded. The part should have been stored with caps on the ports to prevent moisture and debris from entering.
• Verify the Part Number: Confirm you are buying the correct part. The most current OEM part number is 84789220, which replaces the older number 84514719. While both will fit, it's always best to get the latest revision.

Replacement Difficulty and Cost

Replacing an A/C condenser on a C8 Corvette is a complex job best suited for an experienced technician or a very skilled DIYer.

• Installation Difficulty: 4 out of 5.
• Primary Challenge: The front bumper cover must be completely removed to access the condensers. This involves carefully disconnecting numerous clips, screws, and sensors.
🎬 See the easiest way to remove the front bumper
• Specialized Tools Required: The job requires a professional A/C recovery and recharge machine to safely evacuate the old refrigerant and refill the system with the correct amount of R-1234yf refrigerant and oil. This is not optional and is legally required.

Cost Comparison

Prices can vary by location and supplier. Note that these prices are typically per condenser, and your Corvette has two.

Labor costs include front bumper removal/installation and a full A/C system evacuation and recharge. Total replacement cost for a single condenser at a professional shop can range from $700 to over $1,200.

Frequently Asked Questions
