2020-2026 Trailblazer & Encore GX ABS Module: Recall, Programming & Replacement Facts

Symptoms of Failure

A failing ABS module assembly on your Trailblazer or Encore GX can manifest in several ways, ranging from dashboard lights to dangerous changes in brake performance.

• ABS, Traction, or Stability Control Warning Lights: The most common symptom is an illuminated ABS warning light on your dashboard. Because the systems are integrated, the traction control or stability control lights will often turn on at the same time.
• Hard or Unresponsive Brake Pedal: A sudden loss of power assist can make the brake pedal feel extremely firm and difficult to push, requiring significantly more force to stop the vehicle. This is a primary symptom of a major safety recall. In other failure scenarios, the pedal might feel unresponsive, spongy, or require more effort than usual.
• Wheels Locking Up: The main purpose of ABS is to prevent wheels from skidding. If the module fails, the wheels can lock up under hard braking, increasing the risk of losing control, especially on wet or slippery surfaces.
🎬 See: 6 common symptoms of a bad ABS module
• Unwanted ABS Activation: The system may activate incorrectly at low speeds, such as when pulling into a parking spot, creating a grinding noise and a pulsating pedal when it's not needed.
🎬 Watch: Diagnosing unwanted ABS activation when stopping
• Inaccurate Speedometer: In some vehicles, the ABS module and its wheel speed sensors provide the data for the speedometer. A module failure can cause the speedometer to read incorrectly or stop working altogether.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Before buying any parts, check if your vehicle is affected by the following recall or TSBs. A GM dealer can check your Vehicle Identification Number (VIN) for free.

Technical Service Bulletins (TSBs)

• TSB 20-NA-186: Some owners may experience the Electric Park Brake (EPB) setting itself upon vehicle startup. The official fix is to reprogram the Electronic Brake Control Module (EBCM), confirming that the module's software can be updated to fix operational bugs.
• TSB 21-NA-215: This bulletin addresses various engine performance issues, like a pop noise during acceleration or stalling, which can trigger a host of communication-related Diagnostic Trouble Codes (DTCs) from the ABS module, such as U0100 (Lost Communication with ECM) and U0140 (Lost Communication with BCM). This highlights how interconnected the ABS module is with the vehicle's entire electronic network.

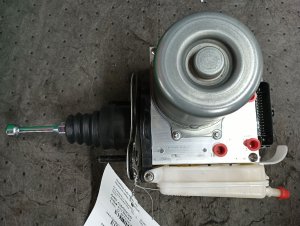

Buying a Used ABS Module Assembly

Given the high cost of a new assembly, a used OEM part can be a smart choice, provided you know what to look for. These complex integrated units are not something where a cheap aftermarket copy is a reliable option.

Compatibility: FWD vs. AWD is CRITICAL

Inspection and Verification

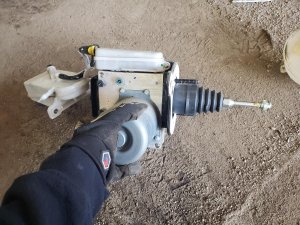

• Physical Inspection: Carefully inspect the used assembly for any signs of damage from a collision. Check the electrical connector pins for corrosion or damage. Ensure the master cylinder reservoir is not cracked and shows no signs of major leaks. Avoid parts from flood-damaged vehicles.
• Part Number Match: Match the part number on the used unit to your original part number exactly. While several part numbers may work, an exact match is the safest way to ensure compatibility.
• Source and Warranty: Purchase from a reputable recycler that offers a warranty. This protects you in case the part is defective. Even a 90-day warranty is enough to get the part installed, programmed, and confirm it works correctly.

Programming and Calibration: What You MUST Know

This is the most critical step of the replacement process and cannot be skipped.

• Programming is NOT Optional: Any replacement ABS module—whether brand new or used—must be electronically programmed to your vehicle’s specific VIN. Without programming, the module will not communicate with the vehicle's other computers, and the ABS and stability control systems will not function.
• Who Can Program It?: This is not a DIY-friendly software task. Programming requires a modern J2534 Pass-Thru device and a paid subscription to GM's Techline Connect / Service Programming System (SPS). This means the work must be done by a GM dealer or a well-equipped independent repair shop that specializes in GM vehicles. A standard mechanic shop is unlikely to have this capability.
🎬 Watch: How GM ABS module programming is performed
• What Happens if You Don't Program It?: The ABS and stability control warning lights will remain on, and you will have no anti-lock braking, traction control, or stability control functionality. The vehicle may also exhibit other electronic issues.

Cost Breakdown

The cost to replace this integrated module can vary significantly. Always check if your vehicle is covered by the recall first, which would make the repair free.
