2013-2019 Ford Escape ABS Module: Programming, Part Numbers, and Failure Symptoms

Key Failure Symptoms & Diagnosis

A failing ABS module will almost always make its presence known with a collection of dashboard warning lights. If you see the ABS, traction control (the icon of a car with squiggly lines), and sometimes the main brake warning light all illuminated, it's a strong indicator of a problem within the system.

• Warning Lights: The most common sign is the ABS warning light staying on. This is often accompanied by the traction control and stability control lights, as they all rely on the ABS module to function.
• Inaccurate or Dead Speedometer: In many modern vehicles, the speedometer gets its data from the wheel speed sensors via the ABS module. A complete failure of the module can cut off this signal, causing the speedometer to stop working.
• Unusual Brake Pedal Feel: The brake pedal might feel harder to press than usual, or you might notice the ABS engaging at inappropriate times, like during light, slow braking. In some cases, owners report a spongy or unresponsive pedal that requires more effort to stop the vehicle.
• ABS Pump Constantly Running: You might hear a buzzing or humming sound from the ABS pump motor, located in the engine bay, that doesn't turn off. This indicates the module may be sending faulty signals.
🎬 See how a faulty module causes constant pump running and battery drain.

Common Diagnostic Trouble Codes (DTCs)

A professional scan tool can read codes from the ABS module to pinpoint the issue. Common codes associated with module failure include:

• B1342 / C1342: ECU Internal Failure / ABS Control Module Malfunction. This code points directly to an internal fault within the electronic module itself.
• C0020: Motor Fault. This indicates a problem with the ABS pump motor, which is often controlled by and integrated with the module.
• U-Series Codes (e.g., U2300): These are communication codes, indicating the ABS module is not communicating correctly with other computers in the vehicle. This can be caused by an internal module failure.
• C1095: ABS Hydraulic Pump Motor Circuit Failure. This points to an issue with the pump motor circuit, which can be a result of a failed module.

Known Issues, Recalls & Technical Service Bulletins (TSBs)

While there are no widespread recalls specifically for the ABS control module on the 2013-2019 Escape, the vehicle generation has been subject to several safety recalls that owners should be aware of. These include issues with shifter cable bushings that could lead to a rollaway risk, and problems with the Restraint Control Module (RCM) software. It's always wise to check for any open recalls on your specific vehicle using its VIN.

CRITICAL: Programming & Calibration Requirements

This is the most important thing to understand when replacing this part: A replacement ABS control module, whether it is new or used, MUST be programmed to your vehicle's specific Vehicle Identification Number (VIN) and configuration. This is not an optional step.

The module is integrated with the vehicle's communication network (CAN bus) and needs to be configured with what is known as "As-Built Data." This data tells the module about the specific options your Escape has (e.g., FWD vs. AWD, engine size, trim level). Without correct programming, you will experience:

• A VIN mismatch error code (like U2300).
• Persistent ABS and other warning lights.
• Non-functional ABS, traction control, and stability control systems.

Who can program the module?

• Ford Dealerships: They have the factory tools (like FJDS) to perform the programming. However, some dealerships may be hesitant to program a used part.
• Independent Repair Shops: Many professional shops have advanced scan tools and J2534 pass-thru devices that can perform the programming.

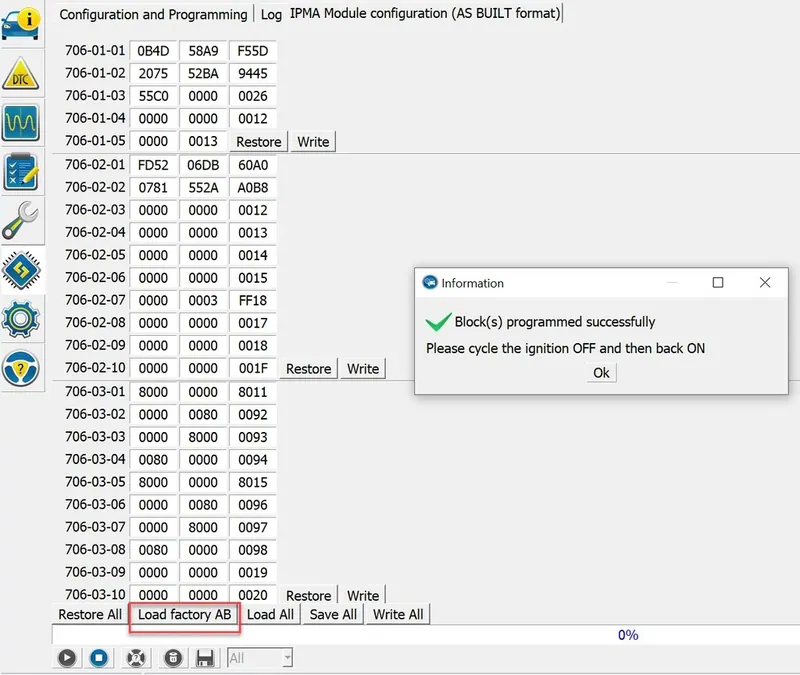

• Advanced DIY / Enthusiasts: It is possible to program a used module using software like FORScan with an extended license and a compatible OBD2 adapter. This process involves downloading your vehicle's original As-Built data from Ford's servers and writing it to the replacement module. After programming, a calibration of the longitudinal sensor and an IVD (Interactive Vehicle Dynamics) initialization procedure are often required.

Buying a Used ABS Control Module: A Buyer's Guide

A used OEM ABS module is an excellent, cost-effective alternative to an expensive new unit. Since these modules are primarily electronic, a part from a low-mileage, accident-free vehicle can provide years of reliable service. However, compatibility is crucial.

1. Verify Part Number & Production Date

There is a critical production date split for these modules. You MUST match the part to your vehicle's build date.

• For 2013-2015 Ford Escape models built ON OR BEFORE March 11, 2015: You need a module from this specific date range.
• For 2015-2019 Ford Escape models built ON OR AFTER March 12, 2015: You need a module from this later date range.

You can find your vehicle's production date on the sticker in the driver's side door jamb. Always match the OEM part number on your original module to the one you are purchasing. While part numbers may be superseded, starting with a direct match is the safest approach.

2. Physical Inspection

When you receive the used module, inspect it carefully. Look for:

• No Corrosion: Check the aluminum housing and electrical connector pins for any signs of water damage or corrosion.
• Intact Connectors: Ensure the main electrical connector and the ports for the brake lines (if buying the full pump and module assembly) are clean and undamaged.
• No Physical Damage: Look for cracks in the plastic housing or dents in the metal body.

Replacement Cost Breakdown

The cost to replace an ABS module can vary significantly based on the part source and labor rates. Programming costs are in addition to the physical replacement.

Replacement Overview & DIY Feasibility

The ABS module is located in the engine bay, typically under the battery and battery tray, attached to the hydraulic pump assembly. While the electronic module can sometimes be separated from the hydraulic pump without opening brake lines, it is often sold and replaced as a complete unit.

• Difficulty: 4/5 (Mechanical is moderate; programming is advanced)
• DIY Feasible: The mechanical replacement is possible for an experienced DIYer, but the mandatory programming requires special tools and knowledge.
• Steps: The general process involves removing the battery and battery tray for access, disconnecting the electrical harness, unbolting the module/pump assembly, and transferring it. If the hydraulic unit is replaced, the entire brake system must be properly bled using a scan tool to cycle the ABS pump to remove all trapped air.
