2013-2017 F-250 & F-350 Super Duty ABS Module: Failures, Build Dates, and Programming
This guide explains common ABS module failures, critical compatibility checks, and the necessary programming for 2013-2017 Ford F-250 and F-350 Super Duty trucks.
- Programming is mandatory for any replacement ABS module (new or used) to match your truck's VIN and options.
- For 2017 models, there is a critical build-date split; parts are different for trucks built on or before Feb 19, 2017, versus those built after.
- You must verify if your truck is equipped with Roll Stability Control (RSC) and Traction Control to select the correct replacement part.
- A failed module disables critical safety systems including ABS, traction control, and stability control, increasing the risk of skidding or rollover.
Symptoms of a Failing ABS Control Module
A failing ABS module can present several distinct symptoms. 🎬 Watch: A visual guide to common failing ABS module symptoms. Because it's tied into multiple vehicle safety systems, a failure will typically illuminate several warning lights on your dashboard. You should investigate these symptoms promptly, as they indicate that key safety features are disabled.
- ABS Warning Light: This is the most common and direct indicator of a problem within the anti-lock braking system.

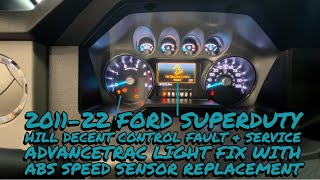

- Traction Control and Stability Control Lights: Since the ABS module controls these systems, their warning lights will often illuminate as well. You may see a "Service AdvanceTrac" message. 🎬 See how to fix AdvanceTrac and Hill Descent Control faults.
- Brakes Locking Up: Without a functioning ABS module, the anti-lock feature is disabled. In a panic stop, the wheels can lock, causing the truck to skid and lose steering control.
- No Communication with Scan Tool: A common failure mode is a complete loss of communication with the module. If a diagnostic scan tool cannot connect to the ABS module, it's a strong sign the module itself has failed internally.
- ABS Pump Running Continuously: In some cases, an internal failure can cause the ABS hydraulic pump to run constantly, even when the truck is off. This can drain the battery.
- Associated OBD-II Codes: A capable scanner that can read ABS codes is essential for diagnosis. Common codes include C-series (Chassis) codes related to wheel speed sensors, the pump motor, or internal module faults. Specific codes like U3003 (Battery Voltage) or C0020 (ABS Pump Motor Control) can point to issues, sometimes related to external problems like water intrusion in the main fuse box (BJB).
Important Compatibility and Part Number Information
When replacing the ABS module on a 2013-2017 Ford F-250 or F-350 Super Duty, precise part matching is critical. There are several key variations you must be aware of before purchasing a replacement part.
Key Compatibility Checks:
- Roll Stability Control (RSC) and Traction Control: The most significant variation is whether your truck is equipped with Roll Stability Control. Many modules are specific to vehicles with both RSC and Traction Control. Always verify your truck's options before ordering.
- 2017 Model Year Build Date Split: For the 2017 model year, there is a critical production date split. Parts are different for trucks built on or before February 19, 2017, and those built from February 20, 2017, onwards. You can find your truck's build date on the sticker inside the driver's door jamb.
Warning: Installing a module from a truck with different options or the wrong build date can result in system malfunctions and persistent warning lights, even after programming.

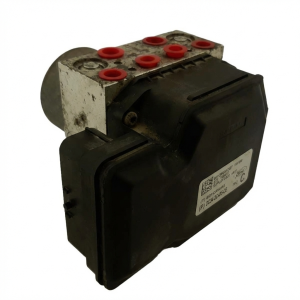

Known OEM Part Numbers
Always match the part number from your original module to the replacement. Below is a list of known part numbers for this generation of Super Duty trucks.

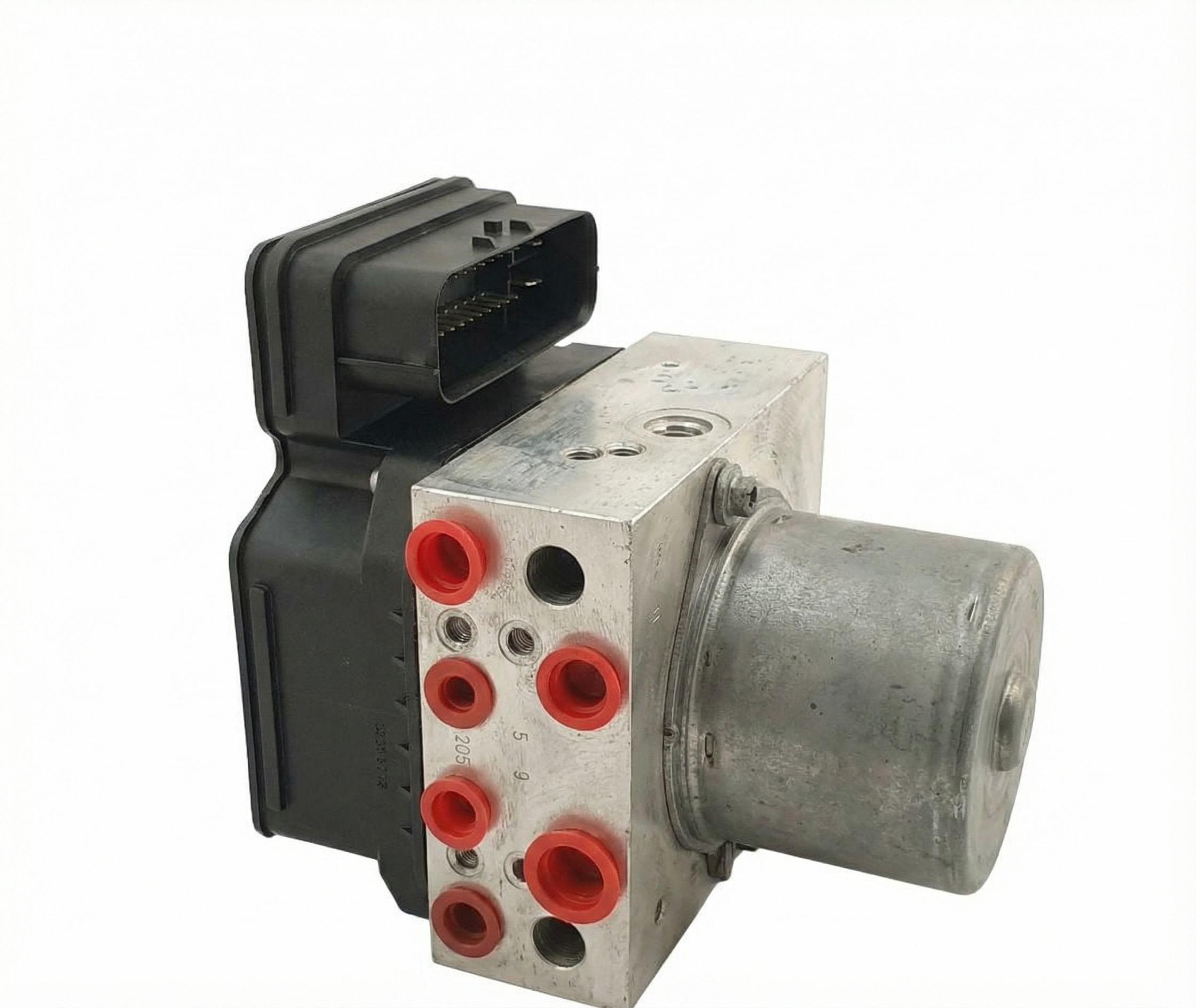

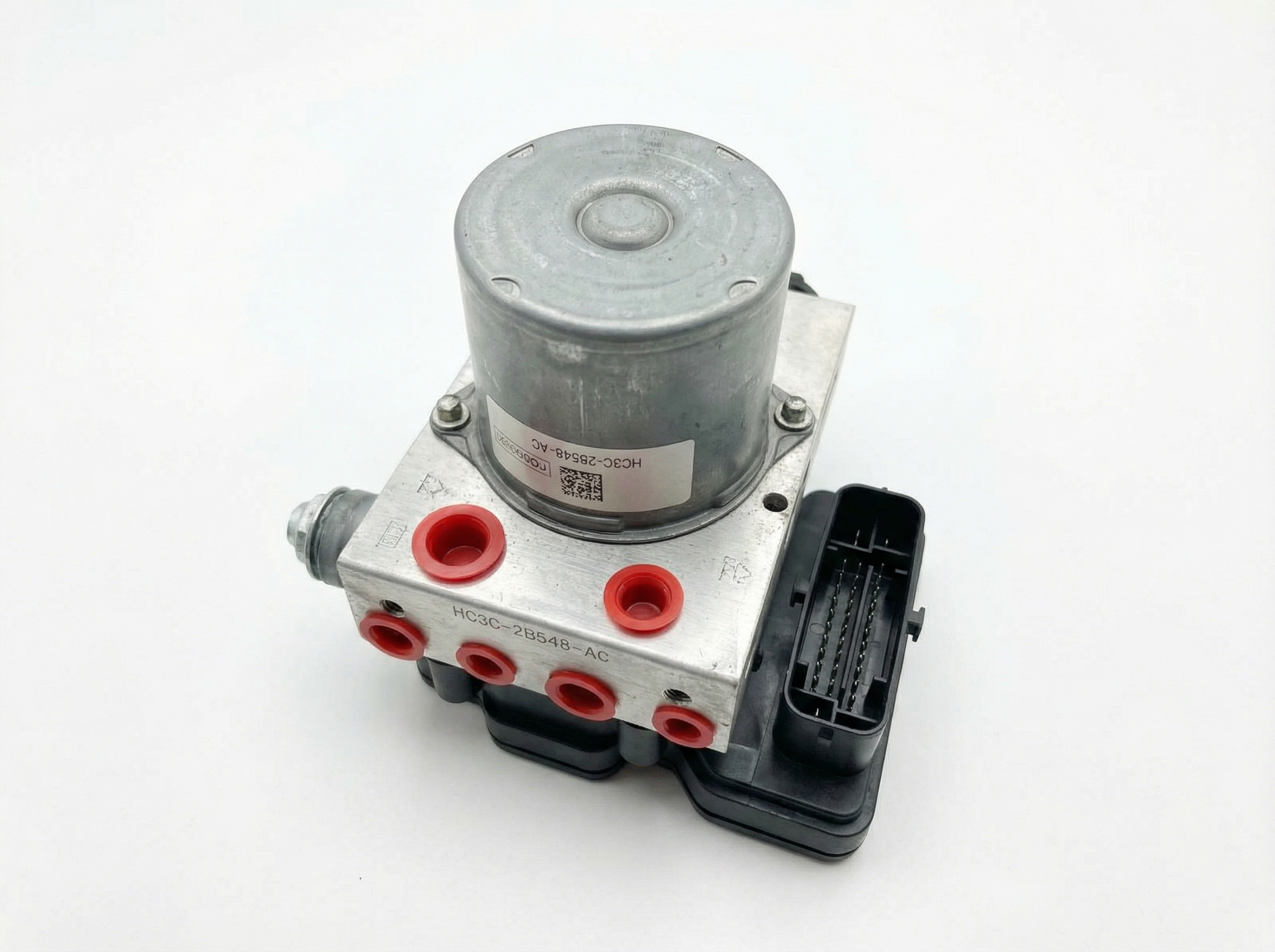

| Part Number | Notes |
|---|---|
| DC3Z2C215A | Fits vehicles with Roll Stability Control. |
| DC3Z2C219C | Fits vehicles with Roll Stability Control. |
| EC3Z2C215A | Fits vehicles with Roll Stability Control. |
| EC3Z2C219A / EC3Z2C219B | Fits vehicles with a production date on or before 02/19/2017. |
| HC3Z2C286C / HC3Z2C286E | Fits 2017 models built FROM 02/20/2017. |
| HC3C-2C405-A | Check specific application. |
| HC3C2C215AB through AE, AH | Check specific application. |
| HC3C2C405AG / HC3C2C405AH | Check specific application. |
Programming and Calibration: A Critical Step
A replacement ABS control module—whether it is new, used, or remanufactured—must be programmed to your truck's specific Vehicle Identification Number (VIN). This is not an optional step. The module needs to be configured with what Ford calls "As-Built Data." This data tells the module about your truck's specific configuration, such as tire size, axle ratio, and installed options like stability control.
Without correct programming, the ABS, traction control, and stability control systems will not function correctly, and warning lights will remain on the dash.
Who can program the module?
- Ford Dealership: A dealer can always perform the programming using their Integrated Diagnostic System (IDS) software.

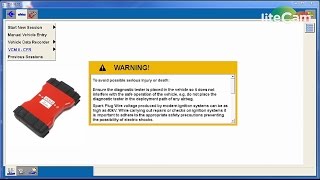

- Independent Repair Shop: Many independent shops that specialize in Ford vehicles will have the same IDS software or equivalent professional-grade scan tools capable 🎬 Watch: Step-by-step walkthrough of the Ford ABS module programming procedure. of module programming.
- Advanced DIY (FORScan): For the technically savvy DIYer, it is possible to program the module using a compatible OBD-II adapter and FORScan software. This process involves saving the As-Built data from your old module (if it's still readable) and writing it to the new one, or downloading the correct data from Ford's database using your VIN.
Pro Tip: Before removing your old module, try to connect to it with FORScan or have a shop scan it to save the As-Built data. This can make programming the replacement module much simpler.
Buying a Used ABS Control Module: What to Look For
Purchasing a used OEM ABS module is a great way to save money, often providing the same performance as a new part for a fraction of the price. Here’s what to inspect to ensure you get a quality part.
- Verify the Part Number: This is the most important step. The part number on the used module must match your original part number exactly to ensure electronic and hydraulic compatibility.
- Check Vehicle Options: Confirm the donor vehicle had the same key options as your truck, specifically Roll Stability Control (RSC) and the correct 2017 build date if applicable.
- Inspect the Connectors: Look closely at the electrical connector pins. They should be clean, straight, and free of any green or white corrosion. Corrosion is a major red flag indicating water intrusion.
- Examine the Housing: Check the plastic housing of the electronic module and the aluminum body of the hydraulic unit for any cracks, deep gouges, or signs of being tampered with.
- Why Used OEM is a Good Choice: For a complex electronic part like an ABS module, a used OEM unit is often superior to a cheap aftermarket alternative. Used OEM parts are guaranteed to have the correct software architecture and hardware designed specifically for your truck, minimizing the risk of programming headaches or communication errors with other vehicle systems.
Replacement Cost Breakdown
The cost to replace an ABS control module can vary significantly based on the part source and labor rates. Programming costs are often separate from installation labor.
| Part/Service | Estimated Cost | Notes |
|---|---|---|
| New OEM Part | $900 - $1,300 | Purchased from a Ford dealership. Often includes a core charge. |
| New Aftermarket Part | $400 - $700 | Availability can be limited and programming can sometimes be problematic. |
| Used OEM Part | $120 - $250 | A cost-effective option, but requires careful matching and programming. |
| Remanufactured/Repaired | $200 - $400 | Your original unit is sent out for repair. Avoids programming if you reinstall the same unit. |
| Shop Labor (Installation) | $110 - $194 | Includes removing the old unit, installing the new one, and bleeding the brake system. |
| Shop Labor (Programming) | $100 - $200 | Typically one hour of labor at the shop's diagnostic rate. |
Frequently Asked Questions (FAQ)
Do I absolutely have to program a replacement ABS module?
Yes. For 2013-2017 Ford Super Duty trucks, programming is mandatory. The module is tied to your vehicle's VIN and must be configured with the correct As-Built data to communicate with other systems and function correctly. The only exception is if you send your original module out for repair and then reinstall it in the same truck.
Can I drive my truck with a bad ABS module?
You can, but it is not recommended for safety reasons. Your standard hydraulic brakes will still work, but you will not have anti-lock brakes, traction control, or stability control. This means your wheels can lock up and skid during hard braking, and the truck will be more susceptible to sliding or rolling over in an emergency maneuver.
How do I find my truck's build date for my 2017 model?
The build date is printed on the Federal Certification Label (also called the Tire and Loading Information label) located on the driver's side door jamb or the edge of the door itself. The month and year of manufacture (e.g., 01/17 for January 2017) will be clearly visible.
Could a bad wheel speed sensor cause the same symptoms as a bad module?
Yes, absolutely. A faulty wheel speed sensor will illuminate the ABS and traction control lights. A diagnostic scan is crucial to differentiate between a sensor failure and a module failure. A code specific to a single wheel speed sensor (e.g., C003A for the right rear sensor) points to a sensor or wiring issue, while a no-communication error or an internal module fault code points to the module itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: DC3Z2C215A DC3Z2C219C EC3Z2C215A EC3Z2C219A EC3Z2C219B HC3C-2C405-A HC3C2C215AB HC3C2C215AC HC3C2C215AD HC3C2C215AE HC3C2C215AH HC3C2C405AG HC3C2C405AH HC3Z2C286C HC3Z2C286E
System compatibility is dependent on vehicle options such as Roll Stability Control (RSC) and Traction Control, as well as the vehicle's specific build date for the 2017 model year.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
