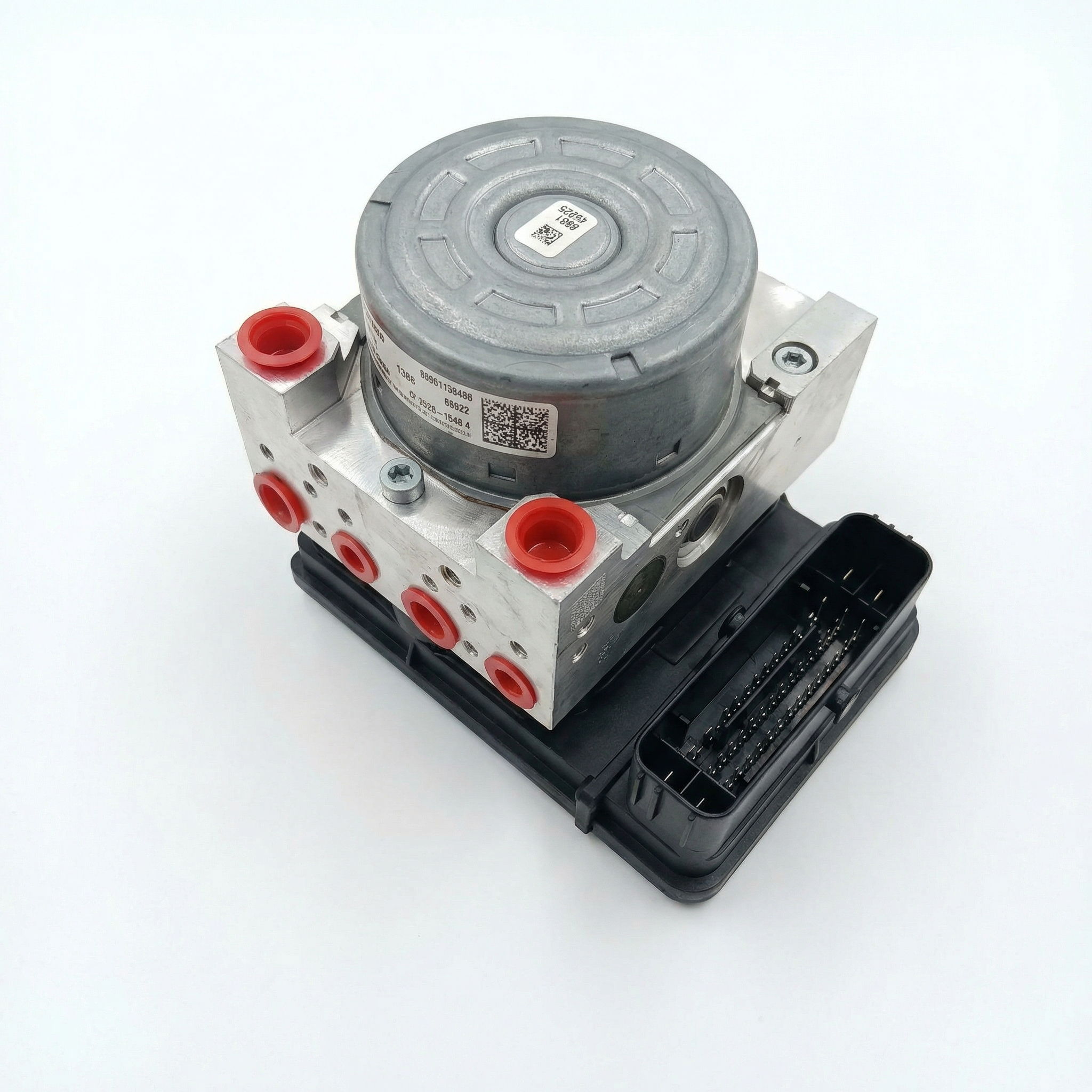

2017-2025 Jeep Compass ABS Module: Programming, Compatibility, and Failure Diagnosis
This guide covers the critical programming requirements, complex compatibility issues, and common failure symptoms for the 2017-2025 Jeep Compass ABS control module.
- Programming is mandatory. A replacement module requires a "Proxy Configuration Alignment" by a dealer or equipped shop.
- Compatibility is critical. Ensure the part is for the correct 2017 body style ('new style' MP platform) and matches your vehicle's Adaptive Cruise Control (ACC) option.
- Check sensors first. A faulty wheel speed sensor is a more common and much cheaper repair than replacing the entire ABS module.
- Driving is risky without ABS. While the car will still brake, the lack of anti-lock, traction, and stability control makes it less safe, especially in poor conditions.
Critical Pre-Purchase Information
Warning: A replacement ABS control module for a 2017-2025 Jeep Compass MUST be electronically programmed to the vehicle after installation. This procedure, known as a "Proxy Configuration Alignment," synchronizes the new module with the vehicle's other computers. Skipping this step will cause multiple warning lights, a flashing odometer, and may prevent the vehicle from starting or running correctly. This service requires a dealer-level scan tool (like wiTECH) or an advanced aftermarket tool; it is not a simple 🎬 See a step-by-step tutorial on performing a Proxi Alignment. plug-and-play part.
Compatibility Trap for 2017 Models: The 2017 model year was a transition period for the Jeep Compass. Two different versions were sold: the older, boxier 'MK' platform and the completely redesigned 'MP' platform. This ABS module only fits the new 'MP' body style. The easiest way to identify the correct vehicle is by the rear door handles: the new style has conventional horizontal door handles, while the old style has vertical handles integrated into the C-pillar.
Adaptive Cruise Control (ACC) vs. Standard Cruise: Jeep used different ABS modules for vehicles equipped with Adaptive Cruise Control (ACC) versus those with standard cruise control or no cruise control. These modules are not interchangeable. Before purchasing, verify which system your vehicle has. Vehicles with ACC typically have a large, black rectangular sensor visible in the lower front grille.
Symptoms of a Failing ABS Control Module
When the ABS module begins to fail, the vehicle will alert you with several dashboard warnings. While the standard hydraulic brakes will likely still function, all electronic assistance will be disabled.
- ABS Warning Light: The most common symptom is a solid amber ABS light on the instrument cluster.
- Traction/Stability Control Light: The light for the Electronic Stability Control (ESC) or Traction Control System (TCS) will also illuminate, as the ABS module controls these functions.
- Brake Warning Light: In some cases, the red brake warning light may also appear.
- Dashboard Messages: You may see messages such as "Service ABS System," "Service Hill Holder," or "Auto Hold Unavailable Service Required."
- Flashing Odometer: If a module is replaced but not programmed, or if there is a severe communication failure on the vehicle's network, the odometer may flash continuously. 🎬 Watch: Why your mileage flashes and how to fix it.
Common Diagnostic Trouble Codes (DTCs)
A technician will use an OBD-II scanner to read codes from the ABS module. While many codes point to specific sensor failures, certain codes strongly suggest a problem with the module itself.
| Code | Description |
|---|---|
| C2200 | Anti-Lock Brake Module Internal Failure |
| C2116 | ABS Pump Motor Supply Low Voltage |
| U0418 | Invalid Data Received From Brake System Control Module |
Note: It is far more common for a wheel speed sensor to fail than the entire ABS module. Codes related to a specific wheel speed sensor (e.g., C0035, C102A, U140B) should be investigated first by checking the sensor 🎬 Watch: How to diagnose and fix a common ABS light. and its wiring before condemning the module.
Known Issues, Recalls, and Service Bulletins
While there have been no direct recalls for widespread ABS module failure on the 2017-2025 Compass, several related service actions are worth noting:
- NHTSA Recall 18V523000: Affecting some 2018-2019 Compass models, this recall addressed rear brake caliper pistons that could have an insufficient coating, potentially reducing rear brake performance.
- NHTSA Recall 17V740000: On certain 2017-2018 models, the instrument panel backlighting could not be adjusted, which is a compliance issue.
- Technical Service Bulletin (TSB) 08-083-24: Jeep issued this TSB for some 2021 models that displayed an "Auto Hold Unavailable" message. The fix was to reprogram the ABS module with updated software, confirming that software issues can cause symptoms of failure.
Buying a Used ABS Control Module
Purchasing a used OEM ABS module is an excellent way to save a significant amount of money. However, due to the complexity of this part, careful verification is essential.
- Match the Part Number Exactly: This is the most important rule. Because of variations for ACC, FWD/AWD, and potential running changes, the part number on your replacement module must be an exact match or a verified superseded number from the manufacturer. Do not rely on visual appearance alone.
- Confirm Vehicle Options: Double-check if the donor vehicle had Adaptive Cruise Control. A module from a non-ACC car will not work in an ACC-equipped car, and vice-versa.
- Inspect the Connectors: When you receive the part, carefully inspect the electrical connector pins. Look for any signs of green or white corrosion, which indicates water intrusion and potential damage. The pump and module assembly is located in the engine bay and can be exposed to the elements.
- Why Used OEM is a Smart Choice: A used OEM module from a reputable recycler is often a better choice than a new aftermarket part. Used OEM parts are guaranteed to have the correct software baseline and hardware for your vehicle, avoiding the compatibility and quality-control issues that can plague aftermarket electronics. Given that a new OEM module can cost over $450, a used part offers substantial savings.
Installation and Programming Guide
Replacing the ABS module is a job for an experienced DIY mechanic or a professional shop due to the need for special tools and procedures.
Pro Tip: Before starting the replacement, have a shop that can perform the Proxy Alignment lined up. Confirm they have the tools and experience with late-model Jeep vehicles. Most dealers and many independent shops with advanced diagnostic systems can do this.
Replacement Steps Overview
- Disconnect the Battery: Disconnect the negative battery terminal to de-energize the vehicle's electrical systems.
- Access the Module: The ABS pump and module assembly is typically located in the engine bay, near the firewall.
- Disconnect Brake Lines: Carefully loosen and remove the brake lines attached to the hydraulic control unit. Be prepared for some brake fluid to spill. Plug the lines to prevent contamination.
- Swap the Module: Unplug the main electrical connector and unbolt the assembly from its bracket. Install the replacement module.
- Bleed the Brakes: After reconnecting the brake lines, the entire brake system must be thoroughly bled to remove any air that entered the system. This may require a scan tool to cycle the ABS pump to purge all trapped air.
- Perform Proxy Alignment: This is the final, mandatory step. A scan tool is used to run the "Proxy Configuration Alignment" routine, which registers the new module with the Body Control Module (BCM) and other ECUs on the network.
Cost Comparison
Prices can vary by location and supplier, but this provides a general estimate of what to expect.
| Part or Service | Estimated Cost |
|---|---|
| New OEM Module | $300 - $580 |
| Used OEM Module | $75 - $150 |
| Shop Labor (Replacement & Programming) | $220 - $350 |
Frequently Asked Questions (FAQ)
Does a replacement Jeep Compass ABS module have to be programmed?
Yes, absolutely. A procedure called a Proxy Configuration Alignment must be performed with a compatible scan tool. Failure to do so will result in multiple system faults and warning lights.
Can I install the module myself and drive it to a shop for programming?
It is possible, but not recommended. After installation, the vehicle may have numerous communication errors, a flashing odometer, and potentially be in a "limp mode." It is safer to have the vehicle towed or to perform the replacement at a facility that can also complete the programming.
Is it safe to drive with a bad ABS module?
Your primary hydraulic brakes will still work, but you will not have anti-lock brakes, traction control, or stability control. This significantly increases the risk of losing control during emergency braking or on slippery surfaces. Driving should be limited to getting the vehicle to a repair facility.
My ABS light is on. Does that mean I need a new module?
Not necessarily. The most common cause of an ABS light is a faulty wheel speed sensor or its wiring, which is a much cheaper and simpler repair. Always perform a full diagnostic scan to read the specific trouble codes before replacing the expensive ABS module.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4726567AH 68357598AC 68357598AD 68357598AE 68357598AF 68357599AA 68434976AA 68434976AB 68434976AC 68434976AD 68485883AA 68536639AB 68536639AC 68536639AD 68354151AD 68354151AE 68354151AG 68354154AA 68617078AC 68682674AA
Requires post-installation programming (Proxy Configuration Alignment). Module variants exist for vehicles with and without Adaptive Cruise Control.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
