2011-2016 Kia Soul ABS Module: Fire Risk Recall, Compatibility, and Replacement Guide
This guide covers the critical fire risk recall, common failure symptoms, complex part compatibility, and programming requirements for the 2011-2016 Kia Soul ABS control module.
- A critical fire risk recall (NHTSA 23V-652000) affects 2011-2013 Souls. The ABS module can short and cause a fire even when parked. Owners should park outside until the recall is done.
- Replacement ABS modules are NOT plug-and-play. They require 'Variant Coding' with a professional scan tool to match the car's specific features (like ISG).
- Part compatibility is extremely complex. You must match the OEM part number exactly and verify options like Idle Stop & Go (ISG) and engine size.
- Due to the high cost of new OEM units and the lack of aftermarket options, a correctly matched used OEM module is the most common repair solution.
Symptoms of a Failing ABS Control Module
A problem with the ABS module will almost always trigger a warning light, but other symptoms can also point to a failure. Ignoring these signs can compromise your vehicle's stability and braking performance in an emergency.
- ABS and ESC/Traction Control Warning Lights: The most common sign is the illumination of the ABS, ESC (Electronic Stability Control), or traction control warning lights on your dashboard. These lights indicate the system has detected a fault and has been disabled.
- Unusual Brake Pedal Feel: The brake pedal may suddenly feel very hard to press, or it might feel soft, spongy, and unresponsive. In some cases, the ABS may trigger incorrectly during normal braking, causing the pedal to pulsate when it shouldn't.
- Wheels Locking Up: During a panic stop, you may notice the wheels lock up and screech. This indicates the anti-lock function is not working, and the vehicle has reverted to standard, unassisted braking.
- ABS Pump Runs Constantly: You might hear a humming or buzzing noise from the engine bay that doesn't stop, even after the car is turned off. This is often the ABS pump motor running continuously due to a faulty module, which can drain the battery.
- Inaccurate or Dead Speedometer: In many vehicles, the speedometer gets its signal from the wheel speed sensors, which are processed by the ABS module. A failing module can cause the speedometer to behave erratically or stop working altogether.
- Burning Smell or Smoke: For 2011-2013 models, a burning smell or smoke from the engine compartment is a critical warning sign associated with a major safety recall and indicates an immediate fire risk.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
CRITICAL SAFETY RECALL: Kia issued a major safety recall for 2011-2013 Kia Soul models (NHTSA Recall ID: 23V-652000). The ABS module, also called the Hydraulic Electronic Control Unit (HECU), can leak brake fluid internally. This can cause an electrical short on the circuit board, leading to an engine compartment fire. This fire can occur while driving or while the vehicle is parked and turned off. 🎬 Watch: See why this fire risk recall is so critical
What to do: Owners of affected vehicles are strongly advised by Kia and NHTSA to park their vehicles outside and away from homes or other structures until the recall repair has been performed. The official remedy involves a Kia dealer installing a new, lower-amperage fuse to prevent the overcurrent condition that leads to a fire. You can check if your specific vehicle is included in this recall by entering your VIN on the NHTSA website.
Common Diagnostic Trouble Codes (DTCs)
While many codes can point to an ABS issue, these are commonly associated with a module-level problem. Note that these codes often indicate a communication failure and require proper diagnosis; they do not automatically condemn the module.
- U0121: Lost Communication With Anti-Lock Brake System (ABS) Control Module.
- C1611, C1612, C1616: These are CAN (Controller Area Network) timeout or communication error codes. They mean the ABS module is not communicating properly with other computers in the vehicle, such as the Engine Control Module (ECM) or power steering module. This can be caused by a faulty module, but also by wiring problems or a failure in another part of the network.
- C1702: Variant Coding Error. This code specifically means the installed ABS module has not been programmed or coded correctly for the vehicle's features.
Buying a Used ABS Control Module: A Buyer's Guide
Due to the extremely high cost of a new OEM ABS module, a quality used unit is the most popular and cost-effective solution. However, compatibility is extremely complex. Follow these steps to ensure you get the right part.
1. Match the Part Number EXACTLY
This is the most important step. Do not rely on visual appearance. The part number is printed on a sticker on the module. You must match this number perfectly. Even a single digit difference can mean the module has different internal programming for different vehicle options.
2. Verify Vehicle Options
The correct ABS module depends on several options your Soul was built with. When buying a used part, you must ensure it came from a vehicle with the exact same configuration as yours. The key options are:
- Electronic Stability Control (ESC): The module must be for a vehicle equipped with ESC. This was a standard feature on many trims but is a critical check.
- Idle Stop & Go (ISG): This is a fuel-saving feature that automatically shuts the engine off at a stop. Modules for cars with ISG are different from those without it. If your car does not have the "ISG OFF" button on the dash, you need a module from a non-ISG vehicle.
- Engine Size: Modules can be specific to the 1.6L or 2.0L engine.
- Model Year Breaks: There is a significant change in parts between the 2013 and 2014 model years. Ensure the part is from the correct year range (2011-2013 or 2014-2016).
3. Physical Inspection
When you receive the used module, inspect it carefully:
- Connectors: Check the electrical connector pins for any signs of corrosion, bending, or damage.
- Housing: Look for cracks or signs that the electronic module has been pried open.
- Hydraulic Block: Ensure the brake line ports are clean and not stripped. Check for any signs of heavy corrosion or damage from a collision.
Pro Tip: For this part, a used OEM module is almost always a better choice than a new aftermarket one. Complete aftermarket ABS module assemblies for the Soul are rare or non-existent. A used OEM part that is correctly matched and programmed will retain the original factory performance and quality, which is critical for a safety component like the ABS system.
Programming and Installation
Warning: A replacement ABS module, whether new or used, is NOT a plug-and-play part. It must be electronically configured to your vehicle's specific features.
This process is called "Variant Coding". A professional-grade diagnostic scan tool is required to access the ABS system and tell the new module which options your car has (e.g., engine size, ISG system, etc.). If this step is skipped, the module will not work, the ABS and ESC lights will stay on, and it will likely store a C1702 (Variant Coding Error) fault code.
While a skilled DIY mechanic can physically swap the module, the final programming step requires a visit to a Kia dealership or a well-equipped independent repair shop with the appropriate scan tool.
🎬 See this walkthrough on how to replace the ABS moduleAfter installation and programming, the entire brake system must be professionally bled. Bleeding an ABS system is more complex than a standard brake bleed, as the scan tool is often needed to cycle the internal pump and valves to purge all air from the hydraulic block.
Cost of Replacement
The cost to replace a Kia Soul ABS module varies significantly depending on the source of the part.
| Part Source | Estimated Part Cost |
|---|---|
| New OEM | $1,200 - $2,100+ |
| Used OEM | $75 - $250 |
| New Aftermarket | Not commonly available |
| Remanufactured | Not commonly available |
| Shop Labor | $150 - $225 (for replacement) |
| Diagnosis & Programming | $115 - $200+ |
Frequently Asked Questions (FAQ)
Does a used 2011-2016 Kia Soul ABS module need to be programmed?
Yes, absolutely. Any replacement ABS module, new or used, must be programmed to the vehicle using a process called "Variant Coding." This requires a professional scan tool to match the module to your car's specific features like engine size and Idle Stop & Go (ISG). Failure to program the module will result in it not working and the warning lights remaining on.
🎬 Watch: How variant coding works on Kia and Hyundai modulesCan I drive my Kia Soul with the ABS light on?
You can, but it is not recommended as a long-term solution. When the ABS light is on, your anti-lock brakes, traction control, and stability control are disabled. Your standard brakes will still function, but your wheels can lock up during a hard stop, increasing the risk of skidding and losing steering control, especially on wet or slippery roads. For 2011-2013 models, an ABS light could be a symptom of the fire risk recall, so it should be addressed immediately.
What is the main cause of ABS module failure on the Kia Soul?
For the 2011-2013 models, the most serious and well-documented cause of failure is an internal brake fluid leak inside the module, which can cause an electrical short and a fire. For all years, other common causes include failure of internal electronic components from heat and vibration over time, or corrosion from moisture intrusion.
Why is it so important to match the part number and options like ISG?
The ABS module's software is specifically calibrated for the vehicle's weight, engine, transmission, and features like Idle Stop & Go (ISG). Using a module with the wrong programming can cause the ABS/ESC systems to behave unpredictably or not work at all. For example, a module from a car with ISG installed in a car without it will cause communication errors and system failure. Matching the part number is the only way to ensure the hardware and software are correct for your vehicle.
Helpful Videos
Technical Specifications

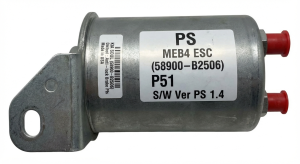

OEM Part Numbers: 589102K200 589102K640 58920B2506 58920B2720 589102K250 589102K660 589102K800
The complete assembly includes the electronic control module and the hydraulic pump/valve body. It is located in the engine compartment.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
