2024 Land Rover Defender 110 Integrated ABS Module: Programming, Faults, and Replacement Explained
This in-depth guide covers the unique, all-in-one brake control unit in the 2024 Defender 110, focusing on the critical programming steps required after replacement.
- This is an integrated unit containing the booster, master cylinder, pump, and module; it is not a simple electronic part.
- A replacement module (new or used) MUST be programmed to the vehicle's VIN using dealer-level software like Pathfinder or a high-end professional tool.
- To avoid programming, the only option is to have your original module repaired by a specialist and then reinstall it.
- Replacement is a complex job for professionals only, as it requires opening the hydraulic system and performing a special ABS bleed procedure.
Symptoms of a Failing 2024 Defender ABS Module
A problem with the integrated ABS unit can manifest in several ways, ranging from warning lights to noticeable changes in brake performance. Because this system is tied into many other vehicle functions, a fault here can disable other features.
- ABS, DSC, and Traction Control Warning Lights: The most common sign is the illumination of the amber ABS, Dynamic Stability Control (DSC), and traction control warning lights on the dashboard. One fault in the system will typically trigger all related warning lamps.
- Hard or Spongy Brake Pedal: You might experience a change in how the brake pedal feels. It could become unusually hard to press or feel soft and spongy, indicating a loss of power assist or a problem within the hydraulic unit.
- Wheels Locking Up: The entire point of ABS is to prevent your wheels from locking and skidding during a hard stop. If you brake hard and feel the tires skid, the ABS system is not functioning.
- Inability to Release Park Brake: A Land Rover Technical Service Bulletin (TSB) notes that a fault within the ABS system can sometimes prevent the electronic park brake from releasing.
- Constant Pump Noise: You may hear the ABS pump motor running continuously, even when you are not braking. This indicates the module may be sending incorrect signals to the pump.
Common OBD-II Fault Codes
While a generic code reader may not access all Land Rover-specific codes, a professional scan tool can pinpoint the issue. A known code for the L663 Defender platform is:
- C055E-7A (Brake Hydraulic Circuit “A” Leak – Fluid Leak or Seal Failure): This specific code points to a potential hydraulic leak or internal seal failure. A Special Service Message (SSM 74988) was issued for this, noting that it requires a special 'Self-Check' procedure to clear after the repair is complete.
Other general codes often point to failures of individual wheel speed sensors, which should always be diagnosed and ruled out before condemning the entire expensive ABS unit.
Pro Tip: Before assuming the expensive integrated module has failed, check for simpler causes. A single faulty wheel speed sensor, a bad ground wire, or even low brake fluid can trigger the same warning lights. A professional diagnosis is essential.
Known Issues, TSBs, and Recalls
As the 2024 Defender is a relatively new vehicle, long-term failure patterns have not yet emerged. However, Land Rover has issued some relevant service documents.
- Special Service Message (SSM) 74988: Addresses fault code C055E-7A for a brake hydraulic circuit leak. It details a specific self-check procedure involving a sequence of ignition cycles and brake pedal applications needed to clear the code from the module's memory after a repair.
- Special Service Message (SSM) 75447: Pertains to a cyclic knocking noise or judder felt through the floor during braking on 2021 and newer models. The suggested action is to thoroughly clean the brake discs of any pad material deposits before replacing parts.
- NHTSA Recall 23V789000 (Unrelated): A recall was issued for some 2023 Defender 130 models for improperly installed brake calipers. This is a mechanical assembly error, not a fault with the electronic ABS module itself, but it is a critical safety issue for affected vehicles.
Currently, there are no recalls specifically for the failure of the integrated ABS module on the 2024 Defender 110.
Buying a Used 2024 Defender ABS Module: The Critical Facts
Given the high cost of a new unit, buying a used OEM part is a viable option, but you MUST be aware of the following:
- Programming is NOT Optional: A replacement ABS module—whether new or used—must be electronically programmed to your vehicle. The module is tied to the vehicle's specific VIN and its list of options (known as the Central Configuration File or CCF). Without programming, it will not communicate with the rest of the vehicle, and your brake system will not function correctly.
- Who Can Program It?: A Land Rover dealer using the official 'Pathfinder' diagnostic software is the most reliable option. However, many well-equipped independent Land Rover specialists can also perform the programming using high-end tools like Autel, iSCAN, or the GAP IIDTool. Do not assume any local mechanic can do this; you must confirm they have the specific software for late-model Land Rovers. 🎬 See how a Land Rover ABS module is electronically programmed.
- "Plug and Play" is a Myth: Be extremely wary of any seller claiming a used module is "pre-programmed" or "plug and play." True programming can only happen when the module is installed in the target vehicle and connected to the diagnostic tool.
- Physical Inspection: When buying used, inspect the unit for any signs of damage, especially to the electrical connector pins and the brake line ports. Since this is a 2024 part, any used unit should be in excellent physical condition. The part number on the unit should be an exact match for your original. The verified OEM number is R8B2-2D522-AD, though you may see close variations like P8B2-2D522-AD from a 2023 model.
- Repairing Your Original Module: The only way to avoid the hassle of programming is to have your vehicle's original module repaired by a specialist service and then reinstall it. This is often a good balance of cost and convenience, as the module retains its original coding.
Warning: This is an advanced repair. The replacement involves opening the sealed hydraulic brake system, which will require a complete brake fluid flush and a special, scan-tool-activated 'ABS bleed' procedure to remove all air from the new unit. This is not a typical DIY job.
🎬 Watch: How to perform a professional brake bleed with a scan tool.Cost Breakdown for Replacement
Replacing the integrated ABS unit is expensive, primarily due to the cost of the part itself. Here are some estimated costs:
| Part Source | Estimated Cost |
|---|---|
| New OEM (Dealer) | $2,500 - $3,500 (Part Only) |
| New Aftermarket | Not Currently Available |
| Used OEM | $400 - $700 |
| Remanufactured (Original Unit Repaired) | $500 - $800 |
| Shop Labor (Replacement & Programming) | $400 - $1,000 |
Note: Prices are estimates as of late 2025/early 2026 and can vary based on location and availability. New OEM pricing is an estimate as the part is not widely available for online purchase yet.
Frequently Asked Questions (FAQ)
Does a used ABS module have to be from the exact same year and model Defender?
Yes, it is critical to match the part number exactly. The part number for the 2024 Defender 110 is R8B2-2D522-AD. While a part from a 2023 model might look identical, internal software or hardware could be different. Always use the part number, not just the vehicle model, to ensure compatibility.
Will the car be undrivable if I install a used module without programming it?
The vehicle may or may not start, but it will not be safe to drive. The dashboard will be lit up with brake and stability warnings, and the ABS, traction control, and stability control systems will be inoperative. You will have basic hydraulic braking, but without any of the modern safety assists, which is extremely risky.
Can I just replace the electronic part of the module?
On some older vehicles, the electronic module could be unbolted from the hydraulic pump assembly. However, on this modern integrated unit, it is designed to be replaced as a single assembly. Attempting to separate them could damage the unit and will void any warranty or return policy on a purchased part.
Is there an anti-theft link to the ABS module?
No, the programming requirement is not directly linked to the engine immobilizer. It is to ensure the module is correctly configured for the vehicle's features and can communicate on the network with other computers like the engine and transmission controllers. An unprogrammed module will cause system faults but should not prevent the engine from starting.
Helpful Videos
Technical Specifications
OEM Part Numbers: R8B2-2D522-AD

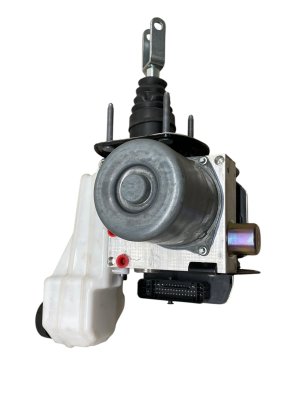

Integrated Brake (IB) System combining ABS module, pump, master cylinder, and brake booster.
