2005-2009 Lexus GX470 ABS Module: Decoding Lights, Buzzing, and Zero Point Calibration

Symptoms of a Failing GX470 ABS Control Module

When the ABS module begins to fail, it often triggers a variety of dashboard warnings and noticeable symptoms. Because the module controls multiple safety systems, a single fault can illuminate several lights at once.

Dashboard Warning Lights

The most common sign of a problem is the illumination of multiple warning lights on the instrument cluster. Typically, you will see the ABS, VSC TRAC, VSC OFF, and sometimes a brake warning light appear simultaneously. These lights may come on intermittently at first but usually become constant as the failure progresses. In some cases, a low battery can also trigger these lights, so it's wise to check your battery's health before assuming the module is bad.

Audible Noises

A continuous or intermittent buzzing or high-pitched chirping sound from the engine bay 🎬 Watch: Hear the chirping sound and see the DIY fix., even when the vehicle is off, is a strong indicator of a failing ABS module. This noise is often caused by the internal electric pump motor running continuously due to a faulty relay or internal short circuit within the module assembly.

Associated OBD-II Trouble Codes

A professional scan tool can read specific codes from the ABS module that point to the source of the problem. Common codes associated with a failing GX470 ABS module include:

• C1223: Malfunction in ABS Control System
• C1241: Low or High Battery Positive Voltage
• C1251: Brake Booster Pump Motor Open/Short Circuit
• C1253: Hydro-Booster Pump Motor Relay Malfunction
• C1256: Accumulator Low Pressure Malfunction
• C1340: Open Circuit in Center Differential Lock Signal

While a C1241 code can indicate a bad module, it often points to a weak or failing vehicle battery, which should be the first item to check.

Buying a Used 2005-2009 Lexus GX470 ABS Module

Due to the high cost of a new OEM unit, a used ABS module is a popular and cost-effective solution. However, careful selection is crucial to ensure compatibility and reliability.

Verifying Part Numbers and Compatibility

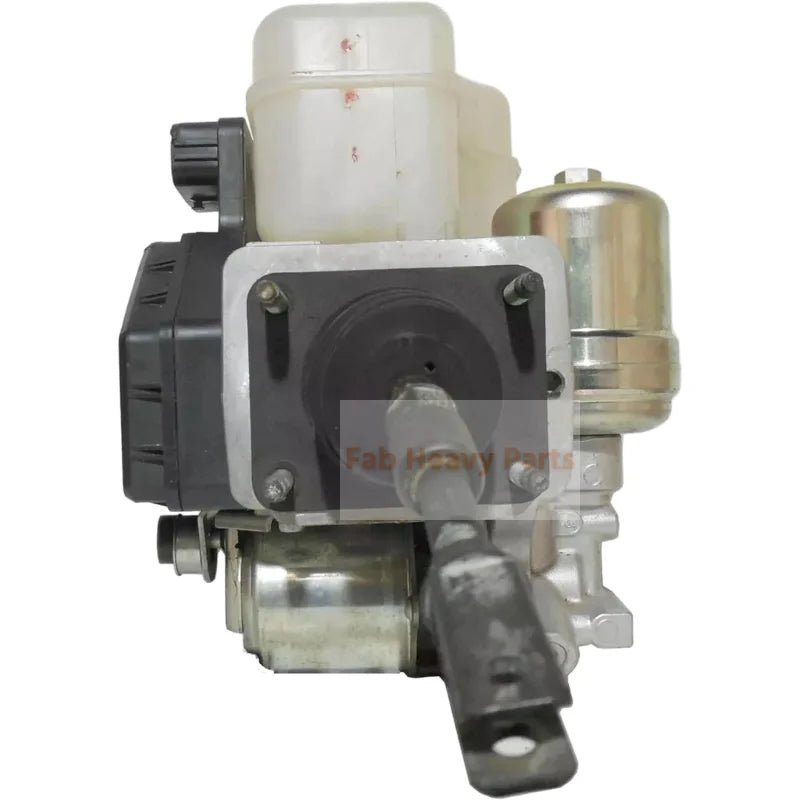

The ABS module, pump, and master cylinder are sold by Lexus as a single assembly. The primary OEM part numbers for the 2005 (from Oct. 2004) through 2009 model years are:

• 47050-60111 (Latest part number)
• 47050-60110 (Replaced by 47050-60111)

When buying a used assembly, the number printed on the unit should match one of these numbers. Do not install a module from a different vehicle like a Toyota 4Runner, even if it looks similar, as internal programming may differ.

Physical Inspection Checklist

When inspecting a used module, look for:

• No Corrosion: Check the aluminum housing and especially the electrical connector pins for any signs of white or green corrosion.
• Intact Connectors: Ensure the main electrical connector and all brake line ports are clean and undamaged.
• No Leaks: Inspect the unit for any signs of brake fluid leakage, particularly around the pump and master cylinder body.
• Unopened Unit: Avoid units that show signs of being opened or tampered with. The electronic module and pump assembly should be factory-sealed.

Programming and Calibration After Installation

Is Programming Required?

No, the 2005-2009 Lexus GX470 ABS module does not require VIN-specific programming or flashing by a dealer. It is considered a plug-and-play unit in that regard. However, a critical calibration procedure must be performed after installation.

Mandatory Zero Point Calibration

After replacing the ABS module or disconnecting related sensors, you MUST perform a "Zero Point Calibration." This procedure calibrates the yaw rate, deceleration, and steering angle sensors, which are essential for the VSC system to function correctly. Failure to perform this calibration will result in VSC warning lights and a non-functional stability control system.

The calibration can be done in two ways:

1. Using a Scan Tool: A professional scan tool like Toyota's Techstream can initiate the calibration process through the ABS/VSC/TRAC utility menu.
2. Manual Jumper Wire Method: A common DIY method involves using a paperclip or jumper wire to connect specific pins (terminals 4 and 12) on the OBD-II port and following a sequence of steps with the ignition key. 🎬 Watch: How to perform the manual zero point calibration trick. This clears the old calibration data and sets the new zero points. The vehicle must be on a level surface for this procedure to be successful.

Known Issues, Recalls, and TSBs

There have been no specific recalls or Technical Service Bulletins (TSBs) issued by Lexus or the NHTSA for widespread failure of the ABS control module itself on the 2005-2009 GX470. Most issues are related to individual component failure from age. There was a safety recall for the separate airbag control module on some 2004-2006 models, but this is unrelated to the ABS system.

Cost of Replacement

The cost to replace the ABS module assembly can vary dramatically depending on the type of part used.

Note: Labor costs include installation of the assembly and bleeding the brake system, but may not include the Zero Point Calibration, which some shops charge for separately.
