1999-2001 Mitsubishi Diamante ABS Module: Fixing the ABS Light Without Buying the Wrong Part
This guide covers diagnosing the common ABS light, confirming if your car has traction control, and finding the correct replacement ABS module.
- This module (MR909940, MR909963) is ONLY for models WITHOUT traction control. Verify your car's options before buying.
- A faulty wheel speed sensor is a more common cause for an ABS light than a failed module. Always diagnose with a scanner first.
- If you match the part number exactly, a replacement used module does NOT require dealer programming on this vehicle.
- Replacing the module requires opening the brake system, which means the brakes must be professionally bled afterward.
Symptoms of a Failing ABS Module in a 1999-2001 Diamante
When the ABS module fails, it will almost always alert you with a warning light. However, it's important to know that other, more common issues can cause the same light. A proper diagnosis is key to avoiding the replacement of a perfectly good module.
🎬 Watch: Step-by-step guide to diagnosing your Mitsubishi ABS system.- ABS Warning Light is On: This is the most common symptom. A solid, amber "ABS" light on your instrument cluster means the system has detected a fault and has been disabled.
- Unresponsive or Hard Brake Pedal: In some failure scenarios, the module can cause issues in the hydraulic unit, leading to a brake pedal that feels unusually hard to press or seems to do nothing at first.
- Wheels Locking Up: The entire purpose of ABS is to prevent your wheels from locking up and skidding during hard braking. If you feel or hear a tire skidding during a panic stop, the ABS system is not working.
- ABS Pump Runs Constantly: You may hear a humming or buzzing sound from the engine bay that doesn't turn off. This can be the ABS pump motor running continuously due to an internal fault in the control module.
Common Diagnostic Trouble Codes (DTCs)
To know what's wrong, you or your mechanic must scan the vehicle with an OBD-II scanner that can read ABS codes. Be aware that wheel speed sensor codes are far more common than module failure codes.
| Code | Meaning | Common Cause |
|---|---|---|
| C2200 | Module Internal Error | This code points directly to an internal failure of the ABS control module itself. |
| C2116 | Abnormality in Pump Motor Power Supply | Often indicates a problem within the module or its power circuit, a strong indicator of module failure. |
| P1773 | Malfunction of ABS | A general code indicating a fault has been registered in the ABS system. |
| C0035 - C0050 | Wheel Speed Sensor Circuit Fault | These codes (e.g., C0035, C0040, C0045, C0050) point to a specific wheel speed sensor, its wiring, or the tone ring. This is the most common cause of an ABS light and should be ruled out first. |
Pro Tip: Before condemning the ABS module, always inspect the wheel speed sensors and the toothed "tone rings" they read from on the wheel hubs. These rings can become cracked, or debris and rust can build up between the teeth, causing a bad signal that triggers the ABS light.
🎬 See how to replace a faulty wheel speed sensor.Buying a Used 1999-2001 Diamante ABS Module
Buying a used OEM ABS module is a smart, cost-effective way to fix your issue. Aftermarket options are scarce, and a new OEM unit can be prohibitively expensive. However, there is one critical compatibility issue you must be aware of.

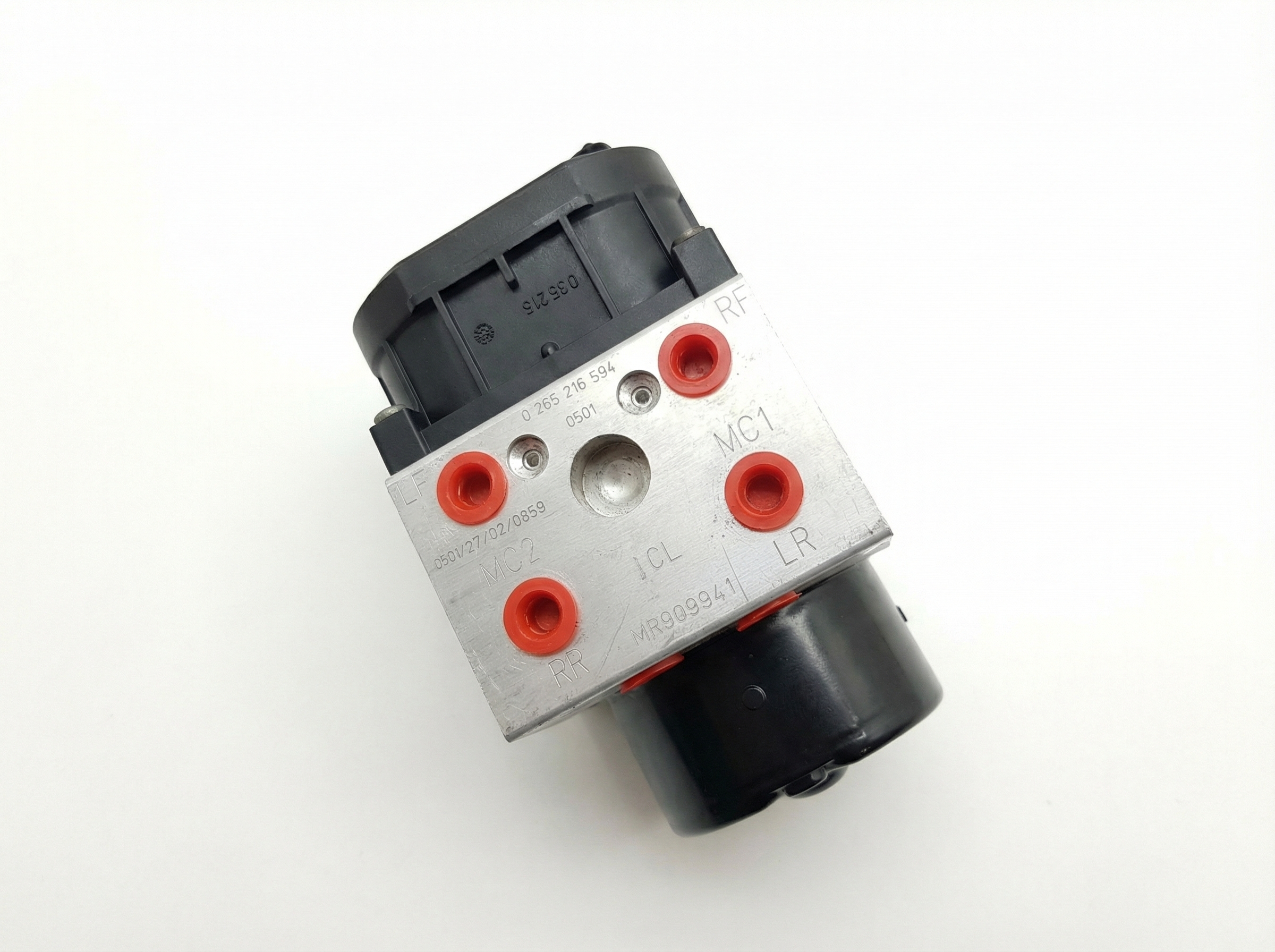

Warning: This ABS module assembly (OEM part numbers MR909940 and MR909963) fits 1999-2001 Mitsubishi Diamante models WITHOUT traction control only. Installing this part on a vehicle with traction control will not work.
How to Tell if Your Diamante Has Traction Control (TCL)
It is essential to verify your vehicle's options before ordering. Here’s how to check:
- Look for a "TCL OFF" Button: Check the dashboard and center console area, typically near the shifter or other accessory switches. Vehicles with traction control have a button that allows the driver to disable the system. If you do not have this button, your vehicle does not have traction control.
- Check the Instrument Cluster: When you first turn the key to the "ON" position, all the warning lights illuminate for a bulb check. Look for a "TCL" light or a symbol of a car with squiggly lines behind it. If this light appears, your car is equipped with traction control.
What to Inspect on a Used Part
- Match the Part Number: Ensure the part number on the used module (e.g., MR909940) exactly matches the one you are replacing.
- Check the Electrical Connector: Look closely at the large multi-pin connector on the module. The pins should be straight, clean, and free of any green or white corrosion.
- Inspect the Casing: The black plastic housing of the module should be free of cracks, and the aluminum hydraulic block should not show signs of heavy corrosion or physical damage.
- Buy from a Reputable Source: Purchase from a seller that offers a warranty. This protects you in case the part is non-functional upon arrival.
Programming, Installation, and Cost
Does this module need to be programmed?
No. For this specific vehicle and year range, the ABS control module does not require any programming or flashing. As long as you install a replacement unit with the exact same OEM part number from a vehicle with the same options (i.e., without traction control), it is a plug-and-play part. The ABS light should turn off after installation and a short drive.
Replacement Overview
The ABS module and pump are a single assembly located in the engine compartment on the driver's side. Replacement is a moderately difficult job primarily because it involves opening the hydraulic brake system.
- Disconnect the negative battery terminal.
- Unplug the main electrical harness from the ABS module.
- Carefully disconnect the metal brake lines from the ABS hydraulic block. Use a line wrench to avoid stripping the fittings. Be prepared for some brake fluid to spill.
- Unbolt the module assembly from its bracket and remove it from the vehicle.
- Installation is the reverse of removal. After the new unit is installed and all lines are connected, the entire brake system must be properly bled to remove all air from the lines and the new ABS unit. This often requires a scan tool to cycle the ABS pump and valves to ensure all air is purged. 🎬 Watch: Proper brake bleeding procedure for Mitsubishi vehicles.
Cost Comparison
Prices for this part can vary dramatically. A used OEM part offers the best balance of value and reliability.
| Part Source | Estimated Cost |
|---|---|
| New OEM (Dealer) | $1200 - $1400+ |
| New Aftermarket | Not generally available |
| Used OEM (Recycled) | $75 - $150 |
| Remanufactured | $200 - $400 |
| Shop Labor Cost | $200 - $350 (includes bleeding the brake system) |
Frequently Asked Questions (FAQ)
Can I drive my Diamante with a bad ABS module?
Yes, but with limitations. Your standard brakes will still function, but the anti-lock safety feature will be disabled. This means your wheels can lock up and skid in a panic stop or on slippery roads, increasing stopping distances and reducing steering control. It is recommended to have the issue repaired as soon as possible.
Will replacing the ABS module fix my ABS light?
Only if the module itself is the problem. The ABS light is most often caused by a faulty wheel speed sensor, which is a much cheaper and easier part to replace. Always perform a diagnostic scan to get the trouble codes before buying an expensive module.
What is the difference between the ABS module and the ABS pump?
On the 1999-2001 Diamante, they are part of one assembly. The module is the electronic computer (the black plastic part), and the pump is the mechanical/hydraulic block with the brake line connections (the aluminum part). They are typically replaced together as a single unit.
Are there any recalls on the 1999-2001 Diamante ABS module?
No, there are no specific recalls issued by the NHTSA for the ABS control module on 1999-2001 Mitsubishi Diamante models. There was a Technical Service Bulletin (TSB-02-13-002) for the TCL (Traction Control) light on some 2001-2002 models, but this does not apply to vehicles without traction control.
Helpful Videos
Technical Specifications
OEM Part Numbers: MR909940 MR909963
Fits vehicles without traction control (TCL) only.
