2014-2019 Mitsubishi Outlander ABS Module: Programming and Compatibility Guide
This guide covers the critical details of replacing the ABS control module on a 2014-2019 Mitsubishi Outlander, focusing on mandatory programming and matching advanced safety features.
- A replacement ABS module MUST be professionally programmed to your vehicle's VIN and specific options to function.
- Compatibility is critical. The part number must match and the donor vehicle must have the exact same safety features (Adaptive Cruise, Forward Collision Mitigation, etc.).
- Failure of the ABS module will also disable other key safety systems like Active Stability Control (ASC) and traction control.
- Buying a used OEM module can save over a thousand dollars compared to a new unit, but programming costs must be factored into the total repair price.
Symptoms of a Failing ABS Control Module

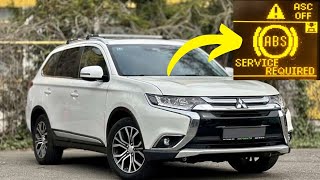

When the ABS module in a 2014-2019 Mitsubishi Outlander begins to fail, you will typically see one or more warning lights on your dashboard. The most common indicator is a constantly illuminated ABS warning light. 🎬 Watch: See what the ABS Service Required warning looks like. Because the ABS module is integrated with other systems, you may also see the Active Stability Control (ASC) or traction control warning lights appear simultaneously.
- Warning Lights: The primary symptom is the ABS warning light staying on. Often, the traction control (TCS/ASC) and sometimes the 4WD warning lights will also illuminate, as these systems rely on the ABS module to function.
- Brake Pedal Issues: The brake pedal may feel unresponsive, spongy, or require more effort to press. In some cases, the pedal may pulsate during normal braking, not just in emergency stops.
- Brakes Locking Up: The fundamental purpose of ABS is to prevent wheels from locking. A failed module can cause one or more wheels to lock up and skid during hard braking, especially on slippery surfaces.
- Speedometer Malfunction: Since the ABS module processes wheel speed sensor data, a failure can sometimes cause an erratic or non-functional speedometer.
Common Diagnostic Trouble Codes (DTCs)
A professional scan tool can read specific codes from the ABS module. While many codes point to faulty wheel speed sensors (a common issue), certain codes indicate an internal failure of the module itself.
| Code | Description |
|---|---|
| C100A, C1015, C1020, C102B | These codes relate to wheel speed sensor circuits. While often caused by a bad sensor or wiring, they can sometimes be triggered by a faulty module. |
| C1073 | Faulty motor drive circuit within the ABS module. |
| C2116 | Abnormality in power supply voltage to the pump motor, often pointing to an issue within the module or its power source. |
| C2200 | Module internal error, a strong indicator of module failure. |
| P1773 | General malfunction of the ABS system. |
| U0121 | Lost communication with the ABS control module. |
Known Issues, TSBs, and Recalls
While there are no specific recalls for the ABS control module itself on the 2014-2019 Outlander, Mitsubishi has issued Technical Service Bulletins (TSBs) related to the ABS and Active Stability Control (ASC) systems. TSB-13-35-003 and TSB-13-35-005 provide updated diagnostic and replacement procedures for the hydraulic unit and wheel speed sensors, indicating that these are areas dealers frequently service. There have been recalls for other brake system components, such as corroding parking brake actuator shafts, but these do not directly involve the electronic control module.
Programming and Calibration are Mandatory
Warning: A replacement ABS control module, whether new or used, must be programmed to your vehicle's specific Vehicle Identification Number (VIN) and configuration. This is not an optional step.
Modern ABS modules are integrated into the vehicle's computer network (CAN bus). The module needs to be coded with the VIN to communicate with the engine computer, transmission, and other systems. It also needs to be configured for the specific features your Outlander has, such as Adaptive Cruise Control (ACC), Forward Collision Mitigation (FCM), or Lane Departure Warning (LDW). Failure to program the module will result in the ABS and other warning lights staying on, and the safety systems will not function.
This programming requires a professional-grade scan tool with Mitsubishi-specific software. While a dealership can always perform this service, many well-equipped independent repair shops that specialize in diagnostics can also program a replacement module.
Buying a Used ABS Control Module
Purchasing a used OEM ABS module is a cost-effective way to repair your Outlander, but careful selection is crucial for success. Given the mandatory programming and feature-specific variations, getting the right part is essential.
- Match the Part Number Exactly: The most critical step is to match the OEM part number from your original module to the replacement unit. There are many different part numbers for this generation of Outlander, and they are not interchangeable. Part numbers like 4670B231, 4670B481, and 4670B482 correspond to different vehicle options.
- Verify Vehicle Features: You must source a module from a donor vehicle with the exact same safety features as your own. A module from a vehicle with Adaptive Cruise Control will not work correctly in a vehicle without it, and vice-versa. The original buyer warnings are correct: compatibility is tied to systems like ACC, FCM, and LDW.
- Physical Inspection: When you receive the part, inspect the electrical connector pins for any signs of corrosion or damage. Check the aluminum housing for any cracks or signs of impact.
- Factor in Programming Costs: Remember that the price of the used part is not your final cost. You must budget for professional installation and programming, which can add a few hundred dollars to the total repair cost.
- Why Used OEM is a Good Choice: Used OEM modules are often more reliable than new aftermarket units. They have the correct factory software and are built to Mitsubishi's quality standards, ensuring proper communication with other vehicle systems once programmed.
Cost Breakdown
The cost to replace an ABS module can vary significantly based on the part source and labor rates. Programming is an additional cost that must be factored in.
| Part/Service | Estimated Cost | Notes |
|---|---|---|
| New OEM Module | $1,900 - $2,300+ | Typically sourced from a Mitsubishi dealership. The most expensive option. |
| Used OEM Module | $50 - $300 | A significant savings, but requires careful part number matching and verification of features. |
| Remanufactured Module | $250 - $500 | Your original module is sent out for repair. This can be a good option as it often doesn't require reprogramming. |
| Shop Labor (Installation & Bleeding) | $150 - $250 | This includes physically swapping the module/pump assembly and bleeding the brake system. |
| Programming Cost | $100 - $300 | This is a separate electronic service required after installation. |
Frequently Asked Questions
Can I install a used ABS module myself and drive it to a shop for programming?
Yes, you can physically install the module yourself to save on labor costs. However, the ABS, traction control, and stability control systems will be disabled and warning lights will be on until it is professionally programmed. Your vehicle will still have its standard hydraulic brakes, but you should drive with extra caution, especially in wet or slippery conditions, as the safety features will not work.
What happens if I install a module from an Outlander with different features?
If you install a module that doesn't match your vehicle's options (e.g., putting a non-ACC module in a car with ACC), it will not program correctly. The system will detect a mismatch in the vehicle's configuration, and you will likely get communication errors or configuration fault codes. The ABS system will not function.
Does a dealership have to do the programming, or can my local mechanic do it?
While a Mitsubishi dealer can certainly program the module, they are not the only option. Many independent repair shops that specialize in diagnostics or specific vehicle makes have advanced scan tools capable of programming modules. It is wise to call ahead and confirm they have the capability for a 2014-2019 Mitsubishi Outlander before bringing the vehicle in.
Is the ABS pump part of the control module?
Yes, on the 2014-2019 Outlander, the electronic control module is bolted directly to the hydraulic pump/valve body assembly. They are typically replaced as a single unit. When you purchase a used ABS assembly, you are getting both the pump and the module.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4670a771 4670a993 4670B231 4670B232 4670B234 4670B481 4670B482 4670B701 4670B702
The module is part of the ABS actuator and electric unit assembly. It communicates via the vehicle's CAN bus system and is coded to the specific VIN and optional features of the vehicle.
