2004-2011 Nissan Maxima ABS Module: VDC Options, Failure Symptoms, and Replacement Guide
Diagnose common ABS, VDC, and SLIP light issues, and learn how to choose the correct used module for your specific 2004-2011 Maxima.
- Compatibility is the biggest challenge; you must match the part number from your original module exactly, paying close attention to VDC vs. non-VDC options.
- A replacement module (especially on 2009-2011 models) is not plug-and-play; it requires programming and a special brake bleed procedure using a professional scan tool.
- A continuously running ABS pump is a common failure mode that will drain the battery; pull the ABS fuse as a temporary measure before having it diagnosed.
- Before condemning the module, rule out simpler issues like low brake fluid, worn pads, and faulty wheel speed sensors, especially on 2004-2008 models prone to rear sensor corrosion (TSB NTB07-016b).
Key Symptoms of a Failing ABS Module
🎬 Watch: 6 symptoms of a bad ABS module explainedWhen the ABS module in a 2004-2011 Nissan Maxima begins to fail, your vehicle will provide several clear warning signs. The most immediate and obvious symptom is the illumination of one or more warning lights on your dashboard.
- ABS, VDC, and/or SLIP Lights On: This is the most common sign of a problem. The ABS computer runs a self-check every time you start the car, and if it detects an internal failure, a bad sensor signal, or a communication problem, it will turn on these lights and disable the associated systems.
- ABS Pump Motor Runs Continuously: You may hear a humming or buzzing sound from the engine bay that doesn't stop, even when the car is turned off. This is the ABS pump motor, and a continuous run-on condition is often caused by a failed relay or an internal fault in the control module. This will drain your battery if not addressed.
- Spongy or Unresponsive Brake Pedal: The brake pedal may feel different, requiring more effort to press or feeling soft and unresponsive.
- Wheels Locking Up: During hard braking, especially on wet or slippery surfaces, one or more wheels may lock up and skid. This indicates the ABS is not functioning to prevent the lock-up.
Common Diagnostic Trouble Codes (DTCs)
To properly diagnose the issue, the ABS system must be scanned with a tool capable of reading more than just standard engine codes. Common codes pointing to a faulty module or its integrated pump include:
- C1110, C1111: These codes often indicate a Controller Failure or an issue with the ABS Pump Motor circuit, pointing to an internal fault within the ABS unit itself.
- C1124, C1126: These codes relate to solenoid faults within the ABS actuator.
- U1000, U1010: These are communication codes indicating the ABS module is not communicating with the rest of the vehicle's computer systems, which can be caused by a completely failed module.
Important: Before replacing the module, always check for simpler issues first. Low brake fluid, worn brake pads, and faulty wheel speed sensors can all trigger ABS-related warning lights. For 2004-2008 models in particular, TSB NTB07-016b notes that corrosion on the rear knuckles can damage the ABS wheel speed sensors, mimicking a module failure.
Buying a Used ABS Control Module
Purchasing a used OEM ABS module is a cost-effective way to repair your Maxima, but careful selection is critical to avoid wasting time and money. Due to the many variations, this is not a part where "close enough" works.
Compatibility is Critical: A Buyer's Checklist
The single most important factor is compatibility. An incorrect module will not work, even if it physically bolts into place. Follow these steps to ensure you get the right part:
- Identify Your Vehicle's Options: The main difference is whether your Maxima has Vehicle Dynamic Control (VDC). This was an optional feature. Modules for VDC and non-VDC cars are not interchangeable. Other factors like transmission type (5-speed automatic vs. CVT) and trim packages (like the Sport Package with paddle shifters on 2009+ models) also determine the correct part.
- Get the Part Number from YOUR Module: This is the most reliable method. The ABS module is located in the engine bay, typically on the passenger side. You will need to locate the part number sticker on your existing unit and match it exactly. Taking a clear photo of the sticker is highly recommended.
- Match the Part Number Exactly: When searching for a replacement, the part number on the used module MUST match your original part number. Do not rely on visual similarity or a seller's description alone.
- Inspect the Used Part: When you receive the part, check the electrical connector pins for any signs of corrosion or damage. Ensure the unit is clean and free from brake fluid residue, which could indicate a leak in the hydraulic portion.
Programming and Installation Requirements
Warning: For most 2004-2011 Maximas, a replacement ABS control module, whether new or used, is NOT a plug-and-play part.
While some earlier 6th generation (2004-2008) models may function after a simple swap if the part number is an exact match, it is not guaranteed. For 7th generation (2009-2011) models, programming is mandatory.
- Configuration/Programming: The replacement module often needs to be configured to the vehicle. This involves using a professional-grade diagnostic tool, like the Nissan CONSULT-II or CONSULT-III, to write the vehicle's VIN and other specific data to the module. Many high-end independent shops have tools that can perform this function.
- Brake Bleeding: After the hydraulic unit is installed, the brake system must be bled to remove all air. Standard bleeding methods are not sufficient. A scan tool must be used to cycle the ABS pump and solenoids to purge all trapped air from the hydraulic block. Failure to do this will result in a spongy brake pedal and compromised braking performance.
Cost to Replace a 2004-2011 Nissan Maxima ABS Module
The cost can vary significantly based on the part source and labor rates.
| Part Source | Estimated Part Cost | Notes |
|---|---|---|
| New OEM (Dealer) | $1,800 - $2,500+ | Highest cost, but comes with a warranty. |
| New Aftermarket | $600 - $900 | Less common for this application due to complexity. |
| Used OEM | $100 - $400 | Cost-effective, but compatibility must be perfect. |
| Remanufactured/Repair Service | $150 - $350 | Your original module is repaired and returned, avoiding programming issues. |
| Shop Labor | $250 - $500 | Includes installation, brake bleeding with a scan tool, and programming if needed. |
Frequently Asked Questions (FAQ)
Can I drive my Maxima with the ABS light on?
Yes, but with significant risks. Your normal hydraulic brakes will still function, but you will not have anti-lock brakes, traction control, or stability control. This increases the risk of skidding and losing control in an emergency stop or on slippery roads. The vehicle should be repaired as soon as possible.
Do I have to program a used ABS module?
For 2009-2011 models, yes, programming is almost always required. For 2004-2008 models, you might get lucky with an identical part number, but it's best to assume some level of electronic configuration will be needed. In all cases, a scan tool is required for the post-installation brake bleed procedure.
What's the difference between a VDC and non-VDC module?
A VDC (Vehicle Dynamic Control) module has additional hardware and software to manage stability control. It uses more sensor inputs (like steering angle and yaw rate) to prevent skids during cornering. A non-VDC module only handles ABS and basic traction control. The two types are not interchangeable.
My ABS pump runs all the time, even with the car off. What should I do?
This is a serious fault that will drain your battery and can burn out the pump motor. As a temporary measure, you can pull the large ABS fuse in the engine bay fuse box to stop the pump from running. This is NOT a fix. The most common causes are a stuck relay or an internal failure in the control module. The vehicle should be diagnosed and repaired immediately.
Helpful Videos
Technical Specifications
OEM Part Numbers: 47660-8Y001 47660-8Y010 47660-8Y067 47660-9N61C 47660-ZA51A 47660-ZY93C 476608Y010 476608Y067 476609N11C 476609N61C 47660ZA51A 47660ZK41A 47660ZY71B 47660ZY92C

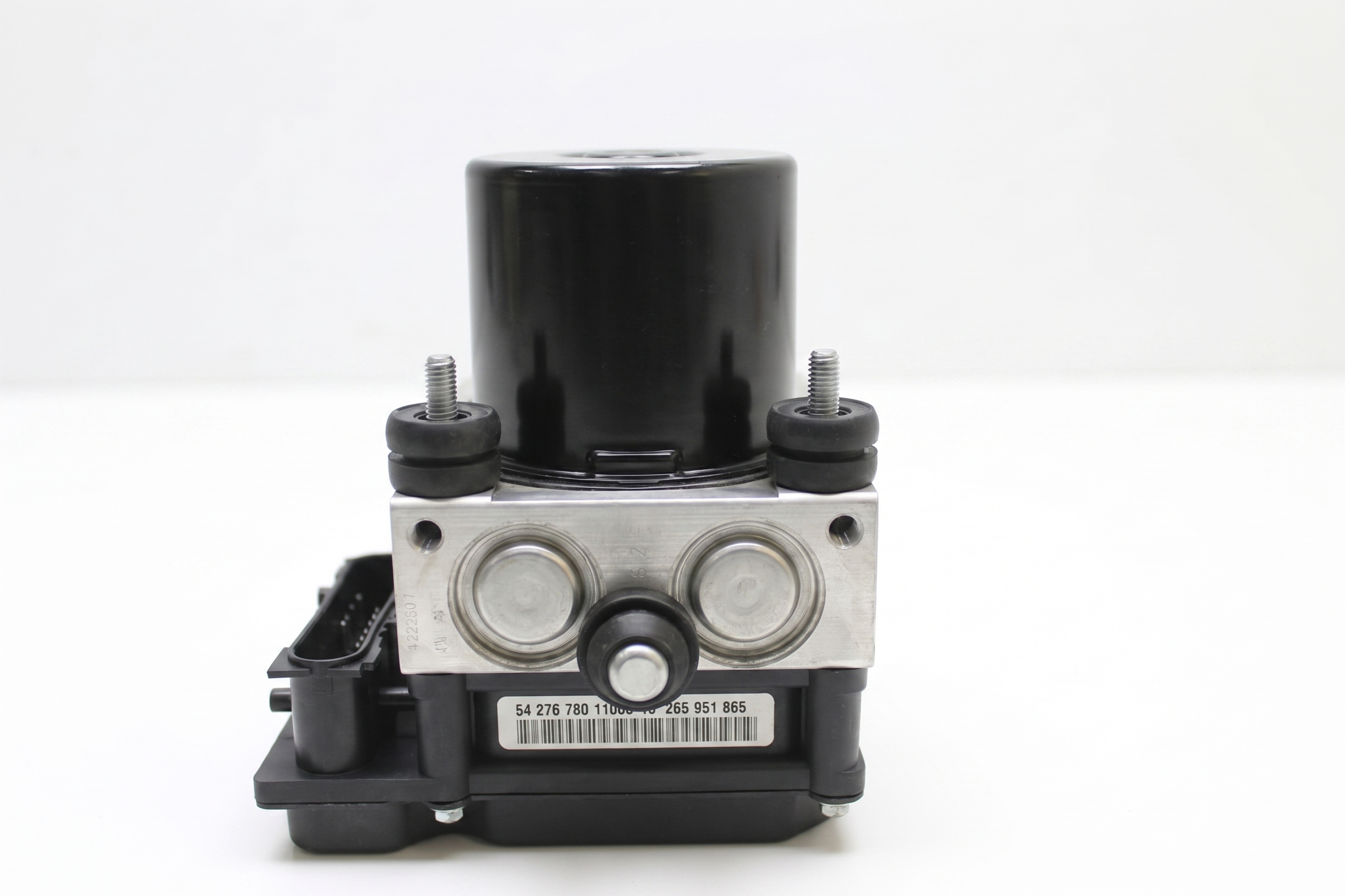

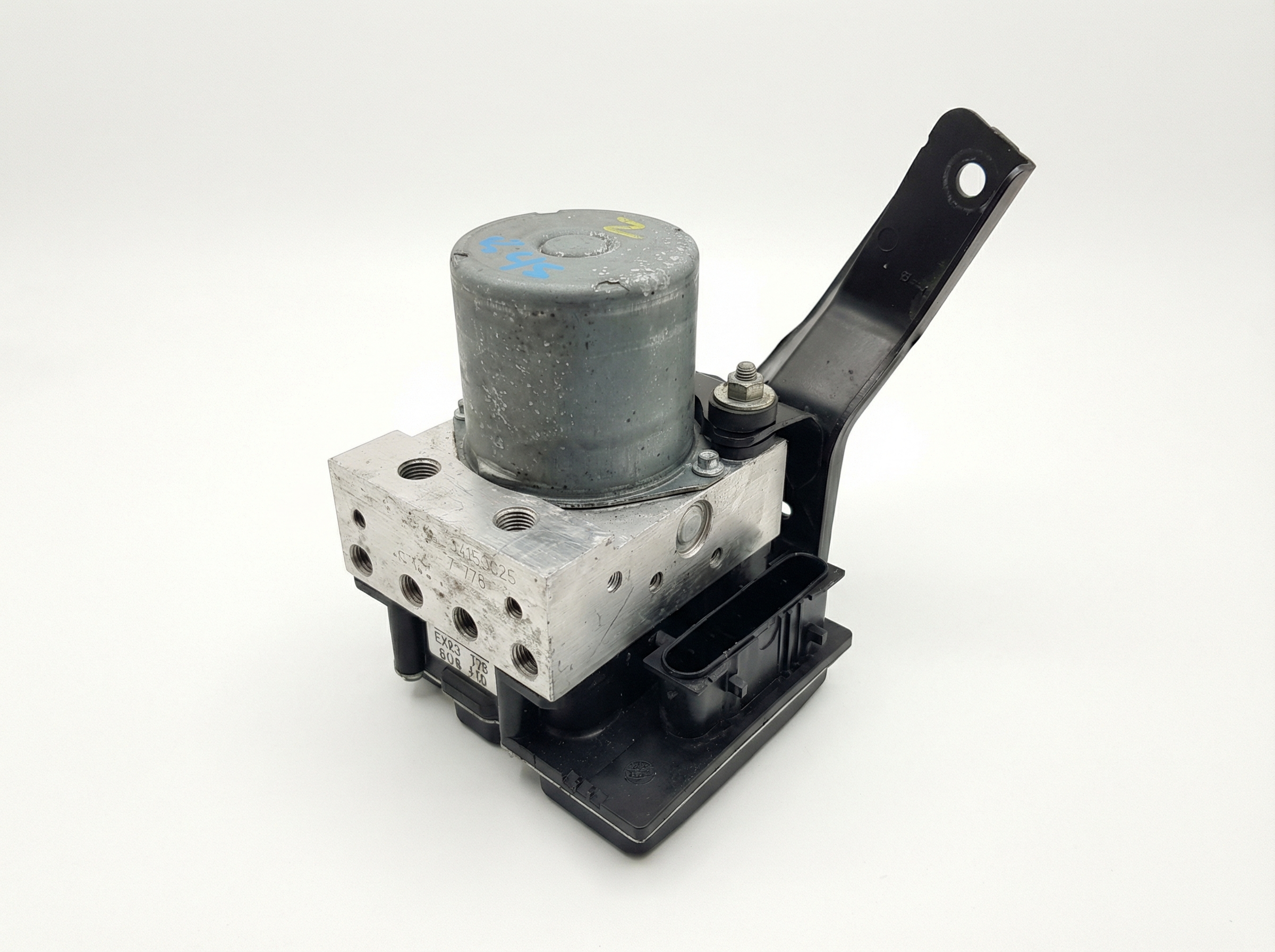

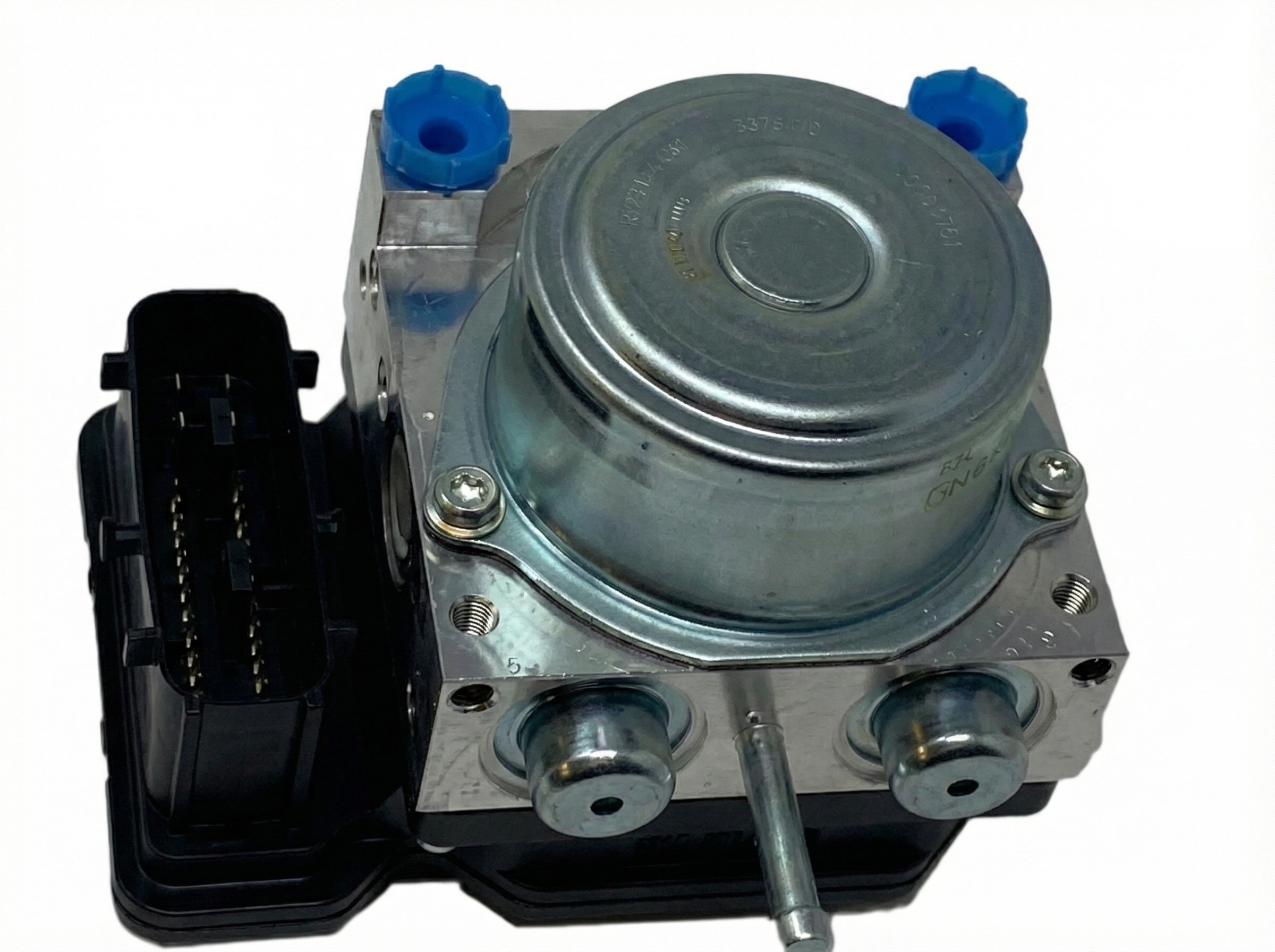

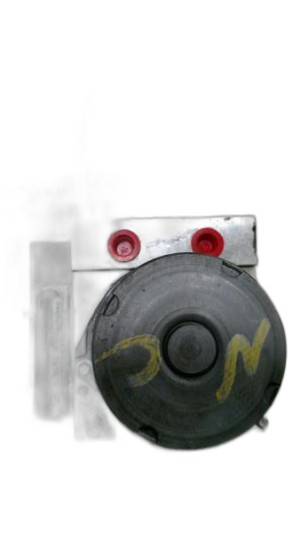

The complete assembly includes the electronic control module and the hydraulic pump/actuator. Variations exist based on Vehicle Dynamic Control (VDC) and transmission type.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
