2013-2023 Nissan Sentra ABS Module: Programming, Part Numbers & Replacement Costs
This guide covers the common failures, programming requirements, and critical compatibility details for the 2013-2023 Nissan Sentra ABS control module.
- A replacement ABS module for a 2013-2023 Sentra MUST be programmed to the vehicle's VIN by a dealer or qualified shop with advanced scan tools.
- Part number compatibility is critical and varies by year, trim, and options like adaptive cruise control. Always match the number from your original part.
- Driving with a faulty ABS module is risky; your anti-lock braking, traction control, and stability control will be disabled.
- A used OEM module is a cost-effective option, but you must factor in the additional cost of professional installation, brake bleeding, and programming.
Symptoms of a Failing ABS Control Module
A failing ABS module will almost always alert you with dashboard warning lights. However, other symptoms can also point to a problem with this specific component.
- ABS Warning Light: This is the most common and direct indicator of a problem within the anti-lock braking system.
- Traction or Stability Control Light: Because the ABS module controls these systems, their warning lights will often illuminate as well.
- Unresponsive or Spongy Brake Pedal: You might notice the brake pedal feels different, requiring more effort to press or feeling mushy.
- Wheels Locking Up: The primary purpose of ABS is to prevent wheel lock-up. If your wheels lock and skid during hard braking, especially on wet surfaces, the module may have failed.
- Unusual Noises: Grinding or clicking sounds during braking could indicate an issue with the ABS system.
- Erratic Speedometer: In some cases, a failing ABS module can interfere with the vehicle's speedometer, causing it to show incorrect speeds or stop working altogether.
Common Diagnostic Trouble Codes (DTCs)
A professional-grade OBD-II scanner can read codes from the ABS module. While many codes point to faulty wheel speed sensors, certain codes 🎬 Watch: How to diagnose and fix common Nissan ABS codes are more specific to the module or its pump motor.
- C1110 / C1111: These codes often point to an ABS actuator, pump motor, or electric unit failure.
- U0121: Indicates a loss of communication with the ABS control module.
- C0110: Points to a failure in the ABS pump motor circuit.
- C0265: Relates to a malfunction in the ABS module's relay circuit. 🎬 See how to repair motor and relay errors before replacing
Programming and Calibration Requirements
Warning: A replacement ABS control module—whether it is new or used—MUST be programmed to your vehicle's specific Vehicle Identification Number (VIN) and configuration. This is not an optional step.
Modern ABS modules are integrated into the car's communication network. Programming ensures the module works correctly with the engine computer, transmission, and stability control systems. Failure to program a replacement module will result in the ABS and traction control warning lights staying on, and the safety systems will not function.
This programming requires a professional-grade diagnostic scan tool, such as the Nissan CONSULT system used by dealerships or advanced aftermarket tools like certain Autel or Foxwell models. While some independent shops have this capability, it's crucial to confirm this before the repair. Many general mechanics may not have the necessary equipment. A DIY replacement is not feasible for most home mechanics due to the need for these specialized tools for both programming and the subsequent brake bleeding procedure, which requires cycling the ABS pump to remove all air from the hydraulic unit.
🎬 Watch: Step-by-step guide to bleeding an ABS brake systemKnown Issues and Vehicle-Specific Information
Compatibility for the 2013-2023 Nissan Sentra ABS module is extremely specific. Part numbers vary significantly based on model year, trim level (S, SV, SR, SL), and optional features like adaptive cruise control.
- Early Generation (2013-2014): There is a specific part split for models manufactured on or before July 2013. Be sure to verify the production date of your vehicle.
- Trim Level Differences: Modules are often specific to trim levels. For example, some parts fit S and SV trims, while others are exclusive to SR and SL models.
- Adaptive Cruise Control: Later models (typically 2020 and newer) equipped with adaptive cruise control use a different, more complex ABS module. Ensure the part you are buying matches this feature if your car has it.
As of early 2026, there are no major recalls specifically for the ABS control module on 2013-2023 Nissan Sentras according to NHTSA data. However, always check for the latest information using your vehicle's VIN.
Buying a Used ABS Control Module
Purchasing a used OEM ABS module is a cost-effective way to repair your Sentra, often providing better reliability than new aftermarket alternatives. However, careful verification is essential.

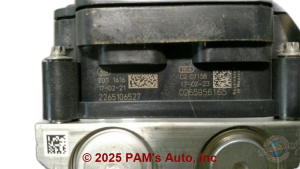

- Match the Part Number Exactly: This is the most critical step. Find the part number on your original module and match it precisely. Do not rely on visual similarity alone. The provided OEM part numbers are a starting point, but always verify against your specific unit.
- Check for Physical Damage: Inspect the used module for any signs of corrosion on the electrical connectors, cracks in the plastic housing, or damage to the hydraulic block. Moisture intrusion is a common cause of electronic failure.
- Source from a Reputable Supplier: Buy from a seller that offers a warranty and has a good return policy. This protects you in case the part is defective.
- Plan for Programming Costs: Remember that the cost of the part is not the final cost. Factor in the labor for installation and the separate cost for programming by a qualified shop or dealership.
Cost Comparison
The cost to replace a Nissan Sentra ABS module can vary significantly. Programming is an additional cost to the part and labor.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $900 - $1,400 |
| New Aftermarket | $200 - $500 |
| Used OEM | $40 - $200 |
| Remanufactured | $300 - $800 |
| Shop Labor (Installation & Bleeding) | $150 - $250 |
| Programming Service | $100 - $200 |
Frequently Asked Questions (FAQ)
Do I have to program a replacement ABS module for my Sentra?
Yes, absolutely. Any replacement ABS module, whether new or used, must be electronically programmed to your car's VIN and specific options. Without this step, the ABS and traction control systems will not work, and warning lights will remain on the dashboard.
Can I install the module myself and drive it to a shop for programming?
While physically possible, it's not recommended. After installation, the brake system must be properly bled using a scan tool to cycle the ABS pump. Driving with air in the brake lines is unsafe. It is best to have the entire job, including installation, bleeding, and programming, performed at the same qualified repair facility.
Is it safe to drive with a bad ABS module?
Your normal braking system will likely still function, but the anti-lock, traction control, and stability control safety features will be disabled. This significantly increases the risk of losing control and skidding during a panic stop or on slippery roads. It is recommended to have the issue repaired as soon as possible.
Why is a used OEM module often better than a new aftermarket one?
Used OEM (Original Equipment Manufacturer) modules are the same parts that were installed at the factory. They are designed specifically for your vehicle's software and hardware. New aftermarket modules can sometimes have software glitches or compatibility issues that are difficult to diagnose. A correctly matched used OEM part that is properly programmed is often a more reliable and affordable solution.
Helpful Videos
Technical Specifications
OEM Part Numbers: 47660-3SG0A 47660-3SG1B 47660-6LD0B 47660-6LE0B 47660-9AK3B 47660-9AN3A 476603RU1C 476603RU2C 476603RU2E 476603SG0C 476603SG1B 476603SG2B 476603SG2C 476603SG3C 476604FU0C 47660-9AK2B 47660-6LF0B

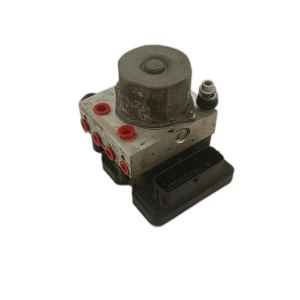

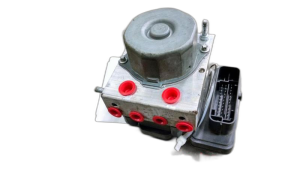

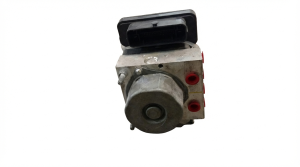

Typically mounted to the ABS hydraulic control unit (pump) in the engine compartment. Requires communication over the vehicle's CAN bus network.
