2019-2025 Nissan Sentra ABS Module: Programming, Compatibility, and Replacement Guide
This guide covers common failures, mandatory programming requirements, and how to choose the correct used ABS control module for your 2019-2025 Nissan Sentra.
- A replacement ABS module for a 2019-2025 Sentra MUST be programmed to the vehicle's VIN by a dealer or qualified shop with advanced scan tools.
- Part number compatibility is critical and varies by trim level (S, SV, SR) and options like adaptive cruise control. Always match the number from your original part.
- Driving with a faulty ABS module is risky; your anti-lock braking, traction control, and stability control will be disabled, increasing the risk of a skid.
- A used OEM module is a cost-effective option, but you must factor in the additional cost of professional installation, brake bleeding, and mandatory programming.
Symptoms of a Failing ABS Control Module
A problem with the ABS module will almost always trigger dashboard warning lights. Because the module controls multiple safety systems, you will likely see more than one light illuminate.
- ABS Warning Light On: This is the most direct sign of a fault within the anti-lock braking system.
- Traction Control/VDC Light On: Since the ABS module manages traction and stability control, its failure will disable these systems and turn on their respective warning lights. 🎬 Watch: See these 6 common symptoms of a failing module.
- Brake Warning Light: In some cases, the main brake system warning light may also illuminate, sometimes indicating a problem with the hydraulic unit or low brake fluid levels which can be related to a module fault.
- Wheels Locking Up: The entire purpose of ABS is to prevent your wheels from locking and skidding during a hard stop. If your wheels lock up, it's a clear sign the system is not working.
- Unresponsive or Stiff Brake Pedal: The brake pedal may feel harder to press than usual, especially during sudden stops.
- Inaccurate Speedometer: In many modern cars, the ABS module and its wheel speed sensors provide the data for the speedometer. A faulty module can cause the speedometer to stop working.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
As of early 2026, there are no specific recalls for the ABS control module on the 2019-2025 Nissan Sentra. Searches of the National Highway Traffic Safety Administration (NHTSA) database show recalls for other issues on these model years, such as windshields and seat frames, but none targeting the ABS module itself. However, older Nissan models have experienced recalls for ABS actuator pump seal leaks that could cause an electrical short, presenting a fire risk in rare instances. While this recall does not apply to the 2019-2025 Sentra, it highlights the importance of addressing any ABS warning light immediately.
Nissan has issued Technical Service Bulletins (TSBs) related to the Body Control Module (BCM), which communicates with the ABS module. For example, TSB NTB20-074A specifies that a new BCM must be used for replacement and configured correctly before key programming. This underscores the complex, interconnected nature of the vehicle's electronics.
Warning: Any replacement ABS module—new or used—must be programmed to your vehicle's Vehicle Identification Number (VIN). Failure to do so will result in a no-start condition as the anti-theft system will be activated.
Programming and Calibration: The Most Critical Step
You cannot simply swap an ABS control module in a 2019-2025 Nissan Sentra and expect it to work. The module is tied to the vehicle's VIN and security system.
- VIN Registration: The module must be electronically programmed with your car's specific VIN. A used module will retain the VIN from its donor vehicle, which must be overwritten.
- Configuration: The module must also be configured for the specific options on your car, such as trim level (S, SV, SR) and the presence of adaptive cruise control.
- Who Can Program It? This procedure requires specialized diagnostic tools. A Nissan dealership or a well-equipped independent repair shop with advanced scan tools (like the Nissan CONSULT tool or high-end aftermarket equivalents) can perform the programming. Many general mechanics or locksmiths may not have this capability.
Variant and Compatibility Differences
It is absolutely essential to match the part number from your original module. The provided buyer warnings are correct and highlight the main compatibility splits.
| Vehicle Trim/Option | Known Part Numbers | Important Notes |
|---|---|---|
| S Models (Without Adaptive Cruise) | 47660-6LE0B | This module is specifically for the base 'S' trim level which does not have adaptive cruise control. |
| SV & SR Models (With Adaptive Cruise) | 47660-6LF0A, 47660-6LF0B | This module is for higher trim levels equipped with adaptive cruise control, which relies on the ABS system to function. |
Always verify the part number on your existing module before ordering a replacement. Installing a module for a car with different options will result in system errors and warning lights.
Buying a Used 2019-2025 Sentra ABS Module
A used OEM module is an excellent, cost-effective alternative to a new dealer part, but careful purchasing is key.
- Match the Part Number Exactly: This is the most important rule. Do not rely on visual similarity. The part number must be an exact match to ensure electronic compatibility.
- Inspect the Connectors: When you receive the part, check the electrical connector pins. They should be straight, clean, and free of any corrosion or green/white residue, which indicates water damage.
- Check for Physical Damage: Look for cracks in the plastic housing or damage to the aluminum hydraulic block it attaches to.
- Factor in Programming Costs: Remember that the price of the used part is not your final cost. You must account for shop labor to install the part, bleed the brake system, and program the module. Call local shops for quotes beforehand.
- Why Used OEM is a Good Choice: A used original Nissan part, once programmed, is guaranteed to function correctly with the vehicle's systems. Some new aftermarket electronic modules can have software or compatibility issues, even if they claim to be a direct fit.
Pro Tip: When calling shops for programming quotes, ask if they have experience programming a used Nissan ABS module. Some dealer service departments are only trained to install and program brand-new parts and may be unwilling or unable to program a used one.
Cost of Replacement
Prices can vary based on your location and the shop's labor rates.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Part | $850 - $1,320 |
| Used OEM Part | $75 - $250 |
| Remanufactured Part | $400 - $600 |
| Shop Labor (Installation & Brake Bleed) | $150 - $250 |
| Shop Labor (Programming) | $100 - $200 |
Frequently Asked Questions (FAQ)
Can I drive my Sentra with a bad ABS module?
Yes, but with significant risks. Your standard hydraulic brakes will still function, but you will not have anti-lock brakes, traction control, or stability control. This means your wheels can lock up during a panic stop, increasing stopping distances and causing a loss of steering control, especially on wet or slippery roads. It is strongly recommended to get the module replaced as soon as possible.
Do I have to program a used ABS module?
Yes, absolutely. For 2019-2025 Nissan Sentras, programming is not optional. The module must be programmed to your car's VIN to work with the engine computer and anti-theft system. An unprogrammed module will prevent the car from starting.
What's the difference between the ABS module and the ABS pump?
The ABS module is the electronic computer that makes decisions. The ABS pump (or hydraulic control unit/actuator) is the mechanical part with valves and a motor that actually modulates brake fluid pressure. For the Nissan Sentra, these are typically sold together as a single assembly.
My ABS light is on. Could it just be a wheel speed sensor?
Yes. A faulty wheel speed sensor is a very common cause for the ABS light to come on and is a much cheaper and simpler repair than replacing the entire module. A diagnostic scan is required to retrieve the specific trouble codes, which will pinpoint whether the fault lies with a specific sensor circuit or the control module itself. Do not replace the module without a proper diagnosis.
Helpful Videos
Technical Specifications
OEM Part Numbers: 47660-6LD0B 47660-6LE0B 476605UD0C 476605UD1C 476606LD0B 476606LE0A 476606LE0B 476606LF0A 476606LF0B 476606LF0E 476606LF0F

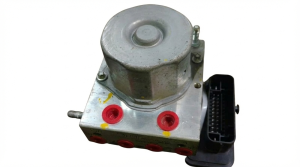

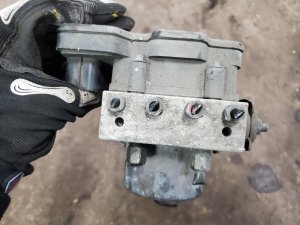

The unit is an integrated assembly including the electronic control unit (ECU) and the hydraulic actuator/pump.
