2023-2024 Ram 1500 Classic ABS Module: Programming, Recalls, and Replacement Guide
This guide covers the essential details for diagnosing, replacing, and programming the ABS control module on the 2023-2024 Ram 1500 Classic, including a critical compatibility warning.
- A replacement ABS module, whether new or used, MUST be programmed to the vehicle's VIN to function.
- A major recall (NHTSA 24V653000) exists for a software issue; check if your vehicle needs the free update before replacing parts.
- This part ONLY fits the Ram 1500 'Classic' body style (5-lug wheels), not the new body style Ram 1500 (6-lug wheels).
- Common failure codes are U0121 (loss of communication) and C2200 (internal failure).
Symptoms of a Failing ABS Control Module
A failing ABS module will almost always trigger a warning light on your dashboard. However, other symptoms can also point to a problem with the module or the larger ABS system.
- ABS and Brake Warning Lights: The most common symptom is an illuminated ABS warning light on the instrument cluster. Often, the main red 'BRAKE' light will also be on.
- Traction Control/ESC Light: Because the ABS module also controls the Electronic Stability Control (ESC) and traction control systems, you may see these warning lights as well.
- Loss of ABS Function: During a hard stop, you may notice the wheels lock up and skid, which is a clear sign the anti-lock system is not working.
- Unresponsive or Hard Brake Pedal: The brake pedal may feel unusually hard to press, or feel unresponsive, requiring more effort to stop the vehicle.
- Associated OBD-II Codes: A scan tool may reveal specific trouble codes. Common codes related to ABS module failure include U0121 (Lost Communication with ABS Module) and C2200 (ABS Control Module Internal Failure). 🎬 Watch: Diagnosing the C2200 internal failure code on a Ram. A VIN mismatch code (C2202) will appear if a used module is installed without being reprogrammed.
Compatibility Warning: This ABS module assembly is for the Ram 1500 'Classic' body style only, which uses 5-lug wheels. It will not fit the new body style Ram 1500 (often called the 'DT' generation) that uses 6-lug wheels. Always verify your truck's body style and wheel lug count before purchasing.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
NHTSA Recall 24V653000 (Chrysler Recall 85B/75B)
In September 2024, Chrysler (FCA US, LLC) issued a major recall affecting over 1.2 million Ram 1500 trucks from model years 2019 and 2021-2024, including the 2023-2024 Classic. The recall addresses a software malfunction in the ABS control module that could unexpectedly disable the Electronic Stability Control (ESC) system. This failure violates federal safety standards and can increase the risk of a crash.
Warning Signs: Affected vehicles may illuminate the ABS, ESC, Adaptive Cruise Control (ACC), and Forward Collision Warning (FCW) lights at startup.
The Fix: Dealers will update the ABS control module software free of charge. Owners can check if their vehicle is included in the recall by visiting the NHTSA website (nhtsa.gov/recalls) and entering their VIN.
Programming and Installation Requirements
Yes, this module must be programmed to the vehicle after installation. The ABS module is tied to the vehicle's Vehicle Identification Number (VIN). Installing a new or used module without programming will result in a VIN mismatch error (code C2202) and will keep the ABS and traction control warning lights illuminated.
The programming process involves several steps:
- ABS Initialization: This procedure allows the new module to learn the truck's specific configuration.
- VIN Programming: The truck's VIN must be written to the module.
- Brake System Bleeding: After replacing the hydraulic unit (the pump), the entire brake system, including the ABS pump, must be properly bled using a scan tool to cycle the pump and purge all air. 🎬 See how to properly bleed the ABS pump for a firm pedal.
Who Can Program the Module?
- Dealership: A Ram dealership can always perform the programming with their proprietary wiTECH scan tool.
- Independent Shops: Many independent repair shops have advanced scan tools (like Autel or Snap-on) or software (like AlfaOBD) that can perform the necessary initialization and programming procedures. However, due to the vehicle's security gateway module, some shops may still require a dealer's assistance or use a special bypass adapter.

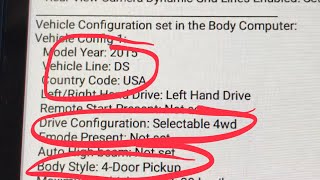

- DIY: Advanced DIY mechanics with tools like AlfaOBD and a compatible OBD-II adapter can potentially perform the programming themselves. This requires a good understanding of the software and procedures involved. 🎬 Check out this guide on using AlfaOBD for DIY programming.
Pro Tip: If you are replacing the entire assembly with a used part, some technicians recommend swapping your original electronic control module onto the replacement hydraulic pump unit. Since the original module is already programmed to your truck, this can sometimes avoid the need for reprogramming, provided the failure was in the pump and not the electronics. However, this is only possible if the original module is functional and not physically damaged.
Buying a Used ABS Control Module
Purchasing a used ABS module can offer significant savings over a new part. However, it's crucial to buy smart to ensure compatibility and functionality.
- Verify Part Numbers: The most important step is to match the part number exactly. The verified OEM part numbers for this assembly are 68630299AA (Hydraulic Unit), 68630789AA (Electronic Module), and 68469507AC. The complete assembly is often sold under the module number.
- Inspect for Damage: Physically inspect the unit for any signs of damage, such as cracked plastic on the module, bent or corroded electrical pins, or damage to the brake line ports on the hydraulic unit.
- Source from a Reputable Supplier: Buy from a recycled parts seller that offers a warranty and a clear return policy. This protects you in case the part is defective.
- Remember Programming Costs: Factor in the cost of programming and brake bleeding when comparing the price of a used part to a new one. A cheap part isn't a good deal if the programming costs are unexpectedly high.
Cost to Replace
The cost can vary significantly based on the parts source and labor rates. The part numbers listed (68630299AA and 68630789AA) refer to the hydraulic unit and the electronic module, which are often sold together as a complete assembly.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Module (Mopar 68630789AA) | $345 - $500 |
| New OEM Hydraulic Unit (Mopar 68630299AA) | $215 - $305 |
| Used OEM Assembly | $150 - $400 |
| Shop Labor (Replacement & Bleeding) | $150 - $300 |
| Shop Labor (Programming) | $100 - $200 |
Note: Prices are estimates as of early 2026 and can vary by location and supplier. Aftermarket and remanufactured options were not widely available at the time of writing.
Frequently Asked Questions (FAQ)
Can I drive my truck with a bad ABS module?
You can, but it's not recommended for long. Your normal hydraulic brakes will still function, but you will not have anti-lock brakes, traction control, or stability control. This means your wheels can lock up during a hard stop, increasing the risk of skidding and losing control, especially in wet or icy conditions. It should be repaired as soon as possible.
Do I need to replace the whole assembly or just the module?
The part is an assembly of the electronic module and the hydraulic pump/valve body. While it is sometimes possible to separate the two, they are typically diagnosed and replaced as a single unit. Failures can occur in either the electronic side (module) or the mechanical side (pump). If you are certain only the module has failed, you could swap it, but most replacements involve the complete assembly.
Will a used module from a different Ram 1500 work?
It might, but only if it is from a 2023-2024 Ram 1500 Classic and has the exact same part number. Even then, it will absolutely require reprogramming to your truck's VIN to function correctly. Do not assume it is 'plug and play'.
What is the difference between the Ram 1500 and the Ram 1500 Classic?
For these model years, Ram produced two different versions of the 1500. The 'Classic' is the older, fourth-generation body style (DS platform) carried over with 5-lug wheels. The 'new' Ram 1500 is the fifth-generation body style (DT platform) with 6-lug wheels. Parts between these two models, including the ABS module, are not interchangeable.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68630299AA 68630789AA 68469507AC
Fits 2023-2024 Ram 1500 Classic body style with 5-lug wheels. Assembly includes electronic control module and hydraulic pump unit.
