2012 Ram 1500 & Dodge Ram 1500 ABS Module: Failure Symptoms and Programming Guide
This guide covers common symptoms, OBD-II codes, and the critical reprogramming steps for the 2012 Ram 1500's 4WD ABS control module.
- Programming is mandatory for all replacement modules, whether new or used, to match your truck's VIN.
- This specific module is for 4WD (Four-Wheel Drive) models only.
- A failed module disables critical safety features including ABS, traction control, and electronic stability control (ESC).
- You can often replace just the electronic portion of the module without opening brake lines, avoiding the need to bleed the brakes.
Symptoms of a Failing ABS Control Module
A failing ABS module can present several distinct symptoms. Because it's tied into multiple vehicle safety systems, you'll often see more than just one warning light appear on your dashboard.
1. ABS and Traction Control Warning Lights
The most common sign of a problem is an illuminated ABS warning light on the dashboard. Often, the Traction Control or Electronic Stability Control (ESC) light will also come on, as these systems rely on the ABS module to function. In some cases, the main red "BRAKE" warning light may also illuminate.
2. Diagnostic Trouble Codes (DTCs)
A professional scan tool can read specific codes stored in the vehicle's computer. Common codes pointing to an internal module failure include:
- C2200-49: Anti-lock Brake Module Internal Electronic Failure. This is a strong indicator that the module itself has failed.
- C2116: Pump Motor Fault / Pump Supply Low Voltage. This points to an issue with the hydraulic pump portion of the assembly.
- U0121: Lost Communication with ABS Module. This means other computers in the truck can no longer receive a signal from the ABS module.
- C2202: Original VIN Mismatch. This code will appear after installing a used module before it has been reprogrammed.
3. Unresponsive or Locking Brakes
Without a functioning ABS module, the anti-lock feature is disabled. During a hard stop, especially on wet or loose surfaces, the wheels can lock up, causing the truck to skid and lose steering control. You may also notice the brake pedal feels unresponsive or different than usual.
4. Inaccurate Speedometer
In many Ram trucks, the ABS module uses data from the wheel speed sensors to calculate the vehicle's speed for the speedometer. If the module fails, it can cause the speedometer to read incorrectly or stop working altogether.
Pro Tip: Before condemning the module, check the wheel speed sensors. A faulty wheel speed sensor can sometimes cause the ABS and traction control lights to illuminate and is a much cheaper and simpler fix.

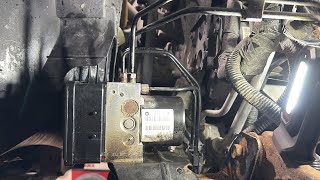

🎬 Watch how to fix persistent ABS and traction control lights.Known Issues, TSBs, and Recalls
While there are no specific recalls or Technical Service Bulletins (TSBs) found for the ABS module on the 2012 Ram 1500, later model years have had recalls related to ABS software malfunctions that could disable the Electronic Stability Control. This highlights the critical safety role of the module's software. The primary known issue for this generation is internal electronic failure of the module itself, often indicated by code C2200.
🎬 Watch this breakdown of the common C2200 internal failure code.Programming and Calibration Requirements
Warning: A replacement ABS control module, whether new or used, MUST be programmed to your truck's Vehicle Identification Number (VIN). It is not a plug-and-play part.
This programming, often called an "ABS Initialization" or "Proxy Configuration Alignment," ensures the module can communicate with the other computers in your vehicle. Without this step, you will have a VIN mismatch error code, and the ABS and ESC systems will not function correctly.
A dealership can perform this programming with their proprietary wiTECH scan tool. Many professional independent shops with high-end bidirectional scan tools can also perform the initialization. Some advanced DIYers have successfully used software like AlfaOBD with a compatible OBD2 adapter to program the module themselves, but this requires technical expertise.
Buying a Used ABS Control Module
Given the high cost of a new OEM module, a used unit from a reputable recycler is a cost-effective solution. Here’s what to look for:
- Match the Part Number: It is critical to match the OEM part number exactly. The primary part numbers for the 2012 4WD models are 68061772AA and 68142314AB. Part number 68142314AB may be a later, updated version.
- Verify 4WD Compatibility: This specific module is intended for four-wheel-drive (4WD) models only. Ensure the donor vehicle had the same drivetrain configuration.
- Physical Inspection: Before purchasing, inspect the module for any signs of physical damage. Check for cracks in the plastic housing, bent or corroded connector pins, and damage to the hydraulic pump body.
- Why Used OEM is a Good Choice: A used OEM Mopar module was built to the original factory specifications. Aftermarket modules can sometimes have software or communication issues, making programming difficult. A reliable used OEM part is often a safer bet for a critical safety component like the ABS module.
Cost Comparison
Prices can vary based on supplier and availability. Here is an estimated cost breakdown:
| Part Type | Estimated Cost |
|---|---|
| New OEM (Mopar) | $770 - $1,180 |
| Remanufactured | $300 - $500 |
| Used OEM | $150 - $400 |
| Shop Labor (Installation & Bleeding) | $150 - $250 |
| Shop Labor (Programming) | $100 - $180 |
Frequently Asked Questions (FAQ)
Can I replace only the electronic module without the pump?
Yes. The electronic control module is typically held onto the hydraulic pump assembly with four Torx screws. You can carefully remove the old module and install the replacement without opening the hydraulic brake lines, which means you will not have to bleed the brake system. 🎬 See this step-by-step walkthrough for replacing the ABS module. This can save significant time and labor.
Can I drive my truck to a shop for programming after installing a used module?
Yes. The truck will drive with its standard hydraulic brakes, but you will not have ABS, traction control, or stability control functionality until the module is programmed. Drive carefully, especially in poor weather, as the wheels can lock up under hard braking.
Is a dealership the only place that can program a replacement ABS module?
No. While a dealership is always an option, many independent repair shops have advanced scan tools capable of performing the necessary ABS initialization procedure. It is best to call ahead and confirm they have the capability to program a Ram ABS module before scheduling the work.
Will a bad ABS module cause my truck to not move?
In some rare cases, a severe internal failure of the ABS module can disrupt the vehicle's network to the point where it may prevent the truck from shifting out of park. However, the more common symptoms are warning lights and disabled safety systems, while the truck remains drivable.
Helpful Videos
Technical Specifications

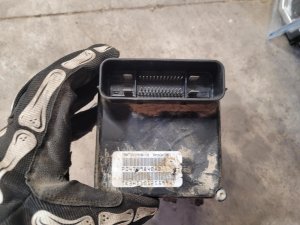

OEM Part Numbers: 68061772AA 68142314AB
This assembly includes both the hydraulic control unit (pump) and the electronic control module. It is designed for 4WD models.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
