2008-2016 Smart Fortwo ABS Module Failure: Lights, Diagnosis, and Programming

Symptoms of a Failing ABS Control Module

A problem with the ABS system in a 2008-2016 Smart Fortwo will almost always make itself known with dashboard warning lights. While the module itself can fail, it's important to rule out more common and simpler issues first.

• ABS and ESP Warning Lights: The most common symptom is the illumination of the ABS and ESP (Electronic Stability Program) or traction control warning lights on the instrument cluster. These may come on intermittently at first but often become permanent.
• Disabled Safety Features: When the ABS light is on, features like Hill Start Assist and cruise control may be disabled.
• No Speedometer: In some cases, a failing ABS module can cause the speedometer to stop working or provide inaccurate readings, as it relies on data from the wheel speed sensors.
• Unchanged Braking Feel: For most failures, the standard brakes will continue to work. However, the pedal may feel hard during sudden stops, and the wheels can lock up since the anti-lock function is disabled.

Common Diagnostic Trouble Codes (DTCs)

Reading the fault codes with an OBD-II scanner is the first step in any diagnosis. For Smart vehicles, a more advanced scanner like a Mercedes-Benz STAR diagnostic tool may be needed to read specific module codes.

• C1041: Indicates a pump motor failure within the ABS unit.
• U0121: A communication error code, meaning other modules in the car cannot communicate with the ABS module. This can point to a bad module, but also to a wiring or power supply issue.
• Lateral Acceleration Sensor Faults: This sensor is often integrated directly into the ABS module, so a fault code pointing to it typically means the entire module must be replaced.

Known Issues & Recalls

While there are no specific NHTSA recalls for the ABS control module on the 2008-2016 Smart Fortwo, there is a very common issue that frequently causes ABS and ESP warning lights.

Critical: Check for Wiring Harness Damage First

On the Fortwo 451 chassis, the wiring loom for the rear wheel speed sensors is often routed too tightly from the factory. Over time, vibrations can cause this harness to rub against the ABS pump's metal casing or the edge of the plastic undertray. This chafing can wear through the insulation and cause a short circuit, triggering ABS faults. Before spending 🎬 Watch: Diagnose and repair a rear ABS sensor fault money on parts, thoroughly inspect this wiring harness where it passes by the ABS pump on the front left side of the vehicle. Repairing a damaged wire is much cheaper than replacing the entire module.

Buying a Used ABS Control Module

Due to the extremely high cost of a new OEM module, a quality used part is often the most practical solution. Here’s what you need to know to buy the right one.

• Match the Part Number: The most important step is to physically inspect your original module and match the Bosch or Mercedes-Benz part number exactly. Do not rely on year and model alone. Using a module with a different part number may result in incompatibility, even if it looks identical.
• Physical Inspection: When buying a used module, check the electrical connector pins for any signs of corrosion or damage. Ensure the casing is not cracked and that there are no signs of it having been opened before.
• Why Used OEM is a Smart Choice: A used original equipment (OEM) module was designed by Bosch and Mercedes-Benz specifically for your vehicle. It offers proven reliability compared to new aftermarket units, which may have questionable quality, all at a fraction of the cost of a new dealer part.

Programming and Installation

Replacing the ABS module is a job that requires both mechanical and electronic know-how.

Programming is NOT Optional

A replacement ABS control module—whether new or used—must be programmed to your car's Vehicle Identification Number (VIN). If you do not program the module, the ABS and ESP lights will remain on, and the system will not function. This is not a simple code-clearing process.

• Who can program it? This procedure requires a dealer-level diagnostic tool, such as the Mercedes-Benz STAR system. A Mercedes-specialist independent shop or a mobile automotive programmer can perform this service. Most general repair shops will not have the necessary equipment.
• Can I avoid programming? The only way to avoid programming is to have your original module repaired and reinstalled. Repair services fix the internal electronics while retaining your car's original VIN data.

Replacement Overview

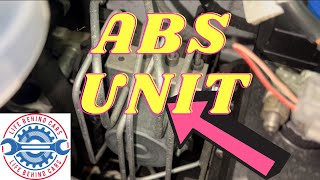

The ABS module and pump assembly is located in the front of the car on the driver's side. The replacement process involves:

1. Disconnecting the vehicle's battery.
2. Carefully disconnecting the main electrical connector.
3. Using a flare nut wrench to remove the multiple hard brake lines attached to the hydraulic block. Be prepared for some brake fluid spillage.
4. Unbolting the module assembly from its bracket and installing the replacement unit.
5. Reconnecting all brake lines and the electrical connector.
6. Crucially, the entire brake system must be bled afterward to remove any air that entered the hydraulic lines. This may require a scan tool to cycle the ABS pump for a complete bleed.

Cost to Replace a Smart Fortwo ABS Module

The cost can vary dramatically depending on the path you choose. A new OEM part from a dealer is exceptionally expensive.
