2013-2022 Subaru Legacy & Outback ABS Module: EyeSight, Programming, and Warning Lights Explained

Symptoms of a Failing ABS Control Module

When the ABS control module begins to fail, your vehicle will typically alert you with a prominent display of dashboard warning lights. Unlike a single check engine light, ABS failures often trigger a specific combination of alerts.

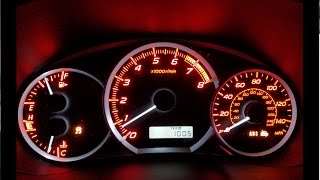

• The "Trifecta" of Warning Lights: The most common symptom is having the ABS, VDC (Vehicle Dynamics Control), and Hill Assist warning lights all illuminate simultaneously. This indicates a fault within the broader braking and stability system, which often points directly to the ABS module.
• Unresponsive or Spongy Brake Pedal: You might notice a change in how the brake pedal feels. It could become hard to press or feel spongy and unresponsive, requiring more effort to stop the vehicle.
• Wheels Locking Up: The entire point of ABS is to prevent your wheels from locking during hard braking. If the module has failed, this safety feature is disabled, and your wheels may lock up and skid during a panic stop.
• ABS Activates Incorrectly: The module may malfunction and cause the ABS to engage at the wrong times, such as under light braking on dry pavement. You might feel the pedal pulse or hear the ABS pump running when it shouldn't be.
• Associated OBD-II Codes: A professional scan tool can read specific chassis codes stored in the module. Common codes pointing to an internal module failure include C0057 (ABS Control Module Communication Failure), C0071 (Steering Angle Sensor Output), and C0075 (Wheel Cylinder Pressure Sensor Output). A low battery can sometimes trigger these codes erroneously, so it's important to ensure your battery is healthy before diagnosing the module.

Buying a Used 2013-2022 Subaru ABS Control Module

Purchasing a used ABS module can save you a significant amount of money, but it requires careful attention to detail to ensure you get the right part. Because this module is critical for safety and integrates with other vehicle systems, compatibility is everything.

1. The EyeSight Rule: The Most Critical Check

The single most important factor when buying a used module is whether the donor vehicle was equipped with Subaru's EyeSight driver-assist system. The ABS modules are different for EyeSight and non-EyeSight vehicles.

• A module from a car with EyeSight will not work in a car without EyeSight.
• A module from a car without EyeSight will not work in a car with EyeSight.

There is no way to reprogram a non-EyeSight module to work with an EyeSight system, or vice-versa. You must verify the donor vehicle's options. Most sellers will specify this in the listing. If they don't, ask for the VIN and check the vehicle's original equipment.

2. Match the Part Number Exactly

While some part numbers may supersede others, the safest approach is to match the OEM part number on your original module exactly. Suffixes (the letter at the end of the part number) can indicate different software or hardware revisions. While a salvage yard might suggest a different suffix will work, forum posts from owners show that an exact match is the surest path to success.

3. Physical Inspection

When you receive the used module, inspect it carefully. Look for any signs of corrosion on the aluminum housing or within the electrical connector pins. Check that the plastic connector housing isn't cracked or broken. Do not purchase a module that shows signs of water damage or physical impact.

4. Factor in Programming Costs

A used ABS module is not a plug-and-play part. It must be programmed and calibrated to your vehicle after installation. This is not optional. You will need to take the vehicle to a Subaru dealer or a well-equipped independent shop with a dealer-level scan tool to perform this service. Budget for this additional cost when deciding between a new and used part.

5. The Outback Wilderness Exception

The Subaru Outback Wilderness trim has a unique ABS module calibration due to its different suspension, tires, and off-road tuning. A module from a standard Outback or Legacy will not work correctly in a Wilderness model. A specific TSB (06-88-21) was released with updated software for the Wilderness trim, highlighting its unique requirements. If you own a Wilderness, you must source a module from another Wilderness.

Known Issues, Recalls, and TSBs

While there haven't been widespread recalls specifically for the ABS control module itself, there are related service bulletins (TSBs) and recalls for the 2013-2022 Legacy and Outback.

• TSB 06-80-20: For 2013-2014 Legacy and Outback models, this bulletin addresses a false ABS/VDC warning light caused by a C0075 code. The fix requires replacing the entire ABS hydraulic unit with an updated part, as the original unit's software cannot be reprogrammed.
• TSB 06-88-21: This bulletin provides a software update (reprogramming file) for the VDC control module on 2020-2022 Legacy and Outback models to fix a rare issue where the Electronic Parking Brake (EPB) may not disengage. It also includes a separate file specifically for the 2022 Outback Wilderness.
• Related Airbag Recall (NHTSA 24V-223): A recall was issued for many 2020-2022 Legacy and Outback models for a faulty Occupant Detection System (ODS) sensor, which could prevent the passenger airbag from deploying. While not directly part of the ABS, it's a critical safety system on these vehicles. You can check if your vehicle is affected on the NHTSA website.

Replacement and Programming Overview

Replacing the ABS control module is a task that a skilled DIY mechanic can perform, but the final programming steps require professional tools.

Replacement Steps

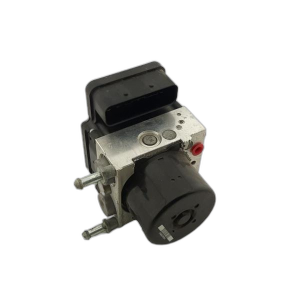

The ABS module is the black plastic electronic box bolted to the aluminum hydraulic control unit (HCU). In many cases, you can replace just the electronic module without opening the hydraulic brake lines.

1. Disconnect the negative battery terminal.
2. Locate the ABS assembly in the engine bay (typically on the passenger side).
3. Unplug the large electrical connector from the module.
4. Carefully unbolt the control module from the HCU. It is usually held on by four to six small Torx or Allen bolts.
5. Gently separate the module from the HCU, being careful not to damage the solenoid pins that connect the two halves.
6. Install the new module by reversing the steps.

Programming and Calibration

After the new module is installed, it must be configured for your vehicle. This is not optional.

• VIN Programming: The module must be programmed with your car's Vehicle Identification Number (VIN).
• Zero Point Calibration: The system needs to learn the neutral position of the steering angle sensor and the G-sensors (yaw rate and lateral G). This is critical for the VDC and traction control systems to work correctly. Driving without this calibration will leave warning lights on and safety systems disabled.

This procedure requires a dealer-level scan tool like the Subaru Select Monitor (SSM) or a high-end professional aftermarket scanner. Most DIY tools cannot perform this function. Some independent shops and mobile locksmiths may have the necessary equipment.

Cost to Replace the ABS Control Module

The cost can vary dramatically depending on the parts you choose and who does the labor.
