2018-2025 Legacy & Outback ABS Module: Fixing VDC Lights, Disabled EyeSight, and Programming

Symptoms of a Failing ABS Module

When the ABS control module in a Subaru Legacy or Outback begins to fail, it rarely does so quietly. The most common sign is a sudden illumination of multiple warning lights on your dashboard. Because the ABS, stability control, and driver-assist systems are all connected, a fault in one often triggers warnings in the others.

• ABS, VDC, and BRAKE Lights On: The most common symptom is having the ABS and Vehicle Dynamics Control (VDC) warning lights come on and stay on. The main red BRAKE warning light may also illuminate or flash.
• EyeSight System Disabled: Any significant fault in the braking or stability system will automatically disable the EyeSight driver-assist system as a safety precaution. You will see a prominent "EyeSight Disabled" message.
🎬 Watch: How to fix EyeSight and pre-collision warning light issues.
• Stiff or Heavy Steering: The electronic power steering system relies on data from the VDC/ABS system. When the module fails, power steering assist may be reduced, making the steering feel unusually heavy, especially at low speeds.
• Inaccurate or Dead Speedometer: In many modern cars, the speedometer gets its signal from the wheel speed sensors, which are processed by the ABS module. A complete module failure can result in the speedometer reading incorrectly or not at all.
• Brake Pedal Changes: The brake pedal may feel unresponsive, spongy, or require more effort than usual. In some cases, the ABS pump may run continuously even when you are not braking.

A professional scan tool is needed to read the specific Diagnostic Trouble Codes (DTCs) from the ABS module. Common codes point to failures of internal solenoids, pressure sensors, or communication errors.

Two Generations: Identifying the Correct ABS Module

The specified year ranges cover two distinct generations of the Legacy and Outback, which use different parts. Installing a module from the wrong generation will not work. It is critical to match the part to your vehicle's specific year range.

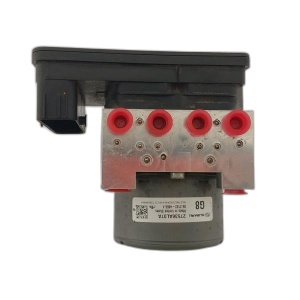

2018-2019 Subaru Legacy & Outback

These models represent the final years of the sixth-generation Legacy and fifth-generation Outback. They typically use ABS modules with part numbers beginning in AL.

• Known Part Numbers: 27596AL06A, 27596AL06B, 27596AL09A, 27536AL06A.

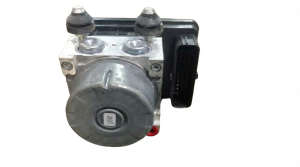

• Compatibility Note: There are different modules for vehicles with and without the EyeSight driver-assist package. The part description will often specify "without pre-crash" for non-EyeSight models. Always verify compatibility before purchasing.

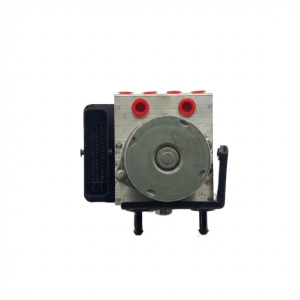

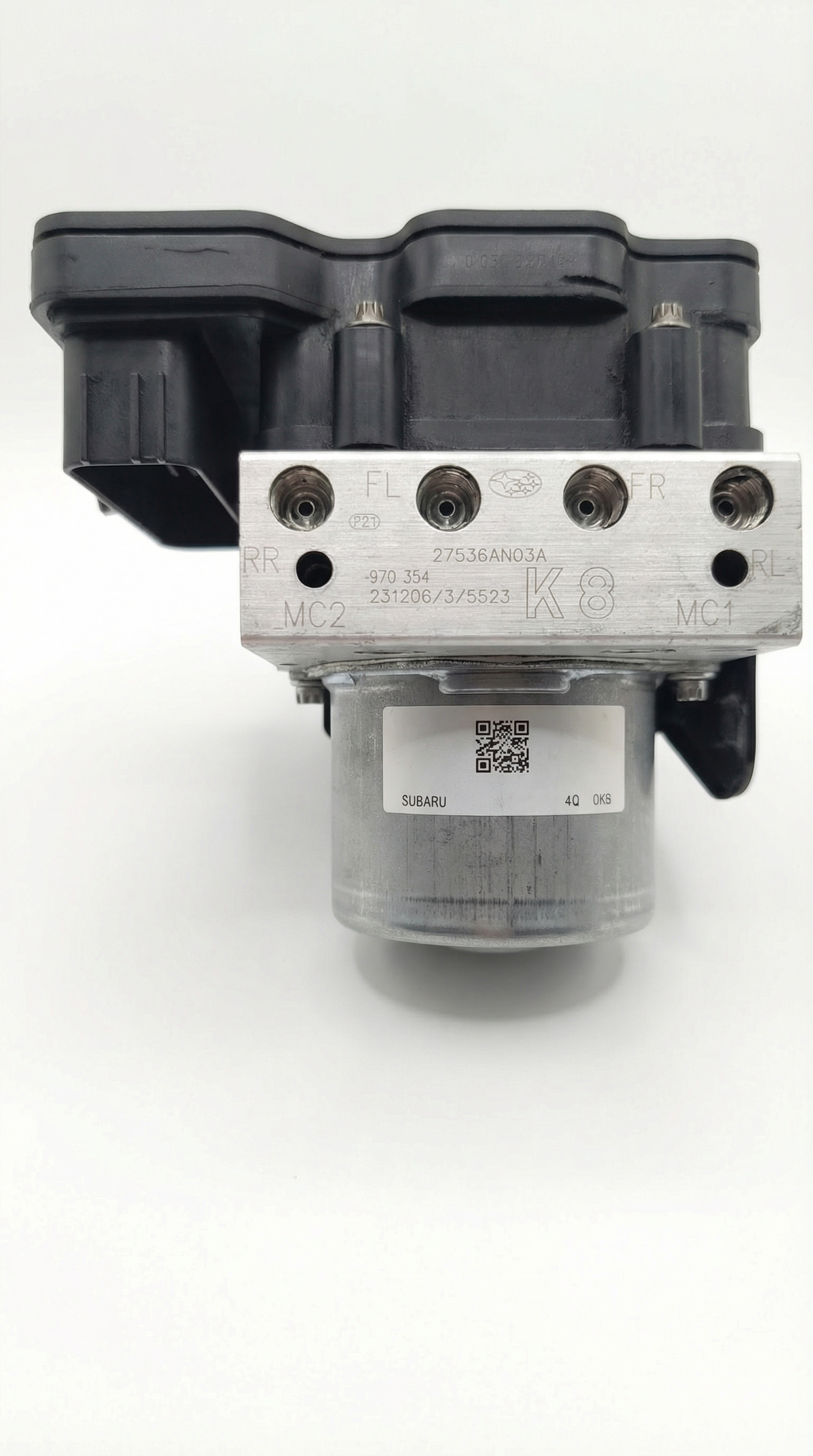

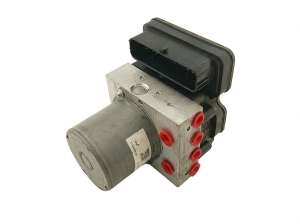

2020-2025 Subaru Legacy & 2020-2024 Subaru Outback

These models are built on the newer Subaru Global Platform and use a different series of ABS modules, typically with part numbers beginning in AN.

• Known Part Numbers: 27596AN00A, 27596AN00B, 27596AN00C, 27596AN00D, 27596AN03A, 27536AN00A, 27536AN00C, 27536AN03A.
• Compatibility Note: As with the earlier generation, compatibility depends on whether the vehicle is equipped with EyeSight.

Known Issues and Recalls

While there are no active recalls specifically for the ABS control module on these vehicles, there is a significant safety recall that owners of 2020-2022 models should be aware of to avoid confusion.

• NHTSA Recall 24V-227 (Airbag Sensor): This recall affects 118,723 Legacy and Outback vehicles from the 2020-2022 model years. The issue is a faulty Occupant Detection System (ODS) sensor in the passenger seat, which could prevent the passenger airbag from deploying in a crash. This is not related to the ABS module, but the recall covers the same vehicles and may cause dashboard warning lights to appear.

Buying a Used ABS Module: The Definitive Checklist

Purchasing a used OEM ABS module is a cost-effective solution, but it requires careful attention to detail to ensure you get the right part. A new module can cost over $1,000, while a quality used part is often available for a fraction of that price.

1. Confirm the Generation: First, determine if you have a 2018-2019 model or a 2020+ model. This is the most important step.
2. Match the Part Number: The best way to guarantee compatibility is to match the OEM part number exactly. The number is printed on a sticker on the original module.
3. Verify EyeSight Compatibility: Ensure the donor vehicle had the same options as yours, specifically the EyeSight system. Parts for EyeSight and non-EyeSight cars are not interchangeable.
4. Inspect the Connectors: When you receive the part, check the large electrical connector and pins for any signs of corrosion, moisture, or damage.
5. Budget for Programming: A used ABS module is not a plug-and-play part. You MUST have it professionally programmed to your car's Vehicle Identification Number (VIN). Factor this cost into your repair budget.

Programming and Calibration: This is Not Plug-and-Play

Nearly all modern ABS modules are electronically locked to the vehicle they were first installed in. When you install a replacement module—new or used—it must be programmed to communicate with your car's other computers.

• Why is programming required? The module needs to be coded with your car's VIN and calibrated to work with its specific systems, like the steering angle sensor and yaw rate sensor. Without this step, the system will not function, and the warning lights will remain on.
• Who can program it? A Subaru dealership or a well-equipped independent repair shop can perform the programming. This requires a professional, bi-directional scan tool with Subaru-specific software. Most DIY code readers cannot perform this function.
• Alternative: Repair Your Original Module. Companies exist that specialize in repairing your original ABS module. You remove your module, send it to them for repair, and they send it back. Because it's your original unit, it does not require reprogramming, making installation truly plug-and-play.
