2014-2023 Highlander ABS Module: Decoding Part Numbers, Programming, and Faults
This guide covers common failure symptoms, replacement costs, and the critical programming steps for the 2014-2023 Toyota Highlander ABS control module.
- Programming is mandatory. Any replacement ABS module, new or used, must be programmed to your Highlander's VIN by a dealer or qualified shop.
- Part numbers must be matched exactly. Compatibility depends on the model year, engine, and whether the vehicle has a pre-collision system.
- This module controls three safety systems: ABS, Traction Control (TRAC), and Vehicle Stability Control (VSC).
- Driving with a failed module is possible but risky, as key safety features will be disabled, increasing the chance of a skid or loss of control.
Symptoms of a Failing ABS Control Module
When the ABS module fails, it typically disables the associated safety systems, but your standard hydraulic brakes will still function. The most common sign of a problem is a combination of warning lights on your dashboard.
- ABS, VSC, and TRAC Warning Lights: The most common symptom is the illumination of the ABS, VSC (Vehicle Stability Control), and TRAC (Traction Control) lights on the instrument panel. These systems all rely on the same module, so a fault in the module will disable all of them.
- Unresponsive or Hard Brake Pedal: In some cases, a failing module can lead to a brake pedal that feels hard to press or seems unresponsive, requiring more effort to stop the vehicle.
- Wheels Locking Up: The primary purpose of ABS is to prevent your wheels from locking and skidding during a hard stop. If the module has failed, the anti-lock function will be disabled, and your wheels may lock up, especially on slippery surfaces.
- Speedometer Malfunction: In some vehicles, the ABS module processes wheel speed data that is also used for the speedometer. A module failure can sometimes cause the speedometer to read erratically or stop working altogether.
- Associated OBD-II Codes: A professional scan tool can read specific codes from the ABS module. Common codes pointing to an internal module or system failure include C1241 (Low or High Power Supply Voltage), C1391 (Abnormal Leak in Accumulator), C1252 (Brake Booster Pump Motor on Time Abnormally Long), C1256 (Accumulator Low Pressure), and U0121 (Lost Communication With ABS Control Module).
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
As of early 2026, there are no specific safety recalls issued by the National Highway Traffic Safety Administration (NHTSA) for the ABS control module on 2014-2023 non-hybrid Toyota Highlander models. Other recalls exist for this vehicle for issues like seat belts or airbags, but they are unrelated to the ABS system.
A Technical Service Bulletin (TSB), T-SB-0009-24, was issued for some 2014–2016 Highlander Hybrid models. This TSB addresses a condition where the brake, ABS, and/or TRAC lights are on due to a small internal brake fluid leak in the brake actuator, storing DTCs such as C1391, C1252, C1256, or C1253. 🎬 Watch: Diagnosing accumulator leaks and using Techstream software. While this TSB is specific to the Hybrid model, it highlights issues within the broader brake actuator assembly that can occur in this generation.
Pro Tip: Before condemning the ABS module, it's wise to have a technician check the wheel speed sensors and their wiring. A faulty sensor or damaged wire can trigger ABS warning lights and is a much simpler and cheaper fix than replacing the entire module.

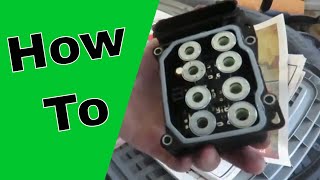

🎬 Watch this video for a general walkthrough of the replacement process.Programming and Calibration: A Dealer or Qualified Shop is Required
This is the most critical factor when replacing the ABS control module. A replacement module, whether it is new or used, cannot simply be installed and expected to work. It must be electronically programmed to your vehicle's specific Vehicle Identification Number (VIN).
- VIN Programming: Most modern electronic modules are VIN-specific to prevent theft and ensure compatibility. A replacement ABS module must be programmed with your Highlander's VIN to communicate with the other computers in the vehicle.
- Specialized Tools Required: This programming requires a professional-grade scan tool with the appropriate software, such as Toyota's own Techstream software. Most DIY code readers cannot perform this function.
- Zero Point Calibration: After installation and programming, the system will likely require a 'zero point calibration'. This procedure resets the sensors for the steering angle and yaw rate, which is essential 🎬 See how to perform a zero point calibration after installation. for the Vehicle Stability Control (VSC) system to function correctly.
- Who Can Program It? A Toyota dealership can always perform the programming. Many independent repair shops that specialize in diagnostics or work on Toyota vehicles will also have the necessary equipment and expertise. It is highly unlikely that a DIY mechanic will have the required tools.
Warning: Be wary of sellers who claim a used ABS module is "plug-and-play" or has been "pre-programmed." Programming must be done while the module is installed in the target vehicle.
Compatibility and Part Number Verification
Finding the correct ABS module for your Highlander is crucial, as there are many variations based on model year, engine, and optional features. Always match the part number from your original unit exactly.
Third Generation (2014-2019)
These models came with either a 2.7L 4-cylinder or a 3.5L V6 engine. Compatibility often depends on whether the vehicle is equipped with advanced safety features.
- Engines: Fits non-hybrid models with the 2.7L engine (5th VIN digit 'A') or the 3.5L V6 engine (5th VIN digit 'K' or 'Z').
- Safety Systems: There are different modules for vehicles with and without the Pre-Collision System (PCS) or Adaptive Cruise Control. For example, part number 44050-0E180 is specified for vehicles without these systems, manufactured up to November 2016.

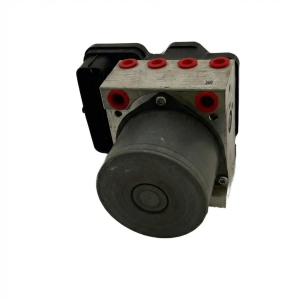

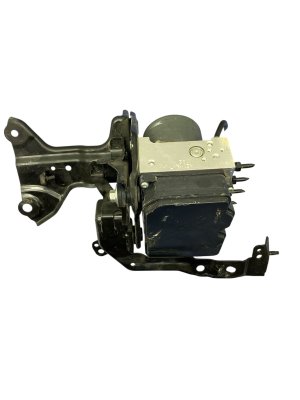

Fourth Generation (2020-2023)
This generation saw a powertrain update. Fitment remains specific to the gasoline engines only.
- Engines: Fits 3.5L V6 engines for 2020-2022 models and the newer 2.4L Turbo 4-cylinder engine for 2023 models.
- Hybrid Models: These parts are not compatible with any Highlander Hybrid models.
Buying a Used ABS Control Module
A used OEM module can offer significant savings over a new part from the dealer. However, it's important to buy smart to avoid complications.
- Match the Part Number Exactly: This is the most important rule. Do not rely on visual similarity. The part number must be an exact match to ensure the internal hardware and software are correct for your vehicle's features.
- Inspect the Connectors: When you receive the part, check the electrical connector pins for any signs of corrosion, which can cause communication errors.
- Source from a Reputable Seller: Purchase from a seller that offers a warranty. This gives you protection in case the part is dead on arrival.
- Factor in Programming Costs: Remember that the purchase price is not the final cost. You must budget for professional installation and programming, which can add a few hundred dollars to the total.
- OEM is Often Best: For a complex electronic part like this, a used original Toyota part is often a safer bet than a new, cheap aftermarket alternative. The OEM part was designed specifically for your vehicle's systems, reducing the risk of software or communication conflicts.
Cost Breakdown
Prices can vary based on your location and the specific part number required for your vehicle.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $960 - $1,300 |
| New Aftermarket | Generally not available or recommended |
| Used OEM | $185 - $450 |
| Remanufactured | $150 - $500 (plus shipping and core charge) |
| Shop Labor (Installation & Programming) | $150 - $300 |
Frequently Asked Questions
Can I drive my Highlander with a bad ABS module?
Yes, but with significant risk. Your standard hydraulic brakes will still work, but you will not have anti-lock brakes, traction control, or stability control. This means your wheels can lock up and skid during a panic stop, greatly increasing stopping distance and the risk of an accident, especially in wet or icy conditions. It is strongly recommended to get the module replaced as soon as possible.
Does a used ABS module need to be programmed?
Yes, absolutely. Any replacement ABS module, new or used, must be programmed to your vehicle's VIN. The module will not function correctly until this is done with a professional scan tool like Toyota's Techstream software.
Can I replace just the electronic module without the pump?
In many cases, yes. The ABS assembly consists of the electronic control module and the hydraulic pump/actuator block. Often, only the electronic part fails. If you can separate the module from the pump block (it's typically held on by a few screws), you can swap it without opening the hydraulic brake lines, which avoids the need for bleeding the brakes. However, you will still need to have the replacement module programmed.
Why are my ABS, VSC, and TRAC lights all on at the same time?
These three systems all use the same control module and wheel speed sensors to function. When the ABS module detects a fault it cannot resolve, it shuts down all related safety systems as a fail-safe measure, triggering all the corresponding warning lights.
Helpful Videos
Technical Specifications
OEM Part Numbers: 44050-0E300 44050-0E330 44050-0E340 440500E180 440500E300 440500E330 440500E340 440500E540 44510-0E420 445100E420 44540-0E420 445400E300 445400E370 445400E420 89541-0E120
Specifications vary by part number. The assembly includes the electronic control module and the hydraulic actuator/pump assembly. It is designed for standard DOT 3 brake fluid.
