2023-2026 Mazda CX-50 Trailer Wiring Harness: Recall, Diagnosis, and Replacement
A critical guide to the 2023 recall for loose harnesses, plus diagnosis and installation tips for the 4-pin and 7-pin tow wiring on your Mazda CX-50.
- A safety recall was issued for the 2023 CX-50 because the accessory trailer harness can detach, get damaged, and cause a total loss of trailer lights and brakes.
- There are two versions: a 4-pin harness for non-turbo models and a 7-pin harness for turbo models that supports electric trailer brakes.
- Most failures, like flickering lights, are caused by a poor ground connection. The harness's white wire must be securely attached to clean metal.
- Due to the recall, buying a new OEM or aftermarket harness is strongly recommended over a used one to ensure you have the updated, safer design.
Recall Alert: 2023 Mazda CX-50 Trailer Harness Detachment Risk
Official Recall: In March 2023, Mazda issued a recall for approximately 560 CX-50s in the U.S. (and more in Canada) from the 2023 model year equipped with the genuine Mazda accessory trailer hitch wiring harness. The recall addresses harnesses that were installed incorrectly, both at the port and at dealerships.
The core issue is that the harness could become loose or completely detach from its mounting points. If this happens, the wiring can make contact with the hot exhaust system or get damaged by road debris. This can cause a sudden and complete failure of the trailer's lights and electric brakes, significantly increasing the risk of a crash. Drivers may receive no warning before the failure occurs. The remedy involves a dealer inspection and replacement with a new harness that uses an improved design and a more secure installation method.
Symptoms of a Failing Trailer Wiring Harness
Aside from the sudden failure noted in the recall, a faulty trailer harness can cause several other electrical issues. These problems often point to a bad ground connection, corrosion, or a short circuit.

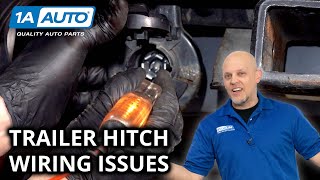

- All Trailer Lights Are Dead: This usually points to a problem at the main connector plug or a lost ground connection. Check that the plug is fully seated and free of debris 🎬 See how to diagnose common vehicle-side wiring issues. or corrosion.
- One or More Lights Don't Work: If the trailer's brake lights work but a turn signal doesn't, the issue is likely isolated to that specific wire or bulb.
- Dim or Flickering Lights: This is a classic symptom of a poor ground connection. The ground wire (usually white) must have a clean, tight connection to the vehicle's metal chassis.
- Trailer Brakes Don't Engage (7-Pin Harness): For trailers with electric brakes, a failure in the harness can prevent the brake controller's signal from reaching the trailer's brake magnets.
- Vehicle or Trailer Fuses Keep Blowing: This indicates a short circuit, where a power wire is touching the vehicle's frame or another wire. This is a common result of a wire's insulation being pinched or chafed.

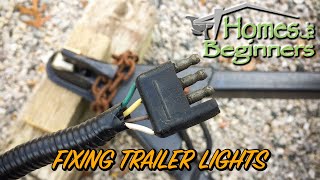

- Erratic Behavior: Sometimes, a bad ground will cause strange issues, like both turn signals flashing when you only activate one, or the lights not working when the vehicle's headlights are on. 🎬 Follow this guide to troubleshoot flickering or dead trailer lights.
Buying a Used 2023-2026 CX-50 Trailer Wiring Harness
Given the safety recall, purchasing a used trailer wiring harness for a CX-50 requires extra caution. While a used OEM part can be a good value, the risk of acquiring a pre-recall, faulty harness is high. For this specific part, a new aftermarket or new OEM harness is often the safer choice.
If you are considering a used harness, here is what to inspect:
- Ask About the Recall: Ask the seller if the harness was replaced as part of the recall. Unfortunately, the old and new designs may look identical, making verification difficult. If there is any doubt, it is best to pass.
- Inspect the Entire Length of Wiring: Look for any signs of melting, chafing, or cuts. A harness that has detached and dragged on the road or touched the exhaust will show obvious damage. Pay close attention to the black plastic sheathing.
- Check All Connectors: Examine the main vehicle-side T-connectors and the trailer-side plug (4-pin or 7-pin). Look for bent pins, cracked plastic housings, or any green or white corrosion on the metal contacts.
- Verify the Converter Box: Ensure the small black module box is present and its casing is not cracked or damaged. This box is essential for protecting your CX-50's electrical system.
- Confirm Part Numbers: The OEM 4-pin harness is part number VA40-V7-780B (replaces VA40-V7-780 and VA40-V7-780A). The 7-pin is VA41-V7-780B (replaces VA41-V7-780A). Avoid any harness that does not match.
Pro Tip: Because new aftermarket harnesses from reputable brands like Curt are available for under $100, the savings from buying a used unit may not be worth the risk, especially with the known safety recall.
Harness Variants: 4-Pin vs. 7-Pin
The CX-50 uses two different types of trailer harnesses depending on the vehicle's trim and the trailer's needs.
- 4-Pin Harness (Part #VA40-V7-780B): This is the standard harness intended for non-turbo models. It provides basic lighting functions: running lights, turn signals, and brake lights. It is sufficient for most small utility trailers and bike racks with lights.
- 7-Pin Harness (Part #VA41-V7-780B): This harness is designed for Turbo models. In addition to the basic lighting functions, it includes circuits for a 12V power supply, electric trailer brakes, and reverse lights. This is necessary for towing larger campers or trailers equipped with their own braking system.

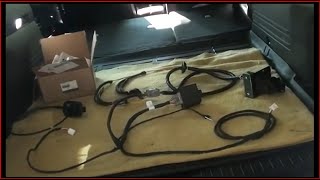

Installation Overview
Installing a trailer wiring harness on a CX-50 is a moderately difficult task that a patient DIYer can accomplish in 1.5 to 2.5 hours. The process does not require specialized tools, but involves removing several interior trim panels.
- Access the Cargo Area: Open the rear hatch and remove the floor panels, foam trays around the spare tire, and the rear scuff plate.
- Remove Side Trim Panels: The driver and passenger side cargo area trim panels must be partially removed to access the vehicle's taillight wiring connectors. This involves removing cargo hooks and various clips.
- Connect the Harness: The new wiring harness has "T-Connectors" that plug in between the factory wiring harness and the taillight assembly on each side. No cutting or splicing of factory wires is required.
- Attach the Ground Wire: The harness has a white wire with a ring terminal that must be attached to a clean, unpainted metal surface on the vehicle's chassis. There is often a factory grounding stud available for this purpose.

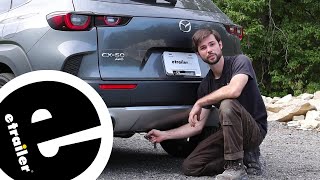

- Run the Power Wire: Most aftermarket harnesses require a separate black power wire to be run from the harness's converter box up to the vehicle's battery to power the trailer lights. This is the most time-consuming step, as the wire must be routed safely underneath the vehicle, avoiding hot exhaust pipes and moving suspension parts. The 2025 CX-50 Hybrid model has its battery in the rear, which may simplify this step. 🎬 Watch this step-by-step installation of a Curt harness.
- Reassemble and Test: Once everything is connected, test all lighting functions with a trailer or a plug-in tester before re-installing all the trim panels.
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM (4-Pin) | $125 - $170 |
| New OEM (7-Pin) | $200 - $250 (estimated) |
| New Aftermarket (4-Pin) | $80 - $100 |
| Used OEM | $75 - $125 (availability likely low) |
| Shop Labor for Installation | $150 - $300 |
Frequently Asked Questions (FAQ)
How do I know if my 2023 CX-50 is affected by the trailer harness recall?
Mazda was to notify owners of affected vehicles by mail. You can also contact any Mazda dealer with your Vehicle Identification Number (VIN) or check the NHTSA recall website to see if your specific vehicle is part of the campaign.
Can I use a 4-pin harness on a Turbo model?
Yes, if your trailer only requires basic lighting, a 4-pin harness will work. However, the OEM 7-pin harness is specifically designated for Turbo models and is required if you need to power electric trailer brakes or use other 7-pin functions.
What is "Tow Mode" and does an aftermarket harness enable it?
Tow Mode is a vehicle setting that adjusts performance characteristics for better stability and control while towing. Genuine Mazda harnesses are designed to automatically activate this mode when a trailer is plugged in. Most aftermarket harnesses will not activate this feature; they will only power the trailer lights.
The initial information I found mentioned part numbers like VC6767SJ0. What are those?
Those part numbers are for different components. Research shows that VC6767V70C is a high-voltage battery cable, likely for the Hybrid model, and VC6767SJ0 is a different type of electrical cord. They are not trailer wiring harnesses. The correct OEM part numbers for the trailer harness start with VA40 (4-pin) or VA41 (7-pin).
Helpful Videos
Technical Specifications
OEM Part Numbers: VA40-V7-780B VA40-V7-780A VA40-V7-780 VA41-V7-780B VA41-V7-780A VA41-V7-780
Connector Types: 4-Pin Flat (Non-Turbo Models), 7-Pin Round (Turbo Models). Includes a powered taillight converter module to protect vehicle wiring. Genuine Mazda harnesses enable the vehicle's 'Tow Mode'.
