2014-2016 Cadillac ELR Driver Air Bag: SRS Light, Clock Spring, and Replacement Guide

Understanding the SRS Warning Light in Your ELR

The most common sign of a problem with your air bag system is an illuminated Supplemental Restraint System (SRS) or air bag warning light on your instrument cluster. When you start your ELR, this light should turn on for a few seconds as a self-check and then turn off. If the light stays on, it means the onboard computer has detected a fault and has disabled the entire air bag system.

Consequences of Ignoring the SRS Light:

• No Air Bag Deployment: If the SRS light is on, the air bags, including the driver's, passenger's, and side curtain air bags, will NOT deploy in a crash.
• Failed Safety Inspection: A vehicle with an active SRS warning light will not pass a state safety inspection in many jurisdictions.

Common Causes and Symptoms of Failure

While the air bag module itself rarely fails without being deployed, the components that connect it to the car are common sources of problems. The most frequent culprit is the clock spring.

Faulty Air Bag Clock Spring

The clock spring is a special rotary electrical connector located in the steering column behind the steering wheel. It contains a coiled ribbon of wires that allows the steering wheel to turn while maintaining a constant electrical connection for the driver's air bag, horn, and steering wheel-mounted controls (like audio and cruise control). Over time, the constant turning can cause these delicate wires to fatigue and break.

Symptoms of a bad clock spring include:

• Persistent SRS/Air Bag Warning Light: This is the most common and serious symptom, indicating a loss of connection to the driver's air bag.
• Inoperative Steering Wheel Controls: Buttons for the radio, phone, or cruise control may stop working or only work intermittently.
• Horn Malfunction: The horn may not work at all, or only work when the steering wheel is in a specific position.
• Audible Noises from Steering Column: You might hear clicking, scraping, or grinding sounds when turning the wheel, caused by the broken internal ribbon.

Known Issues, Recalls, and TSBs

As of mid-2026, there are no active NHTSA safety recalls specifically for the air bags or SRS components on the 2014-2016 Cadillac ELR.

While the ELR was subject to two recalls for other issues (one for seat hook welds and one for Electronic Stability Control software), the air bag system itself has not been identified for a widespread campaign. This means any SRS light issues are typically due to component failure from age or wear, not a manufacturing defect subject to a recall.

Buying a Used 2014-2016 ELR Air Bag

Purchasing a used, non-deployed OEM air bag is a common way to save significant money on repairs. However, this is a critical safety component, and extreme care must be taken.

Verification and Compatibility

Before purchasing, you must verify the part number and interior options match your vehicle. The ELR was offered with several variations that are not interchangeable.

• Interior Color: The primary interior colors were Jet Black and a lighter Cashmere. Ensure the air bag cover matches your interior.

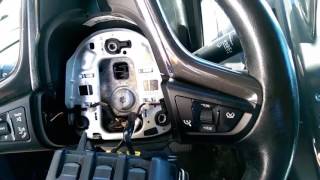

• Steering Wheel Material: The ELR came with a standard leather-wrapped steering wheel or an optional suede-wrapped wheel. The air bag 🎬 See this steering wheel removal walkthrough modules are different.
• Part Numbers: Cross-reference the OEM part number to be certain. Known part numbers include:
  • 22989350: Typically for 2014-2015 models with a Jet Black leather interior.
  • 23272024: Typically for 2015-2016 models with a Jet Black suede steering wheel.
  • 22989351: Believed to be for models with the Cashmere interior.

Inspection Checklist for Used Air Bags

• Never Deployed: Only purchase a unit that has been salvaged from a vehicle where it was not deployed. There should be no signs of tearing, stress marks, or heat discoloration on the cover.
• OEM Only: Only buy genuine GM parts. There are no legitimate new aftermarket air bags. Counterfeit air bags are a serious danger and often fail to deploy correctly.
• Intact Connectors: Check that the electrical connectors on the back are clean, undamaged, and have not been cut or improperly removed.
• Reputable Source: Purchase from a professional automotive recycler that guarantees the part is non-deployed and provides a vehicle history report if possible.

Replacement and System Reset

SRS Module Reset After Replacement

Simply replacing a deployed air bag is not enough. The SRS control module stores 'crash data' after a deployment, which permanently locks the system and keeps the warning light on.

• After a Crash: If the air bag deployed, the SRS control module must be professionally reset or replaced. A standard OBD-II scanner cannot clear this hard-coded crash data. Services exist that can reset your original module to factory condition.

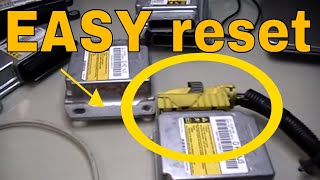

🎬 Watch: How to clear GM airbag crash data
• For a Faulty Part: If you are simply replacing a faulty (non-deployed) air bag or clock spring, a professional-grade scanner with SRS capabilities may be able to clear the fault code and turn off the light. If the light returns, a module issue may be present.

Legal and Liability Considerations

While it is legal in most states (with some exceptions like New York) to purchase and install a used, non-deployed OEM air bag, liability is a major concern. Many professional repair shops will refuse to install a used air bag supplied by a customer due to the inability to guarantee its history and function. If you sell the vehicle later and the air bag fails to deploy for the new owner, you could face significant legal liability.

Cost Comparison for ELR Driver Air Bag Replacement

Frequently Asked Questions (FAQ)
