2010-2018 Ford Transit Connect Air Bag: SRS Light, Clock Spring & Replacement Guide
This guide covers the common reasons for an SRS warning light on your 2010-2018 Ford Transit Connect, focusing on the driver's air bag, clock spring, and the critical compatibility differences you need to know.
- Professional installation and system reset are mandatory for safety and legality. This is NOT a DIY repair.
- If the SRS warning light is on, the entire air bag system is disabled and will not deploy in a crash.
- You MUST buy the correct air bag for your vehicle. There are different parts for models with and without cruise control.
- New OEM air bags for this vehicle are largely discontinued, making a quality used OEM part the most common solution.
Symptoms of a Faulty Air Bag
The most common and serious symptom of a problem with the air bag system is an illuminated SRS or air bag warning light on your dashboard. This light indicates that the onboard diagnostic system has detected a fault, and as a result, the entire air bag system is disabled. In the event of an accident, the air bags will not deploy as long as this light is on.
SRS Warning Light
When you start your Transit Connect, the SRS light should illuminate for about six seconds and then turn off. This is a system self-check. If the light stays on, flashes, or never comes on at all, it means there's a fault somewhere in the system. Common causes include:
- A faulty air bag module
- A damaged clock spring
- Failed crash sensors
- Issues with seat belt pretensioners
- Loose wiring or corroded connectors
Inoperative Steering Wheel Controls
If your horn, radio controls, or cruise control buttons on the steering wheel stop working intermittently or altogether, this often points to a failing clock spring. The clock spring is a special rotary electrical connector that allows the steering wheel to turn while maintaining a connection for the air bag and these buttons. A break in its internal wiring will trigger the SRS light and cause these other functions to fail.
CRITICAL WARNING: Do not ignore the SRS warning light. If this light is on, your vehicle's air bags WILL NOT deploy in a crash. This is a critical safety failure that must be addressed immediately by a qualified professional.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
While the 2010-2018 Ford Transit Connect has not been part of the large-scale Takata air bag recalls that affected many other vehicles, it's always wise to check for any open recalls on your specific vehicle using your VIN on the NHTSA website.
A recall (NHTSA ID: 20V-791, Ford ID: 20C26) was issued for a small number of 2019-2020 Transit Connect models where the air bag modules were missing the first-stage booster propellant, which would prevent them from deploying correctly. While this does not cover the 2010-2018 model years, it highlights the importance of using correctly manufactured and sourced parts.
No specific TSBs for widespread driver's air bag failure on the 2010-2018 models were found during research. Most issues are related to general SRS system faults or clock spring failure.
Buying a Used Air Bag: What to Look For

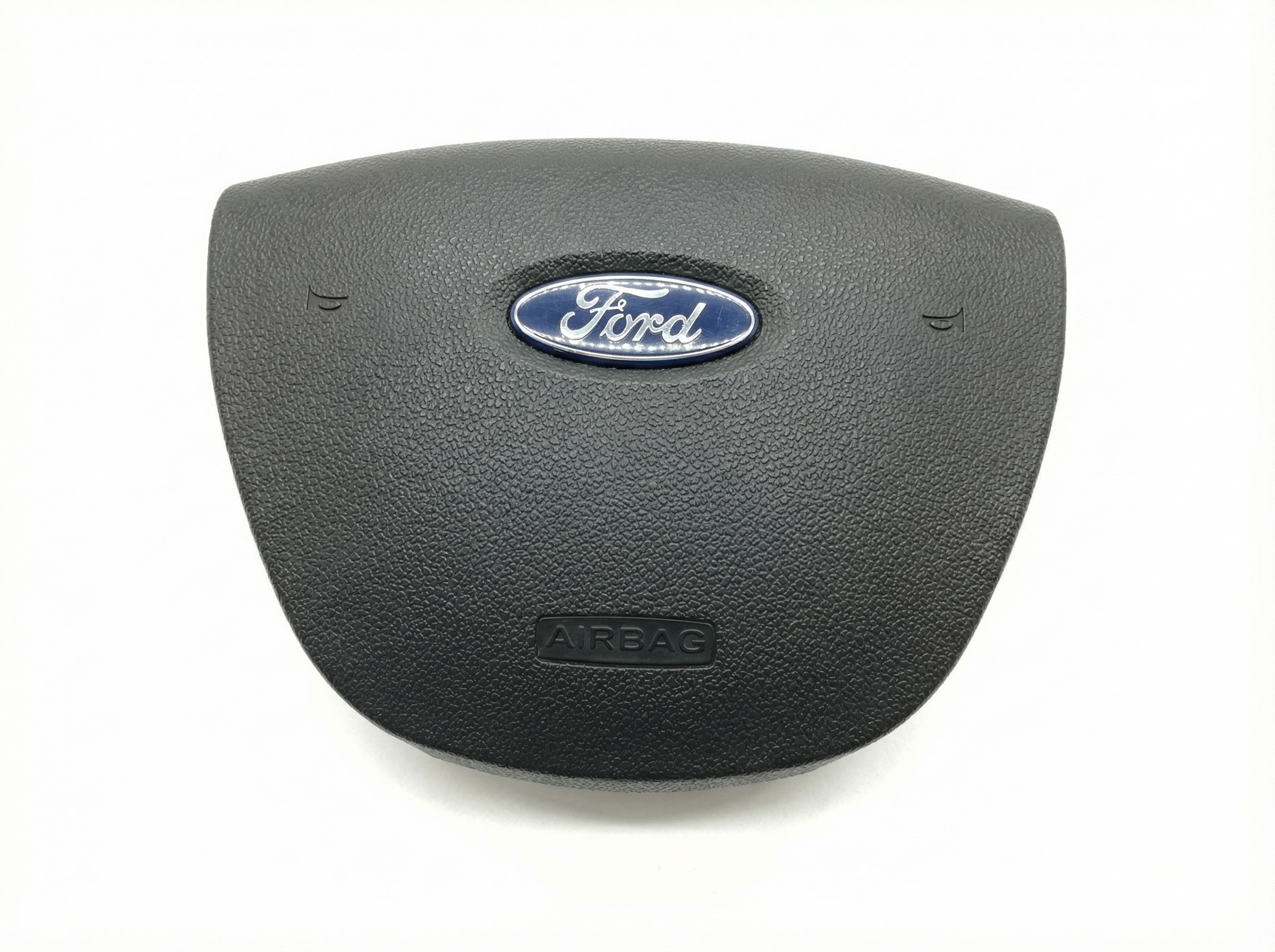

Since Ford has discontinued the new OEM driver's air bags for many of these model years, a quality-inspected, used OEM part is often the only viable option. Buying a used air bag requires extreme care.
- Verify Compatibility: This is the most important step. The 2010-2018 Transit Connect uses different driver's air bags for models with cruise control and without cruise control. The wiring connectors are different. You must match the part number exactly or confirm compatibility with the seller. Part number 9T1Z-58043B13-BB is for models with cruise control, while 9T1Z-58043B13-CA is for models without.
- Source from a Reputable Supplier: Only buy from professional, certified auto recyclers who specialize in SRS components. They have the expertise to properly handle, inspect, and store these sensitive parts. Avoid parts from individuals or sources that cannot guarantee the part has never been deployed and has been stored correctly.
- Physical Inspection: When you receive the part, inspect it carefully. Look for any signs of damage, cracks, or stress marks on the plastic cover. Ensure all wiring and connectors are intact and not cut, frayed, or corroded. The unit should be clean and show no signs of water damage.
- Never Buy a Deployed Air Bag: An air bag is a one-time use item. A deployed air bag is useless and cannot be repacked or reused.
Legal and Safety Requirements for Installation
Warning: Professional Installation is Required. Replacing an air bag is not a DIY project. Air bags contain explosive materials and are part of a complex electronic system. Improper handling can cause accidental deployment, leading to serious injury or death. Mishandling can also damage the new part or the vehicle's SRS control module.
Legal Liability
It is illegal in many jurisdictions to improperly install or tamper with a vehicle's SRS system. Driving a vehicle where the factory-installed air bag has been removed is a misdemeanor in some states. If you sell the vehicle, you could be held liable for injuries if the air bag fails to deploy due to improper installation. Always have the work performed by a certified technician who can provide a receipt for the repair.
System Reset and Calibration
After the new air bag is installed, the SRS control module must be reset using a professional-grade scan tool. This clears the 'hard codes' that were stored when the fault was detected. Simply disconnecting the battery will not clear these codes. The technician will then perform a system diagnostic to ensure all sensors and components are communicating correctly and that the system is fully operational.
Cost Comparison
Replacing a faulty driver's air bag involves the cost of the part and the labor for installation and system reset. Note that new OEM air bags for this vehicle are generally listed as discontinued.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Air Bag | $350 - $750+ (Discontinued) |
| New Aftermarket Air Bag | Not Available |
| Used OEM Air Bag | $75 - $150 |
| Shop Labor (Installation & Reset) | $100 - $200 |
| Total Estimated Cost (Used OEM) | $175 - $350 |
Pro Tip: If your SRS light is on and your steering wheel controls are also malfunctioning, the problem is likely the clock spring, not the air bag itself. The average cost to replace the clock spring is between $314 and $350 for parts and labor. Diagnosing the problem correctly can save you from buying parts you don't need.
Frequently Asked Questions (FAQ)
Can I install a used air bag myself to save money?
No. This is extremely dangerous and potentially illegal. Air bags are explosive devices that require specialized training to handle and install safely. An incorrect installation can cause the air bag to fail during a crash or deploy unexpectedly, causing severe injury. Always have this work done by a certified professional.
Will the SRS light turn off by itself after I replace the air bag?
No. After a component is replaced, the SRS control module must be professionally reset using a diagnostic scan tool to clear the stored fault codes. The light will remain on until this procedure is completed, and the air bag system will remain inactive.
My cruise control buttons don't work and my air bag light is on. Is the air bag bad?
It's more likely that the clock spring has failed. The clock spring provides the electrical connection for both the air bag and the steering wheel-mounted buttons. When it breaks, all of these components lose connection, triggering the SRS light. Have a technician diagnose the system before ordering parts.
Is it legal to buy and sell used, non-deployed air bags?
In most states, it is legal for licensed auto recyclers to sell undeployed OEM air bags. However, it is illegal to sell counterfeit or previously deployed air bags. Always purchase from a reputable source that guarantees the part's origin and condition.
Technical Specifications
OEM Part Numbers: 9T16-A042B85-BAW 9T16A042B84CAD6AP 9T16A042B84CBD6AP 9T1Z-58043B13-BB 9T1Z58043B13CA 9T1Z58044A74CA DT1117044A74AA DT1Z17044A74B K9T16A042B84FAD6AP
Compatibility is determined by the presence of cruise control. Part 9T1Z-58043B13-BB is for models WITH cruise control. Part 9T1Z-58043B13-CA is for models WITHOUT cruise control.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
