2006-2017 Mazda 5 Airbag System: SRS Light Causes, Recalls, and Replacement
This guide covers critical airbag system issues for the Mazda 5, including common SRS light faults, potential recalls, and the absolute necessity of professional repair.
- PROFESSIONAL INSTALLATION IS MANDATORY: Airbags are explosive, hazardous components. DIY replacement is extremely dangerous and illegal in many areas. The system also requires a professional reset after installation.
- SRS Light = Airbags Disabled: If the airbag warning light is on, your entire airbag system is inactive and will not deploy in a crash.
- Check for Recalls: Your Mazda 5 may be part of the Takata airbag recall. Check your VIN on the NHTSA website; a defective inflator can be deadly and the dealer repair is free.
- Common Faults: The most common causes for the SRS light are a faulty clock spring, a bad passenger seat sensor (OCS), or loose under-seat wiring.
CRITICAL SAFETY WARNING: The SRS Airbag Light
If the red SRS (Supplemental Restraint System) or airbag warning light is illuminated on your dashboard, it means the system has detected a fault and has been completely disabled as a safety precaution. Your airbags will not deploy in an accident until the fault is diagnosed and repaired. Do not ignore this light. While the vehicle is still drivable, you and your passengers are without a critical safety system. The most common causes for this light are detailed below.
Potential Takata Airbag Recall: While many Mazda vehicles from this era were part of the massive Takata airbag inflator recall, the Mazda 5 is not consistently listed on official recall documents. These defective inflators can rupture during deployment, sending dangerous metal fragments toward occupants. Because recall information can change, it is absolutely essential to check your vehicle's 17-digit VIN on the official NHTSA recall website (nhtsa.gov/recalls) or Mazda's recall site to see if any open recalls apply to your specific car. This repair is performed for FREE by any authorized Mazda dealer.
Common 2006-2017 Mazda 5 Airbag System Problems
Aside from a deployed airbag after an accident, several common electrical issues can trigger the SRS light in your Mazda 5.
1. Faulty Clock Spring
The clock spring is a special rotary electrical connector located in the steering column behind the steering wheel. It allows the wheel to turn while maintaining an electrical connection for the driver's airbag, horn, and steering wheel controls. Over time, the internal ribbon wires can fatigue and break.
- Symptoms: The primary symptom is an illuminated airbag light. You may also experience an inoperative horn, or cruise control and radio buttons on the steering wheel that stop working intermittently or altogether. You might also hear scraping or clicking noises from inside the steering column when turning the wheel. 🎬 Watch: How to replace a faulty clock spring
2. Occupant Classification Sensor (OCS) Failure
The front passenger seat is equipped with a weight sensor, known as the Occupant Classification Sensor (OCS). This sensor's job is to detect the weight of the passenger to determine if, and with what force, the passenger airbag should deploy in a crash. A fault in this sensor or its calibration will disable the SRS system and trigger the warning light. Sometimes, a weak or dying 12-volt battery can cause a temporary voltage drop during startup, which can falsely trigger an OCS fault code.
3. Loose or Corroded Under-Seat Connectors
The wiring for the side airbags and seat sensors runs under the front seats. These wires use distinctive yellow connectors. It is very common for these connectors to become loose or for their pins to get corroded, especially if items are pushed under the seats or the vehicle's carpet gets wet. Often, an intermittent airbag light can be fixed by simply disconnecting, cleaning with electrical contact cleaner, and securely reconnecting these plugs.
🎬 See how to fix the under-seat SRS connectorWarning: Airbag systems contain explosive charges and operate on a backup power supply. Before touching ANY yellow SRS connector, you must disconnect the negative battery terminal and wait at least 15-30 minutes for the system's capacitors to fully discharge. Failure to do so could result in accidental deployment and serious injury.

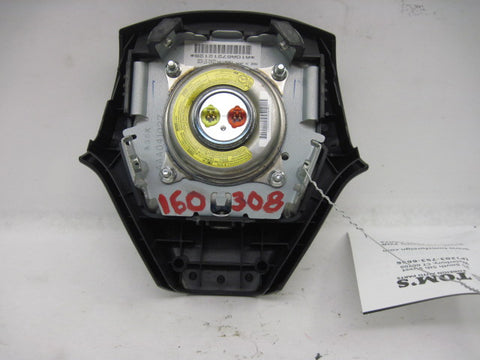

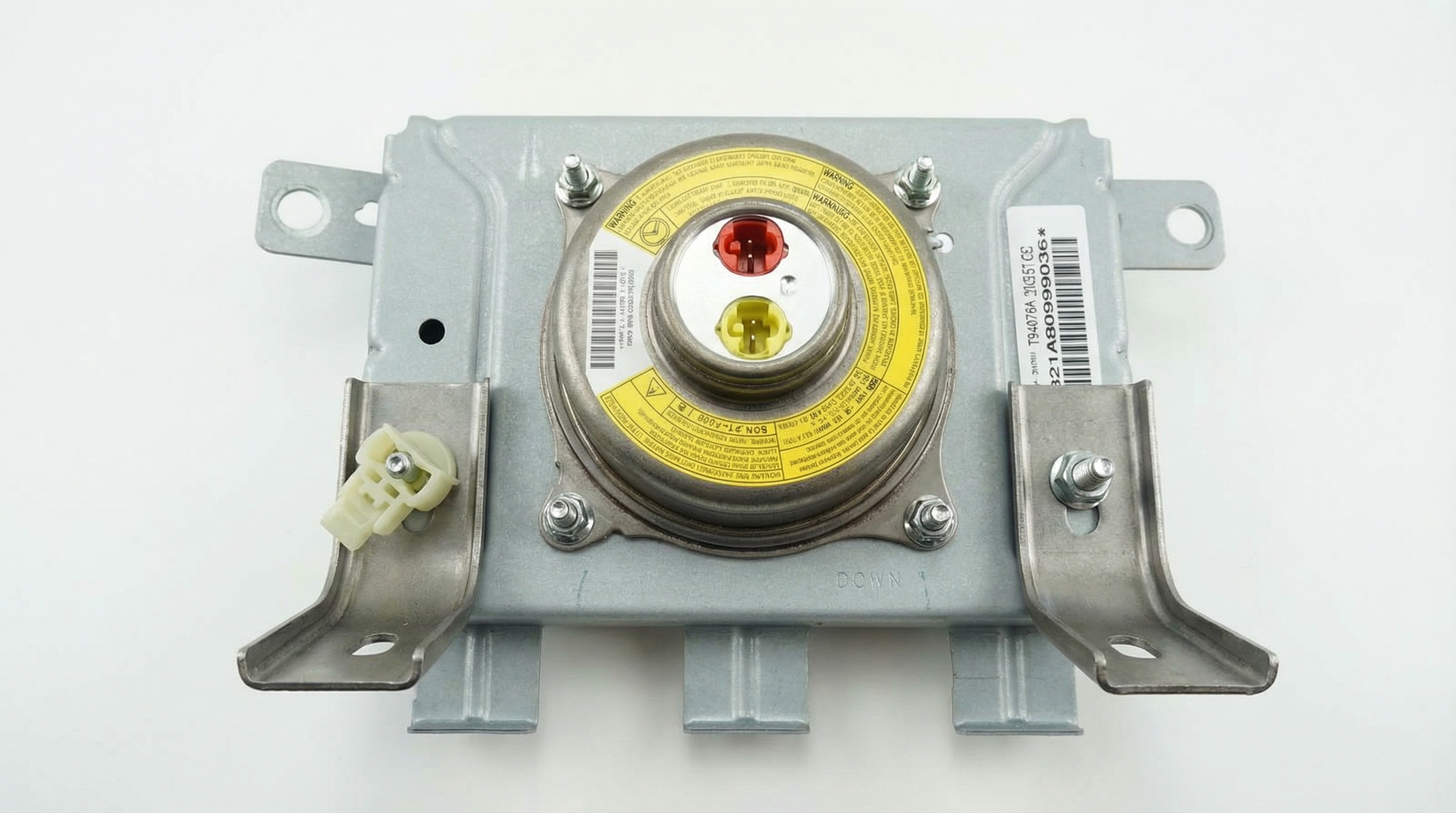

Buying a Used Mazda 5 Airbag
Purchasing a used airbag can be a cost-effective solution, but it requires extreme caution. Airbags are single-use, safety-critical components.
- Professional Installation is Mandatory: This is not a DIY job. The risk of accidental deployment, causing serious injury or death, is high. Furthermore, the SRS control module must be professionally reset with a specialized scan tool after installation to clear crash data and ensure the system is active. Improper installation can also lead to the airbag failing to deploy when needed.
- Verify Compatibility: The Mazda 5 has two distinct generations: 2006-2010 and 2012-2017. Airbags and their electrical connectors are often different between generations. Always match the OEM part number from your original unit to the used replacement. 🎬 Watch this steering wheel airbag removal walkthrough The provided OEM numbers C23557KN0C, C23557KN0D, C23557KN0E, C23557KN0F, C51357KN0B, and C51357KN0C are a good starting point.
- Source from a Certified Recycler: Only buy used airbags from reputable, certified automotive recyclers. These businesses follow strict guidelines for handling, inspecting, and storing SRS components. Never buy an airbag from a questionable source, an unknown individual, or from a vehicle with a flood-damaged or salvage title where the airbag's history is unknown.
- Physical Inspection: Inspect the used airbag carefully. Look for any signs of damage, moisture, or tampering. The plastic cover should be intact with no cracks, and the electrical connectors should be clean and undamaged. Ensure it has not been recalled.
- Legal & Liability Concerns: Installing a used, counterfeit, or non-functional airbag is illegal in many states and carries significant legal liability for the installer. A repair shop can be held liable for injuries resulting from an improper airbag installation.
Cost to Replace a Mazda 5 Airbag (2024 Estimates)
Costs can vary significantly based on which component has failed and your location. A simple fix like cleaning a connector may only cost an hour of diagnostic time, while a full replacement after a collision is much more expensive.
| Component / Service | Estimated Cost | Notes |
|---|---|---|
| New OEM Airbag (Curtain) | $420 - $610 | Price for the part only. For example, part number C513-57-KN0E. |
| Used OEM Airbag (Driver/Steering Wheel) | $50 - $120 | Part only. Price varies by generation and condition. |
| New OEM Airbag Control Module | $695 (Part Only) | This is the 'brain' of the system. |
| Shop Labor (Airbag Replacement) | $150 - $250 | Typically 1-2 hours of labor. |
| Shop Labor (Module Replacement) | $116 - $170 | Labor for replacing the control module. |
| SRS Module Reset Service | $50 - $150 | Cost to have a company clear crash data from your existing module. |
Frequently Asked Questions (FAQ)
Can I reset the airbag light myself by disconnecting the battery?
Sometimes, if the fault was temporary (like a momentary low battery voltage), this might work. However, for most faults, especially after a collision, the Airbag Control Module stores 'hard codes' or crash data that can only be cleared with a professional SRS-specific scan tool. Even if the light goes out, the codes often remain stored in the system.
Is it safe to drive with the airbag light on?
No. While the car will operate normally, the entire airbag system is deactivated. This means none of the airbags will deploy in a crash, removing a critical layer of safety. It should be diagnosed and repaired as soon as possible.
What are the yellow connectors under the seat for?
The yellow connectors are part of the SRS wiring harness. They typically connect to the side airbags in the seats and the seat belt pretensioners. The yellow color is a universal warning to technicians that they are working with the sensitive and potentially dangerous airbag circuit.
My horn and radio buttons don't work. Is this related to the airbag light?
Yes, this is a classic symptom of a failed clock spring. The clock spring contains all the wiring for the steering wheel-mounted components. When it fails, it often breaks the connection for the driver's airbag, horn, and other buttons simultaneously, triggering the SRS light.
Helpful Videos
Technical Specifications
OEM Part Numbers: C23557KN0C C23557KN0D C23557KN0E C23557KN0F C51357KN0B C51357KN0C CG36-57-K50 CG3657K00
System uses a central Airbag Control Module (RCM) to monitor crash sensors and occupant classification sensors. All wiring related to the SRS is typically housed in yellow sheathing or uses yellow connectors.
