2001-2009 Toyota Prius Airbag Systems: Recalls, Faults, and Replacement Guide

The SRS Warning Light: Your Prius's Critical Safety Alert

The most common sign of a problem with your airbag system is the illumination of the SRS warning light on your dashboard. This light, which often looks like a person with an airbag deployed, indicates that the SRS control module has detected a fault. When this light is on, the entire airbag system is disabled and will not deploy in a crash. Ignoring this light significantly increases the risk of serious injury in an accident. Common causes include faulty crash sensors, a bad clock spring, issues with the passenger seat occupant sensor, or the main SRS control module itself.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

The 2001-2009 Prius has been subject to significant airbag-related recalls, primarily concerning defective Takata inflators. There was also a separate recall for curtain shield airbags on some models.

The Takata Airbag Recall

The largest recall in automotive history directly impacts many Toyota vehicles, including the Prius. The issue stems from the propellant inside the airbag inflator, which can degrade over time, especially when exposed to heat and humidity. In a crash, a defective inflator can rupture, sending sharp metal fragments toward the vehicle's occupants, which can cause serious injury or death. This recall service is performed free of charge by any Toyota dealer.

• Affected Models: While recall lists are extensive, various Toyota models from 2002-2017 are involved. Owners of any 2001-2009 Prius should check their vehicle's status.
• How to Check: You can check if your specific vehicle is affected by entering your Vehicle Identification Number (VIN) on the official NHTSA website or Toyota's recall lookup tool.

Curtain Shield Airbag Recall (Non-Takata)

Certain 2009-2012 Prius models (overlapping with the end of the second generation) were recalled for an issue with the curtain shield airbags. The inflators could develop a small crack, potentially causing the airbag to partially inflate without a crash or for a piece of the inflator to enter the cabin. This recall was for airbags made by Autoliv, not Takata.

Symptoms of a Faulty Air Bag System

Diagnosing an SRS fault requires a professional scan tool, but certain symptoms can help point to the source of the problem.

• SRS Warning Light On: The most direct symptom, indicating the system has a fault and is disabled.

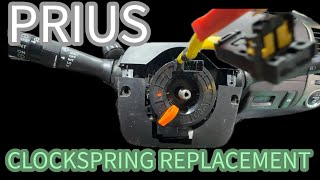

• Horn, Cruise Control, or Steering Wheel Buttons Not Working: These symptoms, often appearing together with the SRS light, strongly suggest a failure of the clock spring (also called a spiral cable). The clock spring is a coiled wire that maintains electrical connections for the driver's airbag and all steering wheel buttons as the wheel turns.
• Clicking or Grinding Noises from Steering Column: A physically broken clock spring can make scraping or clicking sounds when you turn the steering wheel.
• Passenger Airbag Off Light Stays On (Even with an Adult in the Seat): This can indicate a problem with the Occupant Classification System (OCS) sensor in the passenger seat, which may require recalibration.

Buying a Used 2001-2009 Prius Air Bag: A Step-by-Step Guide

Purchasing a used, non-deployed OEM airbag can be a cost-effective solution, as new aftermarket airbags are not considered a safe or legitimate option. However, extreme caution is necessary.

Step 1: Verify Recall Status (Non-Negotiable)

Before purchasing, you must verify that the specific airbag is not under an open recall. Ask the seller for the VIN of the vehicle the airbag was removed from. Contact a Toyota dealership with this VIN to confirm that any and all airbag-related recalls have been completed on that vehicle. Do not install a used airbag that has an open recall; it is dangerously defective.

Step 2: Physical Inspection

When you receive the part, inspect it carefully. Look for:

• Intact Connectors: The yellow SRS connectors should be clean and free of damage.
• No Signs of Water Damage: Moisture can ruin an airbag module. Check for corrosion or water marks.
• Undamaged Cover: The vinyl or plastic cover should be free of tears, cracks, or signs of stress.
• Original Markings: Ensure all OEM part number stickers and markings are present and unaltered.

Step 3: Confirm Compatibility

Part numbers are critical. For the 2001-2009 Prius, there are several different airbags. Side curtain and seat-mounted side airbags were optional on 2004-2006 models and became standard from 2007-2009. Be sure you are buying the correct part for the correct location and year.

• Driver's Airbag (Steering Wheel): Part number 45130-47020-B0 is a common driver's airbag for 2001-2003 models.
• Passenger Airbag (Dashboard): Part number 73970-47030-B0 is a passenger airbag.
• 2006 Model Year Split: The initial data mentions a production date split for 2006 models (on or before October 2005 vs. from November 2005). While specific search results did not confirm this exact date, it highlights the importance of matching part numbers precisely for this model year, as mid-year changes to wiring or modules are common.

Professional Installation is Not Optional

System Reset and Calibration

After an airbag or other SRS component is replaced, the system's control module must be reset using a professional diagnostic tool like Toyota's Techstream software. Simply disconnecting the battery is not sufficient to clear SRS fault codes. Furthermore, if the passenger seat sensor (OCS) was disturbed or replaced, a "Zero Point Calibration" must be performed to ensure it accurately detects the passenger's weight. Failure to do this can cause the passenger airbag to deploy incorrectly or not at all.

Cost to Replace a 2001-2009 Toyota Prius Air Bag

Costs can vary significantly based on which airbag is being replaced and local labor rates.

Frequently Asked Questions (FAQ)
