2006-2018 RAV4 & 2012-2014 RAV4 EV Airbag Guide: SRS Lights, Recalls, and Replacement

Critical Safety Warning: Professional Installation is Required

Symptoms of a Failing Airbag or SRS System

The most common and clear indicator of a problem within the airbag system is the illumination of the SRS warning light on your dashboard. This light typically looks like a person with a deployed airbag.

• SRS Warning Light Stays On: When you start your vehicle, the SRS light should illuminate for a few seconds and then turn off. If the light stays on, it means the SRS control module has detected a fault in the system.
• Consequences of Ignoring the Light: An active SRS warning light means the entire airbag system is disabled. In the event of an accident, none of the airbags will deploy, significantly increasing the risk of serious injury.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Takata Airbag Recall

Many Toyota vehicles from this era, including the RAV4, were part of the massive Takata airbag recall, the largest in automotive history. The issue involves the chemical propellant in the inflator, which can degrade over time, especially with exposure to heat and humidity. If a defective airbag deploys, the inflator can rupture, sending sharp metal fragments toward the driver and passengers, which can cause severe injury or death.

It is absolutely critical to check if your specific vehicle is affected. You can check your Vehicle Identification Number (VIN) for free on the Toyota recall website or the National Highway Traffic Safety Administration (NHTSA) website. Repairs for this recall are performed by Toyota dealers at no cost to you.

Other Recalls

• 2007-2008 RAV4: Some models were recalled for a potential malfunction in the curtain shield airbag sensors that could cause inadvertent deployment.
• 2006-2012 RAV4 & 2012-2014 RAV4 EV: A recall was issued for second-row seatbelts, where the webbing could be cut by the metal seat frame in a severe frontal crash.

Diagnosing the SRS Warning Light: Is It the Airbag or Something Else?

While the SRS light indicates a system fault, it doesn't automatically mean the airbag itself is bad. A very common point of failure on the 2006-2018 Toyota RAV4 and 2012-2014 RAV4 EV is the clock spring (also called a spiral cable).

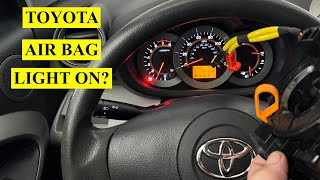

The Clock Spring

The clock spring is a set of coiled wires located behind the steering wheel. It allows the steering wheel to turn while maintaining an electrical connection for the driver's airbag, horn, and steering wheel-mounted controls (like audio or cruise control). Over time, the wires inside can fatigue and break.

Symptoms of a bad clock spring include:

• SRS/Airbag warning light is on.
• Horn does not work.
• Steering wheel audio or cruise control buttons stop working or work intermittently.
• Clicking or grinding noises when turning the steering wheel.

Because these symptoms often appear together, a faulty clock spring is a likely culprit if you experience more than just the SRS light. A professional technician can scan the SRS module for specific trouble codes to confirm the diagnosis.

Vehicle and Part Compatibility: A Detailed Breakdown

Compatibility for this airbag is complex and depends on the vehicle's year, engine type, and features. It is essential to match the part number exactly. The information below is based on common fitment data but should always be verified with the specific part number from your vehicle.

• 2006-2009 Toyota RAV4 (Gasoline): This airbag often fits models that are equipped WITH steering wheel audio controls.
• 2006-2012 Toyota RAV4 (Gasoline): Some versions of this airbag are for models that do NOT have audio controls on the steering wheel.
• 2012 Toyota RAV4 (Gasoline): Fits the standard gasoline engine model for this year.
• 2013+ Toyota RAV4 (Gasoline): This airbag will NOT fit gasoline-powered models from 2013 onwards.
• 2012-2014 Toyota RAV4 EV (Electric Vehicle): This airbag fits the electric models. Some data suggests specific compatibility for EV models built only up to April 2013. Always verify by part number.

Buying a Used Air Bag

Purchasing a used OEM airbag can be a cost-effective solution, but it requires careful inspection and verification to ensure safety and compatibility.

1. Verify Part Numbers: This is the most critical step. The part number on the replacement airbag MUST exactly match the one on your original unit. There are many variations based on features and model years.
2. Inspect for Damage: Never buy an airbag that shows any signs of physical damage, cracks, water damage, or cut wires. The connectors should be clean and intact.
3. Check Recall Status: Do not purchase an airbag that is subject to an open recall, such as the Takata recall. While difficult to verify, buying from a reputable automotive recycler who sources parts from non-recalled vehicles is your best bet.
4. Source from a Reputable Supplier: Purchase only from established, professional auto recyclers. They can often provide the VIN of the donor vehicle, which allows you to check its history for accidents or flood damage. Avoid buying from private sellers who cannot guarantee the part's history.
5. Why Used OEM is a Good Choice: A used Original Equipment Manufacturer (OEM) airbag is designed and tested by Toyota for your specific vehicle. It guarantees proper fit and function, unlike new aftermarket airbags which are rare and often of questionable quality and safety standards.

Cost of Replacing a Toyota RAV4 Airbag

The cost can vary based on your location and the specific parts needed. After an airbag deploys, other components like the clock spring and SRS control module may also need replacement.
