2013 Chevrolet Spark Alternator: Diagnosing Noises and Charging System Failure

Symptoms of a Failing 2013 Spark Alternator

When an alternator begins to fail, it gives several warning signs. Ignoring them can leave you stranded with a dead battery and a car that won't start.

• Battery Warning Light: The most obvious sign is the battery-shaped warning light illuminating on your dashboard while driving. This indicates the electrical system has a problem, and the alternator is a primary suspect.
• Whining or Grinding Noises: A high-pitched whining or grinding sound that rises and falls with engine speed is a classic symptom of failing alternator bearings.
• Dim or Flickering Lights: If your headlights, interior lights, or dashboard lights seem dim, flicker, or get brighter as you rev the engine, the alternator is likely not providing consistent voltage.
• Slow or Malfunctioning Electronics: Power windows that operate slowly, a radio that cuts out, or other electrical accessories acting strangely can point to insufficient power from the alternator.
• Difficulty Starting or Stalling: A weak alternator can't fully charge the battery, leading to slow engine cranking or a no-start condition. In some cases, the engine may stall while driving if the alternator fails to provide enough power for the ignition and fuel systems.
• Smell of Burning Rubber or Wires: A hot, burning smell could be a sign of a slipping serpentine belt or an overheating alternator struggling to function.
🎬 Watch: A breakdown of common bad alternator symptoms and fixes.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

As of early 2026, there are no specific recalls from the National Highway Traffic Safety Administration (NHTSA) for alternator failure on the 2013 Chevrolet Spark.

However, several other recalls exist for this model year that owners should be aware of:

• NHTSA Recall 16V257000: Affects the radio software, which may fail to provide an audible warning chime if the key is left in the ignition.
• NHTSA Recall 15V560000: The secondary hood latch may corrode and fail to engage properly, increasing the risk of the hood opening while driving.
• NHTSA Recall 13V162000: An improper weld on the passenger side front airbag inflator could result in the airbag not deploying in a crash.

While numerous Technical Service Bulletins (TSBs) have been issued for the 2013 Spark, none point to a widespread, recognized alternator defect. Most issues are isolated incidents of component failure.

Step-by-Step Diagnosis

If you suspect your alternator is failing, you can perform a simple test with a multimeter to confirm the problem before buying parts.

1. Test Battery Voltage (Engine Off): Set your multimeter to DC volts. With the engine off, touch the red probe to the positive (+) battery terminal and the black probe to the negative (-) terminal. A healthy, fully charged battery should read approximately 12.4 to 12.6 volts.
2. Test Charging Voltage (Engine On): Start the engine. Be careful of moving parts. Measure the voltage across the battery terminals again. A healthy alternator should increase the voltage to between 13.7 and 14.7 volts.
3. Interpret the Results:
   • If the voltage stays the same or drops when the engine is running, the alternator is not charging.
   • If the voltage is significantly higher than 14.7 volts, the voltage regulator (usually internal to the alternator) is likely bad and can overcharge and damage your battery.
   • If the voltage increases but is still low (e.g., under 13.5 volts), the alternator may be weak and unable to keep up with the car's electrical demands.

Buying a Used 2013 Spark Alternator

A used OEM alternator from a low-mileage vehicle can be a reliable and cost-effective alternative to expensive new parts or lower-quality aftermarket units. Here’s what to look for:

• Verify Part Numbers: Ensure the used part matches one of the known OEM numbers for the 2013 Spark 1.2L: 13585480, 13588127, 42419578, or 42609203. This guarantees it's the correct 100-amp version.
• Physical Inspection: Check the alternator's aluminum case for heavy corrosion, cracks, or signs of fluid contamination (oil or coolant leaks from above can destroy an alternator). The electrical connector plug should be free of damage.
• Spin the Pulley: Turn the pulley by hand. It should spin smoothly and quietly. Any grinding, roughness, or wobble indicates bad internal bearings, and you should not buy the part.
• Mileage and Warranty: Ask for the mileage of the donor vehicle. An alternator from a car with under 100,000 miles is ideal. Reputable sellers of recycled parts will offer a warranty; be sure to get one.

Cost to Replace a 2013 Chevrolet Spark Alternator

The cost can vary significantly based on the type of part you choose and local labor rates. The replacement job typically takes about 1.5 to 2 hours for a professional technician.

Rebuild vs. Replace

For the skilled DIY mechanic, rebuilding the alternator is a possible low-cost option. Rebuild kits, which often include a new voltage regulator, brushes, and bearings, are available for this specific alternator. A failing voltage regulator is a common issue and can sometimes be replaced without removing the alternator from the vehicle, though access is tight. However, for most people, replacing the entire unit with a quality used, remanufactured, or new part is faster and more practical, as it requires less specialized knowledge and tools.

Replacement Procedure Overview

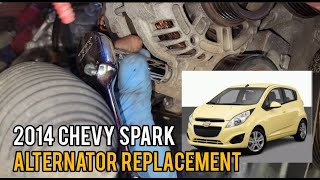

Replacing the alternator on a 2013 Spark is a moderately difficult job. Access is tight, and the belt tensioner is not a standard 🎬 Watch this step-by-step 1.2L Spark alternator replacement walkthrough. spring-loaded design.

1. Access the Alternator: For better access, it's recommended to remove the passenger side front wheel and the plastic wheel well liner.
2. Release Belt Tension: The belt tensioner on the 1.2L engine is a manual bracket. You must loosen the bolts on the tensioner assembly itself to allow it to pivot and slacken the serpentine belt. Take a photo of the belt routing before removal.
3. Remove the Belt: Once loose, slip the serpentine belt off the alternator pulley. Now is the perfect time to inspect the belt for cracks or wear and replace it if necessary. A new belt is inexpensive.
4. Disconnect Electrical Connections: Remove the 13mm nut holding the main power cable (B+ terminal) and unplug the plastic electrical connector from the back of the alternator.
5. Unbolt the Alternator: Remove the three 13mm mounting bolts that secure the alternator to the engine block. You may need to maneuver the alternator out from the wheel well area.
6. Installation: Installation is the reverse of removal. Loosely install the mounting bolts, then reconnect the electrical wires. Re-install the serpentine belt and then tighten the tensioner bolts to apply proper tension. Finally, tighten the alternator mounting bolts securely.
