2003-2007 Ford Ranger & Mazda B-Series Radio: Solving Display, CD, and Power Issues
This guide covers common problems and replacement tips for the factory single-CD audio system in 2003-2006 Ford Rangers and 2003-2007 Mazda B-Series trucks.
- The single-CD radio in 2003-2006 Rangers and 2003-2007 B-Series trucks is plug-and-play and does NOT require dealer programming.
- A dim or dead display is the most common failure and is often repairable by re-soldering internal components.
- These radios are interchangeable between the Ford Ranger and Mazda B-Series trucks of the specified years.
- When buying used, look for part number 4L5T-18C869-AE to ensure compatibility, though other numbers may also work.
Symptoms of a Failing Audio System
When the factory radio in your Ford Ranger or Mazda B-Series truck begins to fail, it can manifest in several ways. These issues are often electronic rather than mechanical and can range from minor annoyances to complete failure.
1. Dim or Dead Display
One of the most common complaints is a display that becomes dim or stops working entirely, even while the radio and CD player continue to produce sound. This is often caused by failing solder joints on the internal circuit board that power the vacuum fluorescent display. The issue can be intermittent, with the display sometimes returning to life after tapping on the radio or dash.
2. CD Player Malfunctions
You may experience issues with the CD player, such as it refusing to load, play, or eject discs. Sometimes, the unit will make a clicking or grinding noise as it attempts to operate. This can be due to a mechanical failure in the loading mechanism or a problem with the laser reader. Using CDs with paper labels can increase the risk of jamming.
3. No Power or Intermittent Operation

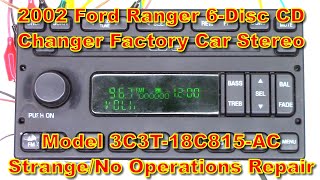

The radio may refuse to turn on, or it might shut off and restart randomly while driving. This could be as simple as a blown fuse, but it can also point to internal power supply issues 🎬 See this walkthrough on fixing a radio that won't power on or a poor connection in the wiring harness. In some cases, voltage drops in the vehicle's electrical system, such as when turning on high-beam headlights, can cause the radio to restart.
4. No Radio Reception (Static Only)
If you can play CDs but the AM/FM radio only produces static, the problem is likely with the antenna circuit. This could be a disconnected or broken antenna cable at the back of the head unit or a damaged antenna mast.
Buying a Used Audio System
Since these trucks are older, finding a brand-new OEM radio is difficult and expensive. A used OEM unit from a salvage vehicle is the most common and cost-effective solution. Here’s what to look for.
Pro Tip: Unlike many modern vehicles that require dealer programming, the radios in these 2003-2007 Ranger and B-Series trucks are typically plug-and-play. They do not require programming or VIN-linking to the vehicle, making replacement straightforward for a DIYer.
Compatibility Check
The key to a successful swap is ensuring compatibility. While many Ford radios from this era look similar, you should match the part number. The most common part number for the single-CD player in these trucks is 4L5T-18C869-AE. Other compatible numbers are listed in the specifications section below. These units were used interchangeably between the Ford Ranger and the Mazda B2300, B3000, and B4000, with the only difference being the logo on the faceplate.
Anti-Theft Codes
These radios feature a simple anti-theft system that is activated if power is disconnected. However, many used and remanufactured units are sold as "unlocked" or "code not required," meaning they will work immediately upon installation. If you install a unit that displays "CODE" upon power-up, you may need to contact a Ford dealership with the radio's serial number and the vehicle's VIN to obtain the unlock code.
Physical Inspection
When buying a used unit, inspect the faceplate for excessive wear on the buttons and check that the display isn't scratched or hazy. Ensure the wiring harness connectors on the back of the radio are not damaged. Ask the seller if the unit was tested, specifically if the CD player and display were confirmed to be working.
Cost to Replace Ford Ranger & Mazda B-Series Audio System
The cost can vary significantly depending on whether you choose a new, used, or aftermarket part and whether you perform the installation yourself.
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | $400 - $1300+ (if available) | Extremely rare and often discontinued. Prices can be very high. |
| New Aftermarket | $150 - $400+ | Requires an installation kit and wiring harness adapter. Offers modern features like Bluetooth and USB. |
| Used OEM | $50 - $150 | The most common and affordable option. Widely available from online sellers and salvage yards. |
| Remanufactured/Repaired | $150 - $325 | Your original unit can be sent out for repair, or you can buy a pre-repaired unit. This often involves fixing common issues like the display or CD mechanism. |
| Shop Labor | $75 - $150 | Replacement is a simple job, typically taking less than an hour of labor. |
Replacement Procedure Overview
Replacing the radio in a 2003-2006 Ford Ranger or 2003-2007 Mazda B-Series is a beginner-friendly task. The radio is held in by spring clips and can be removed with special tools or by taking out the center dash bezel.
- Access the Radio: The easiest method for DIYers is often to remove the entire plastic dash bezel that surrounds the radio and climate controls. This is typically held on by two 7mm screws at the bottom and several clips.
- Release the Radio: Once the bezel is off, you can access the sides of the radio and press on the metal retaining clips to release it from its bracket. Alternatively, you can use a set of Ford radio removal tools (U-shaped prongs) inserted into the four small holes on the radio's face to release the clips without removing the bezel.
- Disconnect Wiring: Carefully pull the radio out and disconnect the main wiring harness and the antenna cable from the back.
- Install New Radio: Connect the wiring to the replacement unit and slide it into the dash until the retaining clips click into place. Reinstall the dash bezel and screws.
Warning: Always disconnect the negative terminal of the battery before working on any vehicle electronics to prevent short circuits and protect the components.
Frequently Asked Questions (FAQ)
Does a replacement radio need to be programmed by a dealer?
No. For these specific model years of the Ford Ranger and Mazda B-Series, a replacement OEM radio does not need to be programmed by a dealership. It is a plug-and-play installation.
My radio display is dim or dead. Do I have to replace the whole unit?

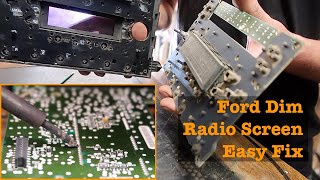

Not necessarily. A dim or dead display is a very common failure caused by bad solder joints on an internal circuit board. If you are skilled with a soldering iron, you can often repair the unit by re-flowing the solder on the resistors that power the display. 🎬 Watch: How to repair a dim or dead radio display There are also mail-in repair services that specialize in this fix.
Will a radio from a Ford Explorer or F-150 of the same era fit my Ranger?
Possibly. Ford used this same double-DIN size and mounting system across many vehicles. As long as the replacement radio uses the same wiring connectors and has the same physical dimensions, it will likely work. However, it is always best to match the part number from your original unit to guarantee full compatibility.
Why does my radio turn on but have no sound?
If the radio powers on, displays stations, and appears to function but you get no sound from any speaker, it could be an internal amplifier failure within the head unit itself. First, check all relevant fuses. If the fuses are good, and the problem persists with both radio and CD, the head unit is the most likely culprit.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4L5T-18C869-AE 4L5T-AE 4L5T18C869AE 4L5Z18806AD 5L5T-18C869-AA 6L5T-18C869-AA 6L5T-18C869-AB 6L5T-18C869-AC 6L5T-18C869-AD 6L5T-18C869-AE 1F8266870 1F8566870 1F9066870
Standard Double-DIN size, AM/FM tuner, single-disc CD player. Uses Ford's common spring-clip mounting system.
