2024-2026 Tesla Model 3 'Highland' B-Pillar Trim: A Guide to Rattles, Cameras, and Replacement

Compatibility Warning: 2024 'Highland' Model Only

Symptoms of a Faulty B-Pillar Trim Panel

Failure of this part is typically not mechanical but relates to cosmetic issues, damage, or noise. The most common symptoms are:

• Rattling or Buzzing Noises: This is the most frequent complaint from owners of the Model 3 'Highland'. The noise often occurs when driving over rough surfaces and is caused by loose clips or the panel vibrating against the chassis. Sometimes, the noise can be resolved by pressing firmly on the panel or by adding felt tape behind it.

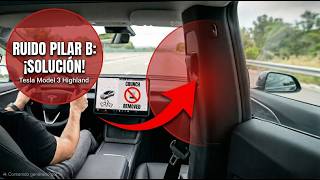

🎬 Watch: Fix Highland B-pillar rattles with felt tape
• Loose Fitment: The panel may feel loose or pop out of place, especially after being brushed against when entering or exiting the vehicle. This indicates broken or improperly seated mounting clips.
• Visible Damage: Scratches, scuffs, and gouges are common, often caused by the seatbelt buckle retracting against the panel, or from loading and unloading items. Discoloration from sun exposure or cleaning products can also occur.

Buying a Used B-Pillar Trim Panel: What to Check

A used OEM panel is an excellent, cost-effective option, as aftermarket versions for this specific part are generally unavailable. Pay close attention to the following when buying a recycled panel:

1. Verify All Mounting Clips Are Intact

This is the most critical inspection point. The panel is held in place by a series of plastic clips. These clips are fragile and often break during removal. Ask the seller for clear photos of the back of the panel. A part with broken clips will not sit flush and will almost certainly rattle. Tesla's service procedure recommends installing new clips when reinstalling a panel, so finding a used one with all clips intact is a major advantage.

2. Check for the Camera Cutout

3. Match Your Interior Color

The 2024+ Model 3 is available with different interior color schemes (e.g., black or white). Ensure the used panel you are buying is the correct color for your vehicle. Lighting in photos can be deceptive, so confirm the part number with the seller if possible.

4. Inspect for Cosmetic Blemishes

Look for more than just obvious cracks. Check for deep scratches that won't polish out, stress marks (white lines in the plastic indicating it has been bent), and any discoloration or staining on fabric-covered versions.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

As of mid-2026, there are no NHTSA recalls or specific TSBs directly concerning the B-pillar trim panel for the 2024-2026 Tesla Model 3. However, there are widespread owner reports and some TSBs related to general interior rattles in the 'Highland' model, particularly from the dashboard area. The techniques used to solve those rattles, such as applying felt tape to contact points, can also be effective for a noisy B-pillar trim.

Replacement Overview

Replacing the B-pillar trim is a straightforward DIY project for most owners. The process generally involves carefully prying the old panel off, managing the seatbelt, and snapping the new one into place. Tesla's service manuals describe a multi-part B-pillar trim (upper, middle, lower), and removal of one may require removing others first.

1. Pry Off Trim: Using a plastic trim removal tool is essential to avoid scratching the surrounding panels. Start at an edge and carefully release the clips holding the panel to the body.
2. Manage Seatbelt: The front seatbelt passes through a slot in the trim. The panel will need to be maneuvered around the seatbelt assembly. The height adjuster is part of the trim.
3. Disconnect Camera (if equipped): If your vehicle has the B-pillar camera, you must carefully disconnect the small electrical connector before fully removing the panel.
4. Install New Panel: Installation is the reverse of removal. If your replacement panel has a camera, connect it first. Align the new panel, ensuring the seatbelt is not twisted, and press firmly to engage all the clips. You should hear them click into place. If reusing your old panel, Tesla recommends replacing the clips.
5. Camera Calibration (if equipped): After replacing a panel with a camera, Tesla's official procedure requires clearing the camera calibration via the vehicle's service menu. 🎬 See this step-by-step B-pillar replacement walkthrough The system will then self-calibrate as you drive.

Cost Comparison

Pricing for Tesla parts can be difficult to obtain without going through a service center. Aftermarket options for this specific OEM trim piece are not available.
