Audi A4, A6, Passat & More BCM/CCM Failure: Water Damage, Symptoms & Replacement (1998-2008)

What is the Convenience Control Module (CCM)?

The Convenience Control Module (CCM), often referred to as the Body Control Module (BCM), is the electronic brain for your vehicle's interior features. It manages a wide range of functions that you use daily, including the power windows, interior dome and map lights, the central locking system (power locks), the factory alarm, and the remote key fobs. It does not control engine or transmission functions, but a failure can make the car very difficult to use and secure.

The #1 Cause of Failure: Water Intrusion

The single most common reason for CCM failure in the Audi A4, S4, A6, Allroad, VW Passat, and Skoda Superb is water damage. The module is located in a black plastic box under the carpet in the driver's side footwell (for left-hand drive North American models). This area is highly susceptible to water collection due to two primary design flaws:

• Clogged Plenum Drains: The plenum is the area under the windshield where the battery and brake master cylinder are located. It has drain holes designed to let rainwater escape. When these drains get clogged with leaves, dirt, and other debris, water backs up and overflows into the cabin, seeping down into the driver's footwell and flooding the CCM.
• Clogged Sunroof Drains: Vehicles equipped with a sunroof have drain tubes that run down the pillars of the car. These can also become clogged, causing water to leak into the headliner and eventually find its way down to the floor, soaking the CCM.

Symptoms of a Failing CCM

When the CCM begins to fail, usually due to corrosion from water damage, you will notice erratic behavior from the systems it controls. Symptoms often appear or worsen after a heavy rainstorm.

• Power windows stop working or operate on their own.
• Power locks fail to operate, or lock/unlock randomly.
• Remote key fobs no longer lock or unlock the doors.
• The factory alarm system may sound for no reason or fail to arm.
• Interior lights may not turn on when a door is opened, or they may stay on continuously.
• The car may spontaneously open all the windows overnight.
• You may hear strange clicking noises from under the driver's side dashboard or seat area.

Vehicle-Specific Information and Module Location

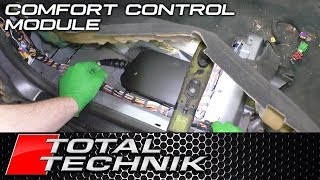

For all North American models covered in this guide, the CCM is located in the same general area: under the carpet in the driver's side footwell, just in front of the seat. 🎬 Watch: How to locate and remove the module Accessing it requires removing some plastic trim pieces along the door sill and the driver's dead pedal (footrest). The driver's seat may need to be unbolted and tilted back or removed entirely to get enough leverage to pull up the thick, molded carpet.

• 1998-2002 Audi A4 / 2000-2002 Audi S4 (B5 Platform): The plenum drain under the battery is a very common clogging point. Regular cleaning is essential preventative maintenance.
• 1998-2001 Audi A6 / 2001-2005 Audi Allroad (C5 Platform): The location is the same, under the driver's side carpet. Access requires removing the A-pillar and sill trim panels.

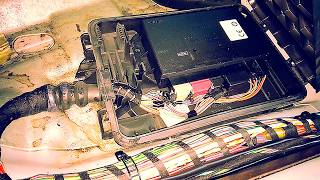

🎬 See this step-by-step removal guide for Audi A6 models
• 1998-2005 Volkswagen Passat (B5/B5.5 Platform): This model is notoriously prone to water damage in the CCM due to clogged plenum and sunroof drains.
• 2002-2008 Skoda Superb (B5 Platform): As it shares the same platform, the CCM location and failure modes are identical to the VW Passat.

Buying a Used Convenience Control Module

A used OEM module is an excellent, cost-effective alternative to an expensive new part. However, careful selection is critical to ensure compatibility and functionality.

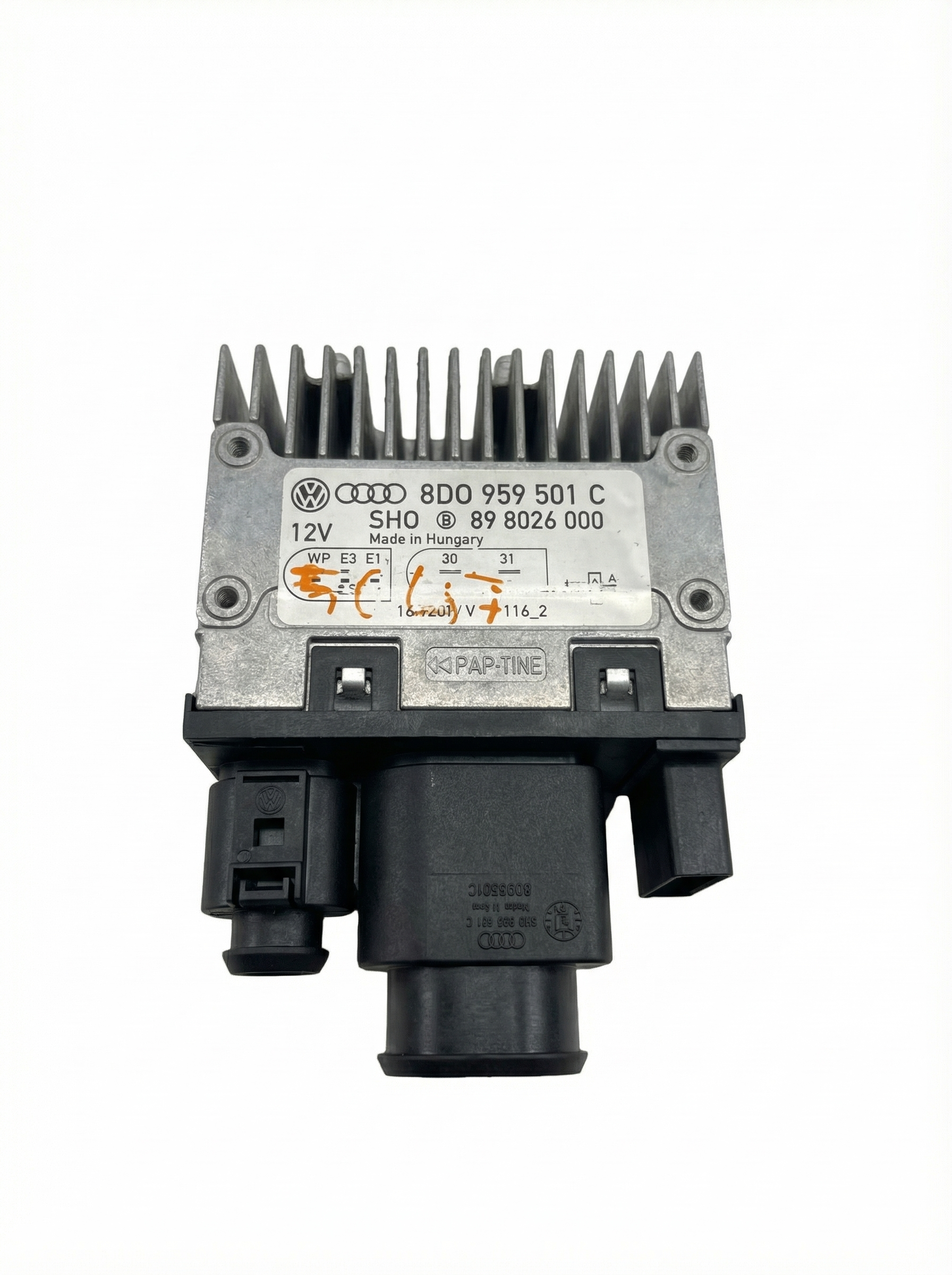

1. Match the Part Number EXACTLY: The most important step is to match the OEM part number on your original module. Part numbers like 8D0959501C are common, but several variations exist. Different part numbers can mean differences in remote frequency or supported features. Do not rely on visual similarity alone.
2. Inspect for Corrosion: When buying a used module, ask the seller for clear pictures of the electrical connector pins. Look for any signs of green or white crusty corrosion, which indicates past water exposure. A clean, bright set of pins is a good sign.
3. Check the Housing: The black plastic box that holds the CCM should be inspected for cracks or damage that could compromise its ability to protect the module in the future.
4. Why Used OEM is a Good Choice: For an electronic module like this, a used original equipment part that has been tested and is free of corrosion is often more reliable than a new, cheap aftermarket knock-off. The quality of the circuit board and components in the OEM unit is typically higher.

Programming and Installation

A replacement CCM does not need to be programmed by a dealer for the vehicle to start and run, as it is not linked to the engine immobilizer. However, programming is required to make your remote key fobs work with the replacement module.

This is a procedure that can be performed by an independent shop with the correct diagnostic tools, or by a DIY mechanic using software like VCDS. The process involves matching the new module to the keys. Basic functions like power windows and locks (using the door switch) should work immediately upon installation, provided the replacement module is correct and functional.

Cost Comparison

Note: Prices are estimates and can vary based on supplier, location, and vehicle condition. Labor costs do not include diagnostic time or programming of key fobs.
