1996-1998 Audi A4, A6 & S6 Central Locking Module Failure: Pumps, Water Leaks, and Fixes

Critical Compatibility Warning: Two Different Systems

While they share similar functions, the 1996-1998 Audi A6 & S6 (C4 platform) and the 1996 Audi A4 (B5 platform) use completely different types of modules. They are not interchangeable. It is essential to identify which system your vehicle uses.

• 1996-1998 Audi A6 & 1996 Audi S6 (C4 Platform): These vehicles use a pneumatic system with a Central Locking Vacuum Pump. This unit, typically located in the trunk or under the rear seat, uses air pressure and vacuum to physically actuate the door, trunk, and fuel door locks.
• 1996 Audi A4 (B5 Platform): This vehicle uses a purely electronic Central Convenience Module (CCM). This black box is located in the driver's side footwell, under the carpet. It sends electrical signals directly to motors in each door.

Symptoms of Failure

A failing module will cause a host of frustrating electrical problems. While many symptoms overlap, some are specific to the type of system in your car.

Common Symptoms (All Vehicles)

• Remote key fob stops working or works intermittently.
• Power door locks fail to lock or unlock, or behave erratically (e.g., locking themselves).
• Power windows stop working, either all at once or individually.
• Interior dome lights do not turn on when doors are opened, or stay on constantly.
• Factory alarm system may trigger randomly or not arm/disarm correctly.
• A "Central locking malfunction!" message may appear in the instrument cluster on some models.

Symptoms Specific to A6 & S6 (Vacuum Pump)

• A continuous humming or buzzing sound from the rear of the car for 30-60 seconds after locking or unlocking. This indicates the pump is running too long due to a leak.
• Locks operate very slowly.
• A complete failure where you hear no sound from the pump at all.

Known Issues and Causes of Failure

For 1996-1998 Audi A6 & S6: Pump Failure and Vacuum Leaks

The pneumatic system in the C4 platform cars is robust but fails in predictable ways with age.

• Graphite Pump Impeller Failure: The most common failure is the small graphite impeller inside the pump motor shattering from age and wear. This will result in a complete loss of pressure/vacuum, and the pump motor may spin without moving the locks. If you shake the unit, you may hear rattling inside. Opening the case will reveal a fine black dust from the disintegrated graphite.
• Vacuum Leaks: The plastic and rubber vacuum lines that run to each door, the trunk, and the fuel door can become brittle and crack over time, causing leaks. A leak forces the pump to run for an extended period to try and build pressure, eventually causing the motor to burn out.

For 1996 Audi A4: Water Damage

The number one killer of the Central Convenience Module in the B5 A4 is water intrusion. The module is located in a black plastic box under the driver's side carpet, directly in the path of water that leaks into the cabin. This water damage is almost always caused by one of two issues:

• Clogged Plenum Drains: The area under the vehicle's battery at the base of the windshield has drain holes to let rainwater escape. When these get clogged with leaves and debris, the plenum fills with water, which then overflows through the firewall and into the driver's footwell, flooding the module.
• Clogged Sunroof Drains: The drain tubes from the sunroof can also get clogged, causing water to back up and leak down the A-pillar and into the same footwell area.

Buying a Used Central Locking Module

A used OEM module is often the most practical and cost-effective solution. Aftermarket units are rare and may have compatibility issues. Here’s what to look for:

• Match the Part Number Exactly: This is the most important rule. Audi used many different module versions with different features. The part number, including the final letter suffix, must be identical to your original module to ensure full functionality.
• Inspect for Water Damage (A4): Carefully examine the electrical pins on the module's connectors. Look for any signs of green or white corrosion, which indicates past moisture exposure. Do not buy a module that shows any signs of corrosion.
• Check for Pump Failure (A6/S6): Ask the seller if the pump was tested. Gently shake the unit; if you hear rattling, the graphite impeller has likely failed. Check the vacuum ports for any black dust, a tell-tale sign of a failed pump.
• Verify the Source: Whenever possible, buy from a reputable recycler who has tested the part and offers a warranty.

Replacement and Programming

Replacing the module is a straightforward but labor-intensive job that a DIY mechanic can perform.

Replacement Overview

• A6/S6: The pump is typically located under the right side of the rear seat bench or in the trunk on the right side, wrapped in a dense foam block for sound insulation. Access involves removing the rear seat cushion or trunk trim.

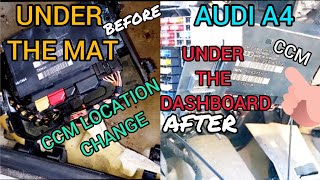

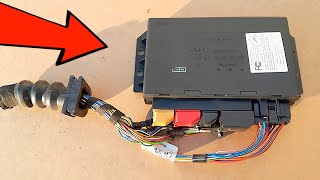

• A4: The module is under the driver's side carpet. You will need to remove the door sill trim, kick panel, and potentially the driver's seat to peel back 🎬 See this walkthrough on how to remove the CCM module. the carpet and access the plastic box holding the module.

Programming and Key Synchronization

• Coding: A replacement module (new or used) needs to be 'coded' to match your car's specific options (e.g., with/without alarm, number of power windows, remote entry). This is done with a diagnostic tool like VCDS (VAG-COM) by entering a simple code. An independent European auto shop can perform this service, or it can be done via DIY with the correct tool. The car will function before coding, but some features may not work correctly.
• Remote Key Fob Syncing: After installation, your key fobs will need to be re-synced to the new module. For these models, this can often be done without any tools. A common procedure involves putting one key in the ignition in the 'ON' position, and using a second key to manually lock the driver's door, then pressing buttons on the remote. Multiple procedures exist, so you may need to try a few variations.

Cost of Replacement

Frequently Asked Questions

Technical Specifications & Part Numbers

Always verify the part number on your specific module before ordering a replacement. The suffix letters are important.

1996-1998 Audi A6 & 1996 S6 (C4 Platform)

• Common Part Number: 4A0862257A
• System Type: Pneumatic (Air/Vacuum)

1996 Audi A4 (B5 Platform)

• Common Part Numbers: Part numbers often begin with 8D0 862 257 or 8L0 862 257. However, multiple versions exist. Matching your original part number is critical.
• System Type: Electronic
