2008-2016 Audi A4, Q5, A5 & More: BCM2 (J393) Failure, Component Protection, and Replacement

Identifying the Correct Body Control Module

The Audi B8 platform (which includes the 2009-2012 Audi Q5, 2009-2012 Audi A4, 2008-2012 Audi A5/S5, 2009-2012 Audi S4, and 2009-2016 Audi Allroad) uses multiple electronic modules. It's important to distinguish between them:

• BCM2 (J393) Convenience Control Module: This is the subject of this guide. It is located in the right-hand side of the trunk/luggage compartment. It controls body functions, keyless entry, and is the master for the immobilizer. Failures here cause a wide range of electrical issues and no-start problems.
• BCM1 (J519) Onboard Supply Control Module: Located under the driver's side dashboard, this module handles different functions, primarily related to onboard electrical power supply.
• Gateway Module (J533): This module acts as a router, allowing all the different control modules in the car to communicate with each other.

This guide focuses exclusively on the BCM2 (J393) located in the trunk, as it is a common failure point with unique replacement challenges.

Common Symptoms of a Failing BCM2 (J393) Module

A failing BCM2 can create a host of confusing and seemingly unrelated electrical problems. Because the module controls so many systems, symptoms can appear all at once. One of the most common causes of failure is water damage, as water can leak into the trunk and short-circuit the module.

• Erratic Lights: Interior or exterior lights may flicker, stay on constantly, or fail to turn on at all.
• Key & Lock Problems: The key fob may stop working, preventing you from locking or unlocking the doors remotely. The central locking system may also act erratically.
• No-Start Condition: The vehicle may not crank or start. You might see a "Steering Faulty" message on the instrument cluster because the BCM2 cannot validate the key with the immobilizer.
🎬 Watch: How technicians read BCM2 data when all keys are lost.
• Parasitic Battery Drain: A faulty BCM2 can fail to shut down properly, leaving certain systems running and draining the battery overnight.
• Window and Accessory Failure: Power windows, heated seats, or other interior accessories may stop working.

Associated Diagnostic Trouble Codes (DTCs)

When scanned with a proper tool like VCDS or ODIS, a failing or replaced BCM2 will often store specific fault codes:

• 02095 - Component Protection Active: This is not a failure code, but an information code. It means the module is locked and not authorized to work in your vehicle. You will always see this code after installing a used or new module, before it is programmed.
• 00288 - Steering Column Lock Actuator (N360): This code is frequently linked to a BCM2 internal fault and often results in a no-start condition.
• 01330 - Central Control Module for Central Convenience (J393): This code, often with text like "Faulty" or "Voltage supply too low," points directly to a problem with the module itself or its power/ground connections.

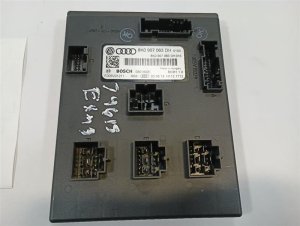

Buying a Used BCM2 (J393) Module

Purchasing a used BCM2 is a cost-effective option, but you must be aware of the challenges. Given the high cost of a new module and dealer programming, a used part combined with the right service can save you hundreds of dollars.

1. Match the Part Number Exactly: The part number on the replacement module must be identical to your original one, including the suffix letters. There are many versions (e.g., 8K0907064CS, 8K0907064AG, etc.) that are not interchangeable.
2. Inspect for Water Damage: Since water intrusion is a common killer of these modules, carefully inspect the case and connector pins of any used unit for signs of corrosion or water marks.
3. Plan for Programming: A used BCM2 is not a plug-and-play part. You have two main options for making it work in your car:
   • Dealer/Specialist Programming: An Audi dealer or a qualified independent shop with an online ODIS subscription can perform "Component Protection removal." They connect your car to Audi's servers in Germany to authorize the module for your vehicle's VIN. Be aware that some dealers may be unwilling or unable to program a used module. Always call ahead to confirm.
   • Cloning Service: Many third-party services can "clone" your original module. You mail both your original BCM2 and the used replacement to them. They transfer the key and immobilizer data from your old module to the used one. The returned module is then plug-and-play, with no dealer visit required. This is often the best option if your original module can still be read.
   🎬 Watch: A technical walkthrough of the BCM2 cloning process.

Replacement Location and Procedure

On the Audi A4, A5, Q5, S4, S5, and Allroad, the BCM2 (J393) is located in the luggage compartment on the right side, behind a trim panel.

1. Disconnect the vehicle's battery.
2. Remove the right-side trunk liner/trim to access the electronics rack.
3. The BCM2 is typically mounted in a plastic bracket along with other modules.
4. Carefully disconnect the multiple electrical connectors. They have locking tabs that must be released.
5. Remove the module from its bracket and install the replacement.
6. Reconnect the electrical connectors and the battery.

After physical installation, the module will have Component Protection active, and many features will not work until it is programmed or cloned as described above.

Cost Comparison for BCM2 Replacement

Prices can vary based on location and the specific part number required.
