2006-2007 Chrysler PT Cruiser Airbag Module: A Guide to Replacement and Programming

What is the Airbag Control Module in a 2006-2007 PT Cruiser?

The part often searched for as the 'Body Control Module' in the 2006-2007 PT Cruiser is actually the Occupant Restraint Controller (ORC), also known as the Airbag Control Module. This is not the computer that controls lights, windows, or locks. The ORC is a dedicated safety device responsible for one thing: controlling the airbag system. It constantly checks the status of all SRS components and, if it detects a fault, it illuminates the airbag warning light on your dashboard to alert you that the system is disabled. After an accident where airbags deploy, the ORC stores permanent crash data and must be reset or replaced.

Symptoms of a Failing Airbag Module

A failing ORC typically gives clear, unmistakable warnings. Ignoring them means your airbags will likely not deploy in a crash.

Persistent Airbag Warning Light

The most common symptom is an illuminated or flashing airbag warning light on the instrument cluster. The light will typically come on during the vehicle's startup self-test and remain on, indicating a fault has been detected within the SRS system.

Diagnostic Trouble Codes (DTCs)

A professional scan tool can read specific codes from the module. These codes help pinpoint the exact problem. Common codes related to the ORC and its associated components include:

• B2208 / B2207: Occupant Restraint Controller (ORC) Internal Module Fault.
• B1B02 / B1B06: Driver or Passenger Airbag Squib Circuit Open (indicates a problem with the airbag inflator circuit, often in the clockspring).
• B1B54 / B1B56: Passenger Seat Belt Buckle Switch codes, a common issue on PT Cruisers.
• B1649 / B1650: Crash Detected (indicates the module has stored crash data).

Known Issues, Recalls, and TSBs

While there are no specific recalls for the ORC module on the 2006-2007 PT Cruiser, Chrysler has issued recalls for ORC modules on other models for issues like water contamination from HVAC drains. The PT Cruiser's ORC is located on the center floor tunnel under the console, a location that can be susceptible to damage from liquid spills. Many owner complaints have been filed with the National Highway Traffic Safety Administration (NHTSA) for airbag lights staying on and, in some cases, airbags failing to deploy in a crash, though no formal recall was issued for the module itself.

Buying a Used 2006-2007 PT Cruiser Airbag Module

This is the most critical section for anyone considering a replacement. Understanding the difference between resetting your original module and buying a used one is key to a successful and safe repair.

Option 1: Resetting Your Original Module (Recommended after an accident)

If your vehicle has been in an accident and the airbags deployed, your original ORC has stored 'crash data'. This data cannot be cleared with a standard scanner, and a dealer will only offer to sell you a new, expensive module. However, you can mail your original module to a specialized third-party reset service. They will directly access the module's internal memory chip and wipe the crash data, restoring it to factory condition. The cost is typically $50-$150.

Option 2: Buying a Used Module

If your original module has failed due to an internal fault (and not a crash), or is physically damaged (e.g., by water), a used module is a cost-effective option. However, there are critical considerations:

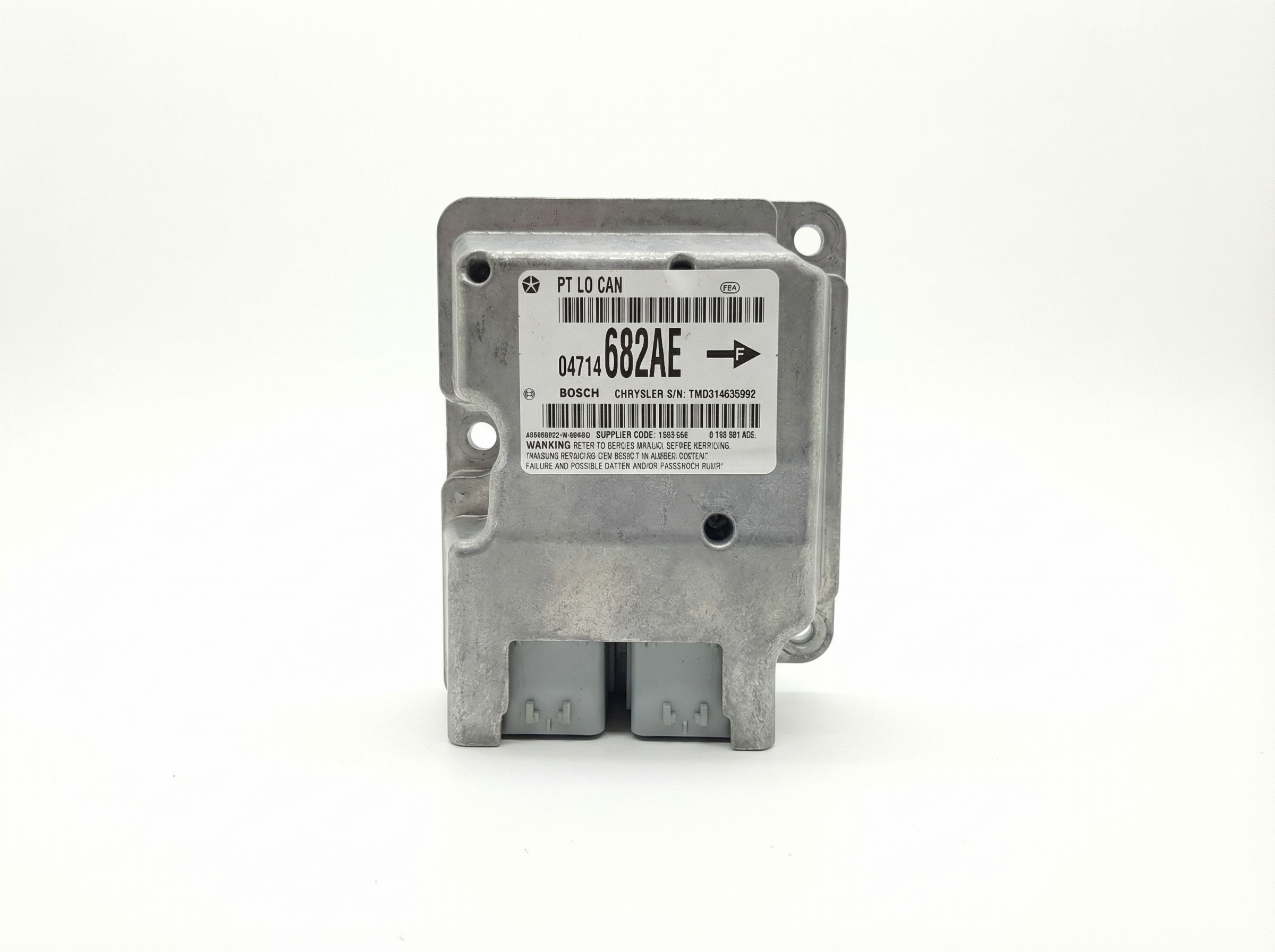

• Part Number Match: You MUST match the OEM part number exactly. For the 2006-2007 PT Cruiser, the primary number is 04714682AE.
• Programming Required: A used module from another vehicle is NOT plug-and-play. It must be professionally programmed to your car's Vehicle Identification Number (VIN) and specific equipment configuration. Failure to do so will result in a persistent airbag light and a non-functional safety system.
• Source Verification: Ensure the used module comes from a vehicle that was not in an accident. If it contains crash data, it is useless until it is sent to a reset service.

Replacement and Programming Procedure

Location

The ORC module is located under the center console, bolted to the vehicle's floor tunnel. You will need to remove the center console assembly to gain access to it.

Step-by-Step Replacement Overview

1. CRITICAL SAFETY WARNING: Disconnect the negative battery cable and wait at least two minutes for the system's backup capacitor to fully discharge before touching any airbag system components. Failure to do so can result in accidental airbag deployment and serious injury.

2. Remove the center console trim and components to expose the ORC module.
3. Carefully disconnect the electrical connectors from the module.
4. Unbolt the module from the floor tunnel.
5. Install the new or reset module, ensuring it is securely bolted down.
6. Reconnect the electrical connectors and reassemble the center console.
7. Reconnect the battery.

Professional Programming is Mandatory

After installing a used module, the airbag light will remain on until it is programmed. This procedure must be performed by a Chrysler/Dodge/Jeep dealership or a qualified independent shop with a dealer-level scan tool, such as a wiTECH. The process involves writing your car's VIN into the new module and configuring it for the vehicle's specific options. Expect to pay for one to two hours of labor for this service.
