2003 Dodge Ram 1500 Body Control Module: Solving Electrical Gremlins
This guide covers the common failures, symptoms, and replacement requirements for the Body Control Module in your 2003 Dodge Ram 1500 with the 3.7L V6 engine.
- A replacement Body Control Module MUST be programmed to the vehicle's VIN and keys by a dealer or properly equipped shop; it is not plug-and-play.
- This specific BCM (56028816AB / 56028816AC) is for 2003 Ram 1500 models with the 3.7L V6 engine ONLY.
- Many lighting issues are caused by the separate, easier-to-replace Front Control Module (FCM) on the fuse box, not the BCM.
- Symptoms include erratic lights, non-working power accessories, battery drain, and no-start conditions, often with a 'no bus' message or U0140 code.
Symptoms of a Failing 2003 Dodge Ram BCM
A failing Body Control Module can cause a wide range of confusing and seemingly unrelated electrical problems. Because the BCM controls so many different systems, symptoms can vary, but they often appear as strange electrical 'gremlins'.
- Erratic Lights: Headlights, taillights, or interior lights may flicker, work intermittently, or not turn on or off at all. You might also see a 'LAMP OUT' message on the dash even when the bulbs are fine.
- Power Lock and Window Issues: Power door locks may stop responding to the switch or the key fob. Power windows might not roll up or down.
- Instrument Cluster Malfunctions: Gauges may behave erratically or stop working, and warning lights like the check engine light or security light may illuminate for no apparent reason.
- No-Start or Stalling: In severe cases, a faulty BCM can interfere with the vehicle's anti-theft system (Sentry Key Immobilizer Module or SKIM) or lose communication with the Powertrain Control Module (PCM), preventing the engine from starting.
- Parasitic Battery Drain: The BCM may fail to go into 'sleep mode' when the truck is off, causing a continuous power draw that drains the battery overnight.
- Communication Errors: A common sign of a BCM failure is a 'no bus' message on the instrument cluster, indicating a loss of communication. 🎬 Watch: Troubleshooting the 'no bus' error and no-start issues. An OBD-II scanner may show 'U' codes, such as U0140 (Lost Communication With Body Control Module), which point to a communication breakdown rather than a specific component failure.
Known Issues, TSBs, and Recalls
While there are no specific recalls for the Body Control Module itself on the 2003 Ram 1500, several electrical-related issues and recalls are worth noting.
- NHTSA Recall R26 (supersedes 14V770): A major recall was issued for defective passenger-side Takata airbag inflators that can rupture upon deployment. NHTSA has issued a "DO NOT DRIVE" warning for affected vehicles until this free repair is completed, as fatalities have been reported. While not a BCM issue, it is a critical safety warning for this vehicle.
- TSB #08-015-05: This Technical Service Bulletin addresses Powertrain Control Module (PCM) initialization, which can sometimes be related to BCM communication issues.
- TSB #42 (Feb 2004): This bulletin notes that water can enter the PCM electrical connectors, which could potentially affect BCM communication and cause similar electrical problems.
- Front Control Module (FCM): Many lighting issues, such as the 'LAMP OUT' indicator, are often traced to the Front Control Module, which is a separate component attached to the under-hood fuse box, rather than the BCM itself. 🎬 See this quick fix for common Front Control Module problems. It's important to diagnose this component before replacing the BCM for lighting-related faults.
Warning: The BCM is often confused with the Powertrain Control Module (PCM) or the Front Control Module (FCM). The PCM controls engine and transmission functions, while the FCM (mounted to the fuse box) primarily handles lighting. The BCM is located inside the cabin and controls body accessories.
Buying a Used Body Control Module
A used OEM Body Control Module can be a cost-effective solution, but there are critical factors to consider to ensure you get a compatible and functional part.
- Match Part Numbers Exactly: The most important step is to match the OEM part number from your original BCM. For the 2003 Ram 1500 with the 3.7L V6, the primary part numbers are 56028816AB and the superseded number 56028816AC. Do not install a module with a different part number, even if it looks identical.
- Verify Engine and Options: The initial prompt's warning is correct. This BCM is specific to vehicles with the 3.7L V6 engine. Ensure the donor vehicle had the same engine. While less critical for this specific model year, options like keyless entry and security systems are programmed into the BCM, so matching them is ideal.
- Inspect for Damage: When you receive the used module, inspect the case for any signs of physical damage, like cracks or broken mounting tabs. Carefully check the connector pins to ensure none are bent, broken, or corroded. Water damage is a common cause of failure, so look for any signs of corrosion or water marks.
- Programming is Required: A used BCM is not a simple 'plug-and-play' part. The vehicle's VIN and security information (PIN) must be programmed into the replacement module. Without this step, the truck will not start due to the anti-theft system.
Programming and Installation
Replacing the BCM is a job that requires special tools. While the physical swap is straightforward, the electronic programming is not.
Pro Tip: The BCM is typically located under the driver's side of the dashboard, to the left of the steering column. You will need to remove the lower dash panels to access it.
A dealership or a well-equipped independent shop/automotive locksmith with a compatible scan tool (like the original DRBIII) is required to perform the programming. The process involves:
- Connecting the scan tool to the vehicle.
- Accessing the SKIM (Sentry Key Immobilizer Module) functions.
- Using the vehicle's four-digit PIN to enter secured access mode.
- Programming the vehicle's VIN into the new BCM.
- Programming the existing ignition keys to the new BCM.
If the PCM and BCM are replaced simultaneously, new keys may be required. Some automotive locksmiths are capable of performing this programming, which may be more affordable than a dealership.
Cost Breakdown
Prices can vary significantly based on the source of the part and labor rates in your area.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Dealer) | $550 - $750+ (Part Only) |
| New Aftermarket | Not commonly available |
| Used OEM (Salvage) | $35 - $150 |
| Remanufactured | $200 - $450 |
| Shop Labor (Installation & Programming) | $150 - $350 |
Frequently Asked Questions (FAQ)
Do I have to take my truck to the dealer to program a new BCM?
Not necessarily, but you do need a professional with the right tools. A dealership can always do it. Many independent repair shops and some automotive locksmiths have advanced scan tools (like the DRBIII or equivalent) and software subscriptions needed to program the VIN and key information into the BCM. This is not a DIY-friendly task.
Will my truck start with a used BCM from another truck?
No, it will not start without being programmed. The BCM is tied to the vehicle's anti-theft system. When you install a used BCM, it will not recognize your keys or the vehicle's VIN, and the immobilizer will prevent the engine from starting.
My headlights are acting weird. Is it the BCM?
It could be, but for the 2003 Ram, it's more likely to be the Front Control Module (FCM). The FCM is a smaller module that clips onto the side of the under-hood fuse box and is a very common failure point for lighting issues on this generation of Ram trucks. Always diagnose the FCM first for any headlight or 'LAMP OUT' problems before suspecting the BCM.
What OBD-II codes point to a bad BCM?
A failing BCM often throws communication codes, known as 'U' codes. The most common is U0140 - Lost Communication With Body Control Module. You may also see a cluster of seemingly unrelated codes for various systems that the BCM controls. Generic 'B' (Body) codes may also be present, but the 'U' codes are a strong indicator of a module communication failure.
Helpful Videos
Technical Specifications

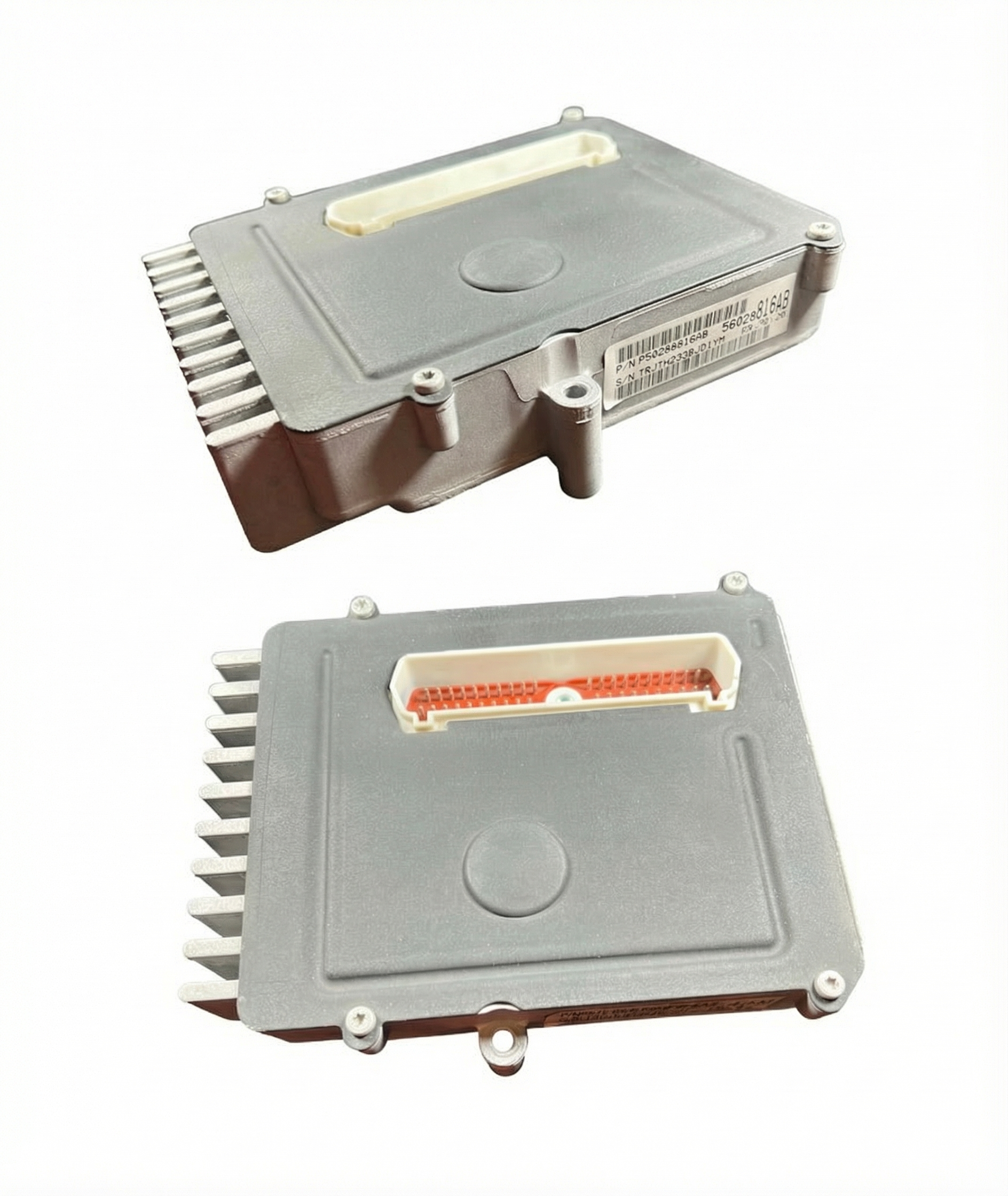

OEM Part Numbers: 56028816AB 56028816AC
Location: Under driver's side dashboard, left of steering column. Engine Compatibility: 3.7L V6 Only.
