2007 Dodge Ram 1500 Airbag Module: Lights, Resets, and Replacement Guide
This guide covers the critical details for diagnosing, replacing, and programming the Airbag Control Module (ACM) in your 2007 Dodge Ram 1500.
- This is an Airbag Control Module (ACM/ORC), which is a dedicated safety computer, not a Body Control Module (BCM).
- If the airbag light is on, the entire airbag system is disabled and will not deploy in an accident.
- Used modules MUST be professionally reset to clear crash data and MUST be programmed to the truck's VIN to function.
- Compatibility is critical: this module (4896179AC) is only for Regular Cab models built after 7/31/2006 without side curtain airbags.
Airbag Module vs. Body Control Module: A Critical Distinction
It's a common point of confusion, but the Airbag Control Module (ACM or ORC) is a completely separate part from the Body Control Module (BCM). The ACM is a dedicated safety computer that ONLY manages the airbag system. The BCM, on the other hand, controls general vehicle functions like power windows, door locks, interior and exterior lighting, and the horn. If your issue is a persistent airbag warning light on the dash, you are dealing with the Airbag Control Module or another component in the SRS system, not the BCM.
Symptoms of a Failing Airbag Control Module
The signs of a faulty airbag module are direct and should be addressed immediately for your safety.
- Persistent Airbag Warning Light: This is the most common and direct symptom. The light, showing an icon of a person with an airbag, will remain lit or flash after starting the truck. When this light is on, the entire airbag system is disabled and will not deploy in a crash.
- "Service Airbag System" Message: Your truck's information display may show a text warning alongside the airbag light.
- Diagnostic Trouble Codes (DTCs): A scanner capable of reading the SRS system is required to pull these codes. Common codes pointing to an internal module failure include B2208 (Occupant Restraint Controller Internal Fault). Other codes may point to communication errors or issues with specific sensors that are processed by the module.
Pro Tip: Sometimes, an airbag light can appear after a battery change or if the battery is weak. Before assuming the module is bad, ensure your battery is fully charged and all connections are clean and tight. You may need an SRS-capable scan tool to clear the code even if the underlying issue is resolved.
🎬 Watch: Troubleshooting a persistent airbag dash light on your RamKnown Issues, Recalls, and Compatibility Warnings
For the 2007 model year, the Dodge Ram 1500 was subject to the widespread Takata airbag inflator recalls. These recalls focused on replacing the airbag inflators, which could rupture, and not the control module itself. However, a faulty inflator can sometimes trigger codes that lead to a diagnosis of the entire system.
Warning: Compatibility for this module is extremely specific. The part number must match your vehicle's exact configuration. This module, 4896179AC, is designated for Regular Cab (2-door) models built after July 31, 2006, that are NOT equipped with roof-mounted side curtain airbags. Using a module from a Quad Cab or a truck with different airbag options will result in a configuration mismatch (DTC B1B02) and a non-functional safety system.
Buying a Used Airbag Control Module: Critical Information
Purchasing a used airbag module can be a cost-effective option, but it comes with significant risks if not handled correctly. Unlike most other electronic modules, the ACM has unique safety considerations.
- Crash Data: If a vehicle is in an accident where airbags deploy, the module stores "hard codes" or crash data. This data cannot be cleared with a standard OBD-II scanner and renders the module useless until it is professionally reset. When buying a used module, you MUST ensure it comes from a vehicle that did not have its airbags deployed, or that it has been professionally reset by a reputable service.
- VIN Programming: Airbag modules are coded to the specific Vehicle Identification Number (VIN) of the truck they were installed in. Installing a used module without reprogramming it to your truck's VIN will cause a fault, and the airbag system will not work.
- Physical Inspection: Never buy a module with any signs of physical damage, corrosion, or water intrusion. The module is located under the center seat or console, making it vulnerable to spills.
- Reset Services: Several mail-in services specialize in resetting crash data from used modules. This is often a reliable and affordable option, costing between $50 and $150. They flash the module back to its factory state, making it ready for installation and programming.
Programming and Installation Requirements
Physical installation of the module is straightforward for a DIY mechanic, but the final, critical steps require professional tools.
- Disconnect the Battery: Always disconnect the negative battery terminal and wait at least 15-30 minutes before working on any part of the airbag system to allow capacitors to discharge.
- Location: The Airbag Control Module (ORC) is located on the transmission tunnel, under the center portion of the dashboard or beneath the center "jump" seat/console. You will need to remove trim panels and potentially the center seat or console to access it.
- Installation: The module is typically held in by three 10mm nuts. Carefully unplug the electrical connectors (they are usually bright yellow) and swap the module. 🎬 Watch: Step-by-step instructions for removing your SRS module
- Programming: This step is NOT optional. The replacement module (whether new or used) must be programmed to your truck's VIN and configured for its specific options (cab type, number of airbags, etc.). This requires a dealer-level diagnostic tool like a WiTech scanner. Most independent shops and locksmiths cannot perform this function. Failure to program the module will result in a persistent airbag light and a disabled safety system.
Warning: Do not attempt to program or reset an airbag module yourself without professional training and equipment. An error can cause the system to fail during an accident or, in a worst-case scenario, cause an airbag to deploy unexpectedly during service.
Replacement Cost Comparison
| Part or Service | Estimated Cost |
|---|---|
| New OEM Module (Part Only) | $350 - $600 |
| Used OEM Module (Guaranteed Reset) | $75 - $150 |
| Module Reset Service (Mail-in) | $50 - $150 |
| Shop Labor (Installation & Programming) | $100 - $300 |
Frequently Asked Questions (FAQ)
Can I reset the airbag light myself?
If the light is on due to a minor fault (like a loose connector that has been fixed), you might be able to clear the code with an SRS-capable OBD-II scanner. However, if the light is on because of stored crash data or an internal module failure, it cannot be reset with a standard scanner and will require professional service or replacement of the module.
Is it safe to install a used airbag module?
It is only safe if two conditions are met: 1) The module is the EXACT correct part number for your truck's cab style and airbag options. 2) The module has been professionally cleared of any stored crash data and is verified to be from a non-wrecked vehicle. It must then be programmed to your vehicle's VIN after installation.
Where is the airbag module located on a 2007 Dodge Ram 1500?
It is located under the center console or the center jump seat, bolted to the floor/transmission tunnel.
🎬 See this video for the exact module location and replacementWill the airbags work if the airbag light is on?
No. An illuminated airbag warning light indicates a fault in the Supplemental Restraint System (SRS). As a safety precaution, the entire system is disabled and the airbags will not deploy in a collision until the fault is corrected and the module is reset.
Helpful Videos
Technical Specifications

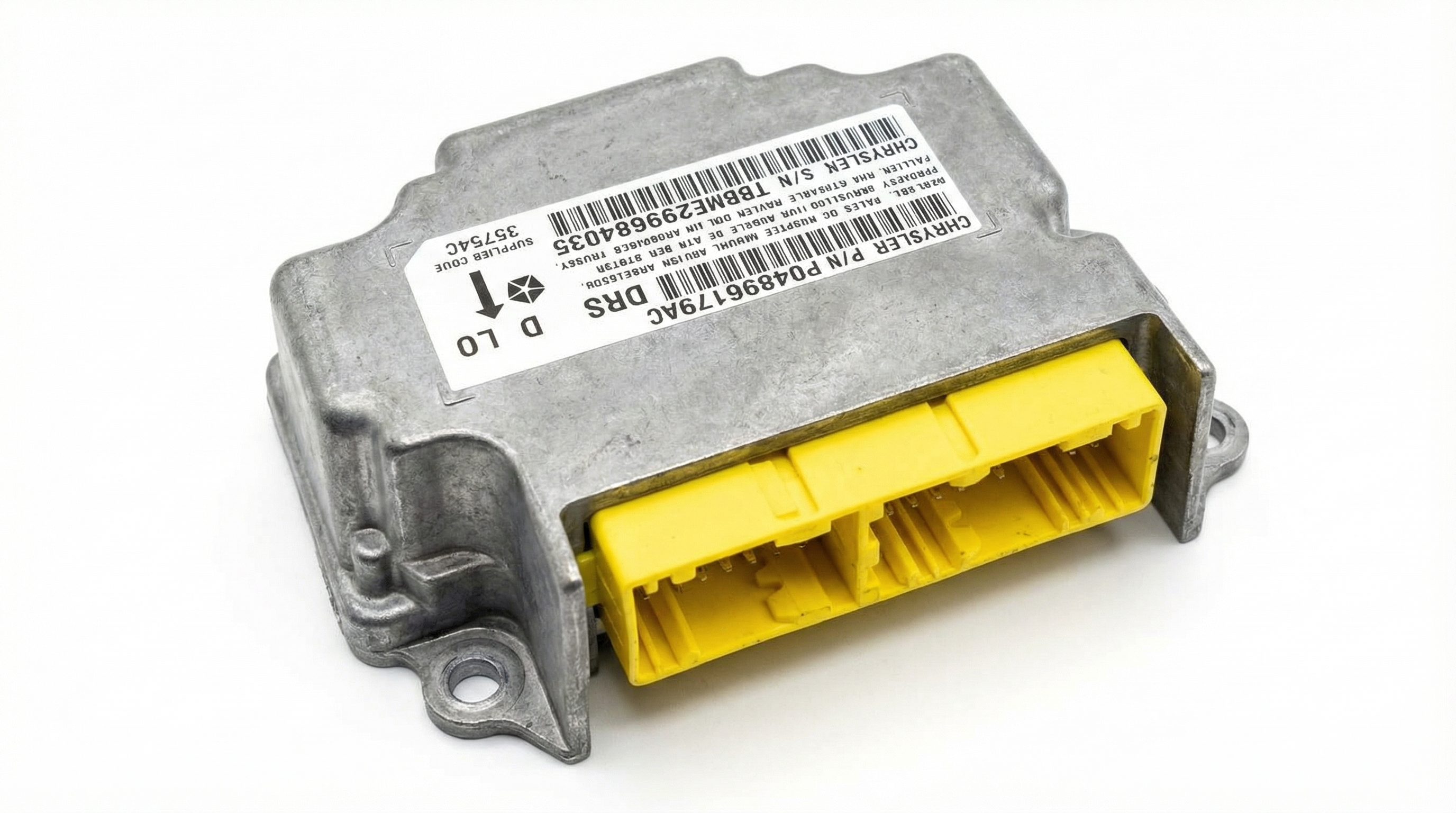

OEM Part Numbers: 4896179AC P04896179AC
Monitors and controls the Supplemental Restraint System (SRS). Requires VIN and vehicle-specific configuration programming.
