2008 Dodge Ram 1500 Body Control Module (TIPM) Failure: A Buyer's and Troubleshooter's Guide

Symptoms of a Failing BCM / TIPM

A failing Body Control Module, or TIPM, can cause some of the most confusing and frustrating problems a truck owner can face. Because it controls so many different electrical components, its failure can look like many different problems at once. Symptoms are often intermittent and may seem to have no logical pattern.

• Erratic Electrical Functions: This is the most common sign. You may experience headlights or interior lights flickering, staying on, or not turning on at all. The horn might sound randomly, or the windshield wipers may activate on their own.
• Power Accessories Malfunctioning: Power windows, door locks, and the radio may stop working or behave erratically.
• Parasitic Battery Drain: A classic symptom is a battery that repeatedly dies overnight. A faulty BCM/TIPM can fail to shut down certain circuits when the truck is off, causing a slow drain on the battery.
• No-Start or Stalling Condition: The BCM/TIPM is involved in the vehicle's anti-theft system and also controls the fuel pump relay. A failure can prevent the truck from starting because it doesn't recognize the key, or it can cut power to the fuel pump, causing the engine to stall while driving.
• Dashboard Warning Lights: The instrument cluster may light up with multiple, unrelated warning lights, often referred to as the "Christmas tree" effect. You may also see communication error messages.
• Diagnostic Trouble Codes (DTCs): A scan tool may show communication-related codes, most commonly U-codes like U0140 (Lost Communication With Body Control Module).

Known Issues, TSBs, and Recalls for the 2008 Dodge Ram 1500

The TIPM used in this era of Dodge trucks is known for specific, widespread issues.

The Integrated Fuel Pump Relay

The most significant known issue with the 2008 Ram's TIPM is the internal, non-serviceable fuel pump relay. This relay is soldered directly to the TIPM's circuit board. When it fails, it can cut power to the fuel pump, causing the engine to crank but not start, or worse, stall unexpectedly while driving. Because the relay cannot be easily replaced, the entire TIPM assembly must be replaced 🎬 Watch: How to test and bypass the fuel pump relay or sent to a specialist for repair. This issue has been the subject of numerous consumer complaints filed with the National Highway Traffic Safety Administration (NHTSA).

Recalls

While there are no recalls specifically for the BCM/TIPM assembly itself, there are related recalls you should be aware of:

• Wiper Motor Failure (NHTSA Campaign Number 09V080000): Some trucks were built with windshield wiper motors that were susceptible to water intrusion, which could cause the wipers to fail. This could easily be misdiagnosed as a BCM/TIPM fault.
• Driver Airbag Inflator (NHTSA Campaign Number 16V352000): A major recall was issued for the driver's side airbag inflator, which could rupture. This recall relates to the Airbag Control Module system, not the BCM.

Buying a Used Body Control Module (TIPM)

Given the high cost of a new unit from the dealer, many owners turn to used OEM modules. This can be a cost-effective solution, but you must be careful to get the right part and install it correctly.

1. Verify the Part Number: The most important step is to match the part number from your original TIPM exactly. The TIPM is the fuse box in the engine bay on the driver's side. The part number is typically on a white sticker on the side of the unit. Different part numbers may look identical but have different internal software for different trim levels and options.
2. Inspect for Damage: When buying a used module, inspect it carefully for any signs of corrosion on the pins or connectors. Water damage is a common cause of failure. Also look for any signs of melting or overheating around the fuse and relay sockets.
3. Understand Programming is Required: A used BCM/TIPM is not a plug-and-play part. It must be programmed to your truck's Vehicle Identification Number (VIN) and configured for its specific features (e.g., power windows, keyless entry, fog lights). Without programming, many features will not work, and the truck may not start.
4. Why Used OEM is Often a Good Choice: For a complex electronic part like this, a used original equipment (OEM) module that has been tested is often more reliable than a cheap, new aftermarket knock-off. OEM units were built to the manufacturer's original quality standards.

Programming and Installation Requirements

Replacing a BCM/TIPM is a two-step process: physical installation and electronic programming.

• Installation: The physical swap is relatively straightforward. Disconnect the battery, unclip the main wiring harnesses from the bottom of the TIPM, release the mounting tabs, and lift the unit out. The difficulty is moderate, mainly due to the large, tight connectors.

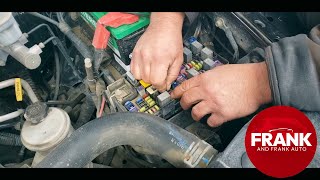

🎬 See this full tutorial on TIPM removal and installation
• Programming: This is the critical step. A replacement module is like a blank computer; it needs to be told that it's in a 2008 Ram 1500 with your specific VIN and options.
  • Dealer: A Chrysler/Dodge/Ram dealer can always program a new or used module using their proprietary wiTECH scan tool.
  • Independent Shops: Many independent repair shops and locksmiths have advanced, professional-grade scan tools (like the AutoProPAD) that can perform BCM/TIPM programming and configuration.
  • Cloning Services: Some online services offer to "clone" your original module. You send them your original and replacement modules, and they transfer the programming data from the old one to the new one, making it plug-and-play.

Cost Breakdown

Prices can vary significantly based on the source of the part and local labor rates.
