2004-2005 Ram 2500 & 3500 Front Control Module: Solving Electrical Gremlins and Replacement Guide

FCM vs. BCM: A Common Point of Confusion

If you're troubleshooting electrical issues on a 2004-2005 Dodge Ram 2500 or 3500, it's essential to know you are looking for a Front Control Module (FCM), not a traditional Body Control Module (BCM). On these specific model years, the main computer for body electronics is the FCM, a metal box attached to the fuse and relay center (Integrated Power Module, or IPM) under the hood. Later Ram trucks would combine these into a single unit called a Totally Integrated Power Module (TIPM), but for 2004-2005, the FCM is a separate, replaceable part.

Symptoms of a Failing Front Control Module

A failing FCM can cause a wide range of strange and intermittent electrical problems that may seem unrelated. Because the FCM controls so many different systems, its failure can make the truck feel haunted. Common symptoms include:

• Lighting Problems: Headlights, taillights, turn signals, or brake lights may not work, work intermittently, flicker, or stay on when they shouldn't. A "LAMP OUT" message on the dashboard is also a common indicator.

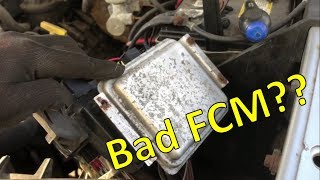

🎬 See how to troubleshoot a single headlight failure on your Ram.
• Erratic Wipers and Horn: The windshield wipers may turn on by themselves, operate at the wrong speed, or not work at all. The horn may also fail to operate.
• Power Accessory Malfunctions: Power windows and door locks may stop responding or work sporadically.
• Instrument Cluster Issues: You may see multiple, random warning lights illuminate on the dashboard. In some cases, the outside temperature display may show an incorrect reading, such as -40°F.
• Parasitic Battery Drain: A faulty FCM can fail to shut down a circuit, causing the battery to drain overnight or over a few days.
• Communication Errors: A professional scan tool may show communication-related Diagnostic Trouble Codes (DTCs), such as U-codes (e.g., U0140), indicating the FCM is not communicating correctly with other modules in the vehicle.

Known Issues, TSBs, and Recalls

The most significant official notice for this component is Safety Recall E17.

• Recall E17 / NHTSA 05V462000: This recall was issued for 2003-2005 Dodge Ram Heavy Duty trucks equipped with a 5.9L diesel engine and automatic transmission. The issue was that the vehicle could be inadvertently left in reverse, potentially leading to unexpected movement. The fix required dealers to perform a software update—or "flash"—to the Front Control Module (FCM) and the instrument cluster (CCN) to add an out-of-park alarm. This recall is important because it confirms that the FCM is programmable and that dealers have the factory tools (like the DRBIII) to do it.

There were also several unrelated recalls for Takata airbag inflators on these model years which owners should be aware of.

Replacement and Programming Requirements

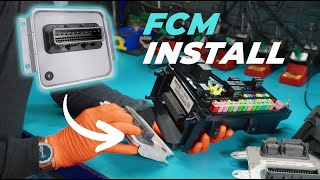

The physical process of replacing the FCM is straightforward. It is held to the front of the under-hood IPM (fuse box) by four screws. 🎬 Watch: How to properly install an FCM and avoid common mistakes. However, the electronic configuration is the critical part of the job.

1. VIN and Option Programming: Every truck has a unique combination of features (e.g., keyless entry, power windows, specific lighting packages). This information is stored in the FCM. When a new or used FCM is installed, it must be programmed with the correct configuration for that specific truck. A dealer or a properly equipped independent shop does this by connecting a diagnostic tool, entering the truck's VIN, and downloading the vehicle's "build data" to the new module.
2. What Happens If You Don't Program It? Installing an unprogrammed FCM, or one from a truck with different options, will likely result in features not working or behaving incorrectly. For example, your power locks might not work, or lights may behave erratically. While a used FCM from a truck with the exact same options might work by chance, it is a significant gamble.

Who Can Program a Replacement FCM?

• Dodge/Ram Dealerships: They have the factory scan tools (like the DRBIII or StarSCAN) and access to the vehicle configuration database.
• Module Suppliers: Many online vendors that sell remanufactured FCMs offer to pre-program the module to your VIN before shipping it to you. This is often the easiest path for DIY replacement.
• Automotive Locksmiths & Specialists: Some advanced locksmiths and mobile electronics technicians have the tools and software to program or "clone" modules. Cloning involves reading the data from your original FCM and writing it to the replacement. This is an excellent option if your original module is still able to communicate. It's best to call and ask specifically if they can program a 2004-2005 Dodge Ram FCM.

Buying a Used Body Control Module

A used FCM can be a cost-effective solution, but you must be careful to ensure compatibility and account for programming.

• Verify the Part Number: Match the OEM part number from your original FCM exactly. Known part numbers include 56043704AE and 56043704AF, but several others exist. Using the wrong part number can lead to incompatibility.
• Compatibility Warning: The initial data for this part notes it is for vehicles without side air bags. This is a critical safety and configuration detail. Ensure the donor vehicle for a used part had the same airbag options as your truck.
• Plan for Programming: Do not buy a used FCM assuming it will be plug-and-play. The most reliable method is to buy from a seller who offers VIN programming or to send both your original module and the used replacement to a specialist for cloning.
• Physical Inspection: When inspecting a used module, check the connectors for any signs of corrosion, bent pins, or heat damage. Avoid any units that show signs of water intrusion.
• Why Used OEM is a Good Choice: For a complex electronic part like the FCM, a used original equipment (OEM) module that has been properly programmed is often more reliable than a new, cheap aftermarket knock-off. OEM electronics are built to the manufacturer's specific standards for durability and performance.

Cost Comparison

Prices can vary, but here is a general breakdown of what to expect:
