Ford, Lincoln & Jaguar Climate Control Module (EATC) Failure: 1999-2006

Is This a Body Control Module (BCM) or a Climate Control Module?

This is one of the most common points of confusion. While the term "Body Control Module" is often used generically for any electronic box in a vehicle, this specific part is the Electronic Automatic Temperature Control (EATC) module. It is dedicated solely to managing the heating and air conditioning system. A true BCM controls a much wider range of functions like power windows, door locks, interior lighting, and anti-theft systems. If you are having problems with your A/C or heat, the EATC module is the likely culprit, not the main BCM.

Symptoms of a Failing EATC Module

A failing EATC module can manifest in several ways, often leading to an uncomfortable cabin environment. Because it controls multiple components, symptoms can vary.

• Air Blows from the Wrong Vents: This is a classic symptom. You might select the main panel vents, but air only comes out of the defrost or floor vents. On many Ford products of this era, the system is designed to default to the defrost vents when a vacuum fault occurs.
• Temperature Control is Incorrect or Unresponsive: The most frequent complaint, especially on the Jaguar S-Type and Lincoln LS, is the system blowing full hot air regardless of the temperature setting. This can happen on one or both sides of the vehicle.
• Blower Fan is Inoperative or Stuck on High: The module controls the blower motor speed. A failure can result in the fan not working at all, or being stuck on its highest speed.
• No Display or Flickering Lights: The control panel itself may go dark, have a flickering display, or be completely unresponsive to button presses.
• Clicking Noises from the Dash: While often caused by a separate blend door actuator, a faulty EATC module can send improper signals, causing the actuators to make a repetitive clicking sound.

Known Issues, TSBs, and Recalls by Vehicle

These vehicles share a common EATC module design, but some issues are more prevalent on certain models.

2003-2006 Ford Expedition & Lincoln Navigator

• Common Failure: The most reported issue is a loss of control over vent direction, often defaulting to defrost. This is typically caused by failing internal vacuum solenoids or their O-rings.
• Compatibility Note: For 2006 models, this part only fits vehicles manufactured before December 13, 2005. Vehicles built after this date use a different module.
• Related Issues: Clicking noises from the rear of the vehicle are usually the separate rear HVAC blend door actuator, not the main EATC module in the dash.
🎬 Watch: How to fix clicking noises from the rear HVAC actuator.

1999-2002 Jaguar S-Type & 2000-2002 Lincoln LS

• Common Failure: These models are notorious for the system getting stuck blowing hot air. This is often a two-part problem. The Dual Climate Control Valve (DCCV), also called the heater valve, fails first. When it fails, it can draw too much electrical current and damage the driver circuits inside the EATC module.

• Warning: If you replace a failed EATC module in an S-Type or LS without also replacing a faulty DCCV, the new module will likely be damaged again very quickly. It is highly recommended to replace both parts at the same time.

  🎬 See this walkthrough on replacing the Jaguar S-Type climate module.
• Location: In cars without navigation, the module is part of the main control panel in the dash. In cars with factory navigation, it is a separate silver box called the Remote Climate Control Module (RCCM) located behind the glove box.

2002 Ford Explorer

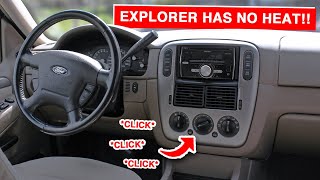

• Common Failure: The 2002 Explorer can suffer from both electronic failures in the control module and issues with blend door actuators. A common symptom is a clicking noise from the dash followed by a loss of temperature control. For models with manual (non-automatic) climate controls, a loss of vacuum can also cause the air to default to the defrost vents.

2002 Ford Thunderbird

• Common Failure: Like its platform-mates (LS and S-Type), the Thunderbird's EATC module is susceptible to internal failure that can be caused by a bad heater control valve, leading to temperature regulation problems. Repair services for these modules often explicitly state that the heater control valve must be replaced to prevent repeat failure.

Programming, Calibration, and Installation

While dealer programming isn't needed, some aftermarket and remanufactured units may suggest a calibration procedure after installation. A common procedure involves disconnecting the battery or a specific fuse for a minute, then turning the ignition on and letting the system self-calibrate for about 30 seconds before touching any controls.

For the Jaguar S-Type, some owners have reported issues with the outside temperature display being incorrect after swapping modules, with some dealers suggesting a reprogram might fix it, though this is not a universal experience.

Buying a Used Body Control Module

A used OEM EATC module can be a reliable and cost-effective solution. Since these units don't require programming, it's a straightforward swap. Here’s what to look for:

• Match the Part Number: This is the most critical step. Ford used many visually identical but internally different modules. The only way to guarantee compatibility is to match the OEM engineering number printed on your original unit's sticker. The last two letters of the part number often indicate revisions but are usually less critical than the main part number.
• Physical Inspection: When you receive the part, inspect the connectors for any signs of corrosion, melting, or burnt pins. This can indicate an external problem in the vehicle harness or a severe internal failure in the donor unit.
• Check the Source Vehicle: If possible, know the history of the donor car. A module from a low-mileage, non-flood-damaged vehicle is always a better bet.
• For S-Type/LS/Thunderbird Owners: Remember the link between the EATC and the heater valve (DCCV). A used module is a great value, but it's wise to invest in a new DCCV to protect your purchase.

Cost Breakdown

Prices can vary based on location and availability. The following is an estimated cost comparison:
