2002-2010 Explorer, Expedition & More: EATC Climate Control Module Guide (No Programming Needed)
If your truck's climate control has a mind of its own—especially if air is stuck blowing from the defrost vents—this guide is for you.
- This is an EATC (climate control) module, NOT the main Body Control Module (BCM).
- This part is PLUG-AND-PLAY and does NOT require any programming or dealer visit after installation.
- The most common failure is air getting stuck blowing out the defrost vents, caused by internal vacuum leaks.
- Always run the built-in self-test (OFF + FLOOR, then AUTO) to check for fault codes before replacing.
Is This a Body Control Module (BCM)?
No. While it is an electronic module that controls body-related functions, this part is specifically the Electronic Automatic Temperature Control (EATC) module. In many Ford trucks and SUVs, this is a separate computer dedicated solely to the climate control system. The main Body Control Module (BCM) handles other functions like power windows, locks, and lighting. If you are troubleshooting climate-specific issues, the EATC module is the component you should be focused on.
Symptoms of a Failing EATC Module
When the EATC module begins to fail, it can cause a wide range of frustrating issues. Because it controls the entire automatic HVAC system, its symptoms can be diverse and sometimes misleading.

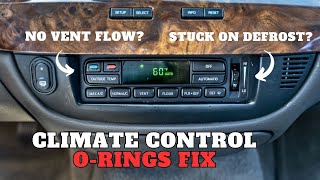

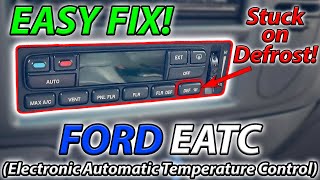

1. Air Blows from the Wrong Vents (Stuck on Defrost)
This is the single most common failure symptom for these modules. You may select the panel (dash) vents, but air only comes out of the defrost vents at the base of the windshield, or sometimes the floor vents. This problem often gets worse during acceleration, as the system loses engine vacuum and defaults to the defrost setting for safety. The cause is almost always a failure of internal vacuum solenoids.
2. Blank or Flickering Display
The digital display on the unit may become dim, flicker, or go out entirely. This is usually caused by burnt-out incandescent bulbs on the internal circuit board. Sometimes, a complete power loss to the unit can be caused by a bad connection or a fault in another vehicle system.
3. Inability to Control Temperature
The system may get stuck blowing only hot air or only cold air, regardless of the temperature you set. While this can be a fault within the EATC module, it is also a classic symptom of a failed blend door actuator. It is critical to perform the EATC self-test to check for codes related to the blend door actuator before replacing the EATC module itself.
4. A/C Compressor Won't Turn On
The EATC module sends the signal that allows the A/C compressor clutch to engage. A faulty module may fail to send this signal, meaning the A/C will not get cold, even if the rest of the system (refrigerant, compressor) is fine.

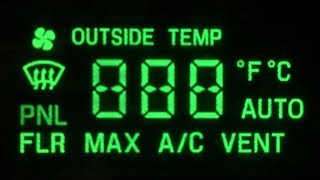

How to Diagnose the Problem: The EATC Self-Test
Before you replace any parts, you should run the built-in diagnostic self-test. This powerful feature can read the system's internal fault codes and tell you exactly where the problem is.
- Turn the ignition to the 'ON' position, but do not start the engine.
- The climate control system should be turned off (blank display).
- Press the OFF and FLOOR buttons simultaneously, then release.
- Within two seconds, press the AUTOMATIC button.
The display will show a sweeping graphic as the test runs, which can take up to 30 seconds. When complete, it will display any Diagnostic Trouble Codes (DTCs). If there are no codes, the display will typically show '888'. Write down any codes you see. Codes 024 and 025, for example, point to a fault with the blend door actuator, not the EATC module itself.
Pro Tip: To exit the self-test and clear all stored codes, press the DEFROST button. To exit without clearing codes, press any other button or cycle the ignition.

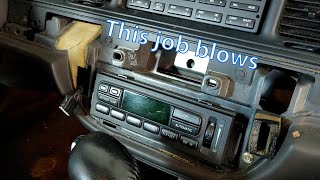

Known Issues: The Internal O-Ring Failure
The primary reason these modules fail is due to the degradation of small rubber O-rings inside the vacuum solenoid block. Over years of heat cycles, these O-rings dry out, crack, and lose their ability to seal. This causes an internal vacuum leak. Since the vent doors are controlled by vacuum, the system can no longer hold enough vacuum to direct air to the panel vents and defaults to the defrost position. While repairing these O-rings is possible, it is a delicate job and some module housings are plastic-welded together, making them very difficult to open without causing damage.

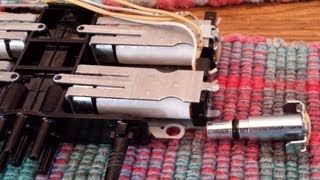

🎬 See how to replace internal O-rings to fix defrost issues.Buying a Used EATC Module: What You Need to Know
Since new OEM modules are discontinued, the used market is the best source for this part. Buying a used OEM module is often a better choice than a new aftermarket part, which can have mixed reviews on quality and calibration. Here's what to look for:
- No Programming Needed: This is the best news for DIYers and buyers. These EATC modules are plug-and-play. You do not need a dealer or special tools to program or flash the unit. Simply install it, and it will work.
- Match Your Part Number: While these modules look similar, it's always best practice to match the OEM part number from the sticker on your original unit. This ensures 100% compatibility.
- Physical Inspection: When buying a used part, check for any cracks in the plastic housing or damage to the electrical connectors.
- Ask About Testing: Reputable sellers will test the unit before shipping. Ask if they have confirmed that all buttons work and that the display is bright.
Cost to Replace EATC Module
Replacement costs vary depending on the source of the part. Since this is a relatively easy part to access and replace (typically under an hour of labor), doing it yourself can save significant money.
| Part Source | Estimated Cost |
|---|---|
| New OEM | Discontinued |
| New Aftermarket (e.g., Dorman) | $150 - $300 |
| Used OEM | $50 - $125 |
| Remanufactured (Rebuild Service) | $80 - $150 |
| Shop Labor | $100 - $175 |
Frequently Asked Questions (FAQ)
Does this module need to be programmed to my vehicle's VIN?
No. This EATC module is a plug-and-play part and does not require any programming, flashing, or dealer visit after installation.
Why is my A/C stuck on the defrost vents?
This is the most common symptom of a failed EATC module. It's caused by tiny, dried-out rubber O-rings inside the module that create a vacuum leak, causing the system to default to the defrost setting.
Will replacing the EATC fix my temperature problem (stuck on hot/cold)?
It might, but that problem is often caused by a separate part called the blend door actuator. Before replacing the EATC module for a temperature-only issue, run the built-in self-test. If you see codes like 024 or 025, the blend door actuator is the likely culprit.

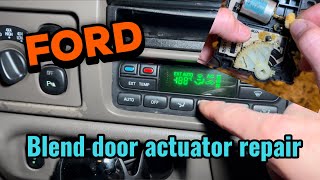

🎬 Watch: How to diagnose and fix a faulty blend door actuator.Can I repair my original EATC module?
Yes, it is possible to disassemble the module and replace the internal O-rings and backlight bulbs. However, the process is delicate and some versions of the module are plastic-welded shut, making them very difficult to open without breaking the housing. For most people, buying a tested used unit or using a professional rebuild service is a more reliable option.
What's the difference between this and the module for manual A/C?
This EATC module is a computer that automates the climate system. Vehicles with manual A/C (three simple knobs for temperature, fan speed, and vent position) use a much simpler set of electrical switches and cables and do not use this module. This part is NOT interchangeable between automatic and manual systems.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3L2H19E6214AA 3L2H19E624AA 3L2Z19E624AA 6L2419E624AA 6L2Z19E624A
This module is for vehicles equipped with Automatic Climate Control (digital display). It will NOT fit vehicles with manual (knob-style) AC controls.
